JonM's 3D Printed Marker Upgrades

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    JonM's 3D Printed Marker Upgrades

    I've created a Shapeways shop for some of my designs. The page can be found here: https://www.shapeways.com/shops/3d-pb-designs
    Individual prices are dependent on the materials selected (Please see site for specifics)


    Emek / Etha 2 Bolt Cap
    Easier to grasp to make unscrewing the bolt more convenient

    Click image for larger version  Name:	625x465_33603549_17741620_1609209152.png Views:	0 Size:	258.0 KB ID:	72934

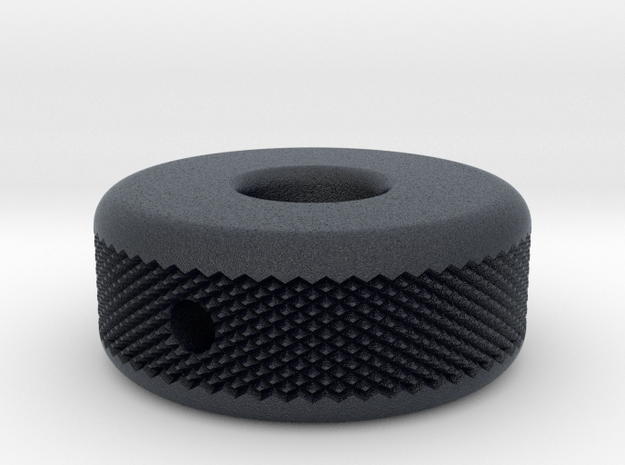

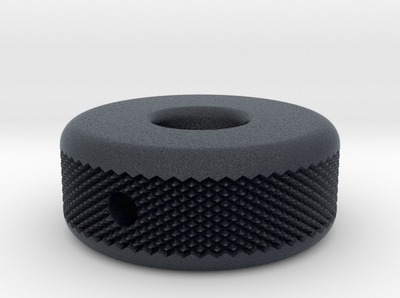

    Extended Sheridan Feed Plug
    Takes two #015 o-rings to hold it in place (not included). Compatible with Sheridan stock class markers up to and including the PGP2. Also accepts stock Sheridan Allen screws to lock it into place (optional). This model also has a hole through it for an optional lanyard to tie it to the marker.

    Click image for larger version  Name:	625x465_33035871_17459022_1604083225.png Views:	0 Size:	181.2 KB ID:	72935

    Offset Phantom Feed Cap for Drop-Out 12-Gram Changers
    Raises the feedgate so that it does not need to be trimmed to reduce stress on the feed tube. Depending on printing tolerances, you may need to lightly sand the interior or add electrical tape to the end of the feed tube for a snug fit.

    Click image for larger version  Name:	625x465_33023851_17453838_1604061155.png Views:	0 Size:	260.5 KB ID:	72936

    Nelspot 007 Pump handle
    Pretty self explanatory
    Click image for larger version  Name:	625x465_33035652_17453902_1604081211.png Views:	0 Size:	144.7 KB ID:	72937

    Hardpoint 12-Gram Holder
    A bottomline mounted 12-gram holder that uses two o-rings to hold the cartridges in place (o-rings and screws not included)

    Click image for larger version  Name:	625x465_33036108_17459122_1604084763.png Views:	0 Size:	213.7 KB ID:	72938
    My Feedback Thread
    3D Printed Marker Upgrades

    #2
    I like the emek cap! Do you have more designs on the way for those?
    www.armorypaintball.com

    Comment


      #3
      Originally posted by euangelion View Post
      I like the emek cap! Do you have more designs on the way for those?
      Thanks! I'm mulling some ideas around right now actually.
      My Feedback Thread
      3D Printed Marker Upgrades

      Comment


        #4
        I would love to see a 007 (R7) under cocking ish kit

        And a bigger, deeper pump for side tube sheridans... ?

        Comment


        • Stilgar

          Stilgar

          commented
          Editing a comment
          Nope

          I have that pump handle for the R7. I am looking for one that acts more like a phantom UC kit. Likely the same pump arms, but with a larger, blockyer lower section?

          For the Sheridan, I am looking for one that fits around a side tube, but also has the blocky lower grip section.

        • JonM

          JonM

          commented
          Editing a comment
          Hmmm. The UC kit would be tricky through Shapeways. They charge by the part and plastic probably wouldn’t be the best option for anything but the pump handle itself.

          As for the side tube, I would need a gun to test fit it to. Come to think of it, the same would also go for the R7 if it could be done.

          In either case, it would probably get pretty expensive what with all the design work, prototyping, and final printing required.

        • Stilgar

          Stilgar

          commented
          Editing a comment
          I will try and get some photos of what I mean.

        #5

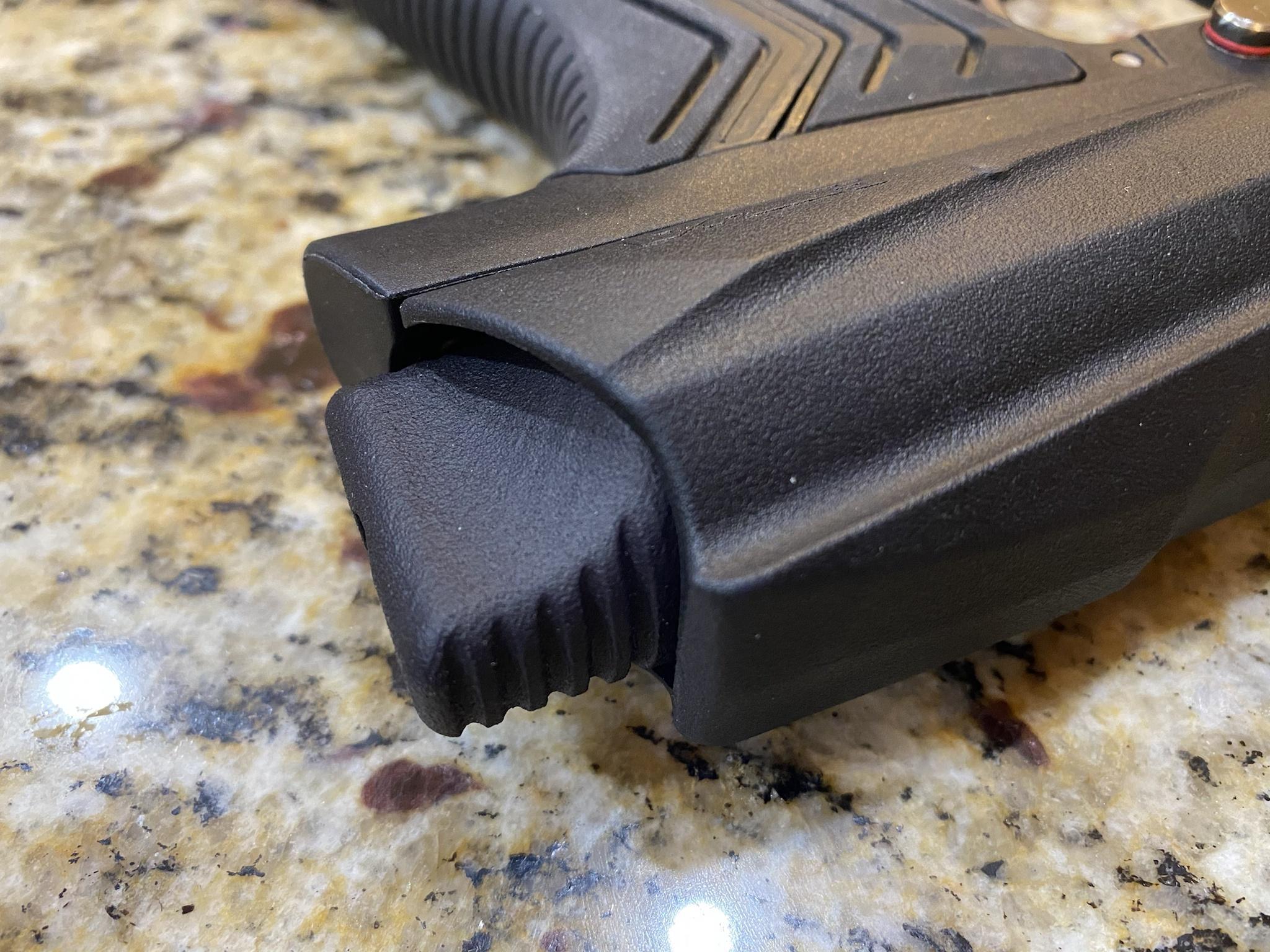

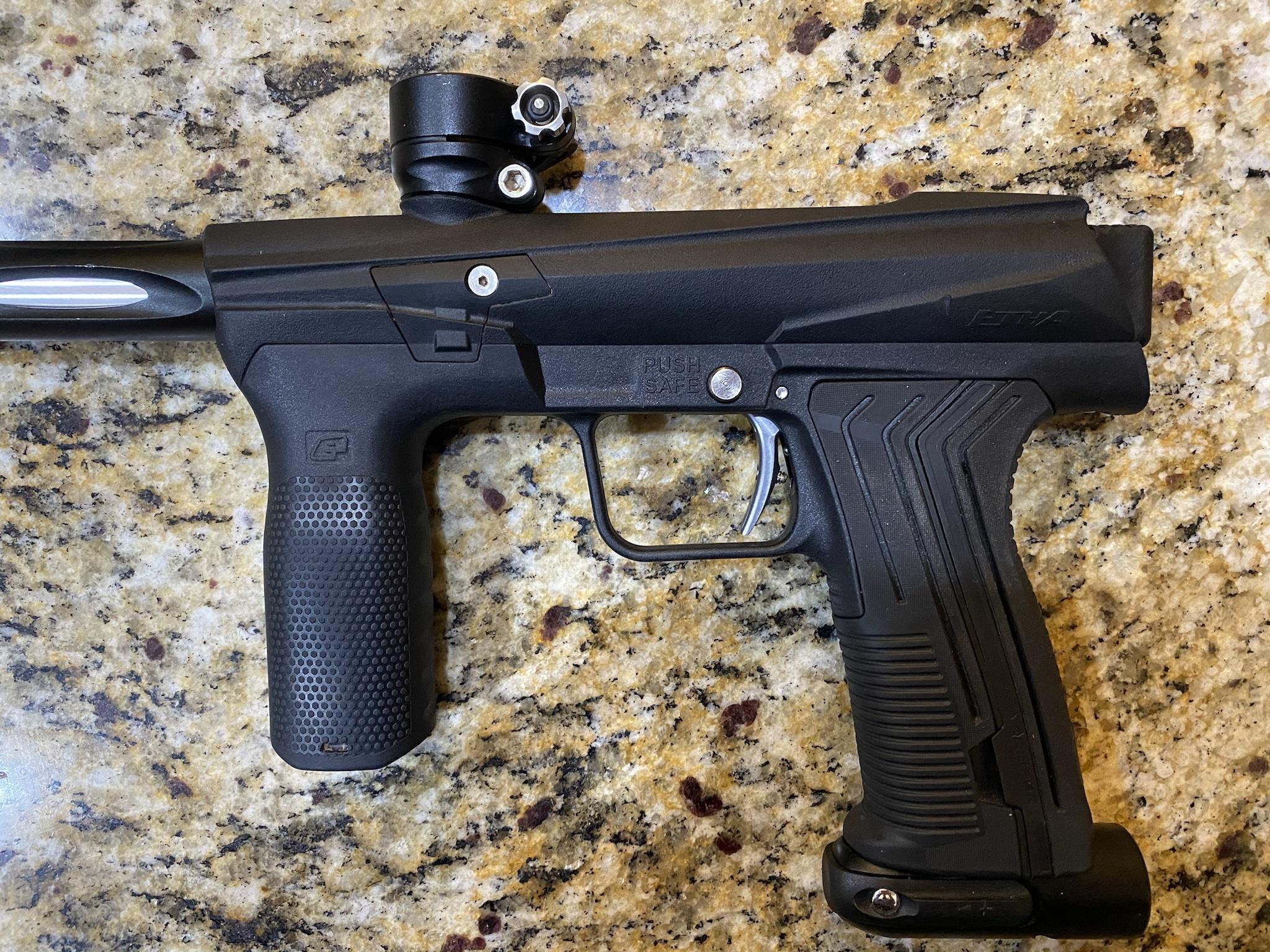

        I received my sample from Shapeways today. Here is what you can expect if you order one for yourself. This bolt cap was printed in their PA12 black material. The part feels solid and layer lines are nearly indiscernible. The part pretty much looks and feels nearly identical to the stock GRN Emek body. Removing the bolt is significantly easier now and I think it looks great. I'll be keeping this part on my Emek from now on.

        Click image for larger version

Name:	QIwapKV.jpg
Views:	349
Size:	415.4 KB
ID:	78312

        Click image for larger version

Name:	Ma9VcqT.jpg
Views:	344
Size:	642.8 KB
ID:	78311
        My Feedback Thread
        3D Printed Marker Upgrades

        Comment


          #6
          Nice work!
          Originally posted by MAr
          ... Nish deleted it...

          Originally posted by Axel "coffee-fueled, beer-cooled."

          Master Jar-Jar

          Comment


          • JonM

            JonM

            commented
            Editing a comment
            Thank you! I'm really happy with how this turned out. I just may need to turn to Shapeways for other small parts for myself despite owning a printer of my own.

          #7
          It looks like Shapeways is currently running a 15% off special for first time buyers using code "myfirstprint" for Nylon 12 (Versatile Plastic), Nylon 12 MJF, and Fine Detail Plastic.
          My Feedback Thread
          3D Printed Marker Upgrades

          Comment
