*NEW* Mini Dye Rotor 90 Round Complete Hopper Conversion Kit

[Xennocide]

Ready for something new?

Background:
As a lifelong pump player I always desired a compact, light, reliable, motorized loader to keep up with the autotrigger and nothing really fit the mold. I hoped Dye would make a Rotor shell that was smaller, something in the 100 round capacity range but like Half Life 3, it never came out.

About 3 years ago I got hooked on 3D printing and quickly started working on my own models. I got ahold of the shoebox Rotor and played with that for a few trips and although the idea was great, improvements could be made and I set out on a path to a new design. 9 months of work has brought me to a place I am pretty happy with and has been reliable on the field from taking hits, to getting slammed in the snow and ice as I lost my footing and used it to stop my fall.

This brings is us to today and what I am offering

UPDATE Version 2.0 is now READY

• Revised Spring System - Now springs open

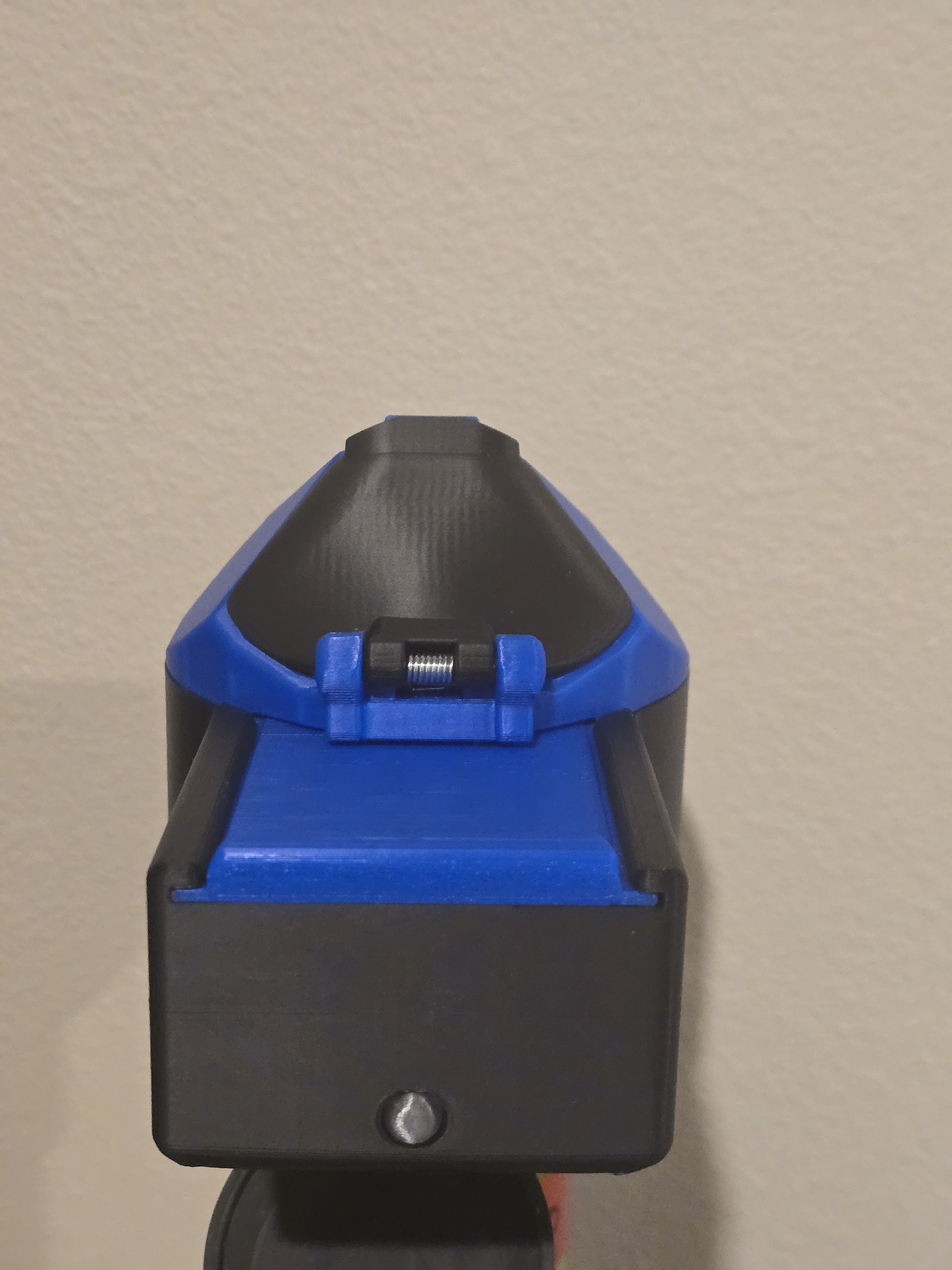

• Locking lids! Spring loaded push button, slides and locks securely

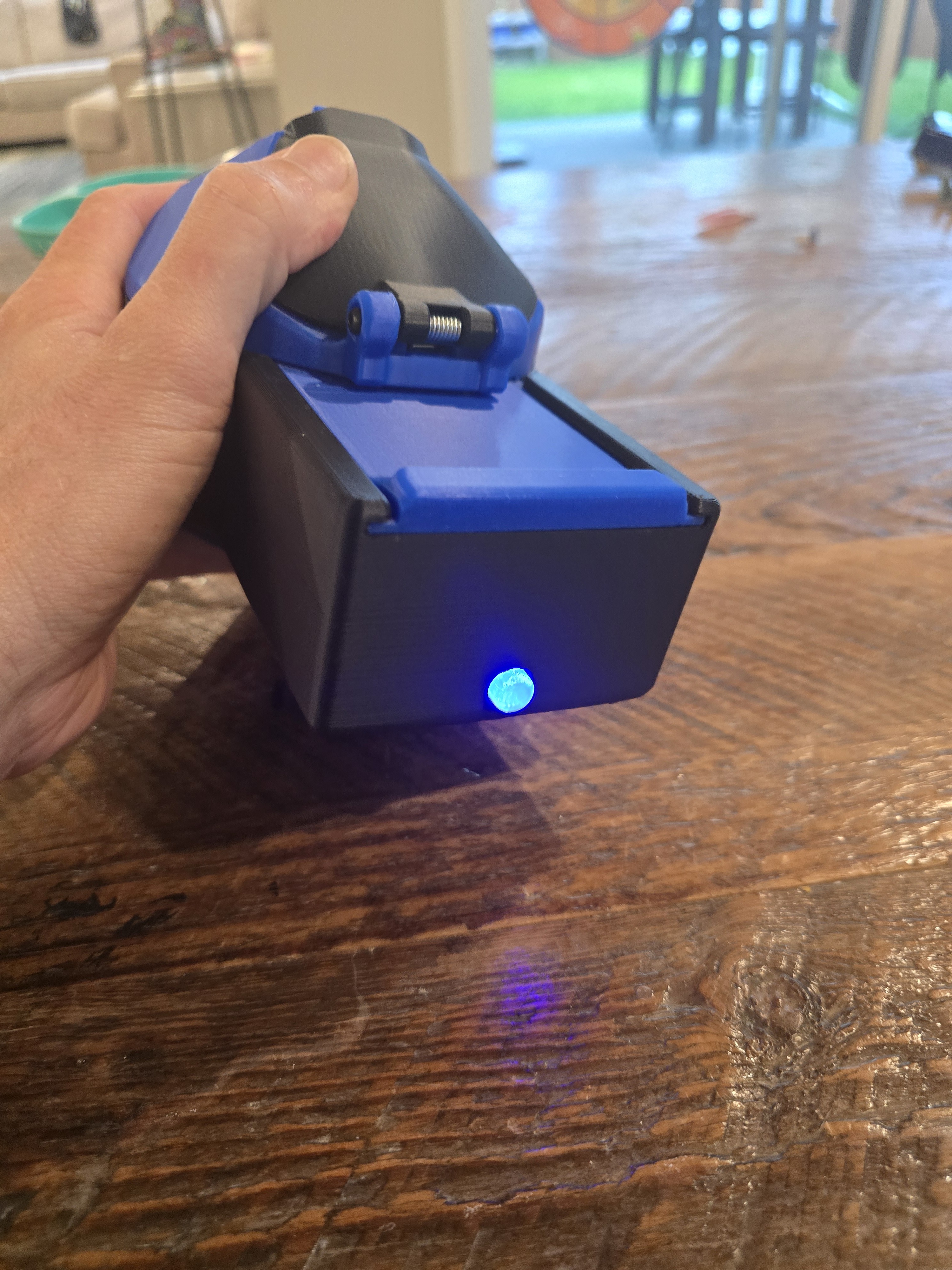

• Translucent power button - much easier to tell if rotor is on

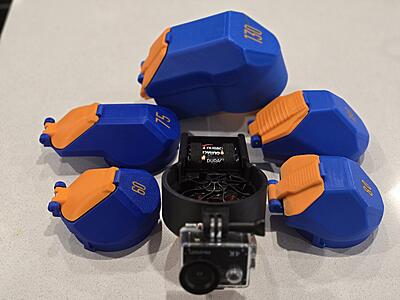

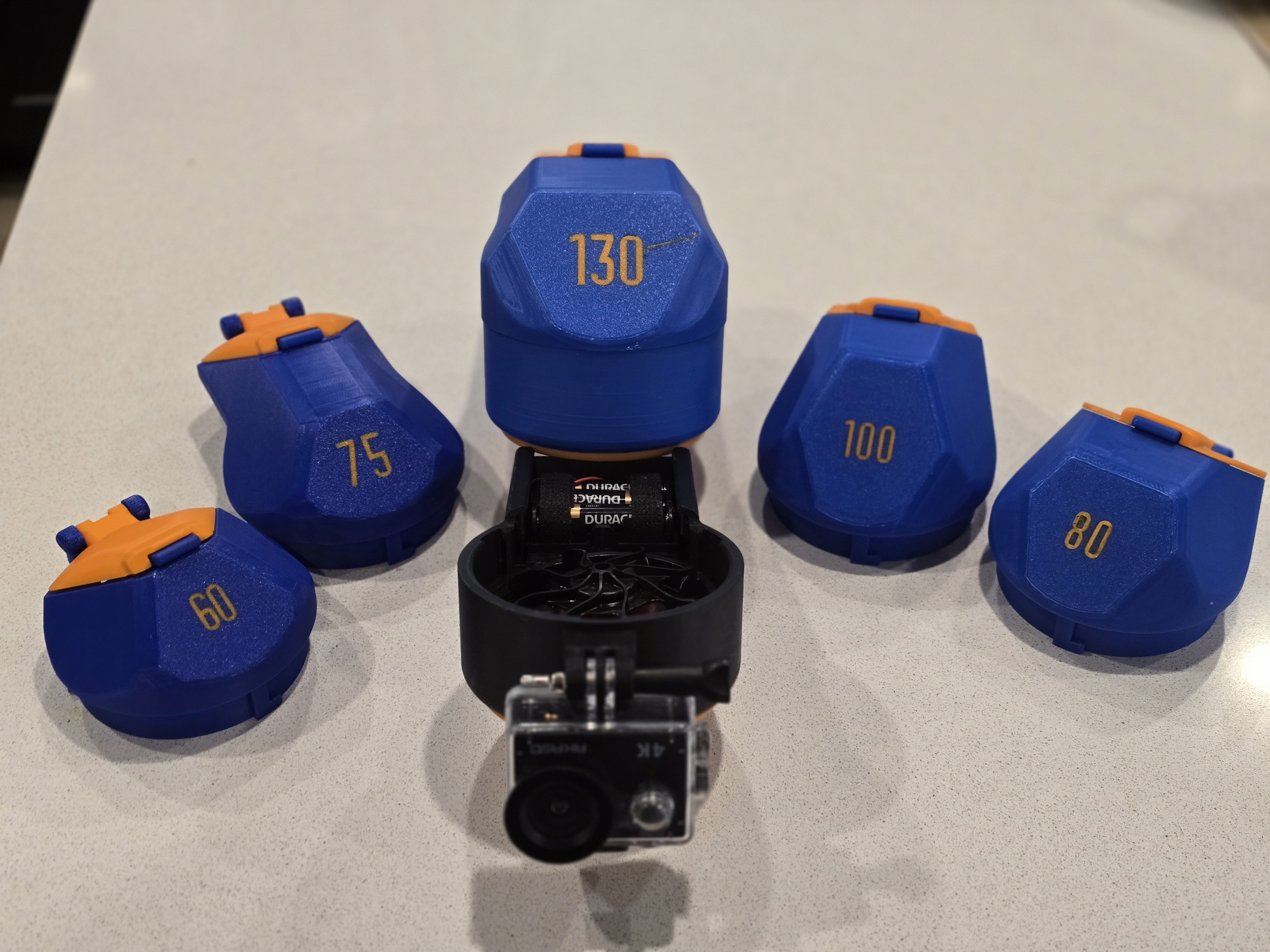

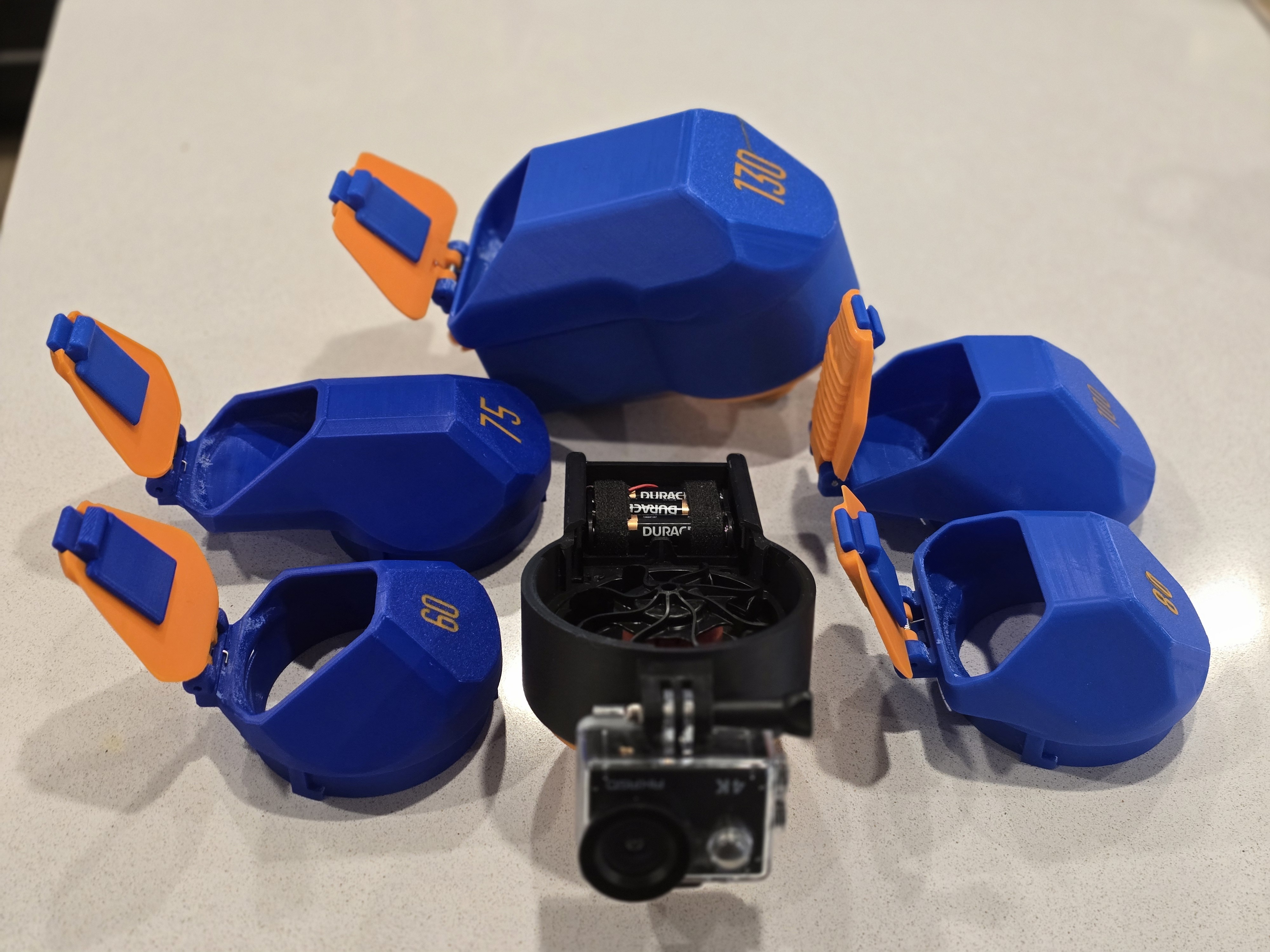

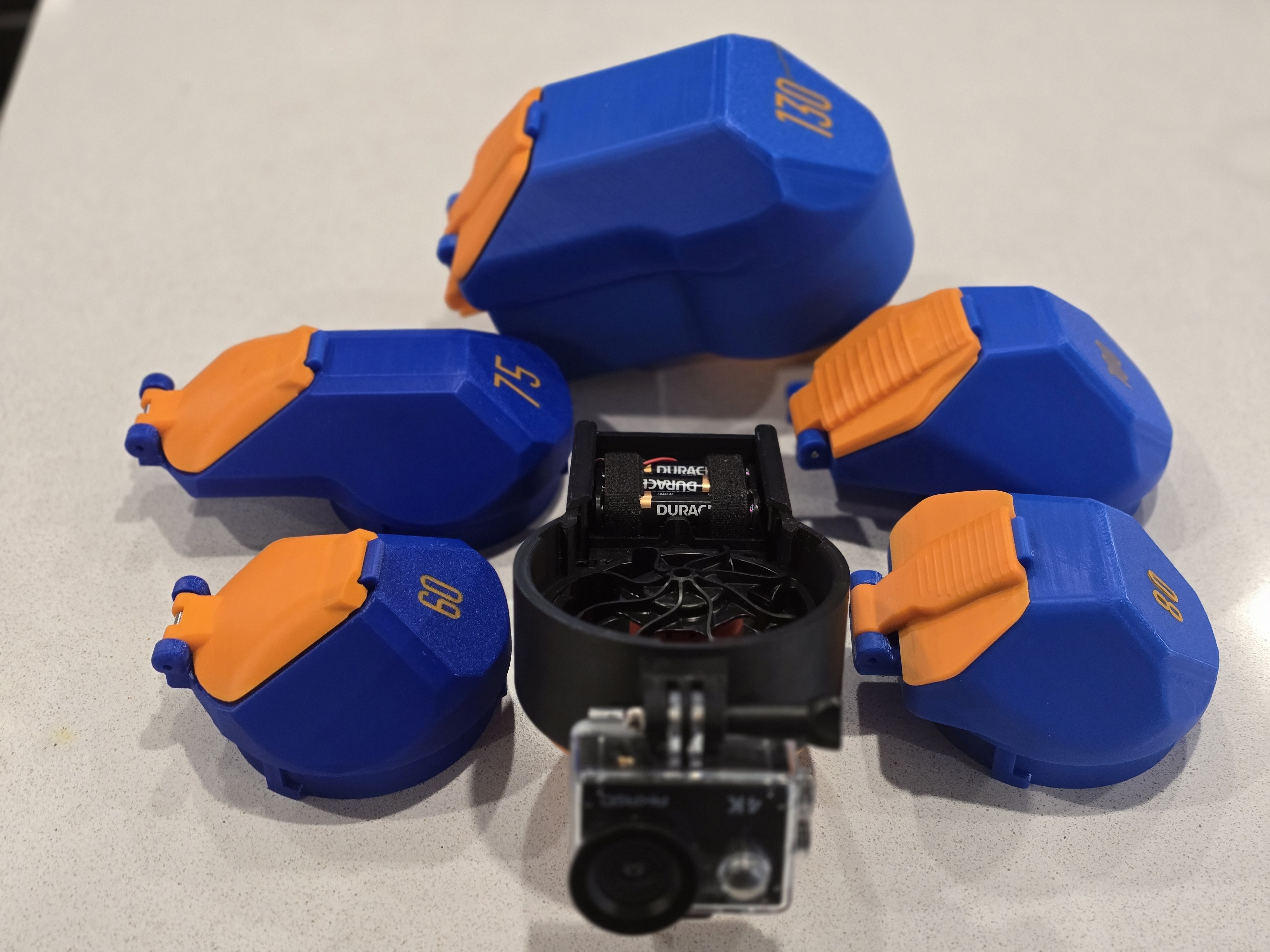

• 5 capacity options 60, 75, 80, 100, 130 (450 round coming soon!)

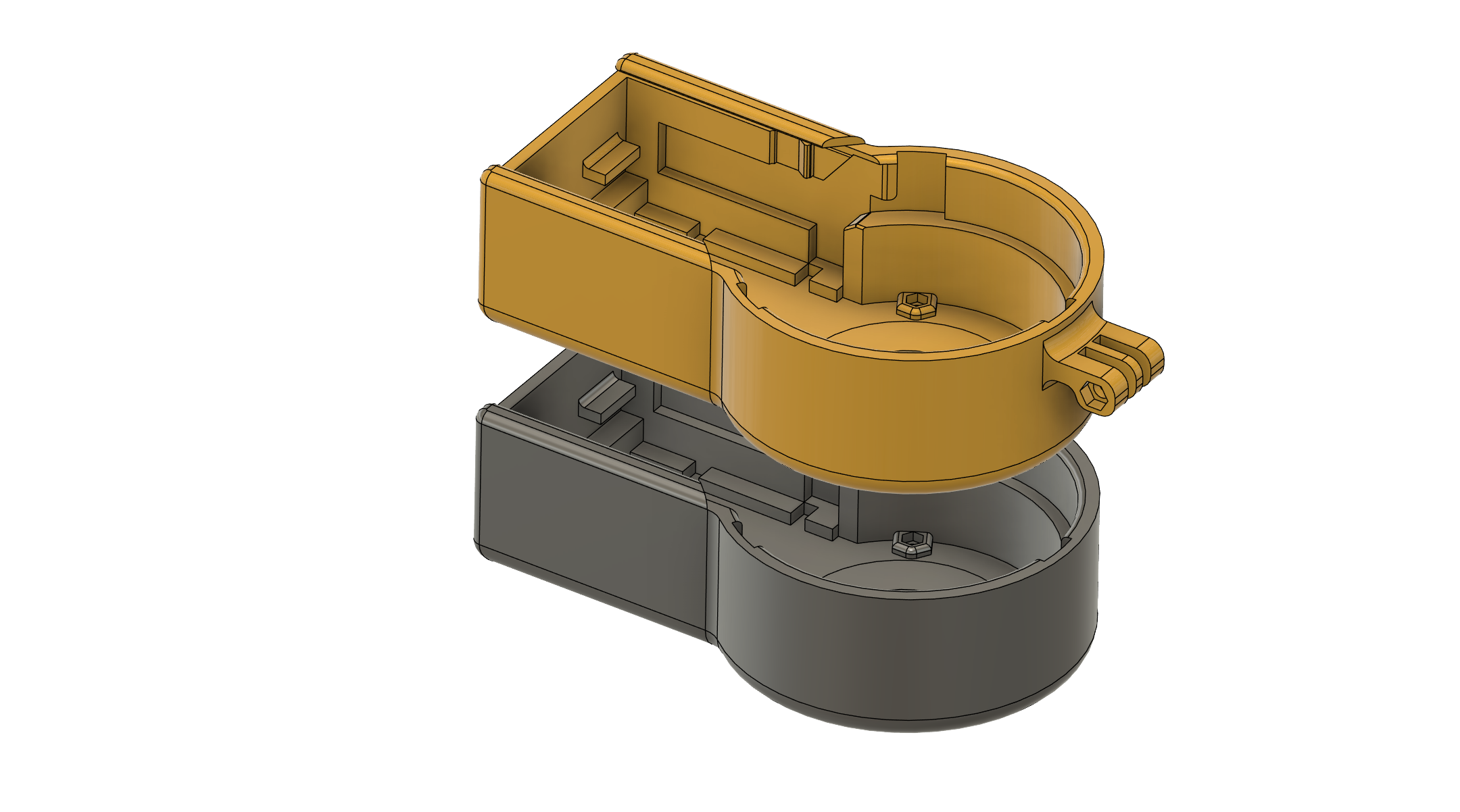

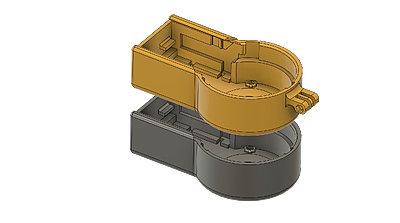

• New lower option with ability to mount camera: Go Pro/Clones
  • All Uppers and lowers work with each other. Locking sleds may be specific for size or magnet

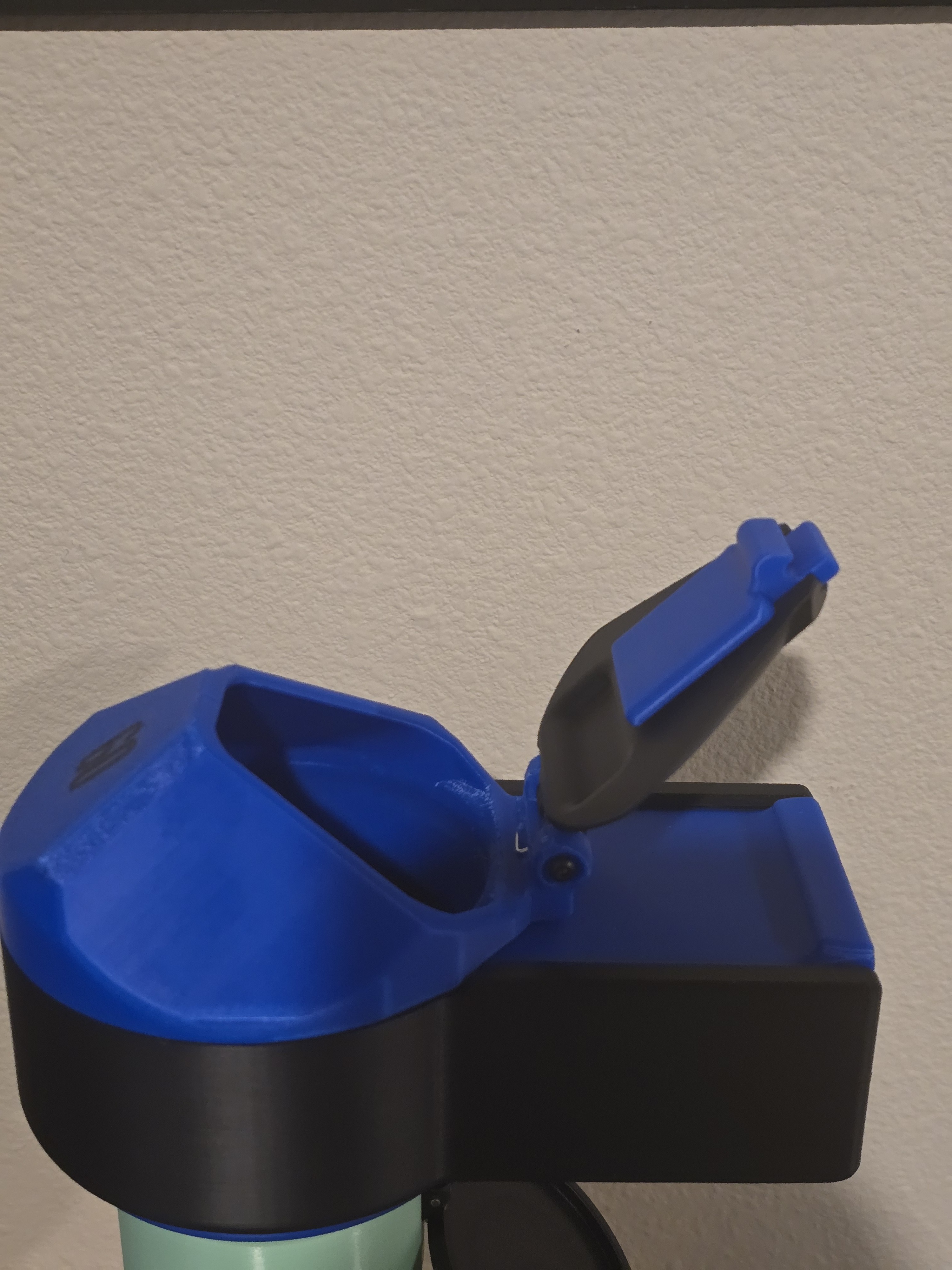

Still like the older version with magnetic hold open lids? No problem I will not retire them.

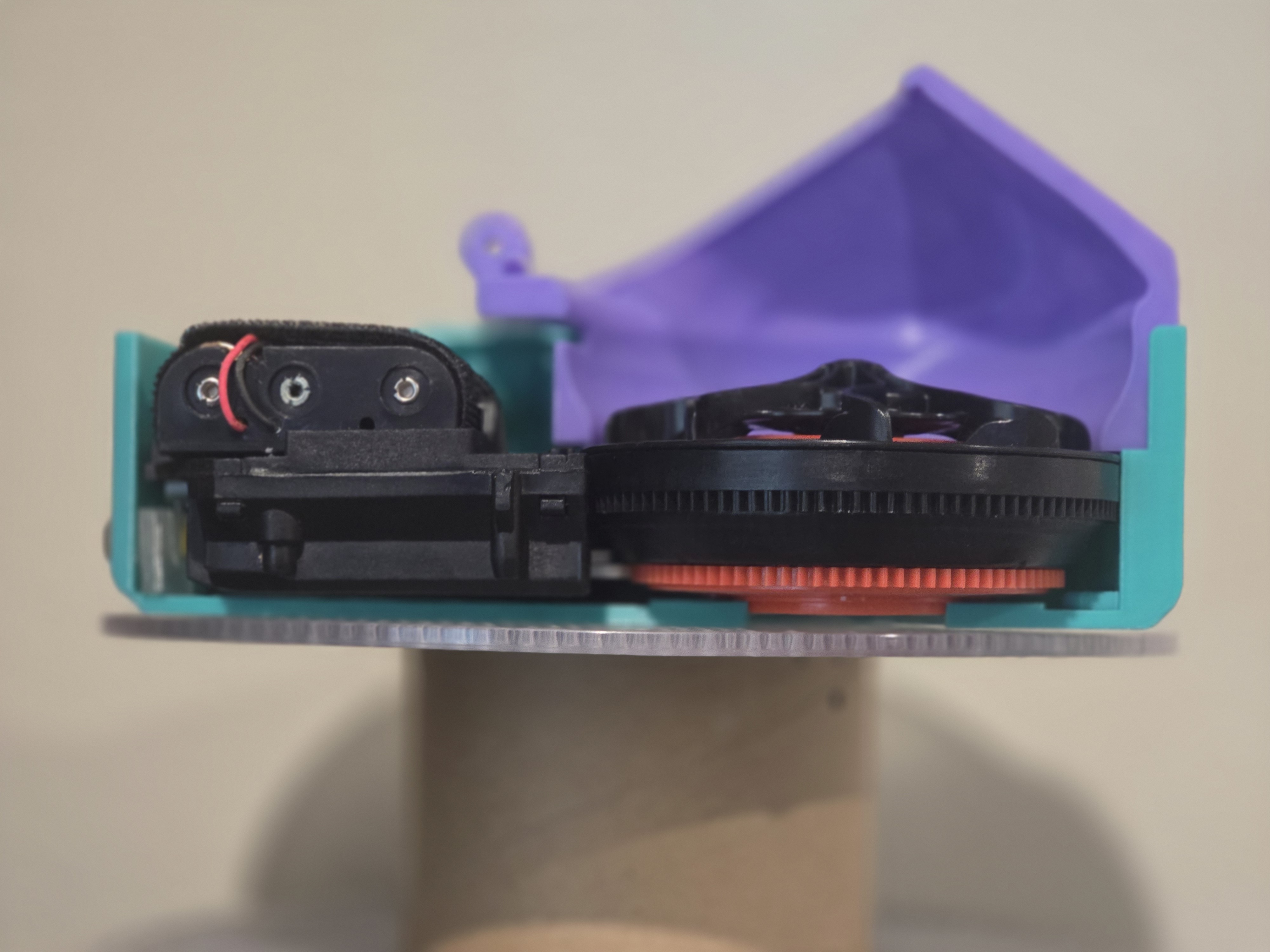

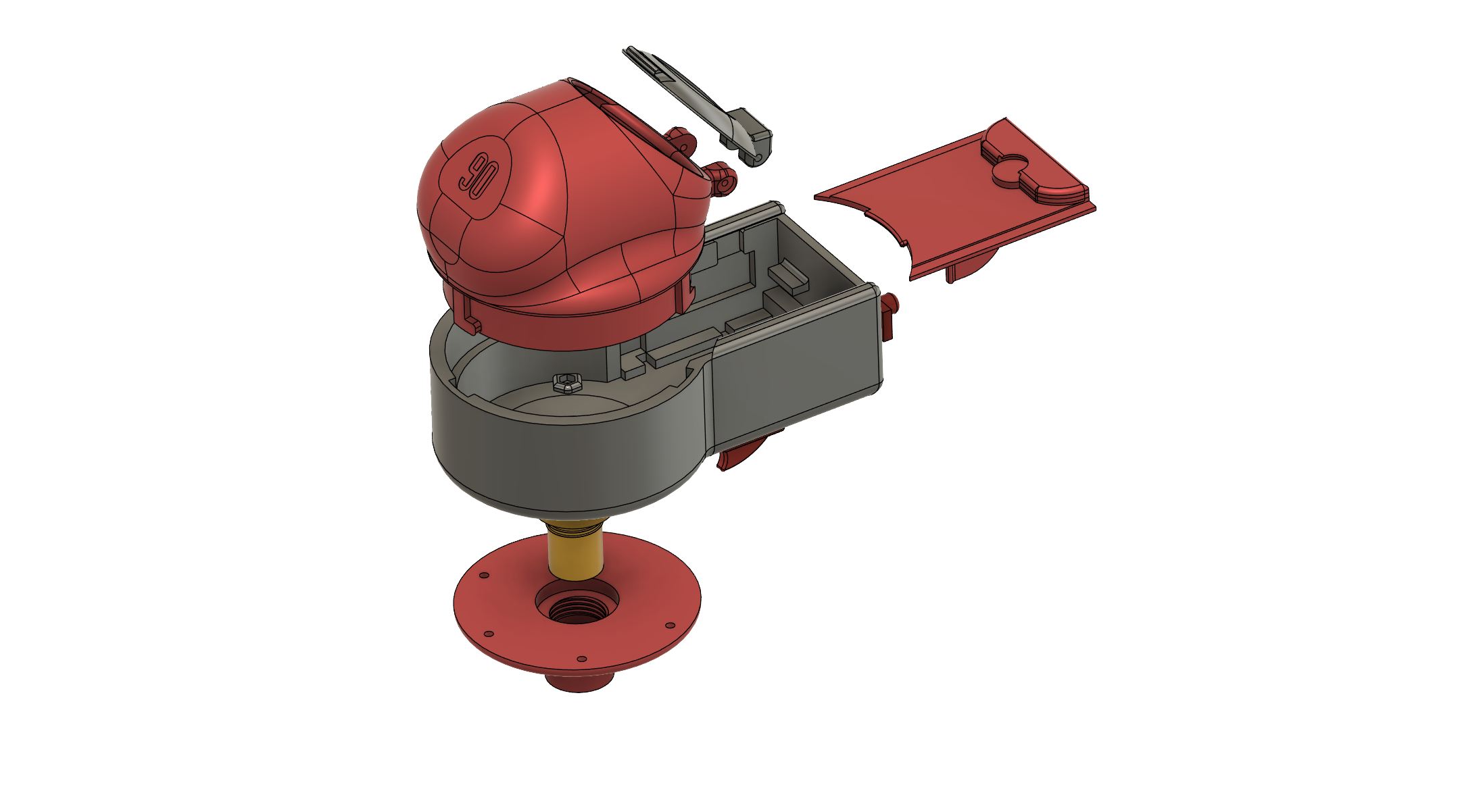

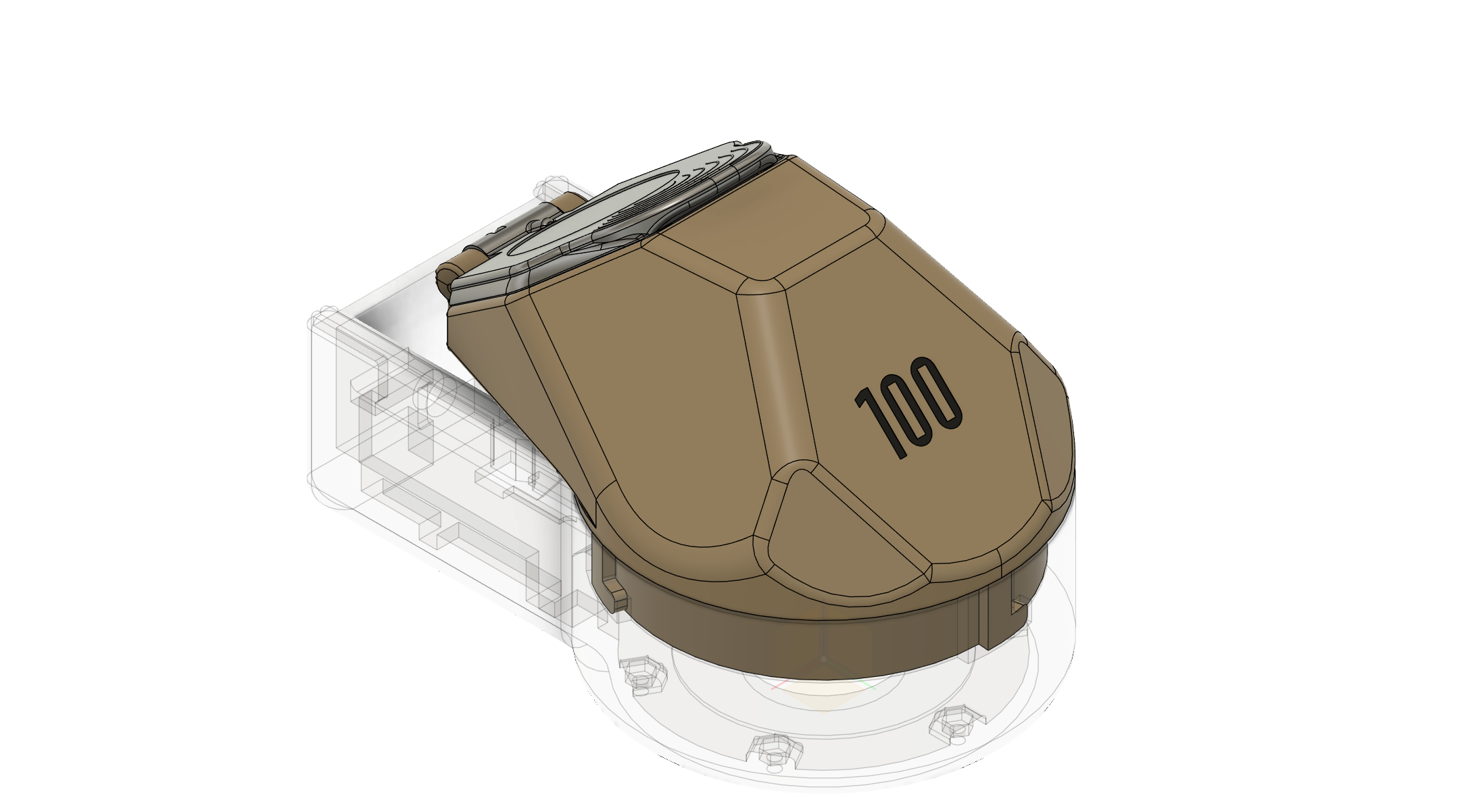

Cutaway View:


Uppers:

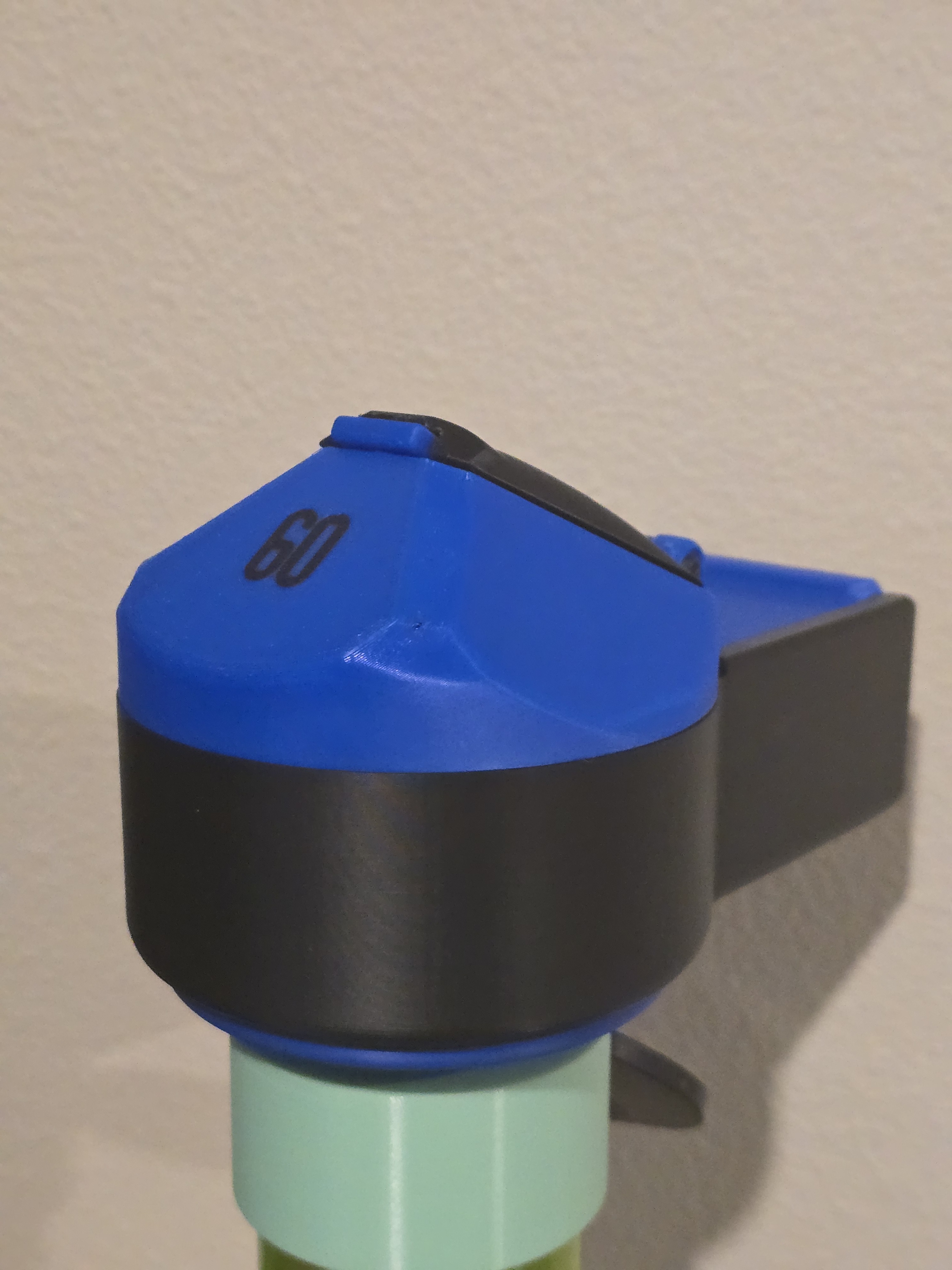

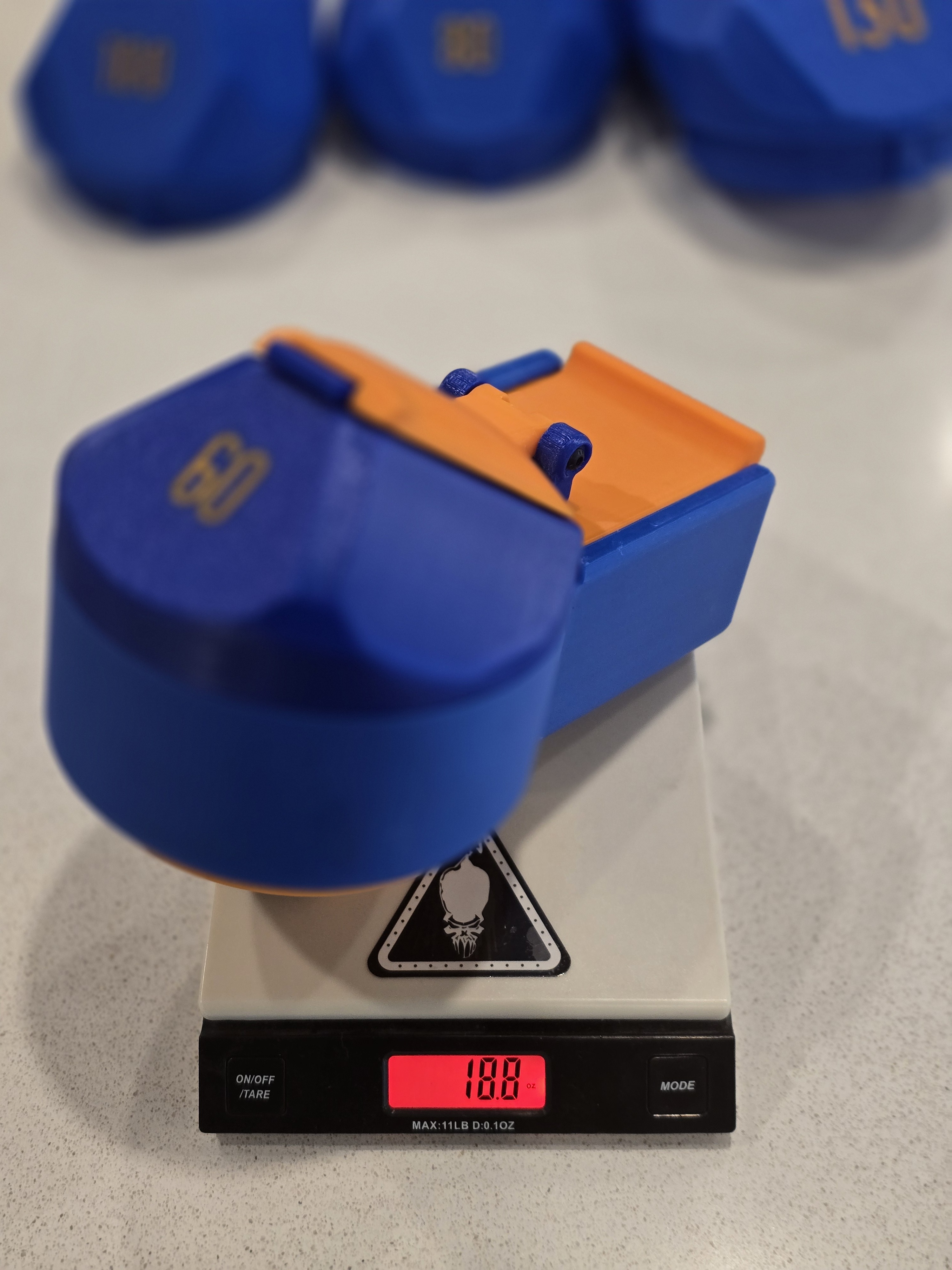

60 round capacity
Empty weight (no paint): 18.8oz

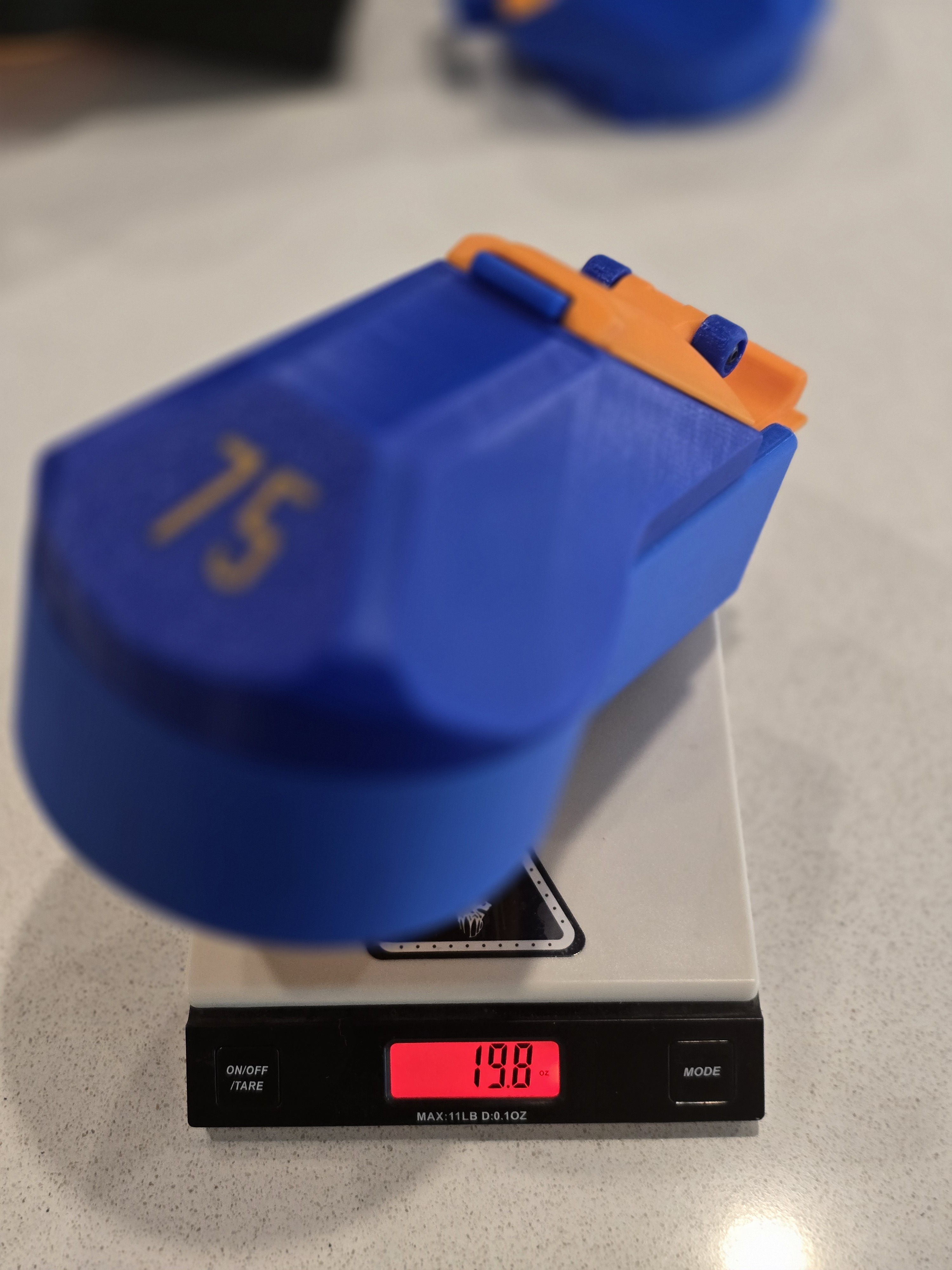

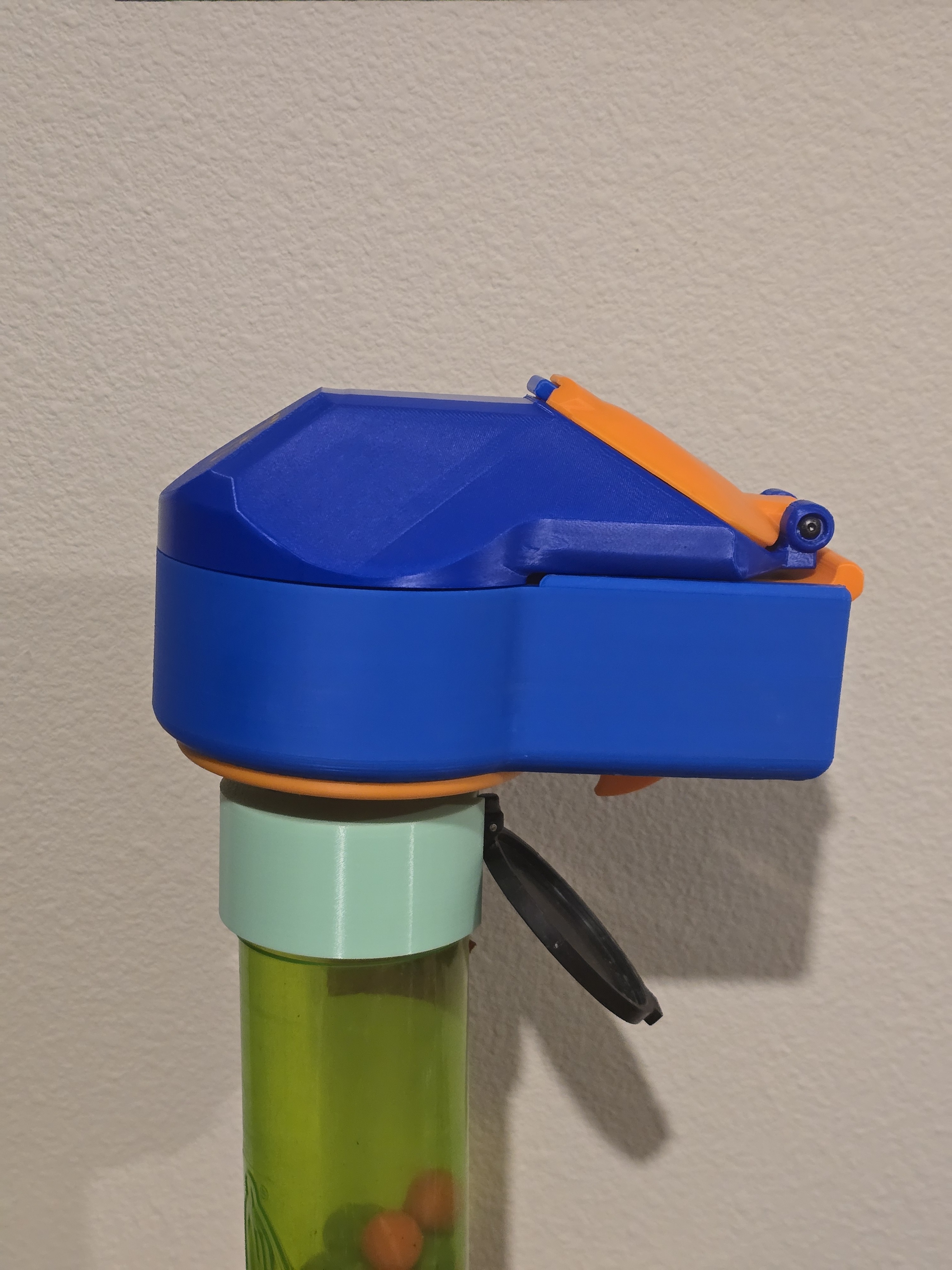

75 round capacity (This is an extended version of the 60)
Empty weight (no paint): 19.8oz

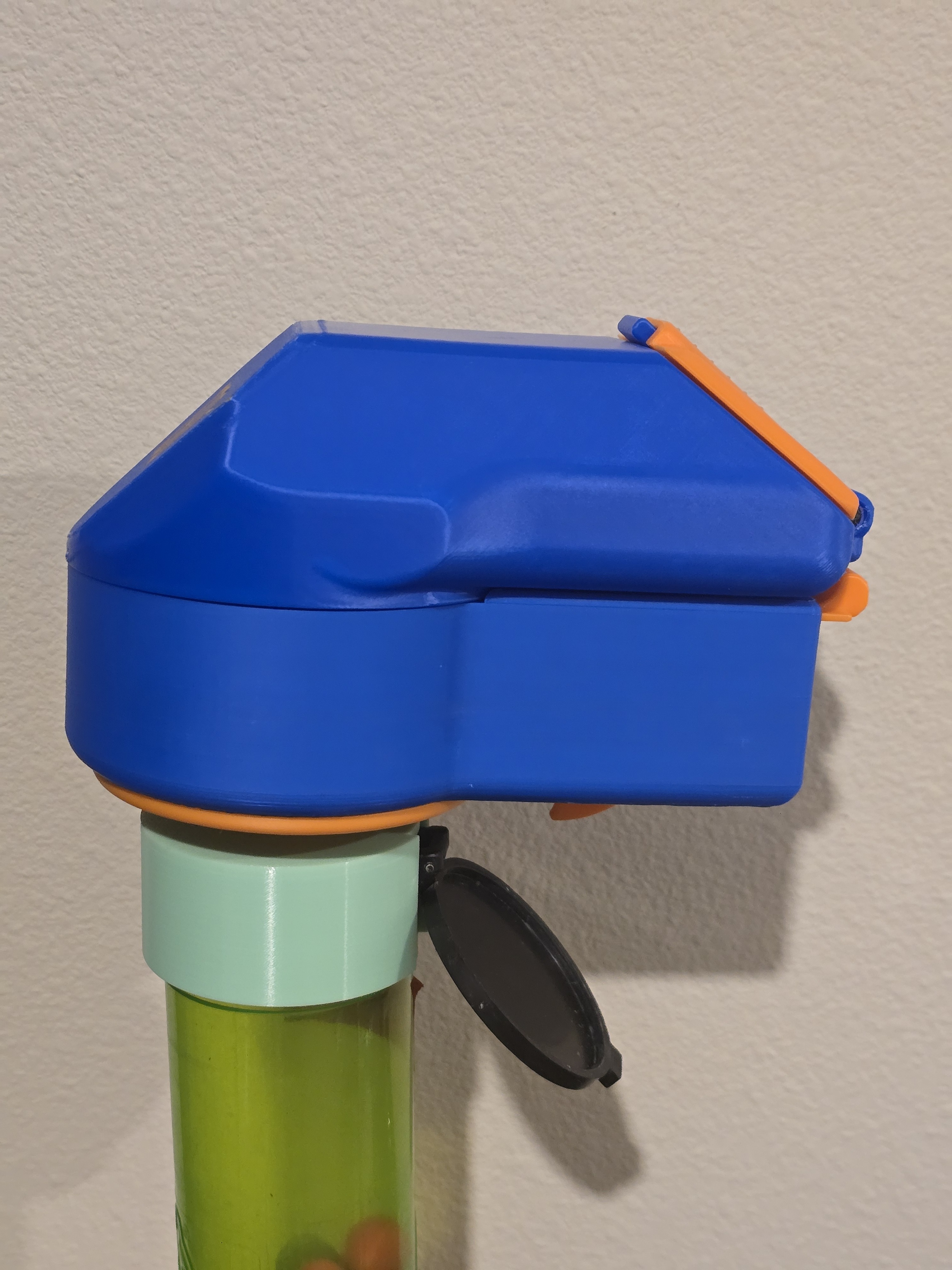

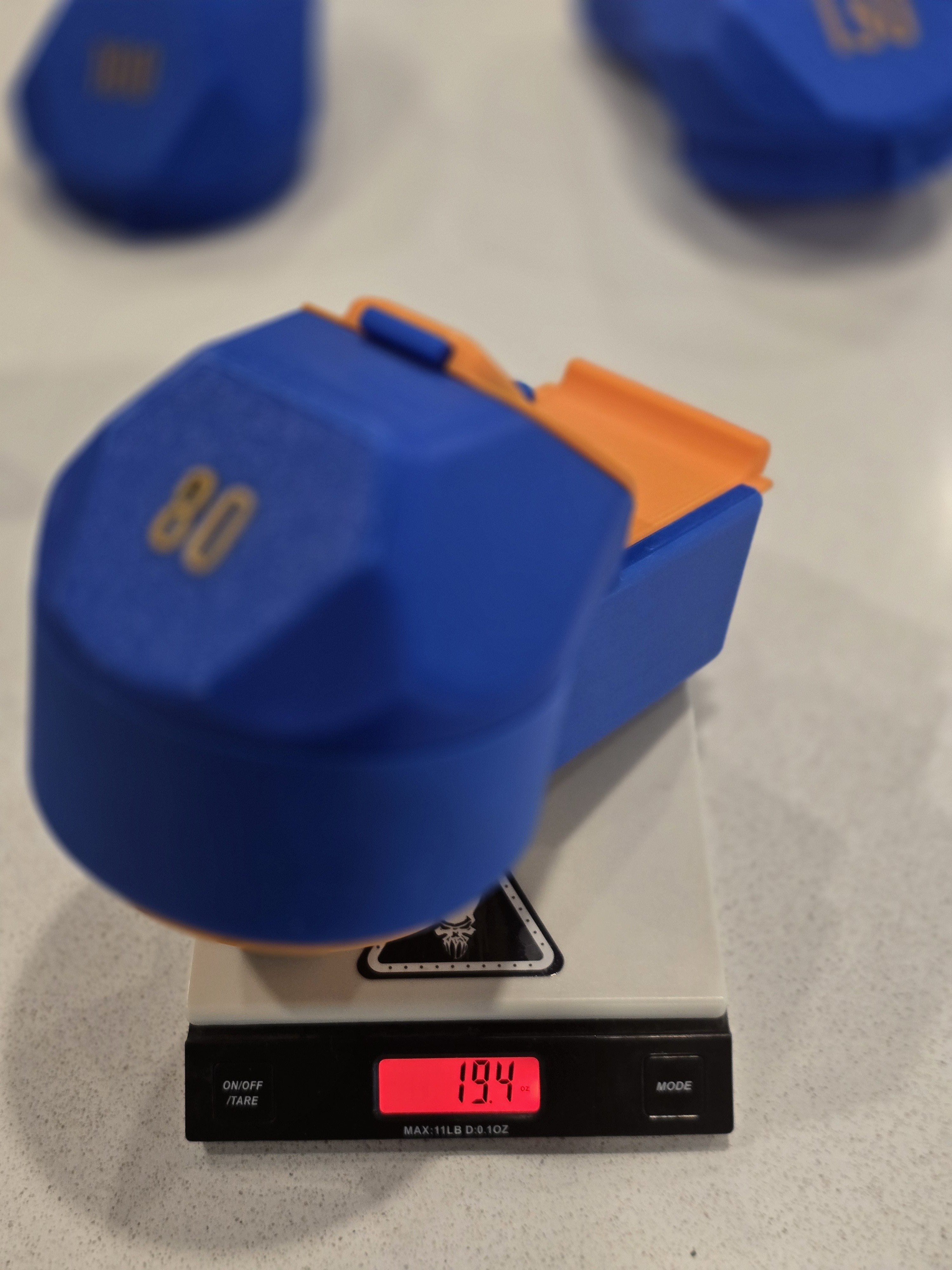

80 round capacity
Empty weight (no paint): 19.4oz

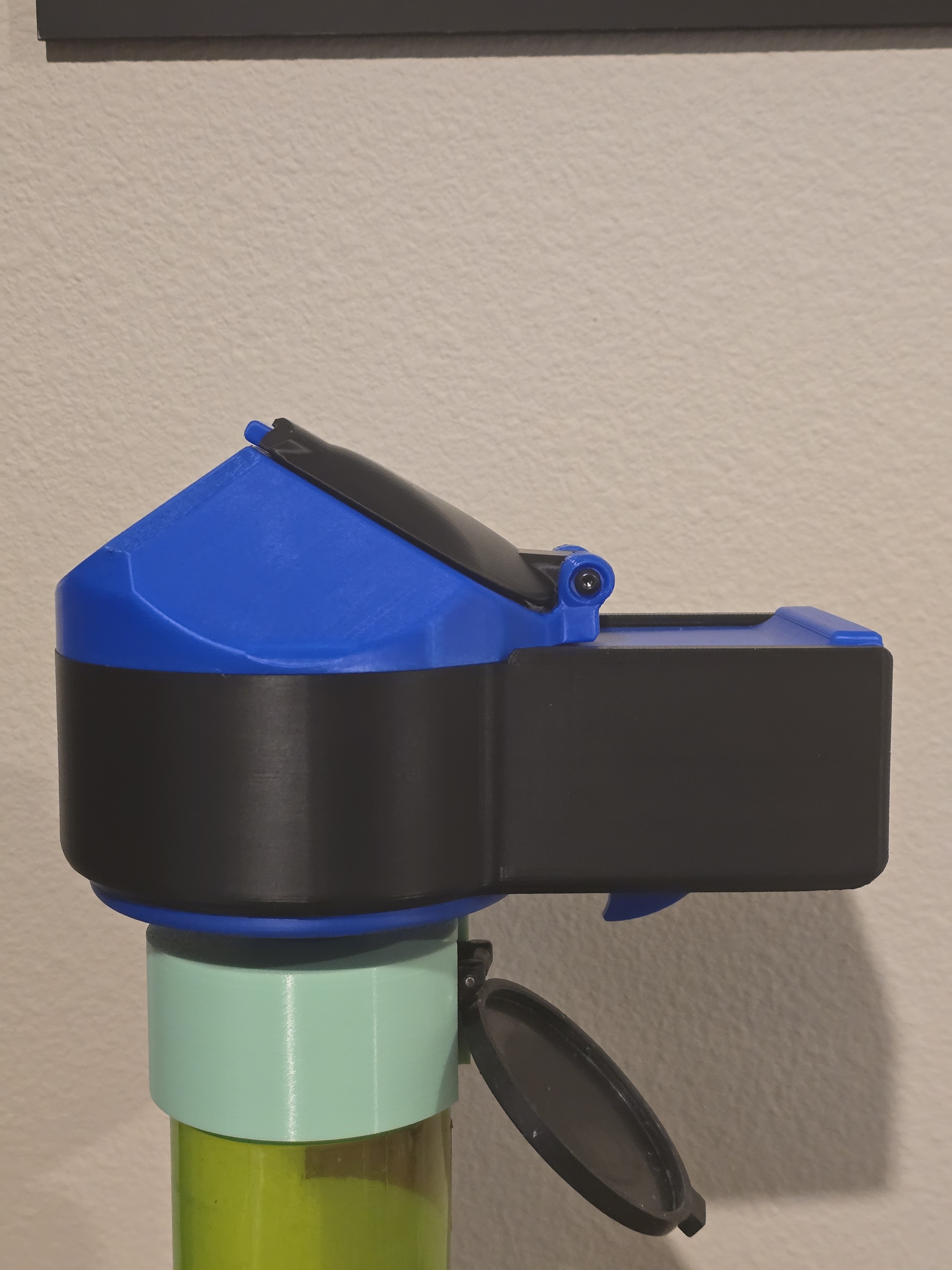

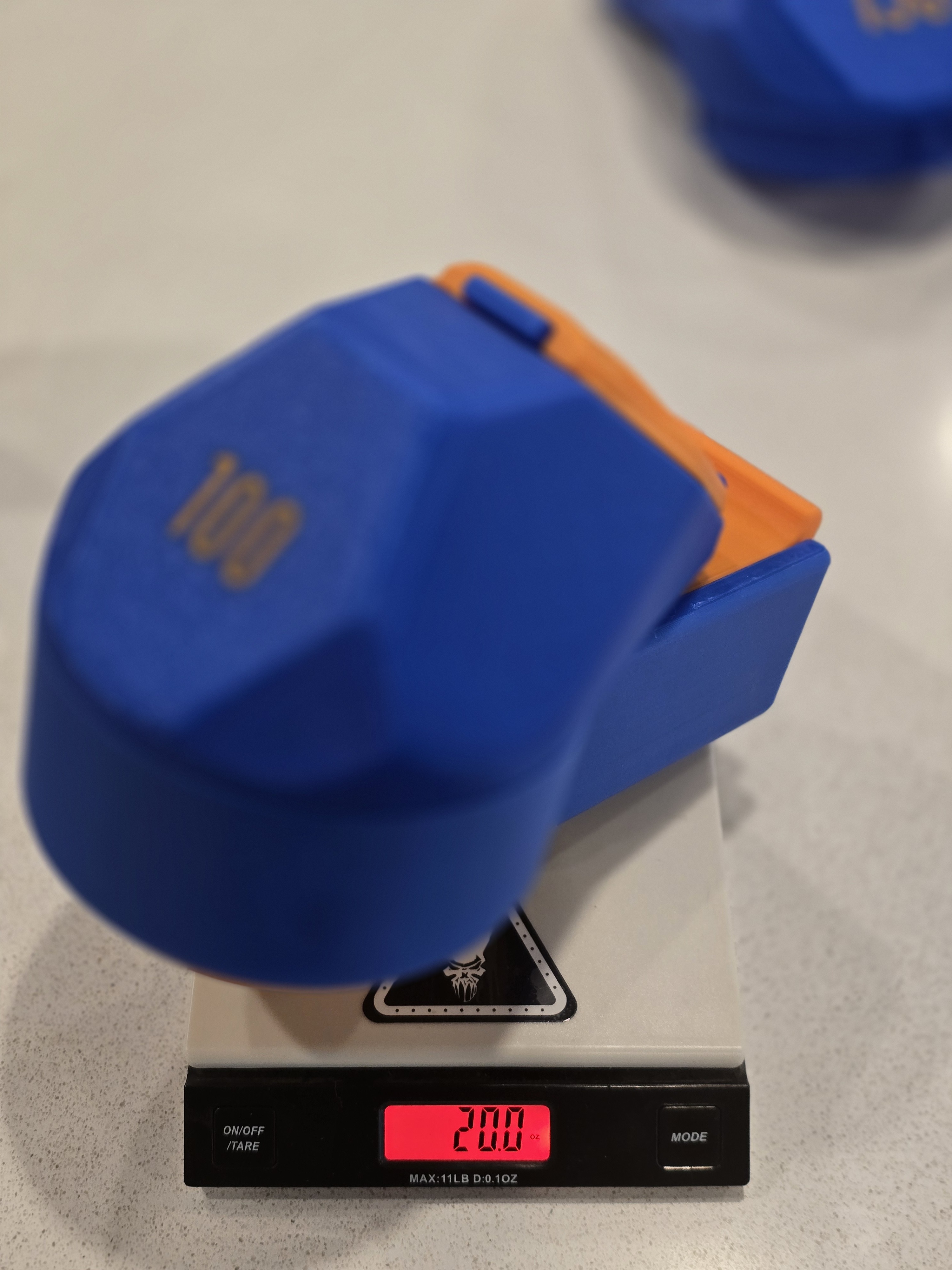

100 round capacity
Empty weight (no paint: 18.8oz

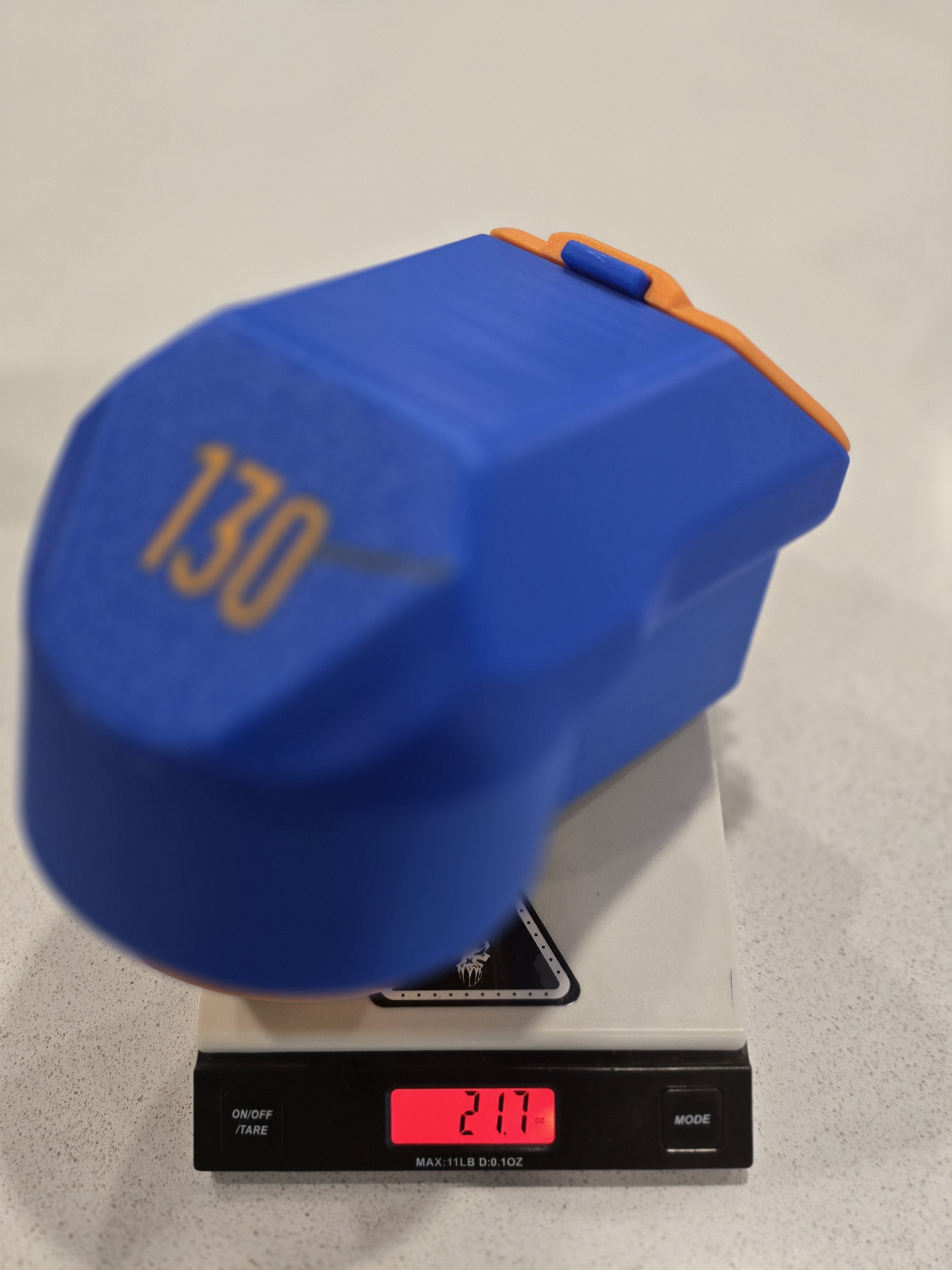

130 round capacity
Empty weight (no paint: 21.7 oz

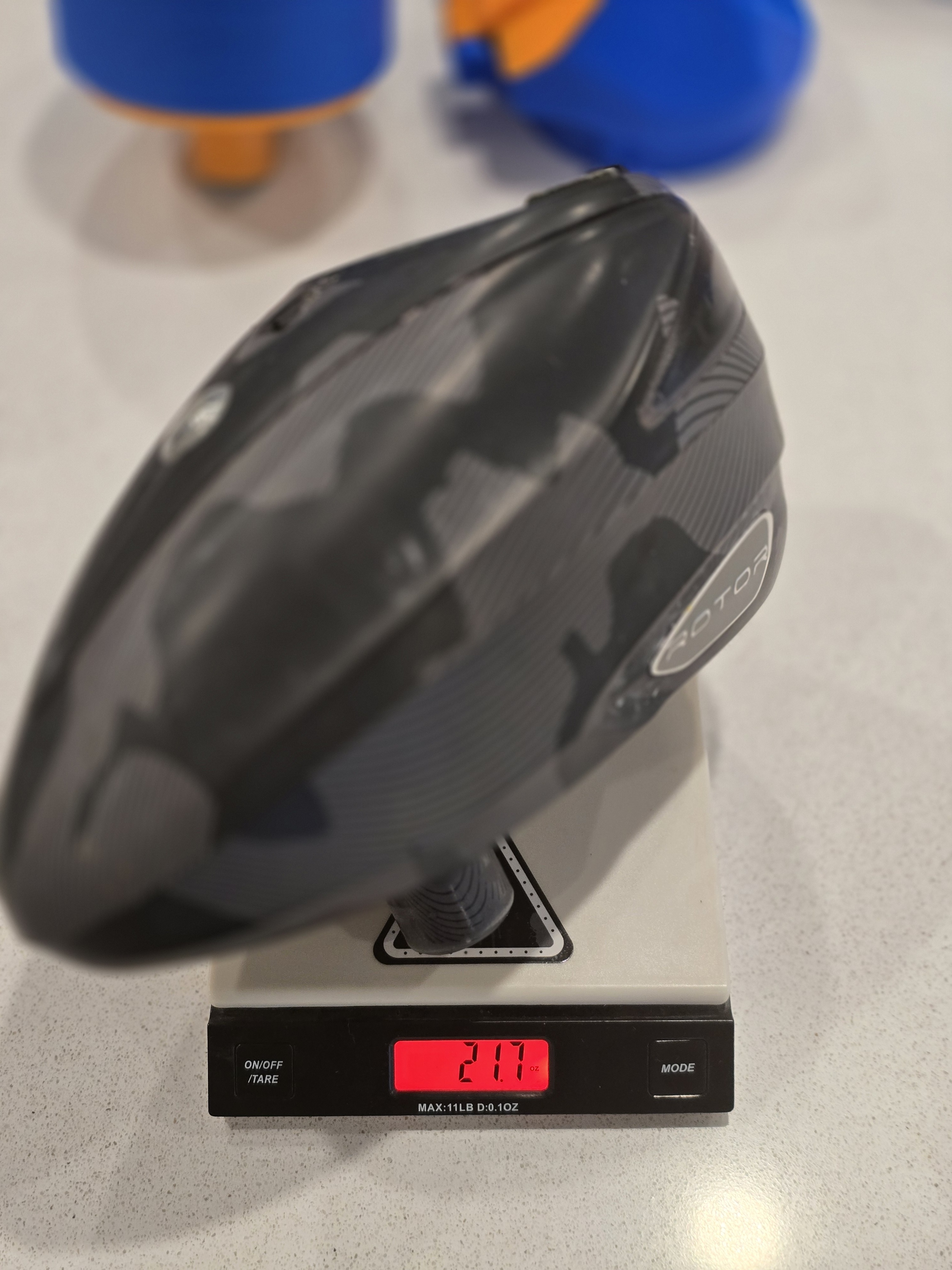

Dye Rotor for comparison



Key Features:

• Toolless Disassembly
  • Slide the locking sled back, rotate the top shell, and you have access to the motor, feed tray, and gears. Everything comes out in the spirit of the Dye Rotor
• Interchangeable Upper Shells
  • Locking: 60, 75, 80, 100, 130
  • Magnetic: 60, 90 (Curved)
    • Spring tension keeps the lid closed, pop it open and it magnetically stays on the sled
• Threaded 2 piece Feedneck
  • Our local field offers 50 cal play for kids and my son has started to get into it. I designed the feedneck to have a swappable inner core and want to offer a 68/50 cal conversion when I have some additional design time.
• Feedneck bolts on
  • In the chance you do crack the feedneck (also simplifies printing), the entire hopper is not a loss. Replacement parts are available
• Durability
  • Printed with PLA+
  • Lower shell is mainly 3mm thick, Upper shell is generally 3mm+ in most parts outside from the inner cylinder

What will it cost me?

• Base Mini Rotor Kit $65 (Assembled with all parts, includes shipping)
  Please message me with the following:
• Lower (Clean or Camera Ready) =
• Capacity size =
• Primary Color (Lower/) =
• Secondary Color (Shark fin/Feedneck/Sled/Lid) =
• Power Button default = Translucent

Addons:

• Custom Number/Text on Upper front (Angled versions only) = $10
• Graphic/picture on upper front plate = $20
  • Please reach out to me with graphic for feasibility

Payment options: Paypall/Venmo


REMINDER: Does not include Rotor internals. YOU supply those!

Assembly Video: https://www.youtube.com/watch?v=HnRitnLAeZg
Shooting Videos: Range 10m, 280fps
Marker View
https://www.youtube.com/watch?v=E21c9z0BAUA&list=PLJLEv8j9NccCwWzskyQG6SHZ V34R5-8b6&index=1
Close up
https://www.youtube.com/watch?v=c8Xs9DYADeA&list=PLJLEv8j9NccCwWzskyQG6SHZ V34R5-8b6&index=2
Hopper Camera Footage
*placeholder for video*

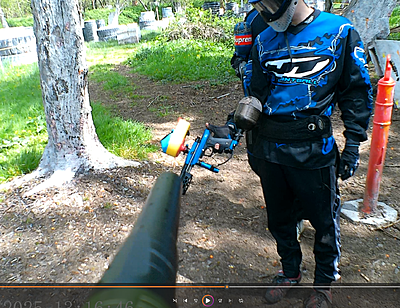

Screen capture:



Links to more awesomeness:
86 Grips:https://www.mcarterbrown.com/forum/p...els-new-deisgn
Featherweight Pump Handles for CCM/Sniper/KP3: Placeholder
Stick feed revolving loaders Phantom/Any : Placeholder

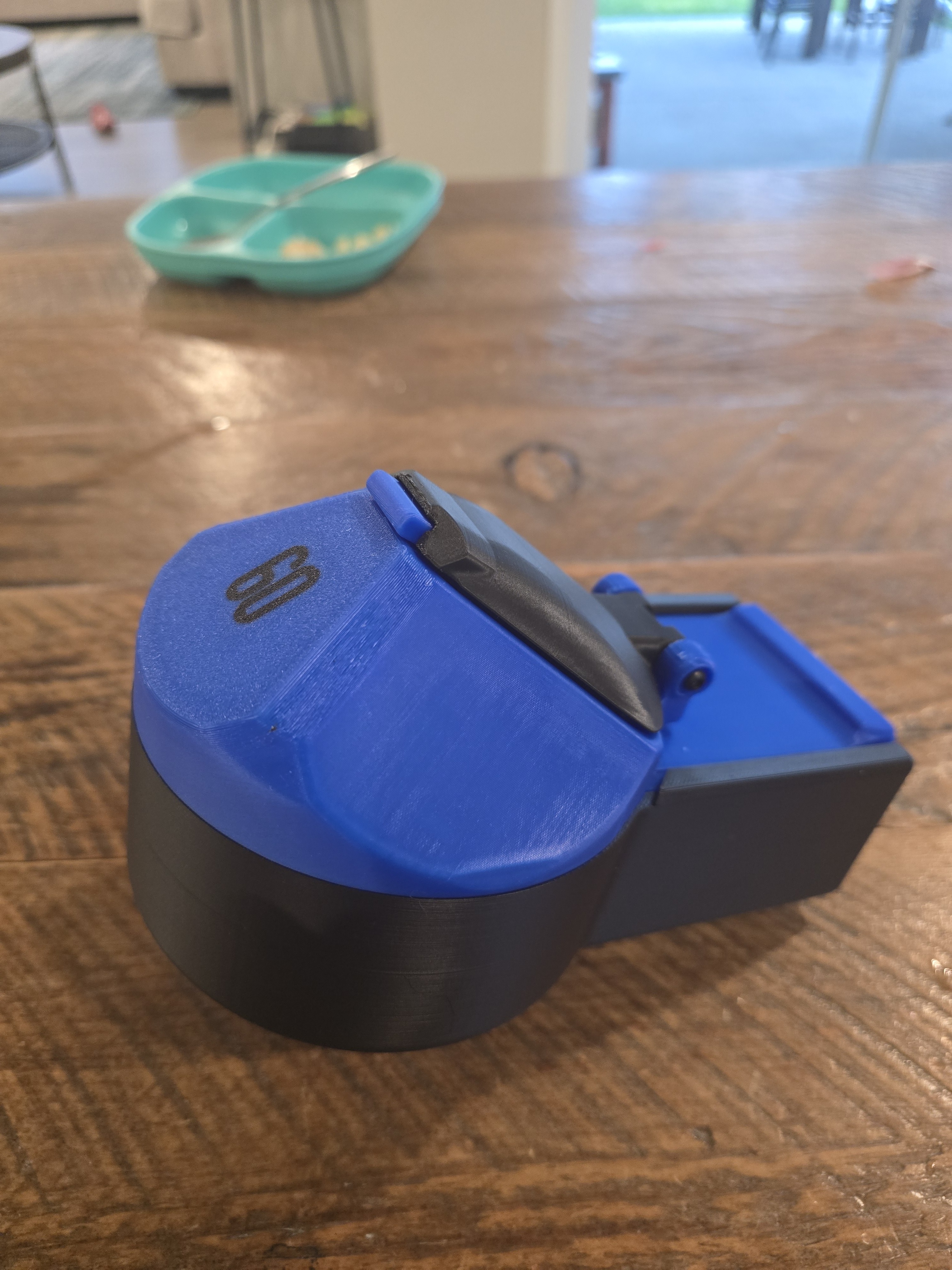

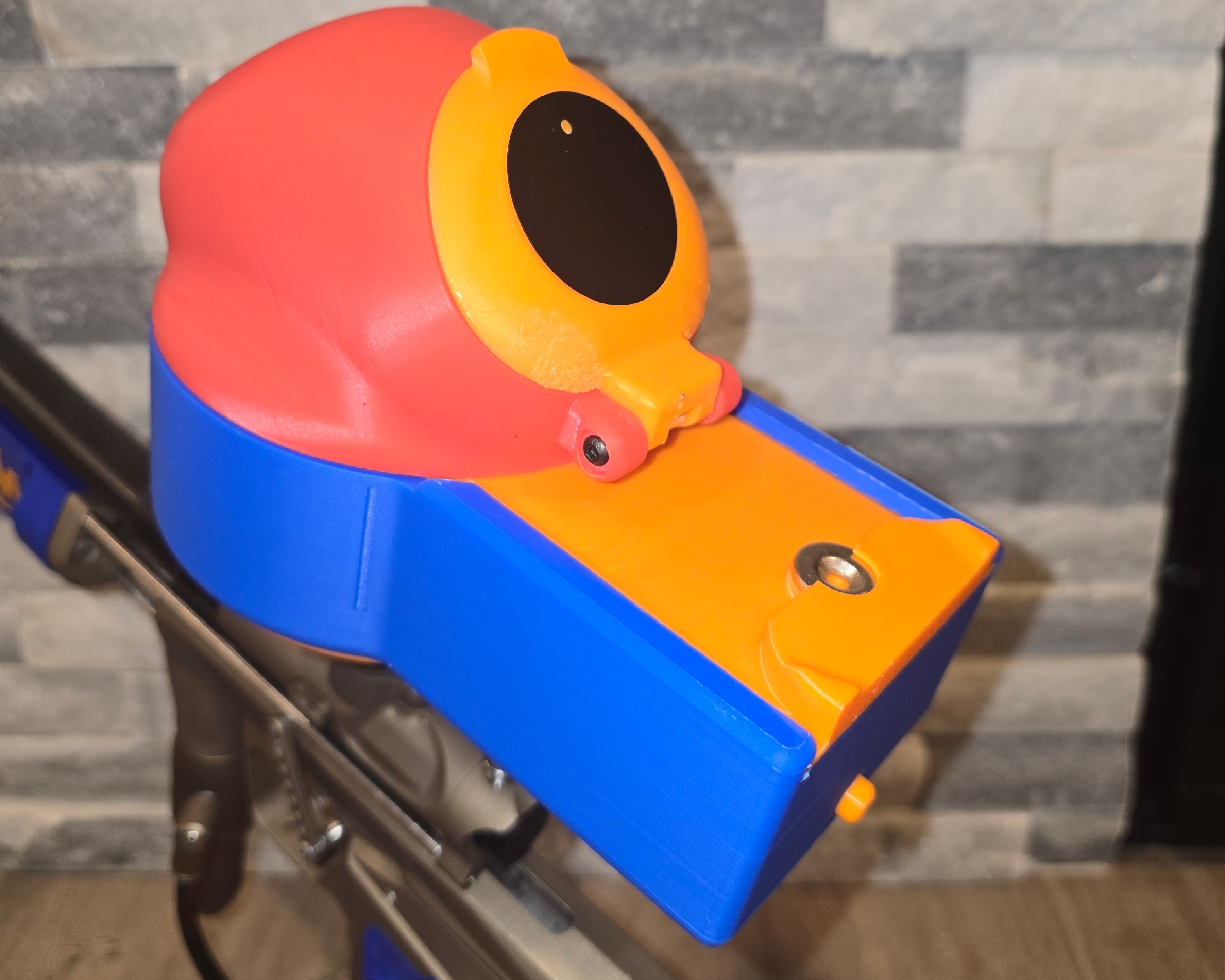

Example of completed and delivered 60 round



Version 1.0 pics
A full conversion kit for your Rotor

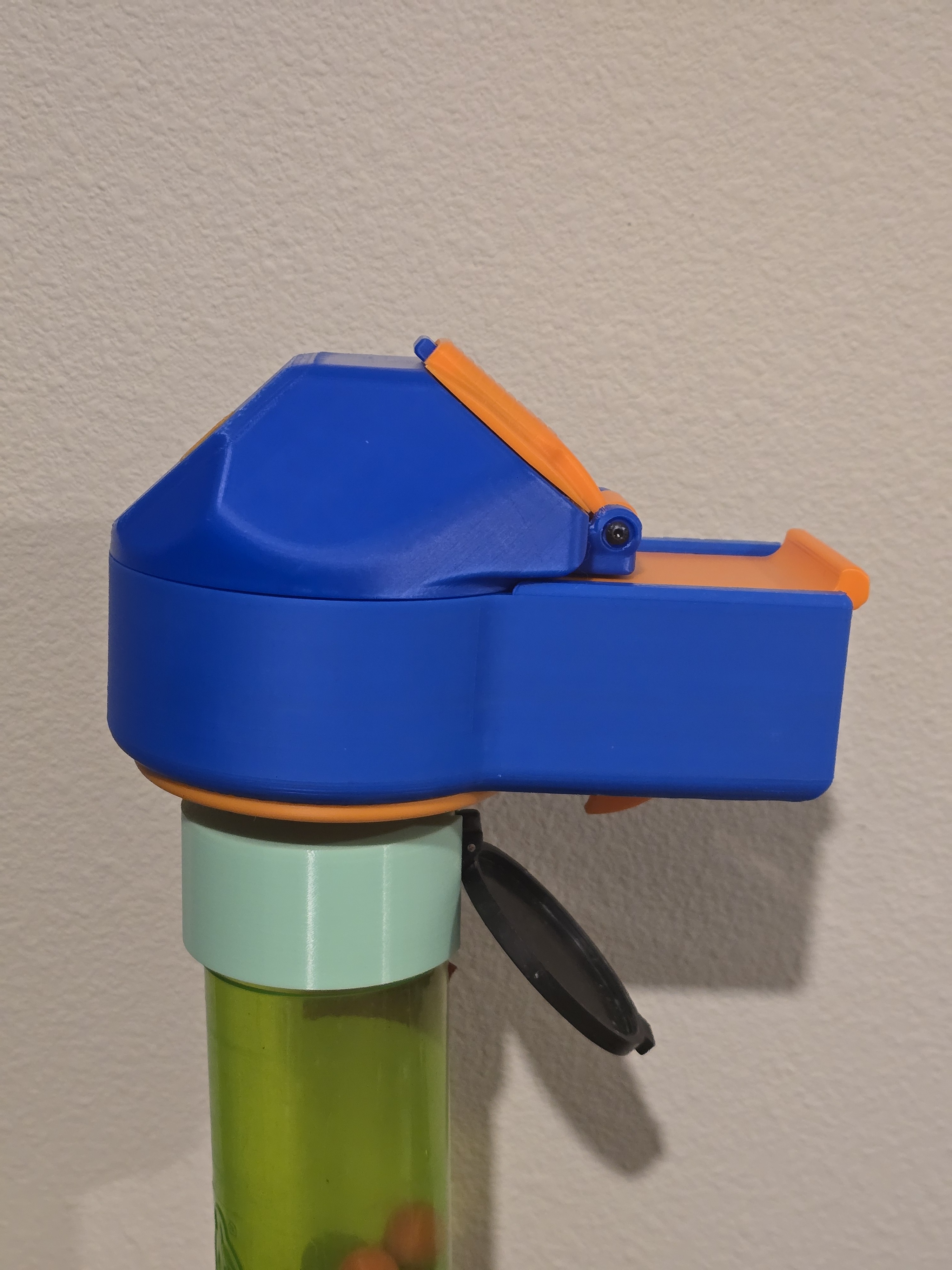

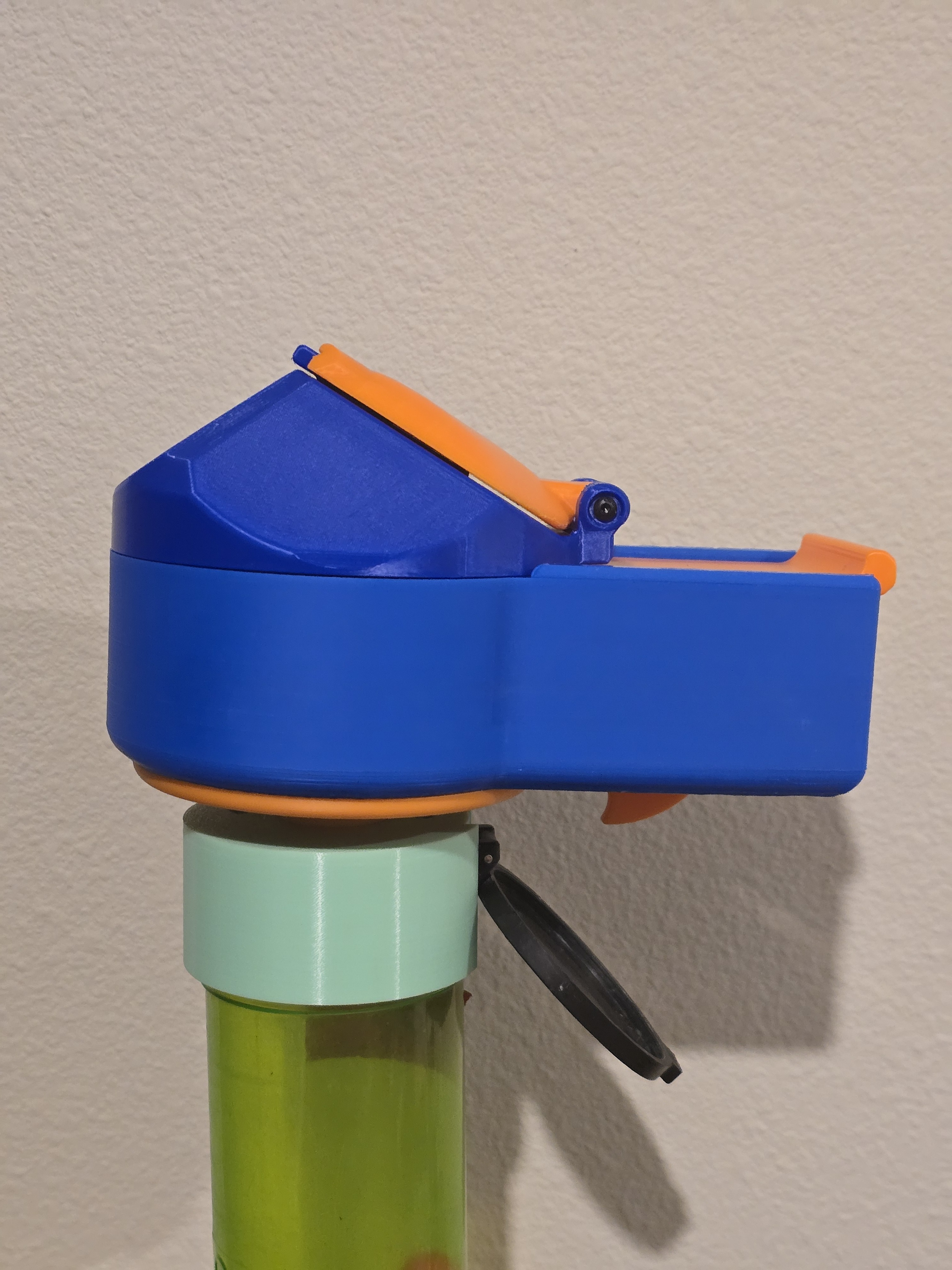

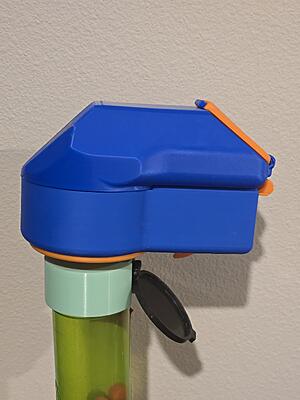

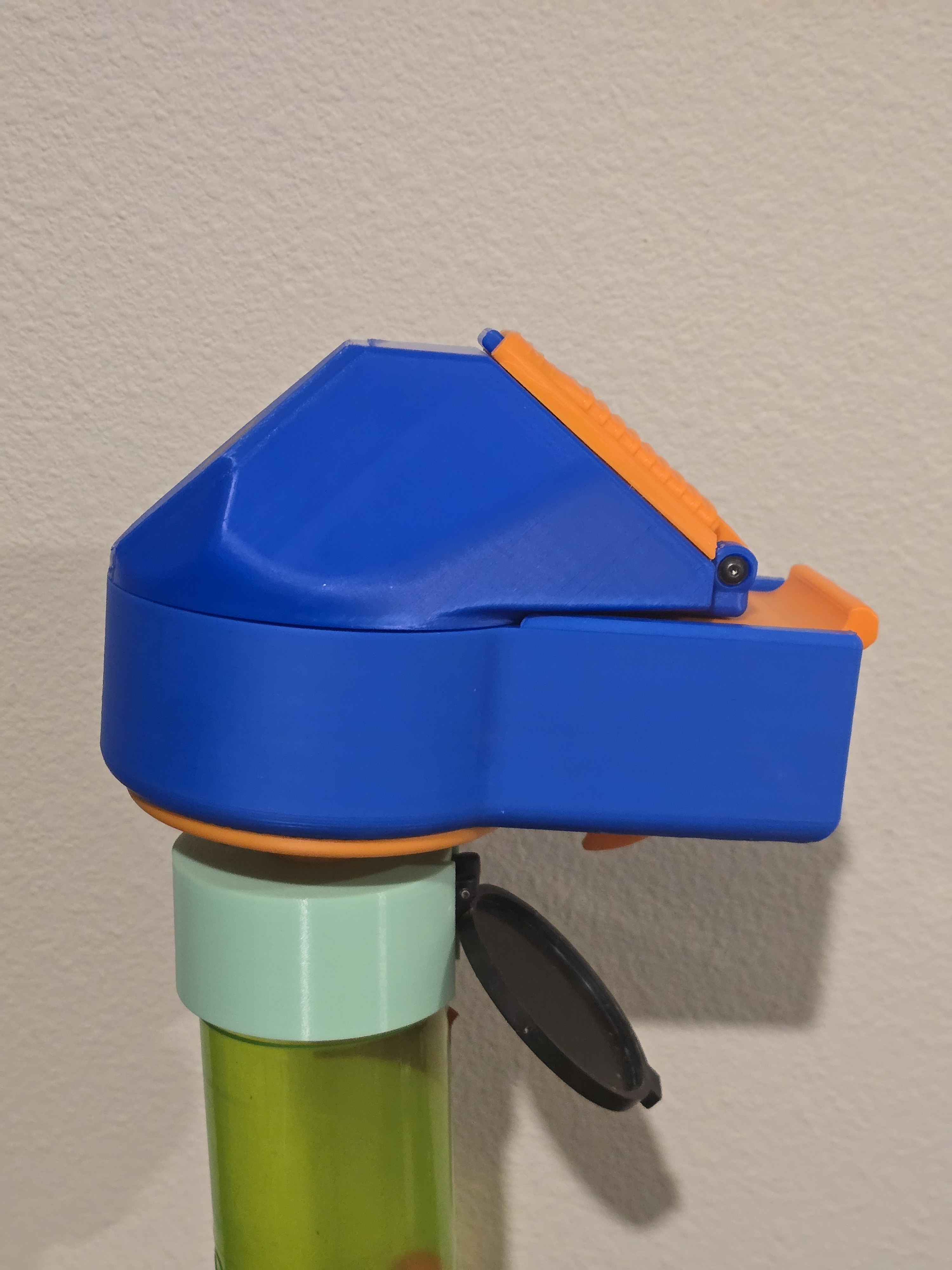

New Angled Versions

[MrKittyCatMeowFace]

I love the nerf one!

[Psycho91]

Ugly yet functional

[Xennocide]

Ugly yet functional

That's what my wife says.

[Jonnydread]

Dude that’s fun

[TwonTamal]

Props on the ingenuity, definitely an interesting little hopper!

[CavemaN]

Interesting and cool idea

[FredMnkyDad10]

That's what my wife says.

Yeah mine too. About me.

I so need two of these. And yeah in the Nerf too.

[Sicksthree]

Nerf! So sick!

[Xennocide]

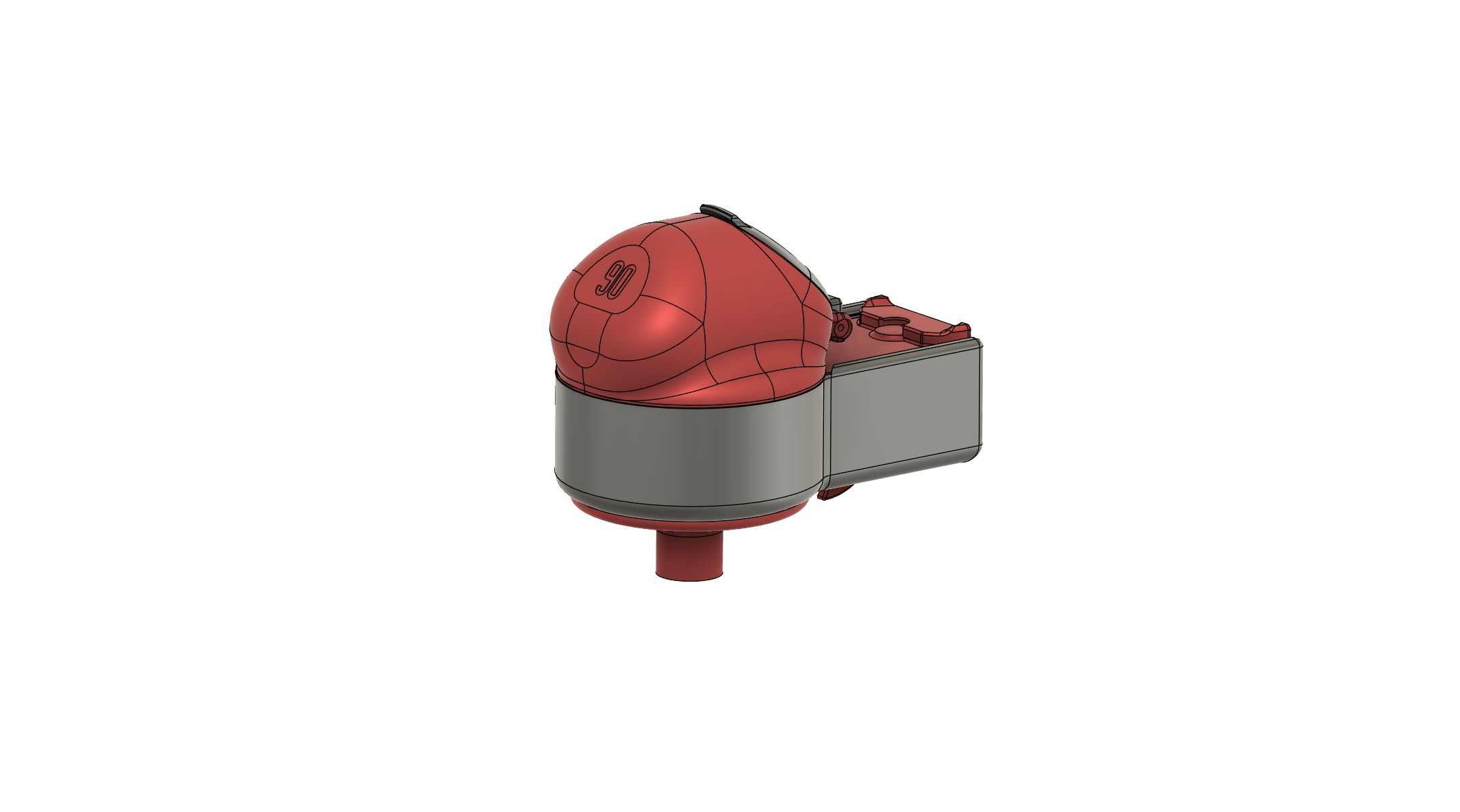

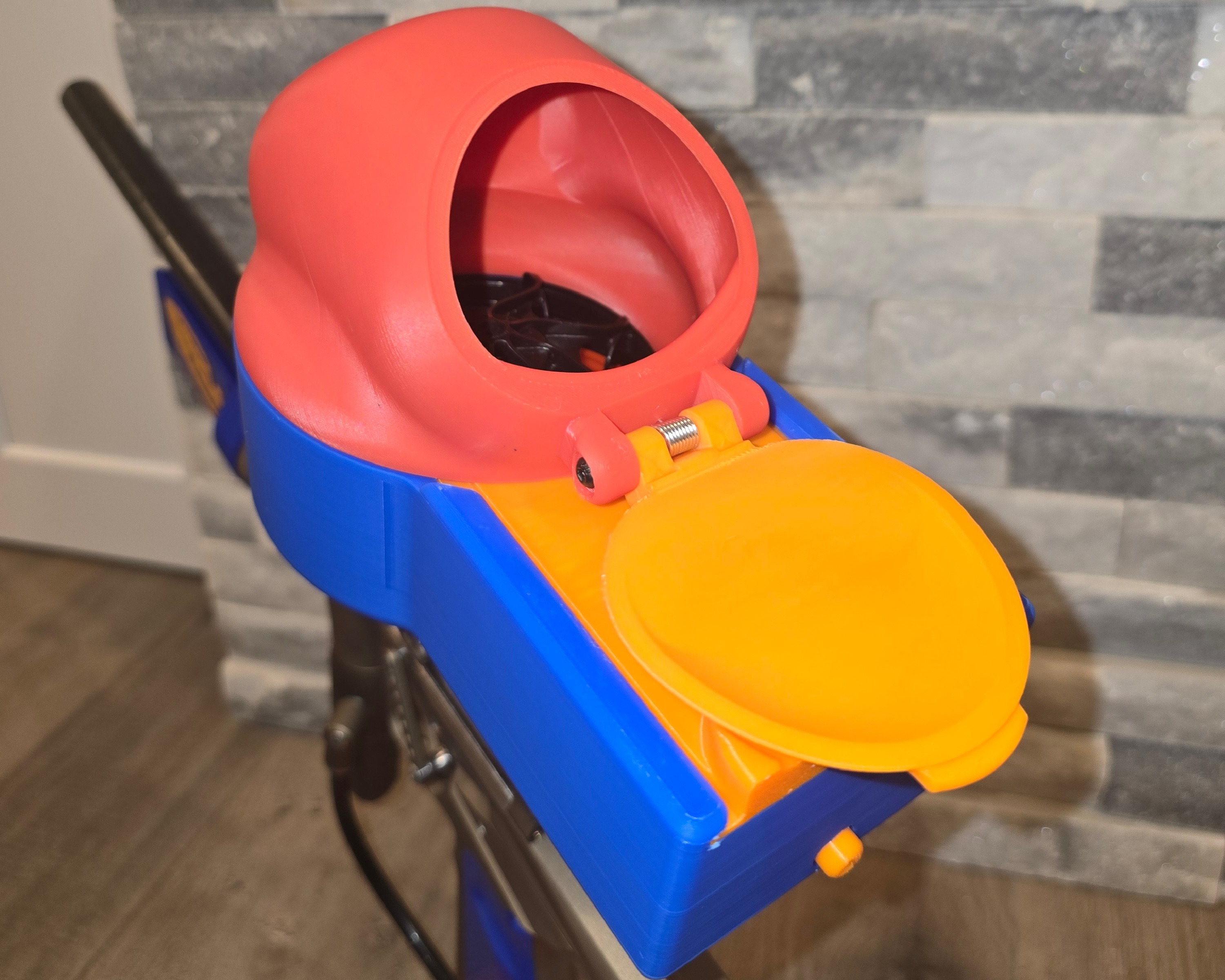

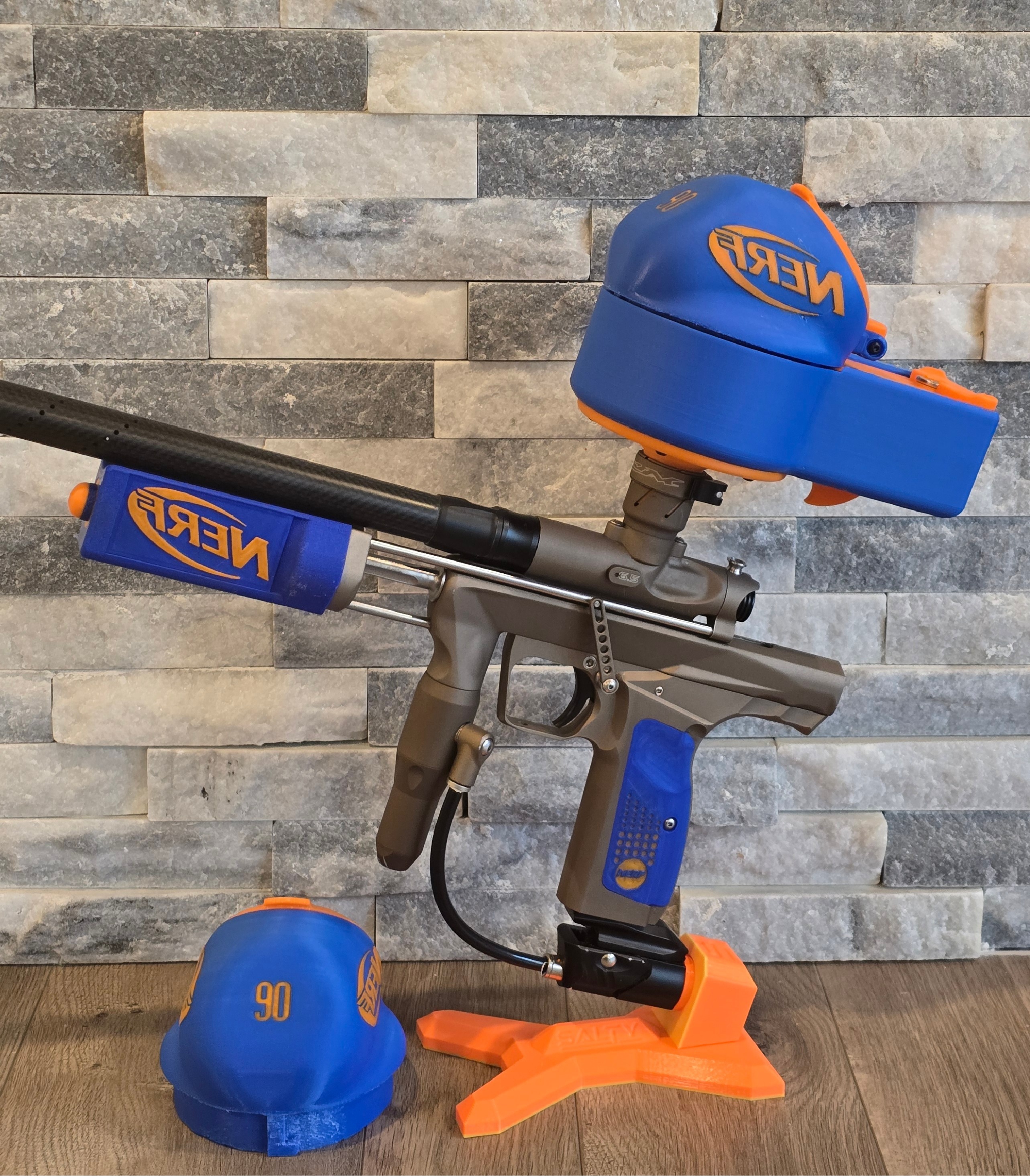

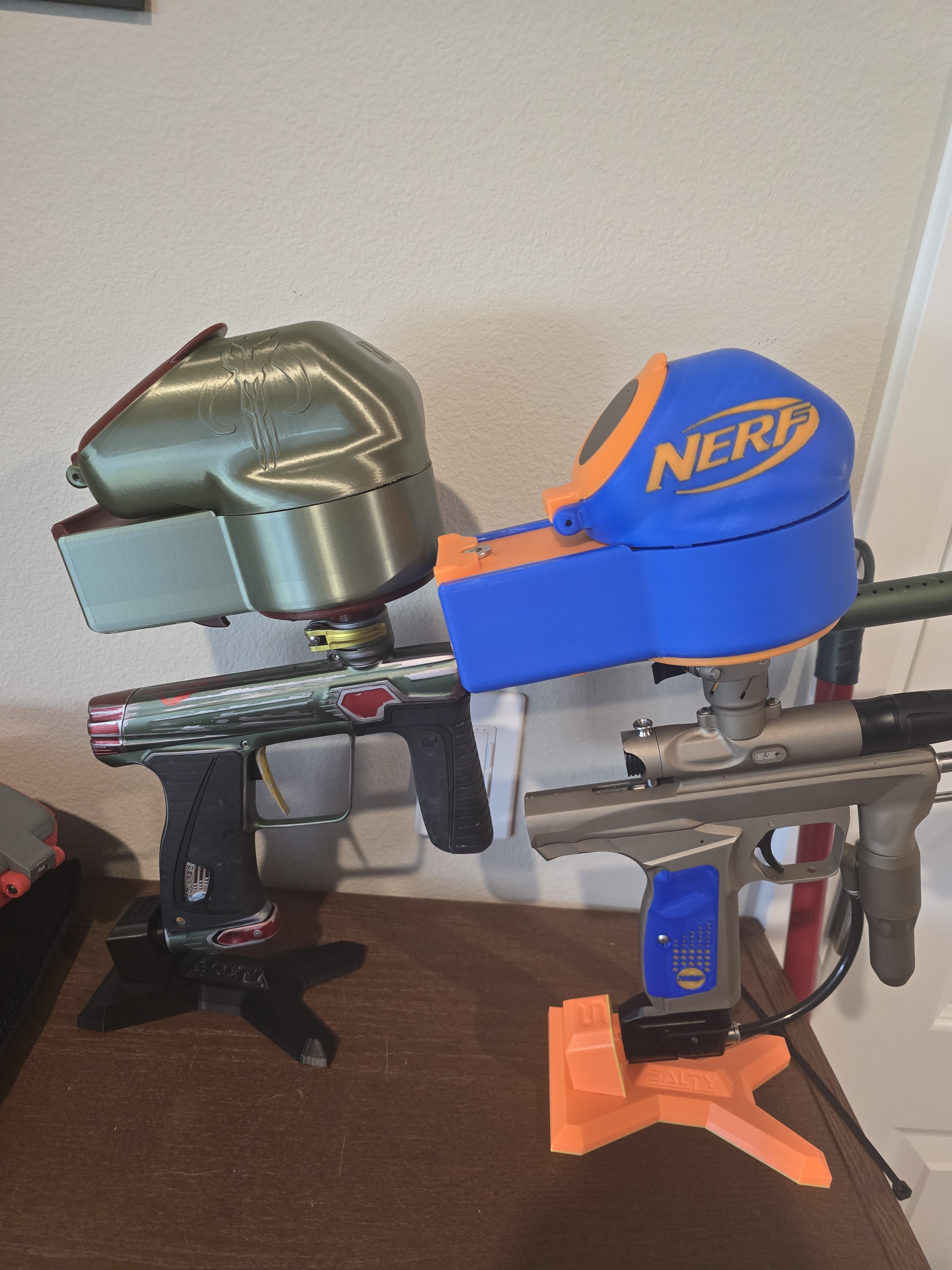

FredMnkyDad10 Sicksthree Didn't realize there would be such love for the NERF version. I made that for myself and is an example of a custom texture wrap for the hoppers. If there is interest, I could see doing a small batch of them.

[Tippster]

Interested for sure! Sent a PM!

[BubbleHead87]

Is it possible to go even smaller? lol I run with them ASP? pods that hold maybe 50-60 rounds. Currently have a JELO hopper and it’s annoying to load and there’s like 5-8 balls left in the pods.

[Xennocide]

BubbleHead87 It is possible to go smaller? Yea I had a prototype that was about 75. I found 85-90 being comfortable running 50 round pods and reloading before the rotor low round spin kicks in and also not stuffing the hopper totally full. The nice thing with this design is if I did a call it "micro" upper shell in the future, you could swap between them.

[Jonnydread]

Interesting, I'm going to message you about custom work.

[Xennocide]

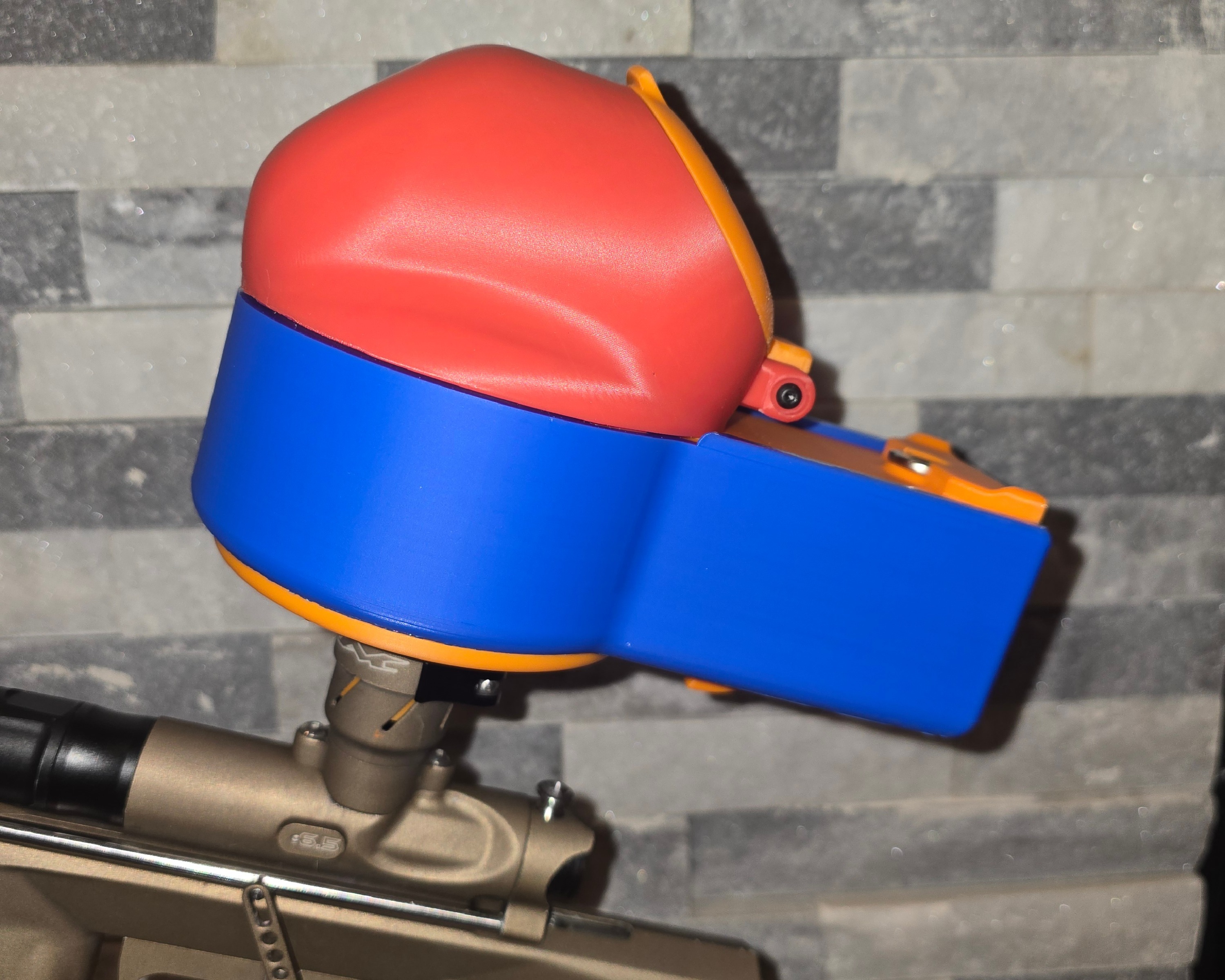

Yellow/Orange

[mpepsuperbee]

Rubber ducky
