    Slapaphone

    Not paintball, but I have so many projects stuck half way done, I'm just happy to see something finished.
    A slapaphone is a musical instrument consisting of a set of pipes of different length. When you "slap" one end of the pipe, you get a note.
    The wavelength of the note is equal to the length of the pipe. So, C1 is 8". C2 is 4", C3 is 2", and all the other notes are between.

    One of my kids asked me to build them one. Something simple, but I hated all the designs I saw on the internet. They were all giant, clunky and ugly looking. I wanted it small enough to be portable, but have a full range of notes, so it could play most anything. And it needed to have "symmetry". Not just random pipes.

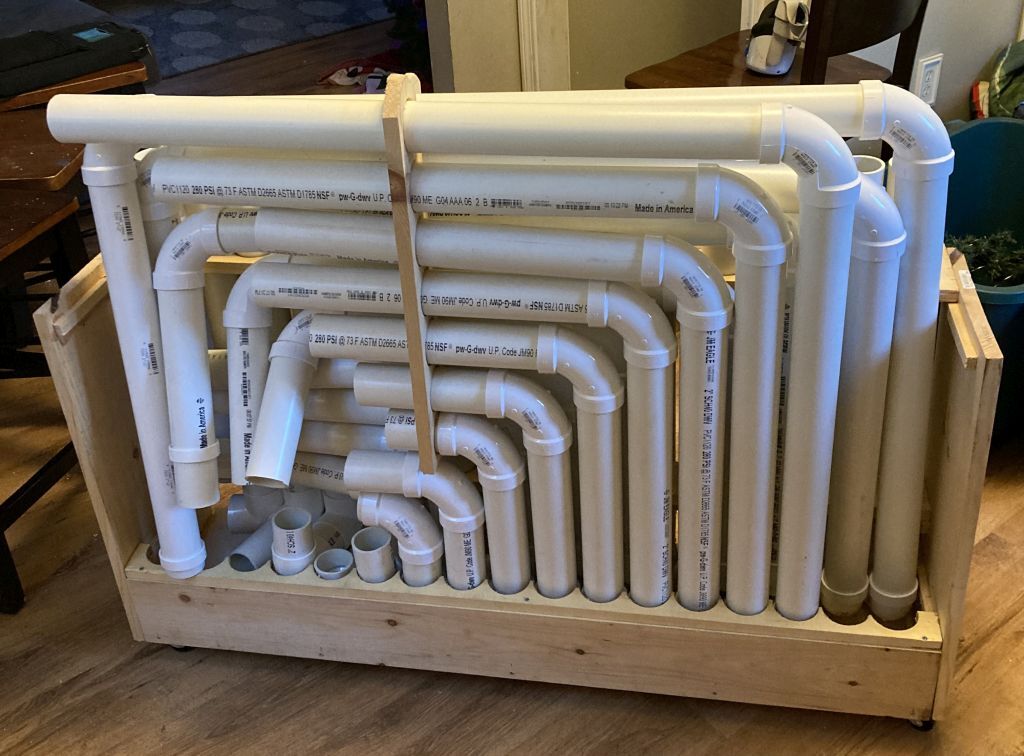

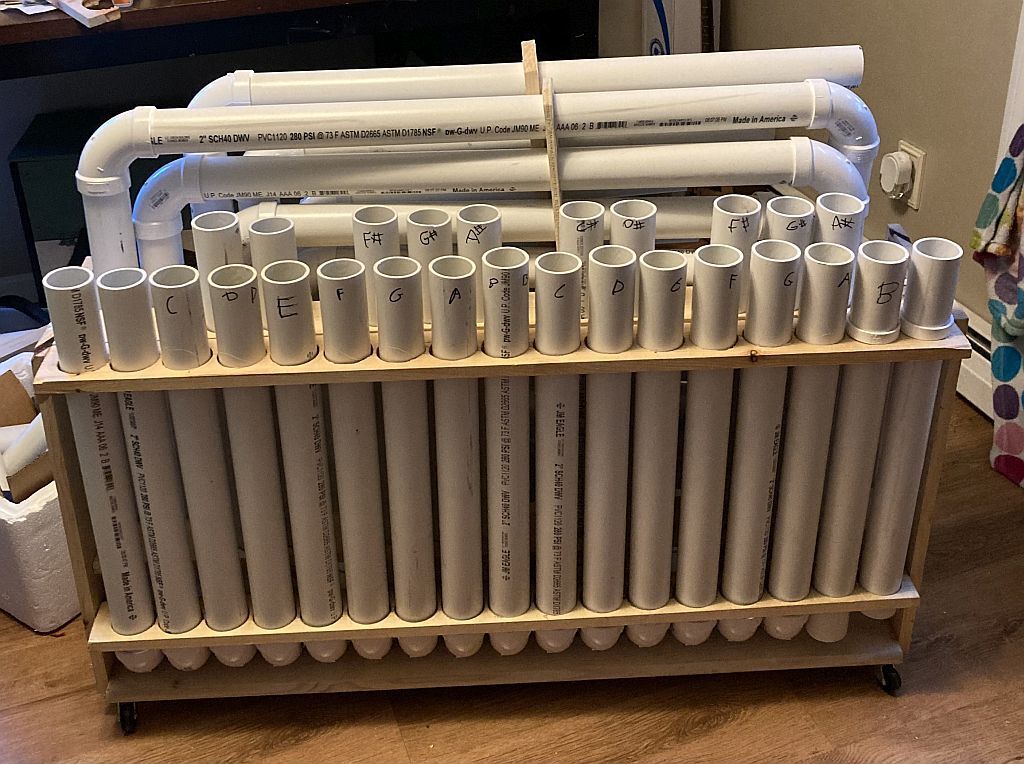

    And now its finally done. Just waiting for paint. In total: 150 feet of 2" PCV pipe, and 80 90-degree elbows.

    Click image for larger version

Name:	slap1.jpg
Views:	707
Size:	148.5 KB
ID:	342920 Click image for larger version

Name:	slap2.jpg
Views:	316
Size:	116.1 KB
ID:	342921


    #2
    Neat. Never heard of such a thing before.
    Originally posted by MAr
    ... Nish deleted it...

    Originally posted by Axel "coffee-fueled, beer-cooled."

    Master Jar-Jar

    Comment


      #3
      This is so cool! I'd love to see what it looks like painted.
      New Feedback

      Comment


        #4
        Here is a good demo. I built it for my 8 year old…. But so far he can only play “never Gonna give you up”.

        https://youtube.com/watch?v=K_T-w3D2QKY&feature=share

        Comment


          #5
          Originally posted by Nish View Post
          Neat. Never heard of such a thing before.
          -You've never heard of the Blue Man Group?





          Such instruments are central to their sound and have been for 20 years or more. It's a cool setup- they even have backpack setups for stage shows.

          Doc.
          Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
          The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
          Paintball in the Movies!

          Comment


          • Nish

            Nish

            commented
            Editing a comment
            I've heard of them, and I've seen Recycled Percussion which does similar shows, less lights more pyrotechnics I think. But never realized identified any of the obscure instruments.

          • William the Third

            William the Third

            commented
            Editing a comment
            Really, you have never heard of BMG? They were so popular in the late 90's/early 00's that Intel used them in a bunch of TV ads.

          • BrickHaus

            BrickHaus

            commented
            Editing a comment
            The second video is the stranger things intro song... mind blown.

          #6
          HP', I would love to hear these when they are finished!


          Walker

          Comment


            #7
            Cleanest slapaphone I've seen outside of a BMG show.

            Comment


              #8
              Originally posted by moving_target View Post
              Cleanest slapaphone I've seen outside of a BMG show.
              -I believe the Blue Men call it a "Tubulum". At least they used to. ''

              Doc.
              Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
              The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
              Paintball in the Movies!

              Comment


                #9
                Originally posted by DocsMachine View Post

                -I believe the Blue Men call it a "Tubulum". At least they used to. ''

                Doc.
                That sounds about right. But i would argue all Tubulum are slapaphones, but not all slapaphone are tubulum.

                Comment


                  #10
                  That sounds about right. But i would argue all Tubulum are slapaphones, but not all slapaphone are tubulum.
                  You can actually find lots of different names. The reason is that companies want to be able to sell plans, so they need a unique name that can be trademarked.
                  The blue mans group version is nice that it avoids all 90-degree angles, trying to use only 45. This is to reduce the even number harmonics. But my priority was looks.

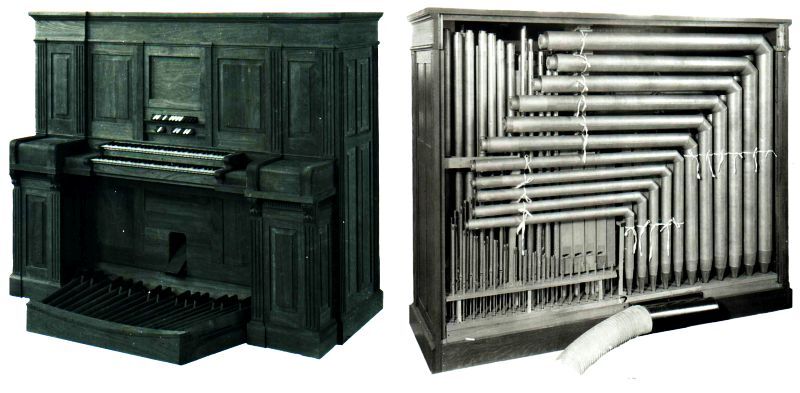

                  In fact, apart from my paintball collection, I also have a music instrument collection. A little bit of everything, but one thing that I have been looking for to add to my collection was a "Mortuary Organ". They were only built for a few years, and a very niche item in a niche market. But I was facinated by how organized the internals were, so I wanted to design my slapaphone to look like it:

                  Click image for larger version

Name:	estey.jpg
Views:	190
Size:	58.0 KB
ID:	343241

                  Comment


                  • Spider!

                    Spider!

                    commented
                    Editing a comment
                    Old boiler control panels were plumbed in stainless tubing and valves the same way. It looks like you've got a good grip on the art!

                    I can't even find a good picture. I worked on some that were absolute art.
                    Not just ganged together neatly, but fully stuffed in a cabinet like that organ.
                    Last edited by Spider!; 12-10-2022, 01:29 PM.

                  #11
                  Yeeeeeesssss! I've always wanted to make one of these. One day maybe!

                  This guy....

                  Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

                  Comment


                    #12
                    This was the first test before I added sharps, and I also added a low A and B

                    https://youtube.com/shorts/tX9bCnUX1M8?feature=share

                    Comment


                      #13
                      How directional is that instrument? With speakers you can make a sweet spot if you want or you depending on the number of speakers you can expand that sweet spot out but there are sweet spots. From the video Rainmaker posted it would seem that in front of the instrument seems to be the best but around it works well. I wonder though if the music is all around and the only reason you do not see many people behind that artist is they are trying to see what he is doing and not so much hear it.
                      https://www.mcarterbrown.com/forum/b...ers-s-feedback

                      Comment


                      • Spider!

                        Spider!

                        commented
                        Editing a comment
                        I think the pipes are like horns, so the positioning of the outlet contributes to the distribution, especially with bunches of tubes. Microphones can move that too. The drumbone illustrates that, since the sleeves don't have the same (or consistent) contact for vibration on the surface of the tube.

                        https://youtu.be/q3Hzipyc-uQ

                      • Hp_lovecraft

                        Hp_lovecraft

                        commented
                        Editing a comment
                        One quirk that hurts my head to think about- You can also "Haskel" the pipes. For example, if you built an 8 foot pipe, it will produce a C-note at about 65hz. If you take that 8" pipe, and put it inside another 8" pipe, it will produce a tone an octave lower. (about 32hz). You can also make "resultant" pipes, were you combine an 8" pipe with a mutation pipe for the first harmonic. The resulting sine wave mix also also produce a tone of an octave lower. I've been thinking about this in the event I want to add a set of pipes an octave down
