    Tales from Der PrinterSchrank: Where my Freaks at?

    Tales from Der PrinterSchrank: Where my Freaks at?

    Our very own Trbo323 had pulled out his trumpet and made a request recently for a double decker Freak XL case, to hold both a full set of XL freak inserts AND his 14" one-piece DW barrel... Cue the music!

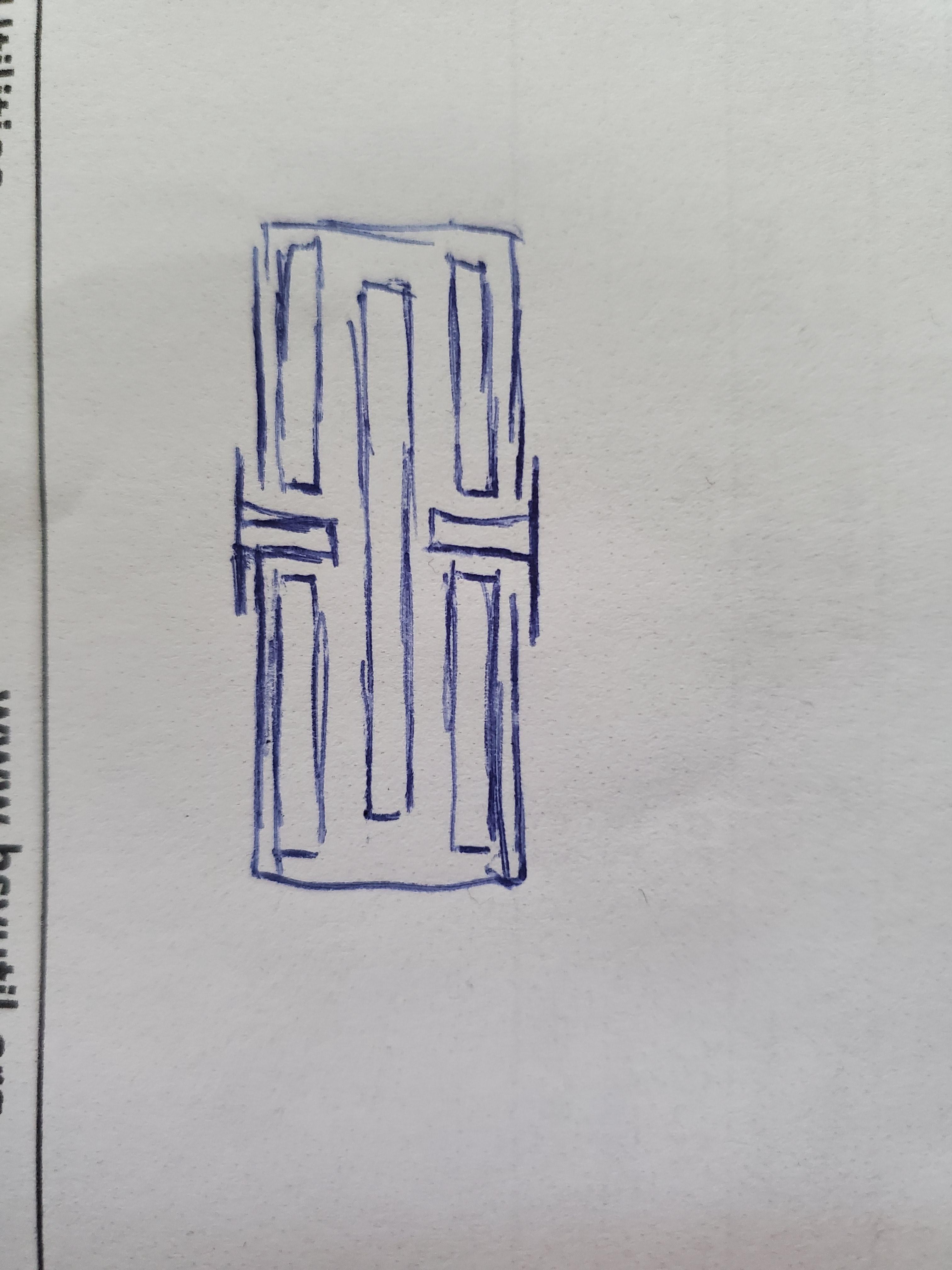

    My concept started out as all good ideas do - a napkin sketch:
    tKbIhO6 - Imgur.jpg

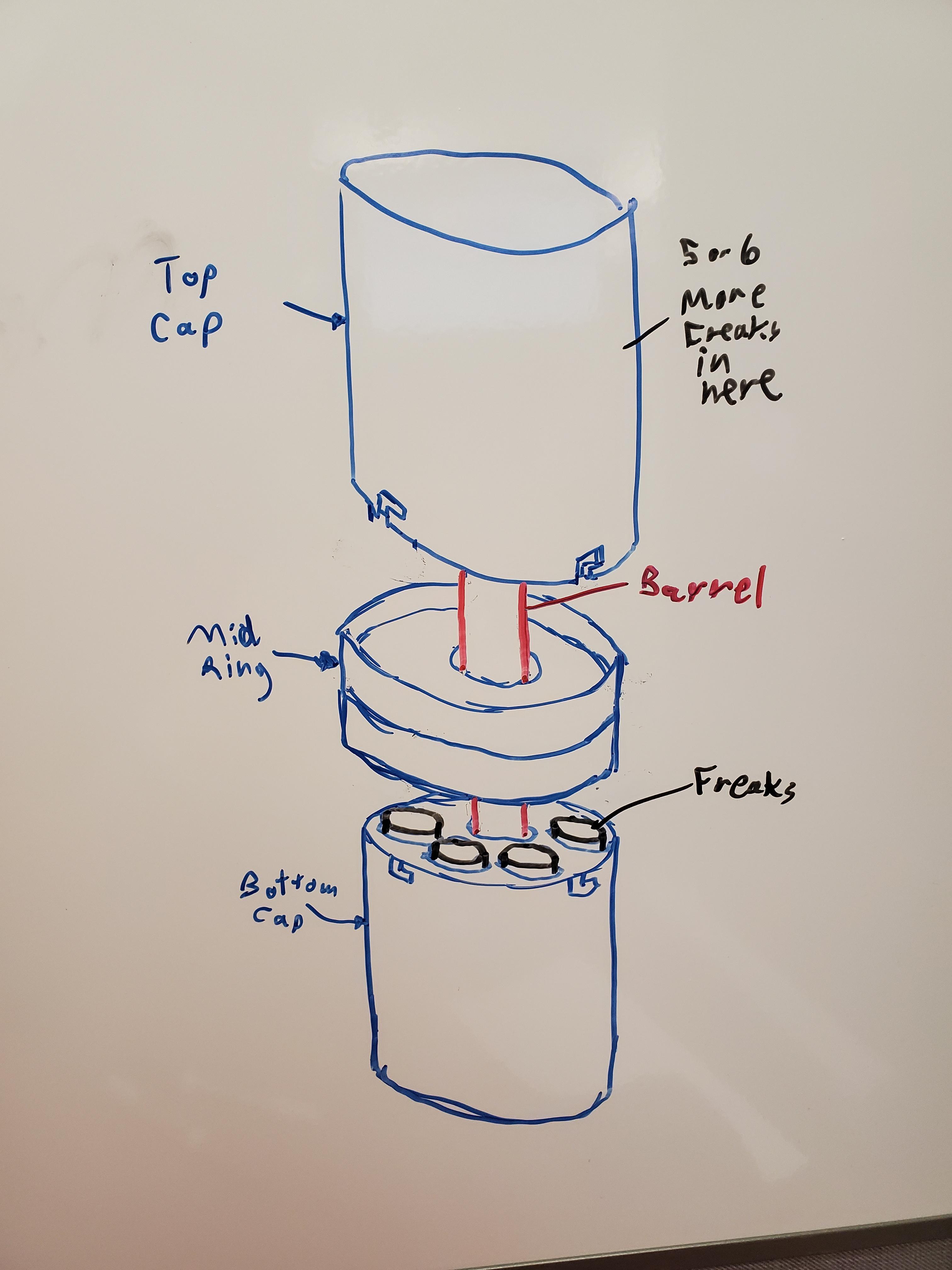

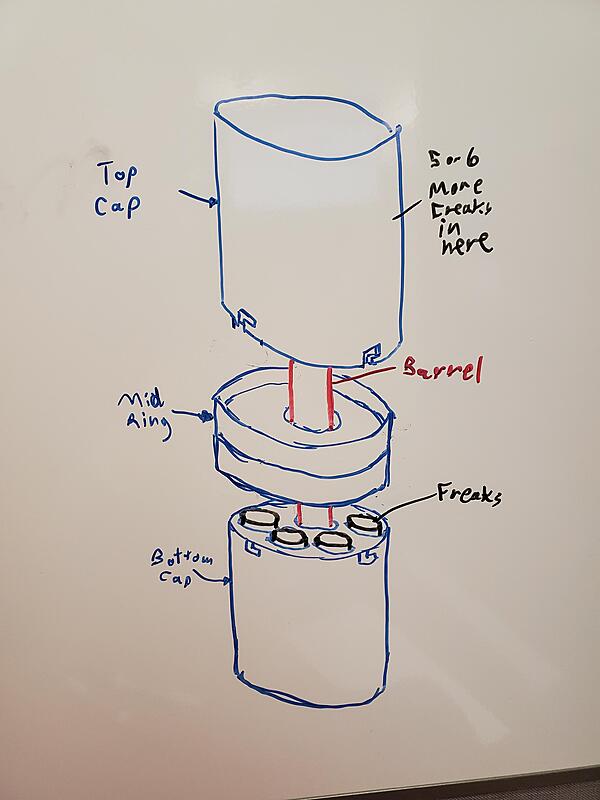

    When I had some more time, it continued to develop into a whiteboard sketch:
    WFPe9ea - Imgur.jpg

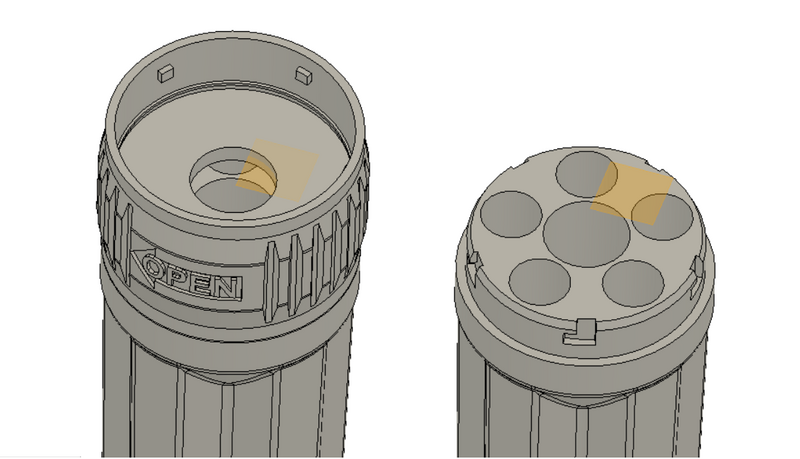

    And then onto the CAD! My favorite part:
    skbHu4t - Imgur.png

    Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback
    Tags: None
    • Rainmaker
      Der Printermeister
      • Jul 2020
      • 1585
      • Cincinnati
      #2

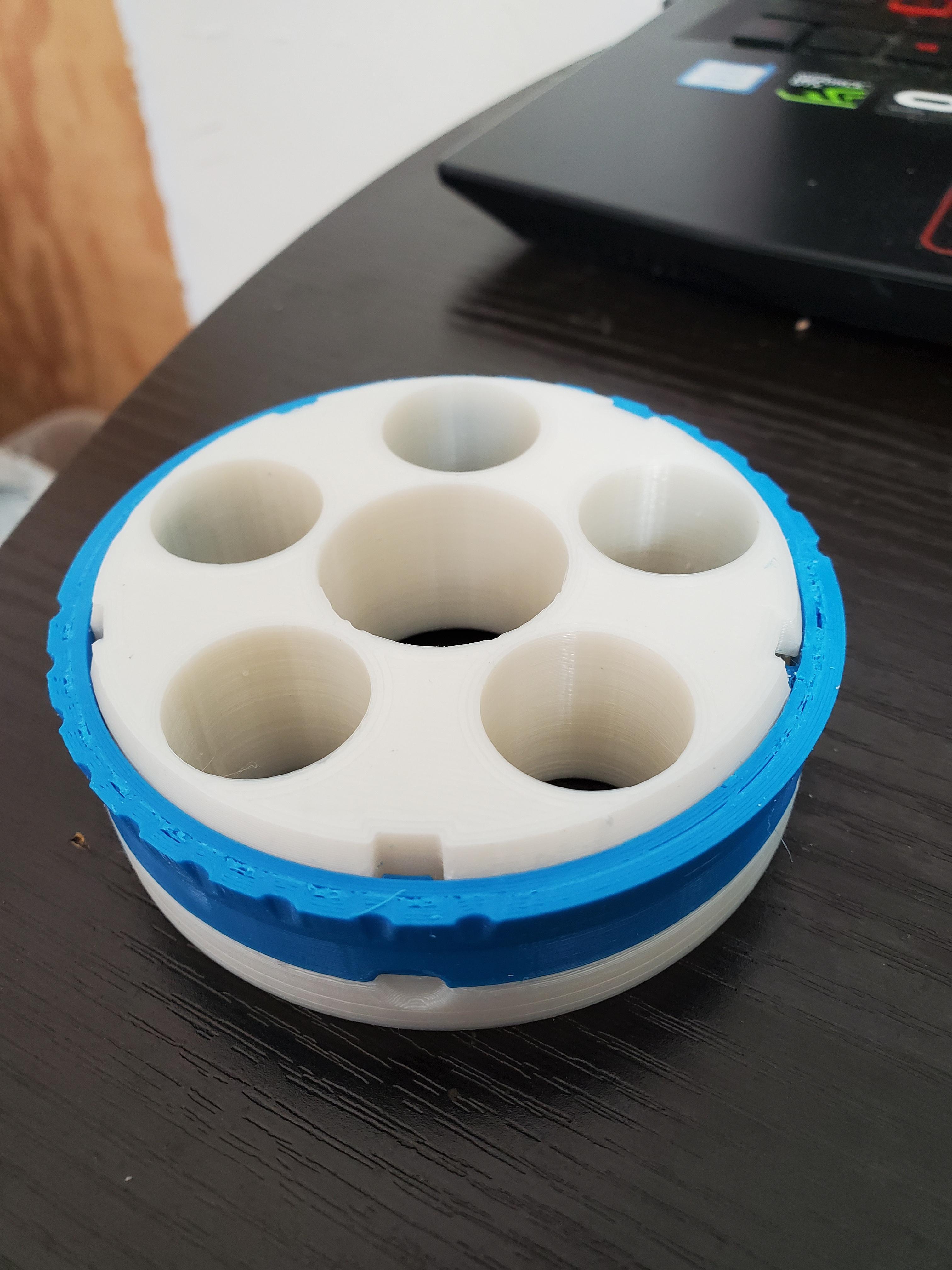

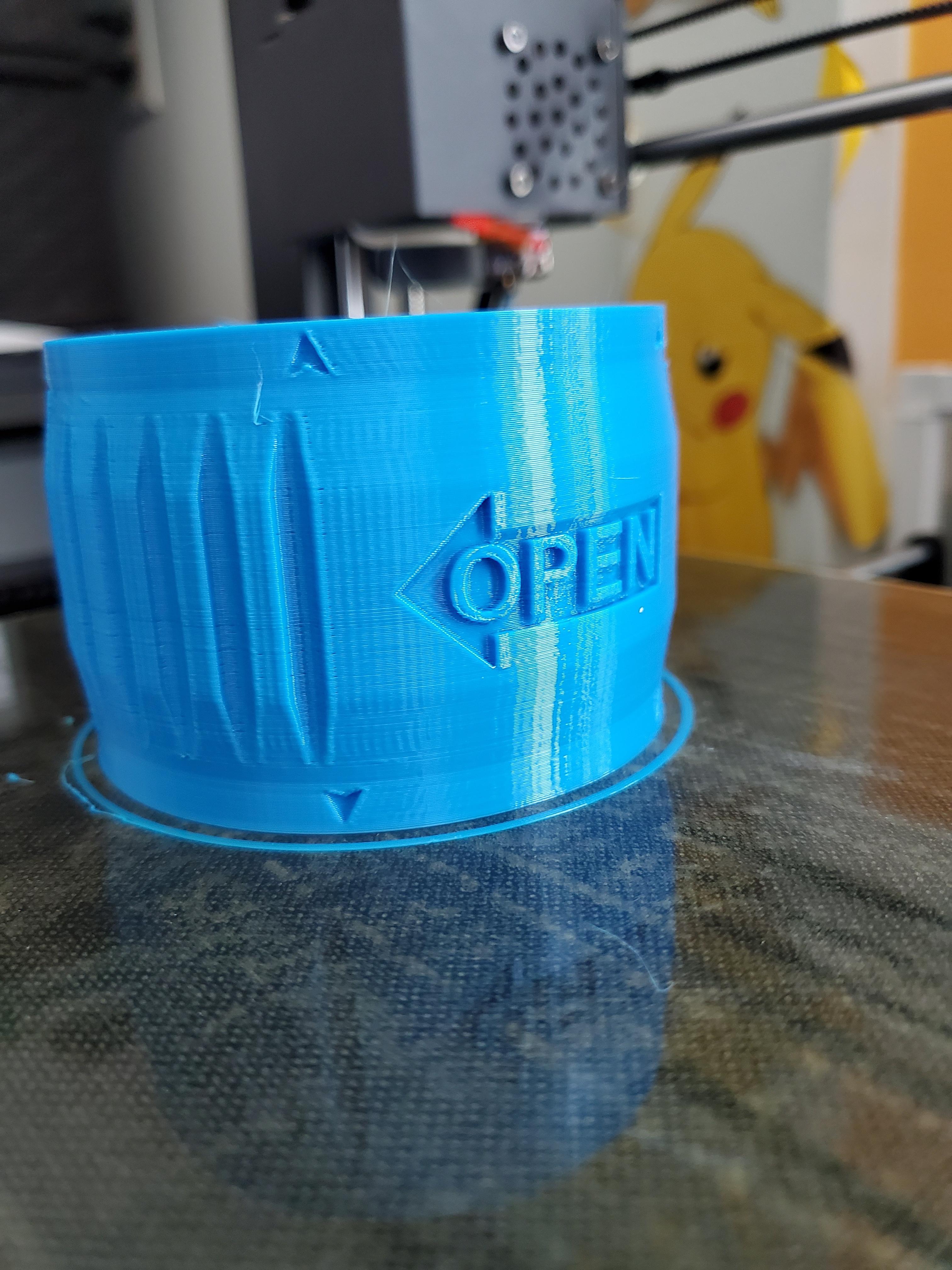

      First test print - a piece of the middle ring and a piece of the freak cap, to test out the locking mechanism. I learned a couple valuable things here. My indexing marks were off, and Kinda hard to see. and also I didn't make the locking slot long enough to get a good lock, the cap side was only rotating like a 1/4" in the ring, which didn't feel like enough bite to give me a warm fuzzy.
      r0PZ0Rj - Imgur.jpg​

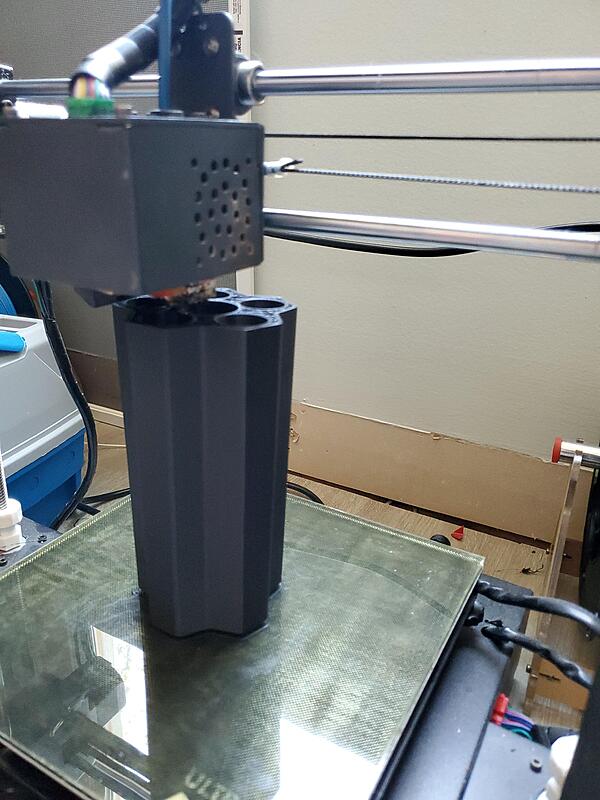

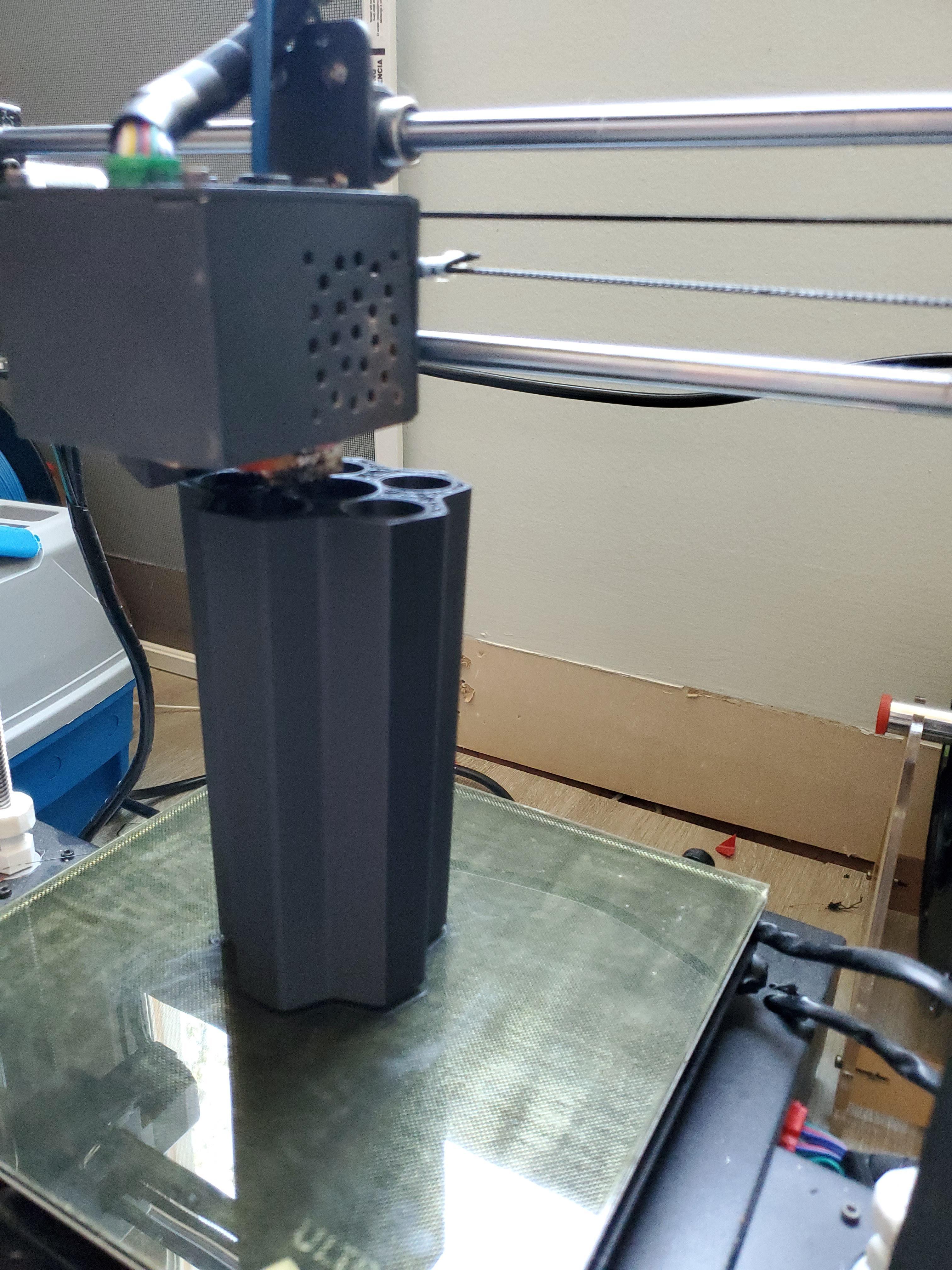

      After a few tweaks, and adding a couple features... Final printing commence!
      EIzw4aF - Imgur.jpg​
      ZtL4QqO - Imgur.jpg​

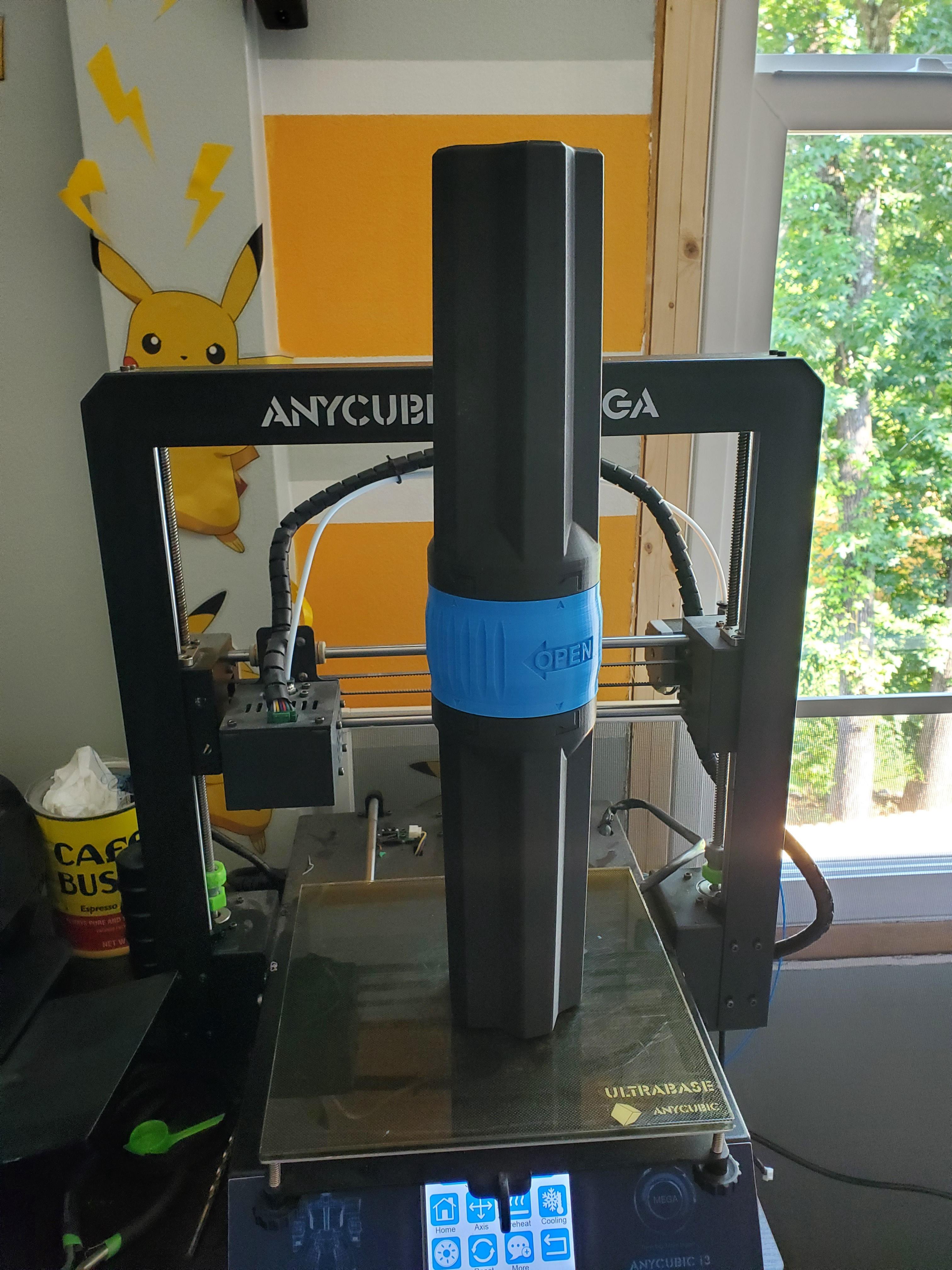

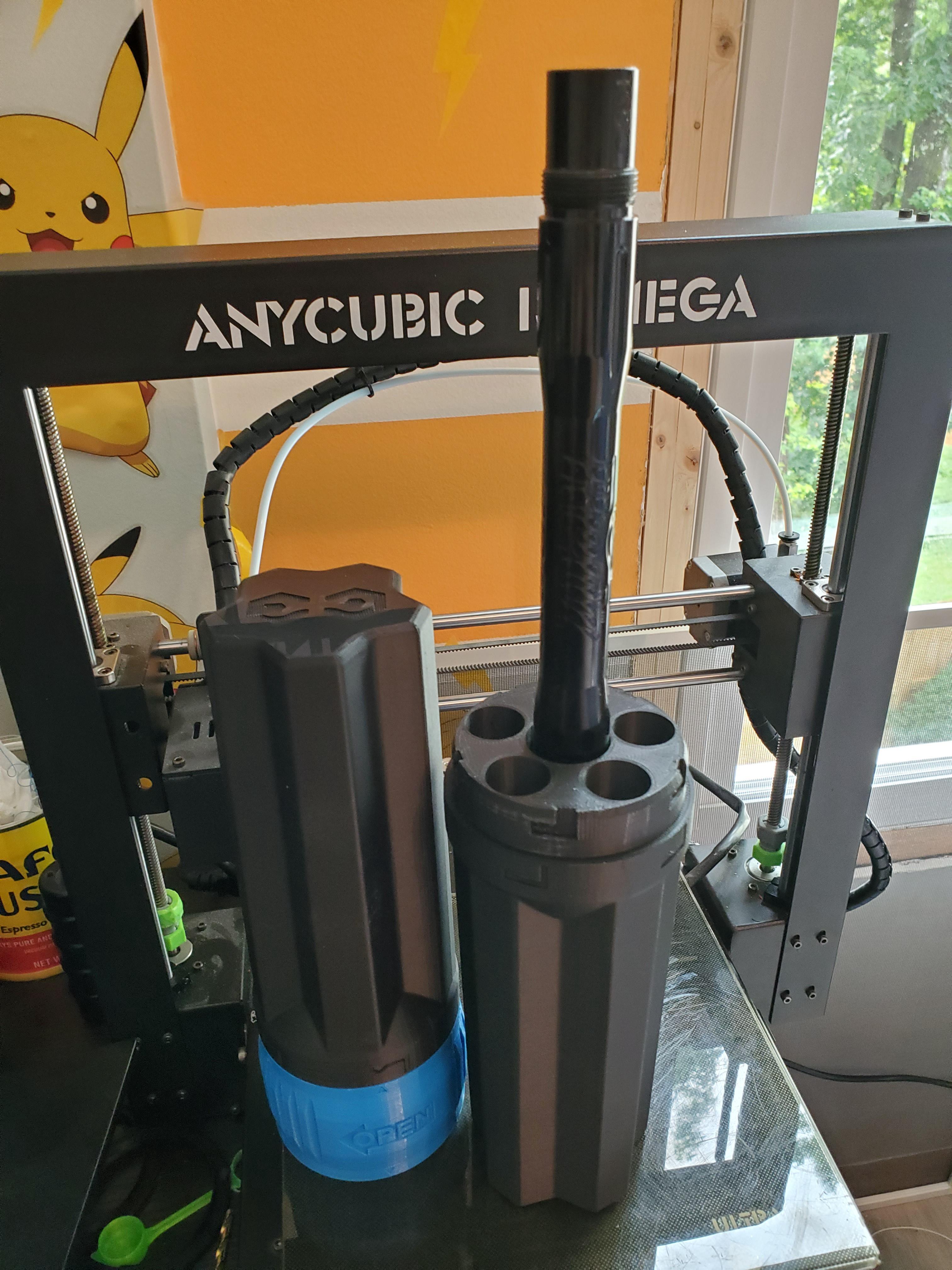

      And Viola! All assembled, with a 14" Redz Pepperstick in there for a test fit:
      xMJSFyd - Imgur.jpg​
      rVtYbrE - Imgur.jpg​
      Last edited by Rainmaker; 08-03-2021, 07:26 AM.
      Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

        Comment

        • Rainmaker
          Der Printermeister
          • Jul 2020
          • 1585
          • Cincinnati
          #3

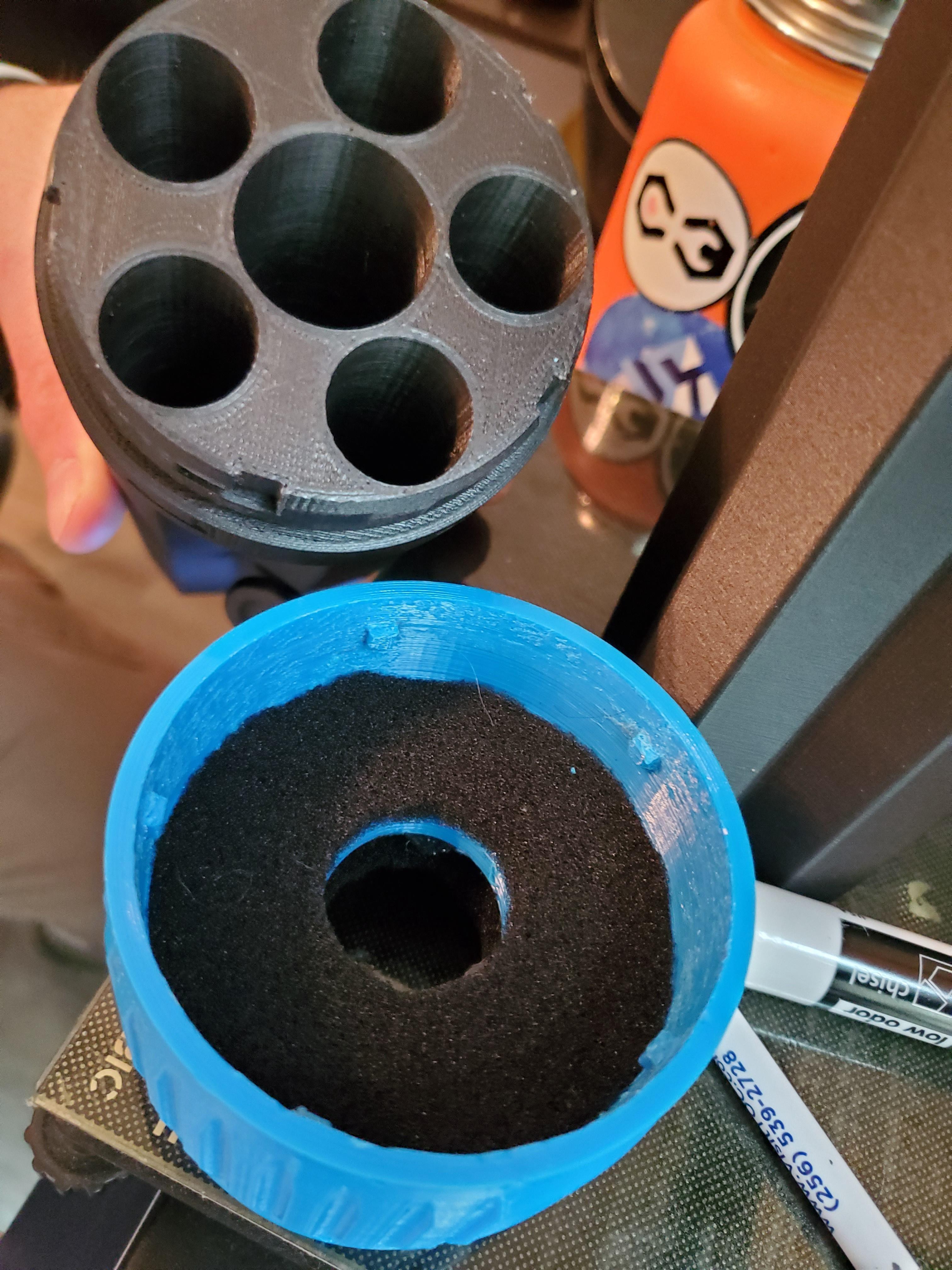

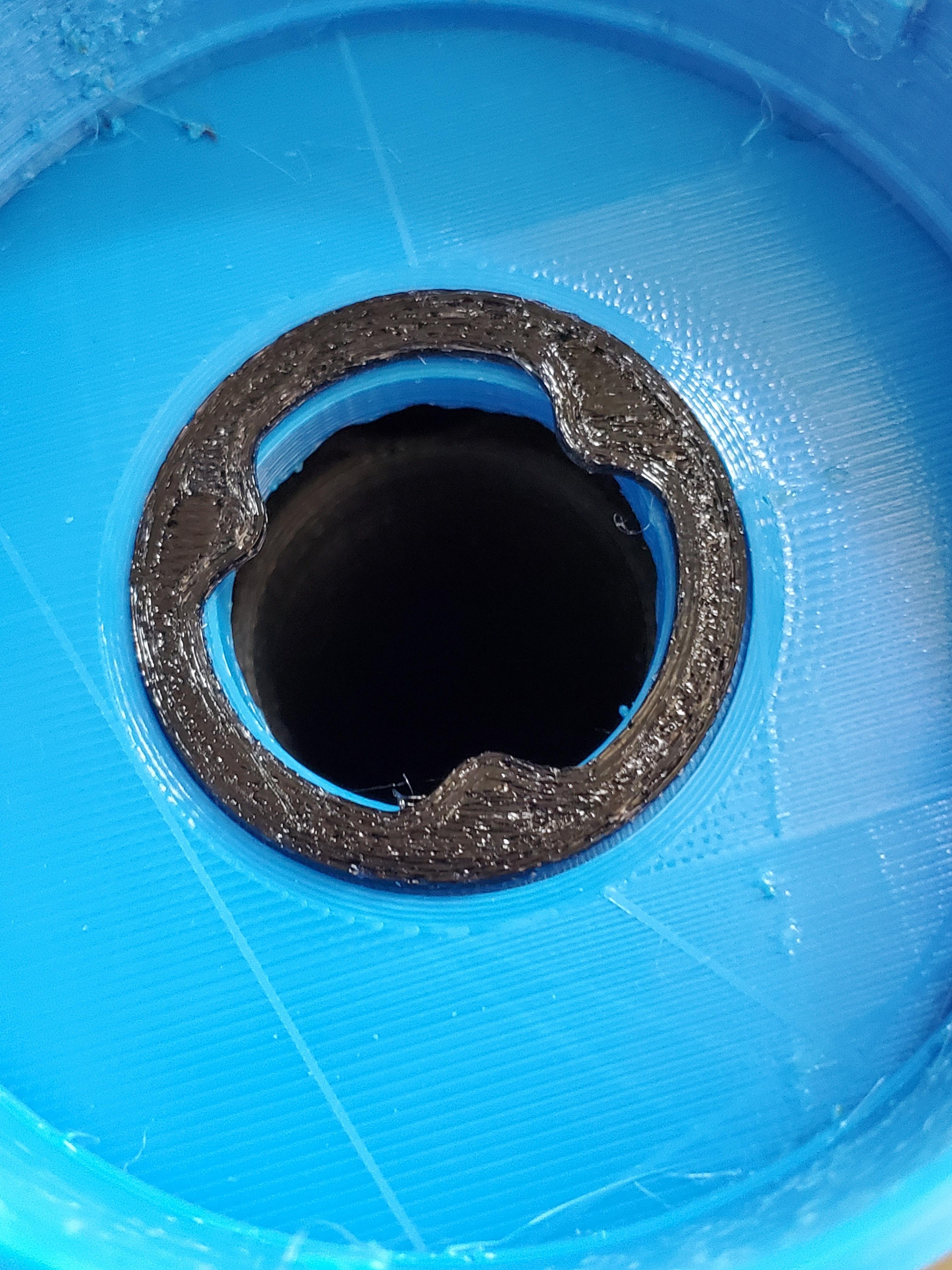

          The center section has a flexible TPU barrel retainer, and a hole through the middle. This lets you open either side of the case and access the barrel regardless of which side you open. 5 inserts accessible from each side, holding a total of 10 inserts. And there is a foam pad on each side of the center ring, to help minimize the rattling of the inserts when it's all closed up.

          ​​​ tGnQDmU - Imgur.jpg 53JP8Ae - Imgur.jpg​​​

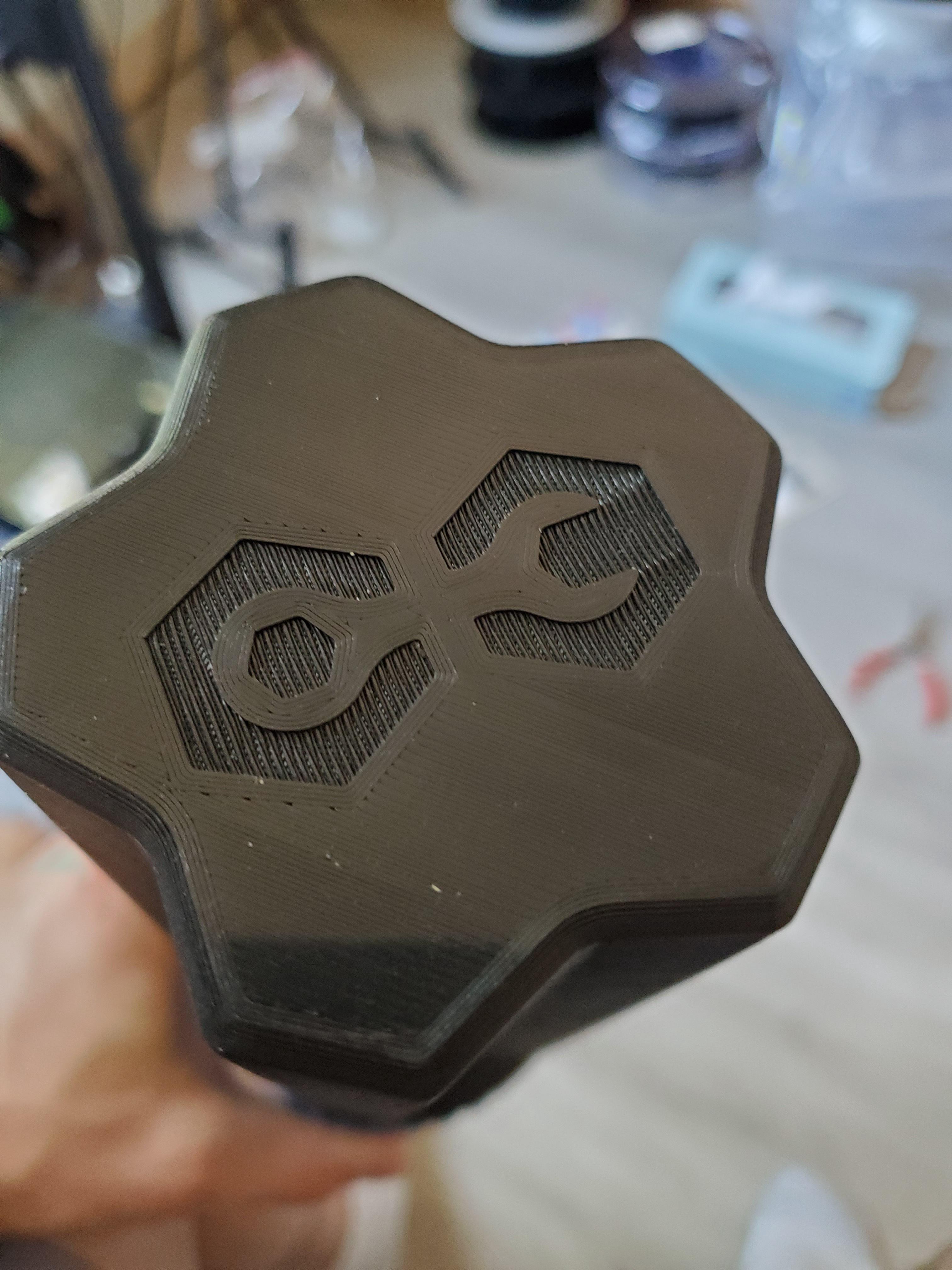

          Aaaaand some print-line-pr0nz..... This is honestly my favorite part of the whole print.​
          32Fc8ux - Imgur.jpg​​​

          All in all, it turned out pretty slick. Enjoy it, Trbo323, you freaky sonofagun!
          Last edited by Rainmaker; 08-03-2021, 07:29 AM.
          Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

            Comment

            • Rainmaker
              Der Printermeister
              • Jul 2020
              • 1585
              • Cincinnati
              #4
              Oh no! Looks like I might have to go back and fix some images :/

              EDIT: I think the other images are fixed now.
              Last edited by Rainmaker; 08-03-2021, 07:32 AM.
              Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

                Comment

                • Grendel
                  MCB Member
                  • Jul 2020
                  • 1980
                  • Lexington, SC
                  #5
                  Well that turned out pretty cool. This going to be a regular product for you?


                  "When you are asked if you can do a job, tell 'em, 'Certainly I can!' Then get busy and find out how to do it." - Theodore Roosevelt

                  Feedback Link - https://www.mcarterbrown.com/forum/b...del-s-feedback

                    Comment

                    • OpusX
                      Still pumpin'
                      • Jul 2020
                      • 1414
                      • KCMO
                      #6
                      Now that is pretty cool. Well done.
                      Velcor will save us...

                      Current MCB Feedback : https://www.mcarterbrown.com/forum/b...opusx-feedback
                      Legacy MCB Feedback (Wayback Machine)

                        Comment

                        • Jordan
                          I. Am. Canadian. 🇨🇦
                          • Jul 2020
                          • 3502
                          • Southern Ontario, Canada
                          #7
                          Kinda like the Evil Pipe kit tube... very cool!
