    Phantom Single Undercocking Dimensions?

    Does anyone have the dimensions for a single rod undercocking kit for a phantom? I'm trying to make a novelty pump handle for my phantom but obtaining the dimensions is difficult and I don't want it to bind. I've attempted it but I'm pretty certain my measurements were off.
    My Feedback

    Want a lightweight 90 degree or forward angled Phantom Grip Phrame?!
    Check out my Printed Phrames thread to buy!

    #2
    I just modeled a single rod UC handle the other day. Do you use Fusion360, by chance?

    Comment


      #3
      Occasionally. Haven't used it in a while but should still have an account there.
      My Feedback

      Want a lightweight 90 degree or forward angled Phantom Grip Phrame?!
      Check out my Printed Phrames thread to buy!

      Comment


        #4
        Disclaimer: This is how I personally measured the dimensions of a Phantom UC single rod kit, and is not official documentation.

        Click image for larger version

Name:	PhantomSingleRodUC.png
Views:	47
Size:	78.0 KB
ID:	35320

        Comment


          #5
          Awesome, thanks! If you haven't noticed any issues I'll default to that. I had .313 and .197 instead if .352 and .25, and I'm not super happy with my method I used of using a dry erase maker to stamp the pattern onto a piece of paper to measure it.

          Thanks a ton for the help!
          My Feedback

          Want a lightweight 90 degree or forward angled Phantom Grip Phrame?!
          Check out my Printed Phrames thread to buy!

          Comment


            #6
            Sure thing, broski.

            It didn't seem to bind at all, pumped smoothly.
            I put masking tape down the center of the holes and used a caliper to measure from one tape edge to the other. It wasn't perfect but it got me really close. Then I printed a cross section (only like 20 print layers) to check against the original pump handle I had on hand, and made minor adjustments.

            Comment


              #7

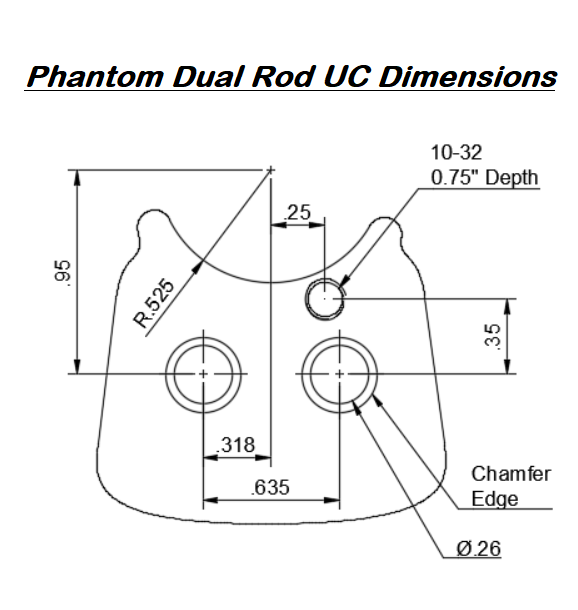

              Also, while we are talking about it, here's the dims I used for Dual rod UC handle:

              Click image for larger version

Name:	PhantomDualRodUC.png
Views:	44
Size:	67.9 KB
ID:	35391
