    Oring recommendation for tank reg

    Click image for larger version

Name:	20210621_151123.jpg
Views:	60
Size:	157.0 KB
ID:	143415

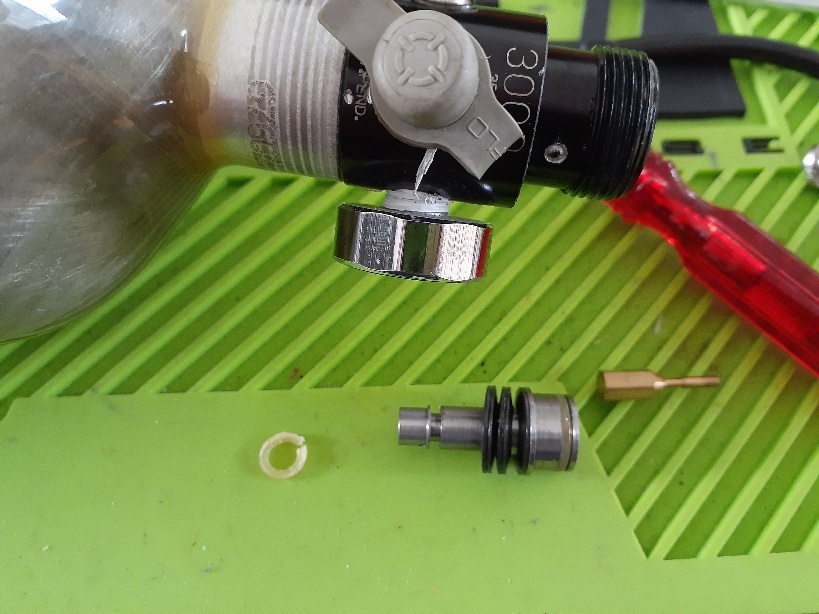

    Had a leak at the set screw near the tnak thread, decided to open it.
    Found a dead oring on the piston. Could I use a standard oring with 70 harness at this location or I need hard oring (urethane 90 I would assume?)

    Its a pure energy tank reg 3000 psi

    #2

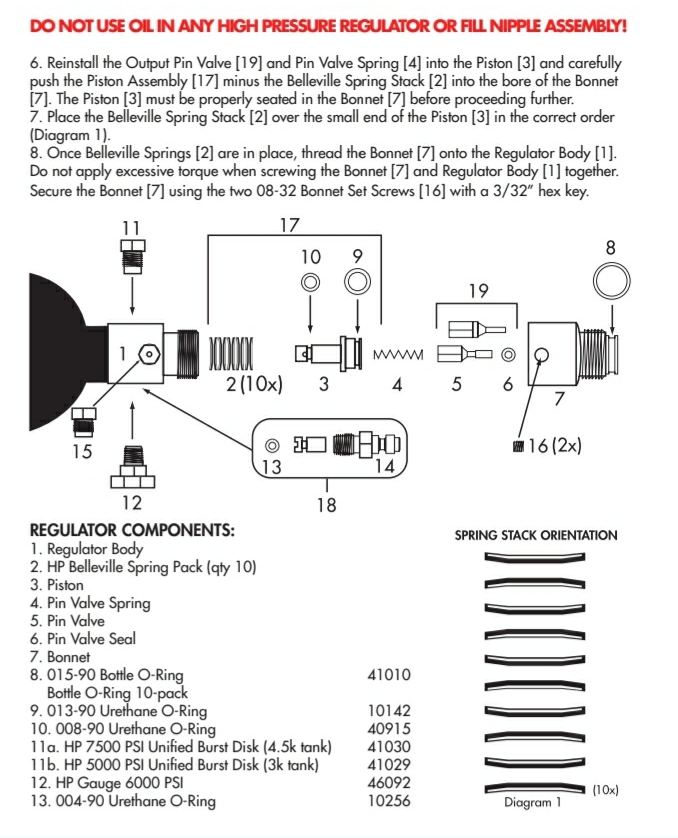

    Found the manual the oring info

    They ask for 90 but I only have 70...

    Also pin valve seal (6) is not specified (look like an automag on off teflon oring)
    Click image for larger version

Name:	Screenshot_20210621-165533_OneDrive.jpg
Views:	31
Size:	239.6 KB
ID:	143446

    Comment


      #3
      I would really go with Urethane 90 if you can.

      These guys have a lot of sizes:
      https://www.theoringstore.com/store/...=367_1322_1327

      Also - Most all regs I have seen use a teflon o ring as you suspected near the pin in the #6 position you mentioned.

      Comment
