Wgp Valve

[Kidgaa]

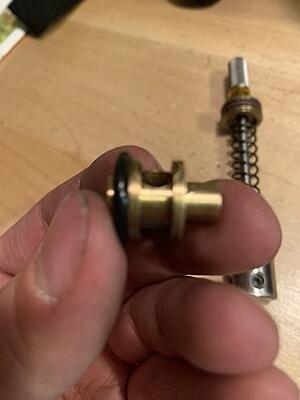

This is the first time I've rebuilt an autococker wgp 2k from scratch. I don't know if this valve is worn, which would explain the leaks?

[iamthelazerviking]

Looks like an older pre2k valve. Can't tell if worn, but have you changed out the o-ring already?

[Swedgin!!]

Try to take a clearer pic of the valve and face. It probably just needs fresh rings and maybe a new cup seal.

[latches109]

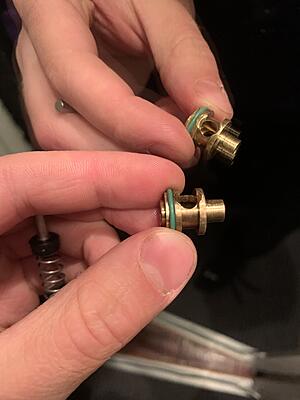

WGP High flow vlave.

012 oring size.

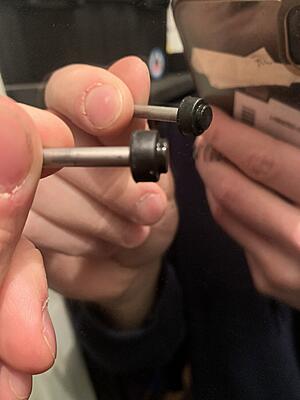

Check the lip for dings or damage. But most likely the issue is with the cup seal on the stem.

[Ecapnation]

I've never seen a valve be worn out

[scottieb]

Brass Raptor valve, but that's about it.

[flyweightnate]

And AM Sentinel valves - I have several with destroyed front edges.

[Kidgaa]

[Blackmagic71]

The valve doesn’t appear to have any unusual damage. Like the others have said, try a new cup seal.

Also make sure the marker is cocked before airing it up.

[latches109]

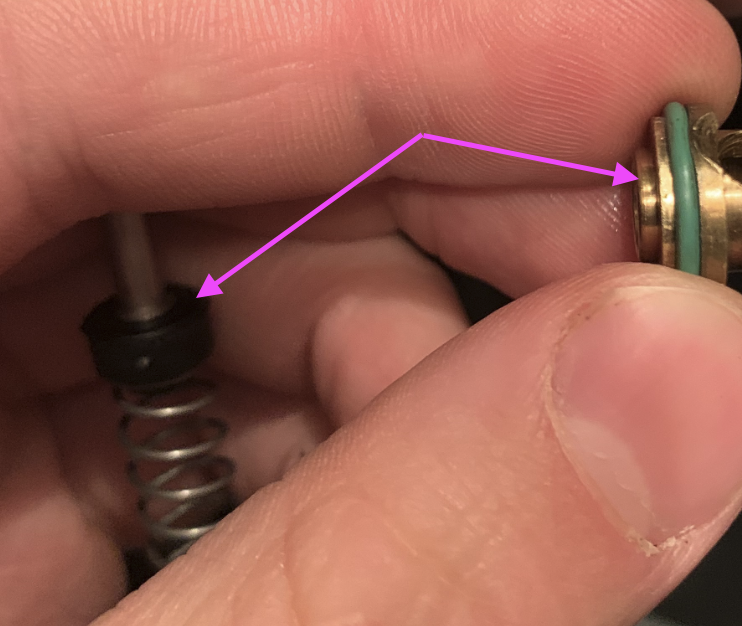

The sealing edge is what matters.

[iamthelazerviking]

Are these particular valves considered good/anything special about them?

[BrendanB]

not really.

[Kidgaa]

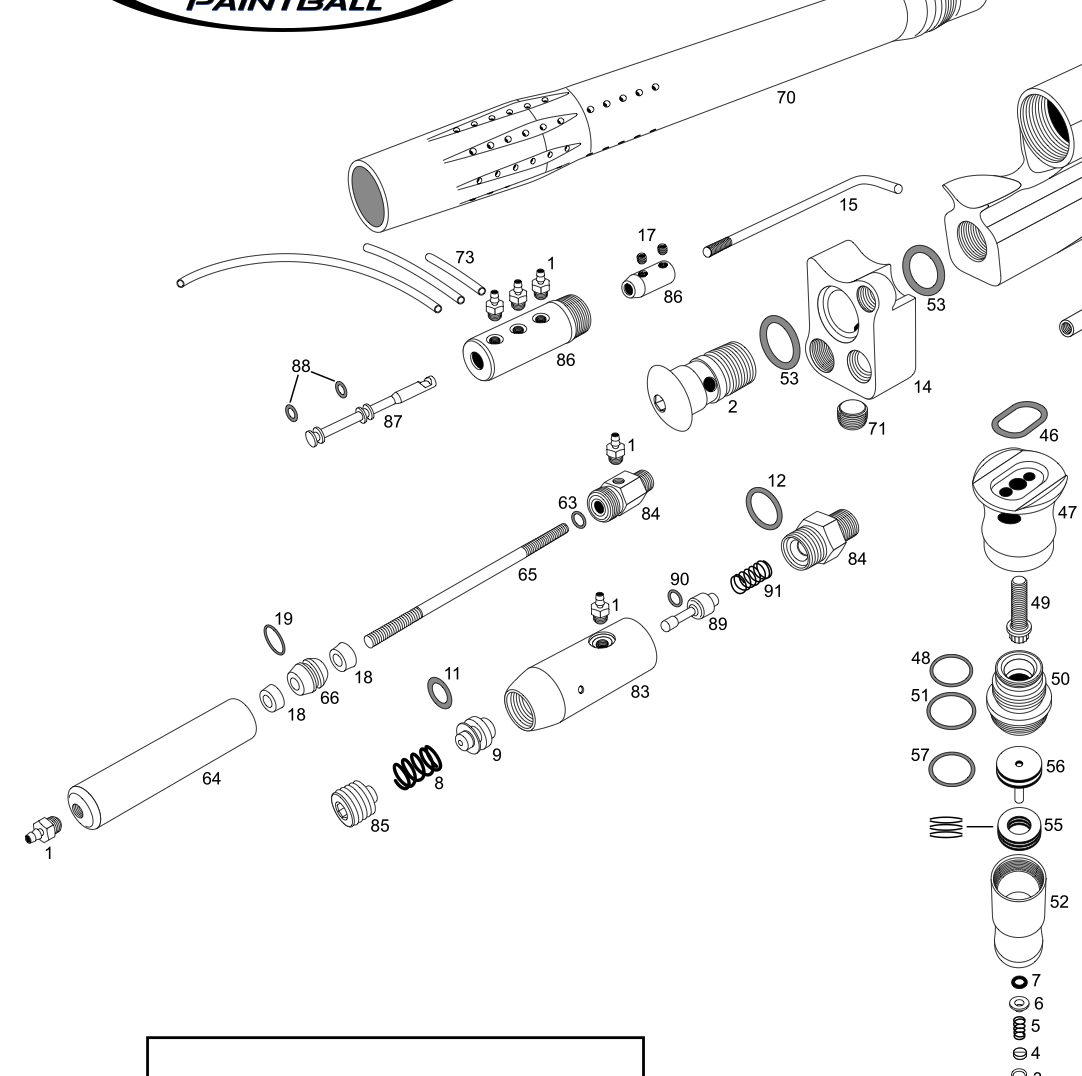

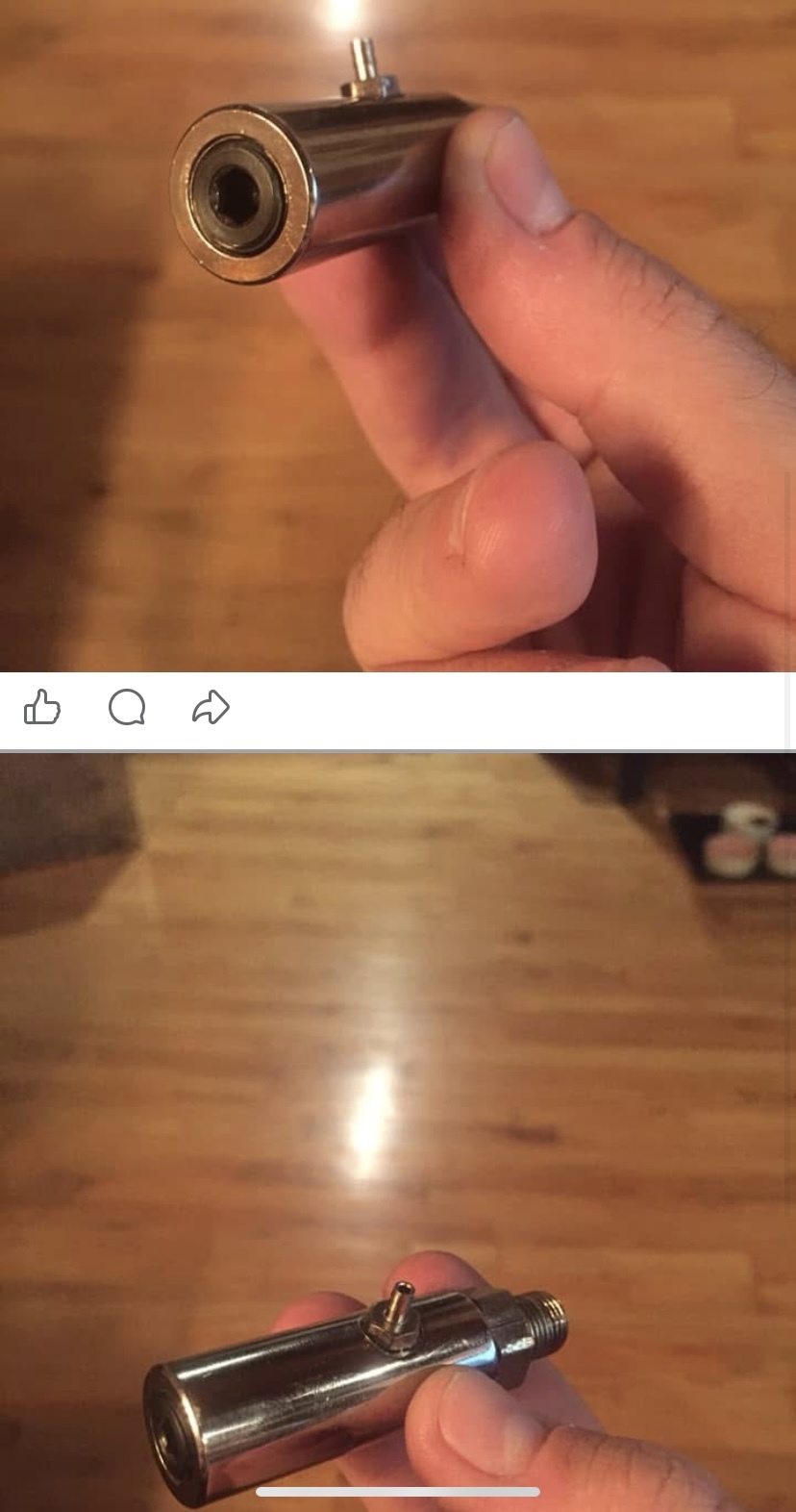

Hi, does anyone have a plan to lpr orknow the order of the pieces;

[latches109]

open it up, don't be scared its easy. 011 70D oring, 009, 012. I like HBNR but also HBR is fine.
