    Eclipse Ram

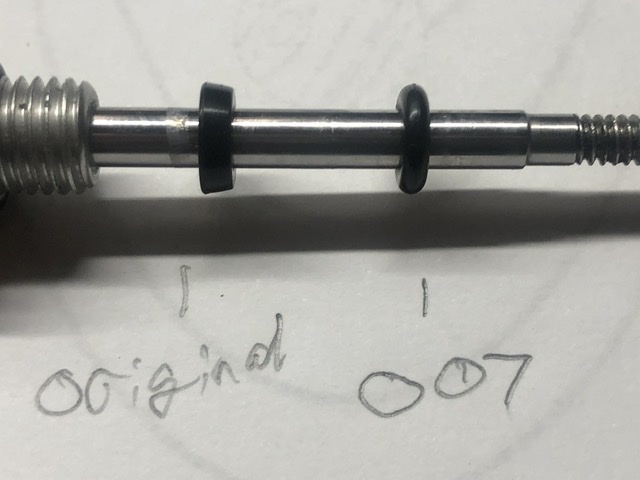

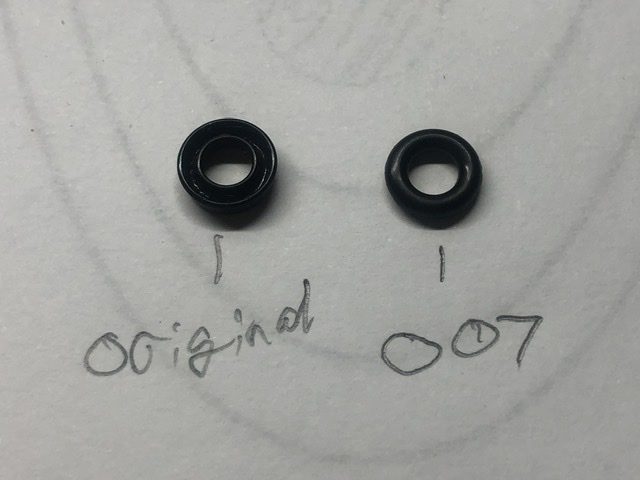

    I’m sure everyone knows about those stupid hard to source shaft u-seals or cup seals whatever. Seems using a -007 oring will work just as well. I put one in mine since I noticed scraping on the shaft and a loss of pressure on the closing side. Feels the oring gives better support and there’s plenty of suction/vacuum no air loss when you plug a port and push or pull the shaft. The oring also stays in place, and doesn’t shift around. Surely someone else has been doing this for a while but forgot to post their results or I’m an idiot in the making and this will fail. Time will tell...

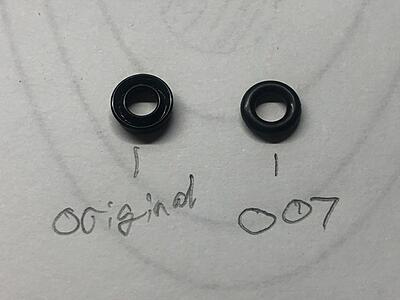

    Click image for larger version  Name:	14C40F80-091B-4BA1-9C05-36E0C4ABAD1B.jpeg Views:	25 Size:	55.3 KB ID:	22701 Click image for larger version  Name:	294ABBCE-95EE-48AB-B78C-B59DF7209BD1.jpeg Views:	20 Size:	52.8 KB ID:	22702
    Last edited by Knuckle Dragger; 08-23-2020, 08:54 PM.
    FEEDBACK WTB LIST!!!! CLICK NOW

    #2
    Mostly I see those called u-cup seals, although you're right about different companies often giving them slightly different names. The O-ring store has a whole section of them.

    https://www.theoringstore.com/store/...&cPath=371_172

    To get the right size, you probably need some calipers to take some measurements.

    Click image for larger version  Name:	ucup-dimensions.png Views:	0 Size:	86.2 KB ID:	22706

    If those seals are black and relatively squishy, you probably want a buna-70 style. Once you know the measurements, you can go here and page through the different results until you find something that matches.
    Stuff I build:

    Comment


      #3
      Forgot to check those guys. I’ll order some if the oring doesn’t work. I just hate having to track down odd things for one part. Thanks for the link
      FEEDBACK WTB LIST!!!! CLICK NOW

      Comment


        #4
        KD, I'm anxious to hear the results of the o-ring in place of the U-seal. I bought O-Ring Store's airsmith o-ring kit, so I have plenty of -007's. Good to know they have the spec'd seals, as well.
        “It is no measure of health to be well adjusted to a profoundly sick society.” -Krishnamurti

        Comment


        • Knuckle Dragger

          Knuckle Dragger

          commented
          Editing a comment
          So far the oring seems fine, and the shaft along with the boss for the seal seem similar to Inceptions GTR (ID uses -008). I’ll probably put it on my Orracle and run the hell out of it to test.

        #5

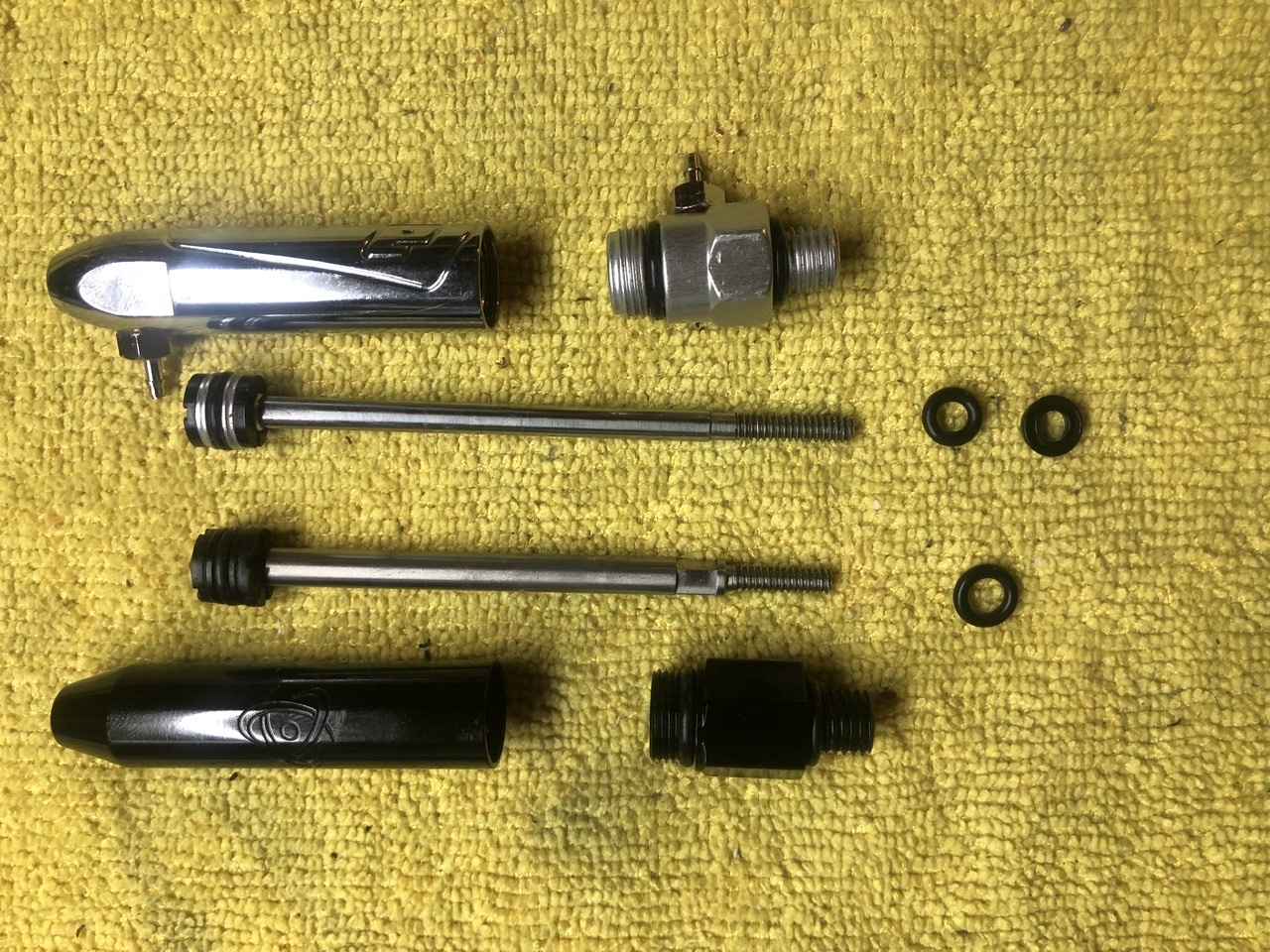

        Just for fun, you can see the similarities between designs. I’m not knocking either except PE for using a stupid shaft seal. Inception has a thicker shaft and smaller collar, so that’s a bonus as well.
        Click image for larger version

Name:	EE47308A-2633-41BE-949A-C015534DC602.jpeg
Views:	187
Size:	558.0 KB
ID:	22752
        FEEDBACK WTB LIST!!!! CLICK NOW

        Comment


          #6

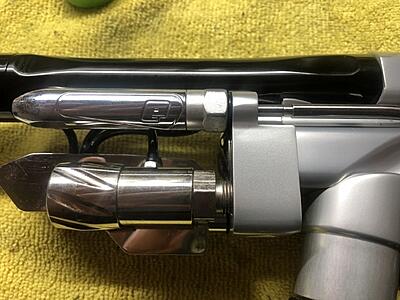

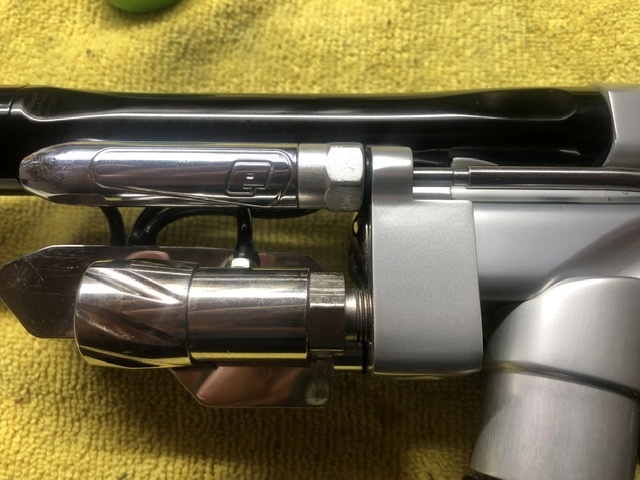

          Follow up: I ran a full 90/4500 to 2k psi. Rapid shots till the muffler was warm and tons of pneumatic cycling till cold on training mode. Ram oring is still sealing and no restrictions or hiccups. The oring is still in place as well. I’m gonna call this a success so far. I may keep the ram now.

          Click image for larger version  Name:	0EB255E9-CD7A-4EAE-BC3A-D2ABE7CA3D1E.jpeg Views:	0 Size:	92.1 KB ID:	22781
          FEEDBACK WTB LIST!!!! CLICK NOW

          Comment


            #7
            Awesome, and good to know should I ever wear out my Eclipse ram.
            “It is no measure of health to be well adjusted to a profoundly sick society.” -Krishnamurti

            Comment


              #8
              I rebuild an eclipse ram with o-ring as well. works fine.

              Comment


                #9
                The u-cup size is 626-007

                Comment


                  #10
                  Originally posted by BrendanB View Post
                  I rebuild an eclipse ram with o-ring as well. works fine.
                  How long have you been using orings instead of the u-cup seal?
                  FEEDBACK WTB LIST!!!! CLICK NOW

                  Comment


                    #11
                    Awesome that it a regular old oring works in its place.

                    Comment


                      #12
                      Oring from the inception ram rebuild kit
