The Spocker... Cocksper... Spydocker?

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    The Spocker... Cocksper... Spydocker?

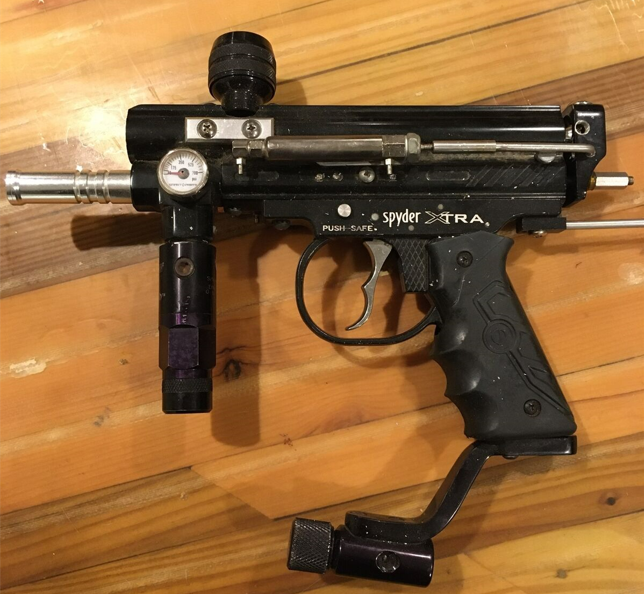

    Everyone has a trigger... mine was a Spyder Cocker project. Wallet was in hand before my eyes even registered what they were seeing.
    Now it has arrived! And... oh dear... oh yes!... oh my!

    Wonderfully wrapped in static clouds it was very clear that this was a love project for someone. It sadly has been sitting for a long time. Dust had accumulated all over, the o-rings liquified, not even the faintest outline of a greased thumbmark.

    Click image for larger version  Name:	spydocker.PNG Views:	0 Size:	564.2 KB ID:	199295

    She's gonna need a full tear-down and rebuild... and ooOoOoooohhh. Interesting!

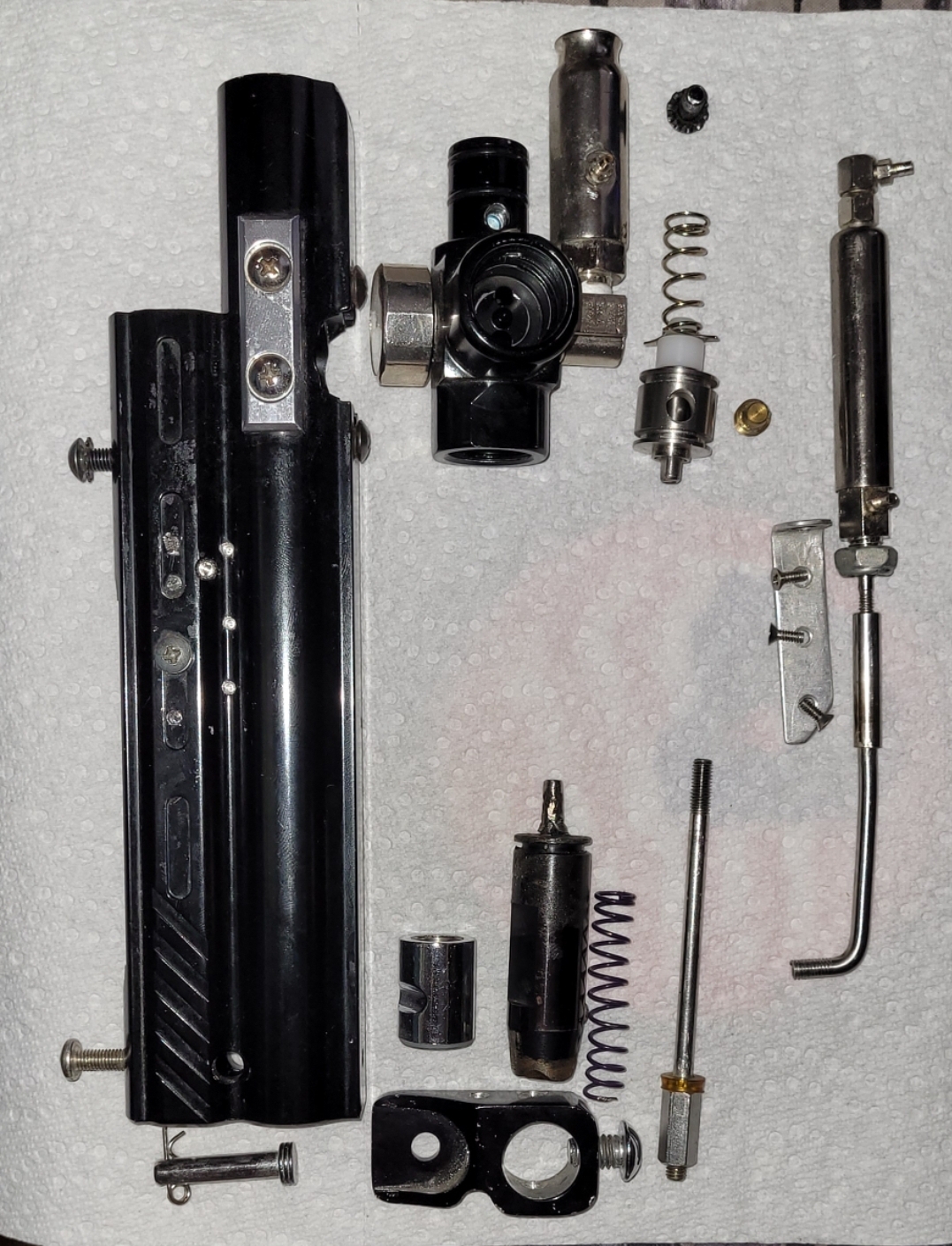

    I had to do some cleaning... just picture these parts in a dusty, o-ring gooey state. (Still more internal cleaning to do).


    Click image for larger version

Name:	Screenshot_20211129-151825_Gallery.jpg
Views:	414
Size:	929.6 KB
ID:	199299

    What a satanic looking hammer we have! ​
    Ram will need a rebuild, but the LPR I think might be just fine!

    #2
    Nothing turns into goo better than Spyder o-rings.
    Cuda's Feedback

    Comment


    • MAr

      MAr

      commented
      Editing a comment
      Laughs in Palmer’s Pursuit

    • William the Third

      William the Third

      commented
      Editing a comment
      ^^^This. The only time I've ever seen Buna turn to goo like Urethane was in a 1k Blazer.

    • Cdn_Cuda

      Cdn_Cuda

      commented
      Editing a comment
      Never so much as even touched a PPS gun, but heard stories. So I guess Spyder would take 2nd spot.

    #3
    Subscribed. I am glad someone here snagged this, although it was to be expected.
    Feedback 3.0

    Originally posted by SignOfZeta;
    Us beardos with wallets need to occasionally make our voices heard.

    Comment


      #4
      LOL! Love it

      Comment


        #5
        I almost bought that just to take the messiah off of it.

        Also Cocksper doesn't sound like something you'd want to have.

        Sent from my SM-G960U1 using Tapatalk


        Last edited by Macdave06; 11-30-2021, 12:11 AM.

        Comment


          #6
          You should add a vs2 valve
          and an Azodin kp3 striker it will only need minor modding

          Comment


          • Seajay

            Seajay

            commented
            Editing a comment
            I'm intrigued, I have a VS2 valve and definitely enjoy it. Not familiar with the KP3 striker but I will investigate. I might look at this combo once I get the existing setup functional and see where the failures are.

          #7
          Day 2.

          The Cockspy is an intricate beast, almost completely following the exact layout of a standard autococker.

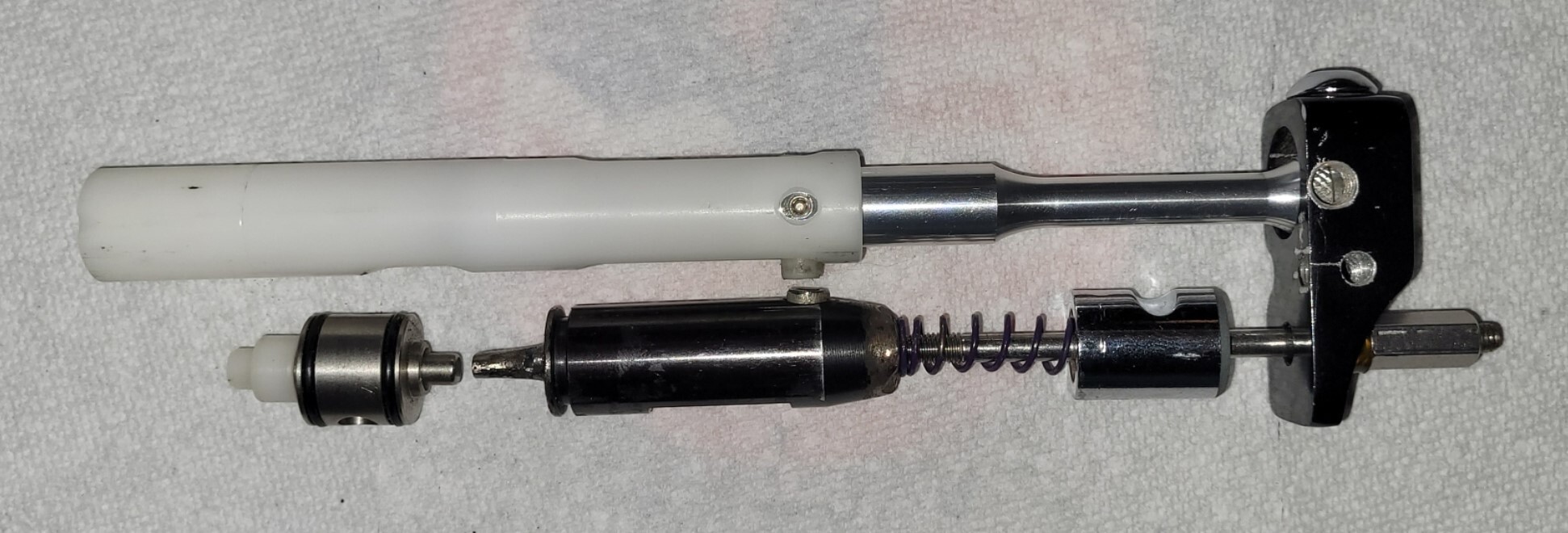

          As you can see the hammer assembly is threaded together and the bolt is tied to a back-block.

          Click image for larger version

Name:	1.jpg
Views:	338
Size:	245.0 KB
ID:	199844

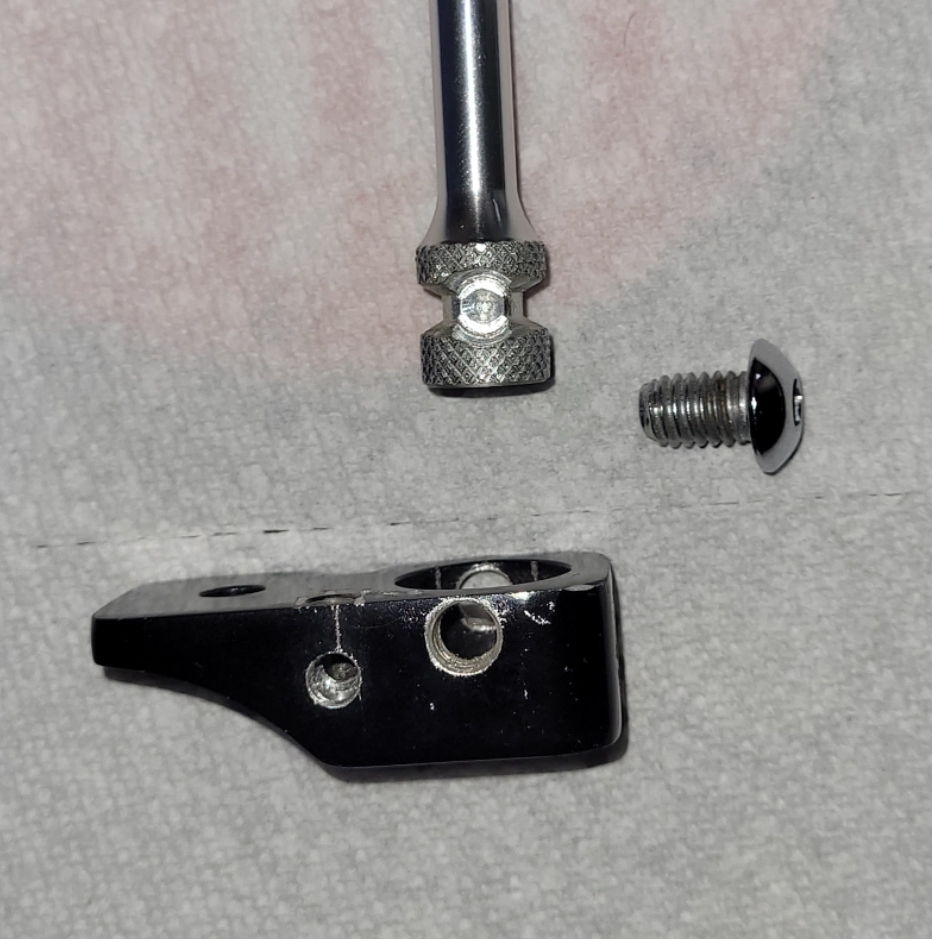

          The bolt is a normal Spyder ACS (anti-chop system) that is pinned by a vertical screw to the back-block. It is clear someone used a good set of tools to set the grooves and add threading to the bits and pieces. The spacing is accurate, this guy knew what they were doing.

          Click image for larger version

Name:	2.jpg
Views:	317
Size:	427.6 KB
ID:	199845

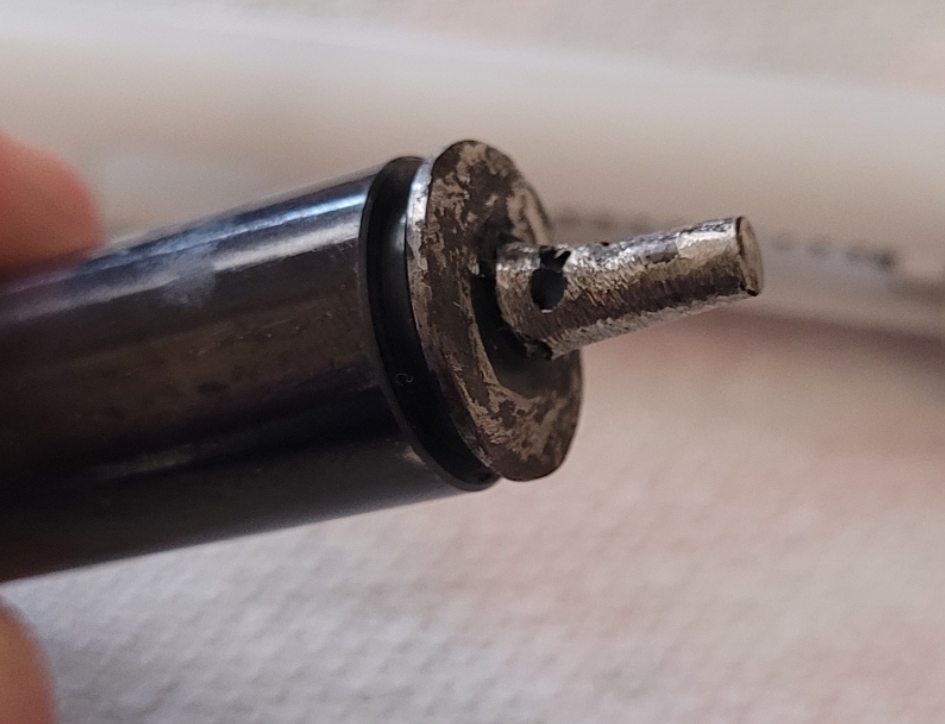

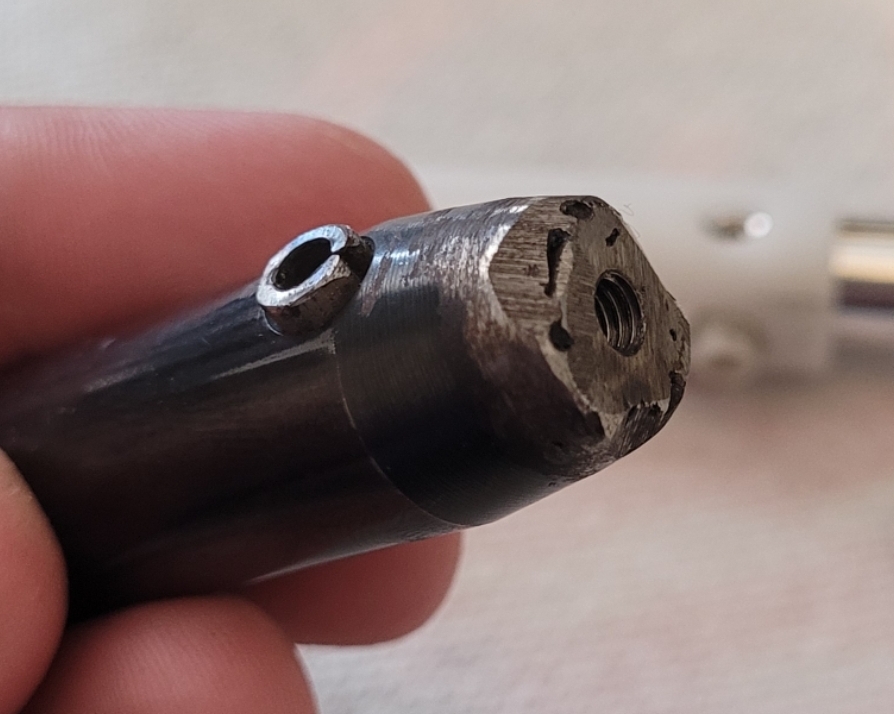

          I'm super curious what the intention of this design is. This friendly looking doom spike is welded onto the end of the hammer. It is a little messy but shows signs of being turned down and when I spin it in my fingers the center appears to be accurately set to center. What is interesting is the spacing. This is clearly intentional. My guess would be to move the trigger position in preparation for the 3 way timing. No modification was done to the valve so I don't think it is related to airflow (specifically the blow-back action).

          I'll use some high-grit sandpaper to clean this death-spike up some. The Hammer should have nice clean surfaces so it moves without restriction.

          Click image for larger version

Name:	3.jpg
Views:	320
Size:	316.2 KB
ID:	199846
          Click image for larger version

Name:	4.jpg
Views:	317
Size:	294.9 KB
ID:	199847

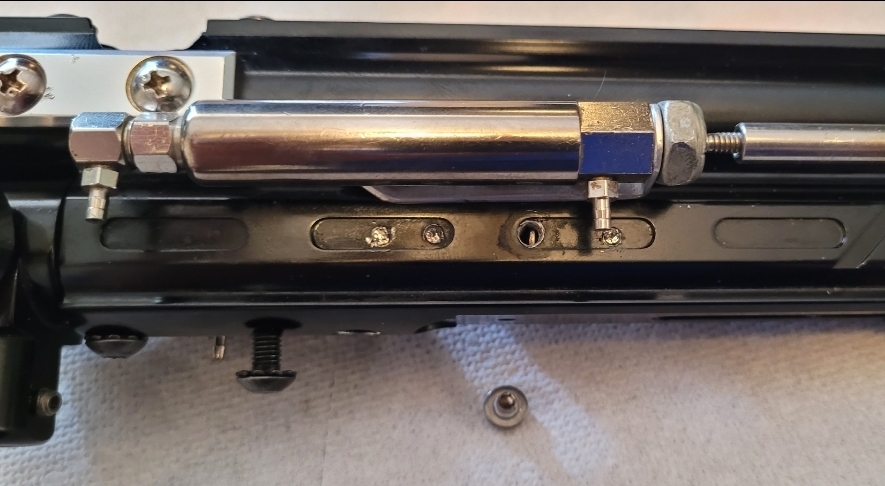

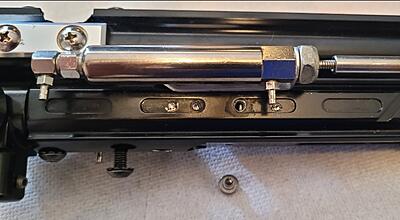

          Other than cleaning everything up and getting each individual component working again I'll need to add a 3 way. There are a few ways of doing this but it looks like a bracket was intended to go where this little screw is. I have it removed and you can just see the front of the hammer face. Not super great since that o-ring will be riding across this hole, so I'll need to triple check it is clean and won't eat that o-ring.

          Click image for larger version

Name:	5.jpg
Views:	320
Size:	272.9 KB
ID:	199848

          I won't know where to go yet until I actually get things functional again. The most important part will be making sure the trigger is able to release the hammer before tripping the 3-way.

          Next step is rebuilding the Ram while I wait for some parts.
          Last edited by Seajay; 11-30-2021, 05:29 PM.

          Comment


          • iamthelazerviking
            iamthelazerviking commented
            Editing a comment
            Pics are not working (for me at least)

          • Seajay

            Seajay

            commented
            Editing a comment
            Redid them hope it is working now

          #8
          There’s some good info at the bottom of Otter’s old page about SpyderCockers that may hold some intel in cleaning this one up.

          https://web.archive.org/web/20050206...l#spydercocker

          Comment


          • Seajay

            Seajay

            commented
            Editing a comment
            Yup ! I have been examining those projects for the 3 way mount.

          #9
          Is the valve pin still notched for blowback?
          I'm guessing he extended the striker because the cocking rod wasn't long enough?

          Sent from my SM-G960U1 using Tapatalk

          Comment


          • Seajay

            Seajay

            commented
            Editing a comment
            It's not, and also other than lost efficiency I don't think it would actually do much either. The operating pressure should be too low to overcome both the RAM and the spring. I've got an idea how to remove the blow-back altogether though.

          #10
          While mine isn't a backblock actuated cocker, I've got pics on my site on how my closed bolt Spyder works. Hit me up if you need a hand.
          Fred aka ChoSanJuan
          Team: With Intent
          Paintball parts and 3D Printed items!
          My Feedback

          Comment


            #11

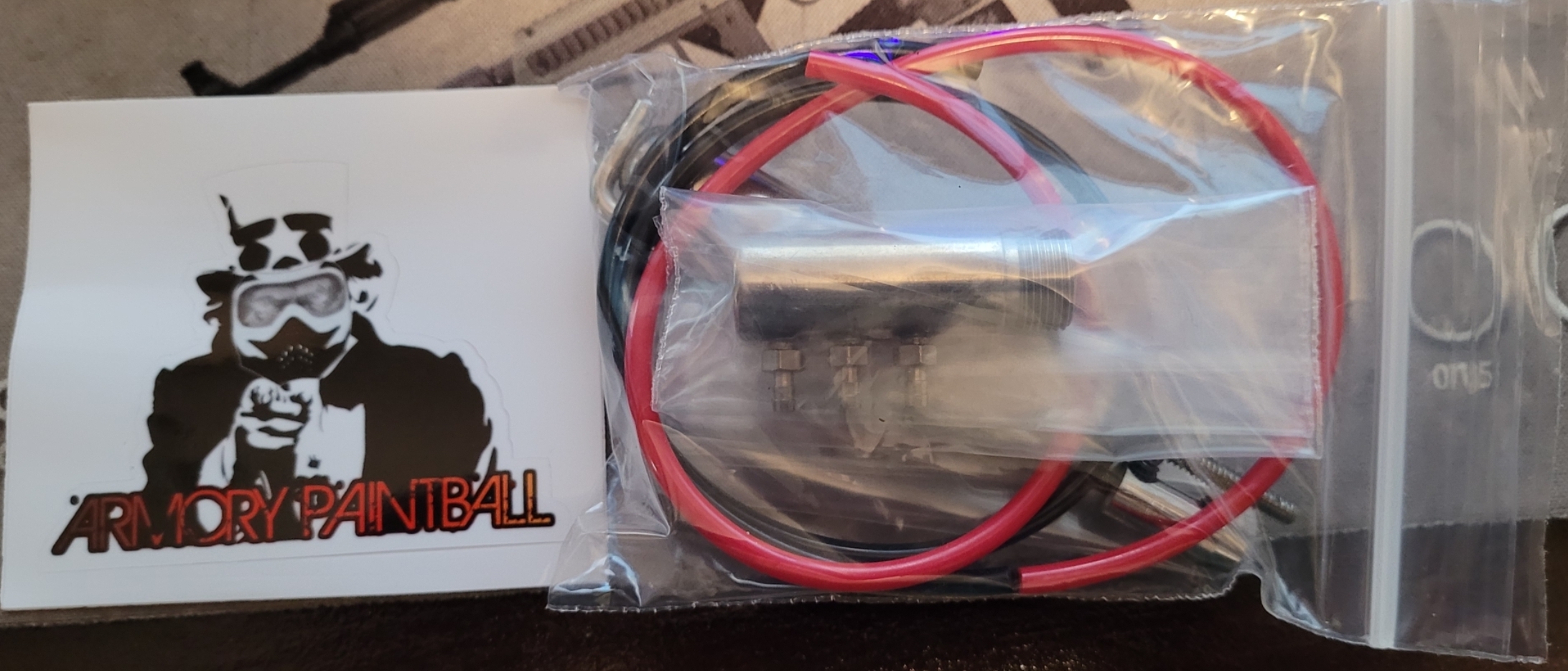

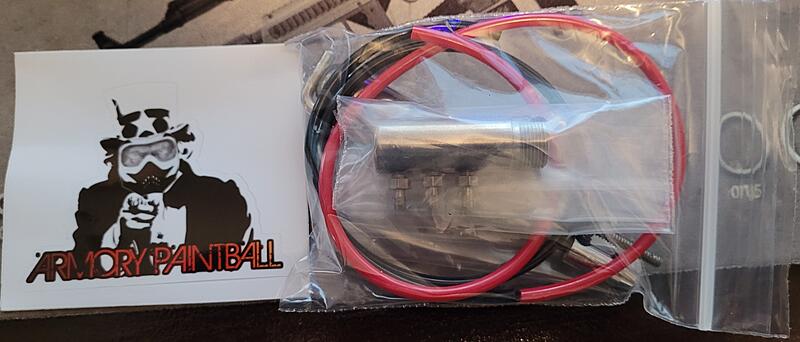

            Got some stuff during Armory Paintballs Black Friday sale
            3 way and arm
            Hoses
            bits and pieces

            Next step is deciding how to connect the 3-Way and trigger. Then I'll be mechanically all there.


            Click image for larger version

Name:	supplies.jpg
Views:	287
Size:	1,003.9 KB
ID:	203116

            Comment


              #12
              Have you gotten the 3 way connected?
              FEEDBACK - https://www.mcarterbrown.com/forum/b...k-for-scottieb

              Comment


                #13
                Originally posted by scottieb View Post
                Have you gotten the 3 way connected?
                Almost. I picked up some hardware recently and had the idea of using locking nuts to pin the 3 way to the bracket (working on that now) but I grabbed the wrong size.

                I still need to rebuild the ram, so will hopefully have some time this holiday to try and finish it

                Comment


                  #14
                  Well Happy New Year and You... anyone know the actual size of the 3 Way threads? My hardware store doesn't have anything that matches in order to pin it to the little bracket I'm making.

                  My intention was to use lok nuts to secure it, instead of trying to thread the bracket itself.

                  Comment


                    #15
                    I wanna say those are something weird like 5-40? Probably why you can't find hardware.

                    Edit: thinking the timing rod. The 3-way threads are also odd: 15/32-32. It's standard in industrial applications for some valves.
                    Sent from my SM-G960U1 using Tapatalk
