Classic MacDev Cyborg Disassembly

[Cdn_Cuda]

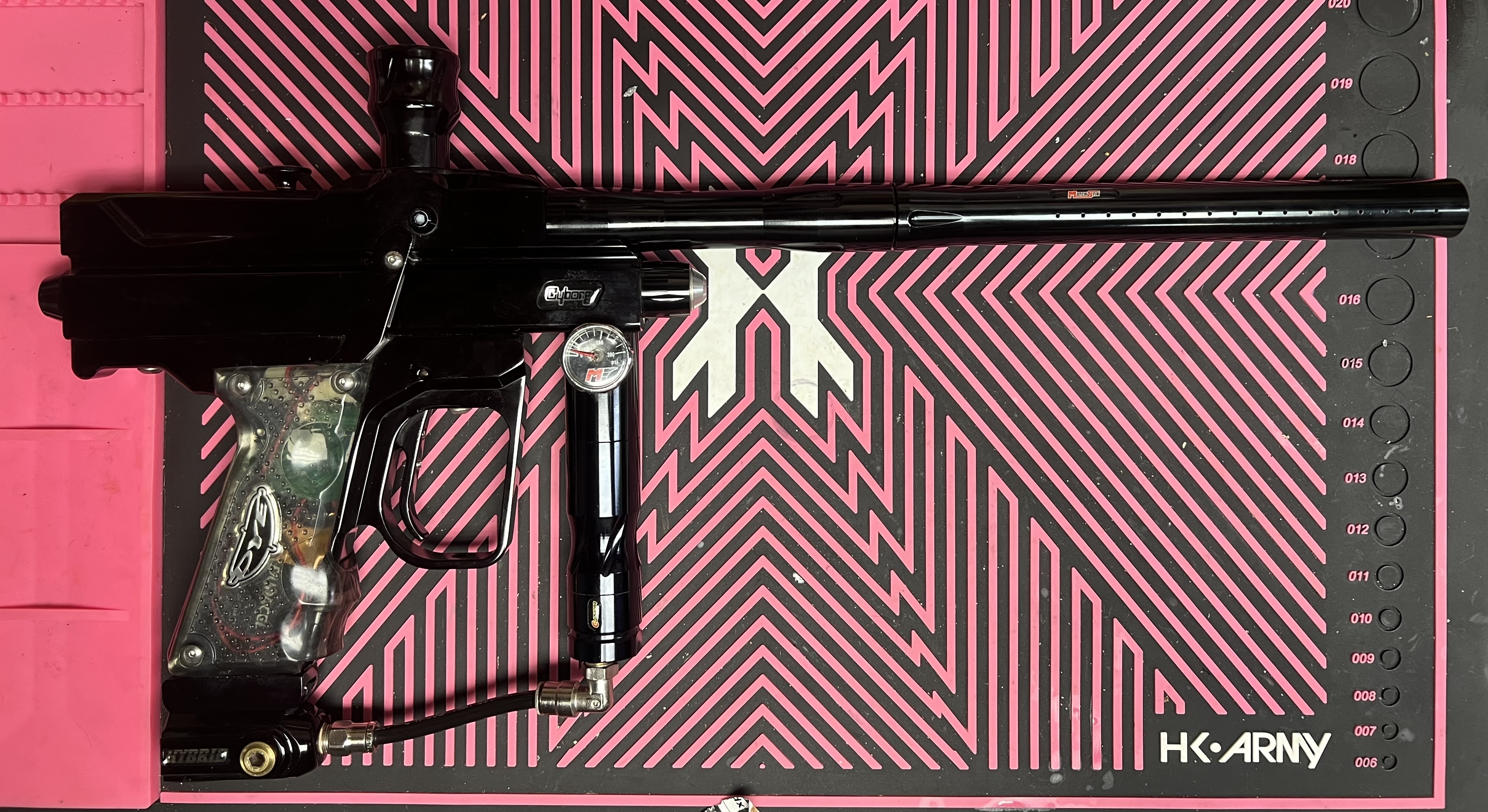

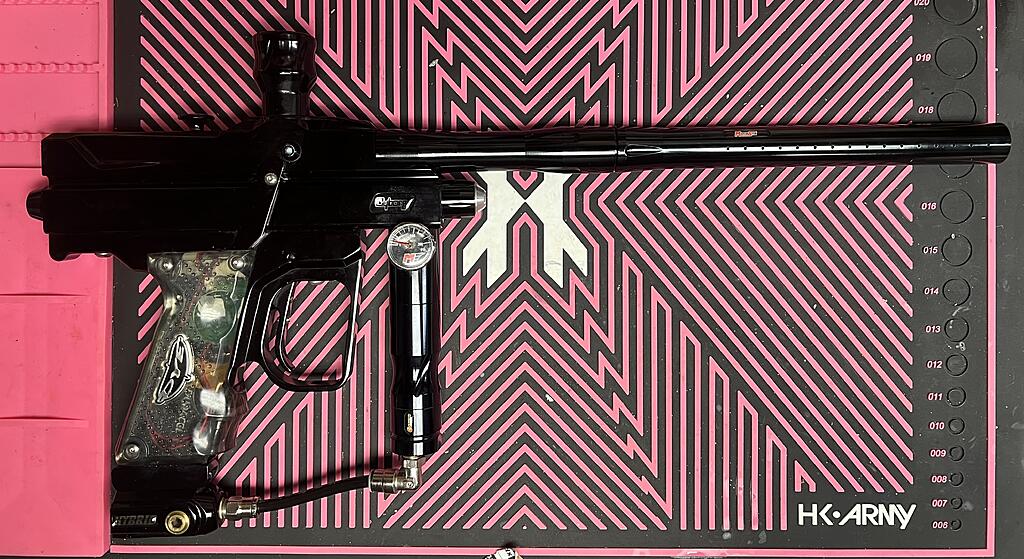

Just picked up this pretty minty MacDev Cyborg. I think it’s an ‘04 model. Serial number is 0612. I’ve never touched a MacDev marker before, so jumped at the chance to get it.

Local pickup from a guy that hadn’t used it in a long time. Came with original case, which isn’t even dusty. Not used to getting gear in as good of condition!

In early testing board lights up and solenoid clicks, always a good sign! But it doesn’t hold air, not surprising since it’s been sitting for a decade if not two!

So, as is my usually thing, I’m going to try to disassemble and resurrect this old beast.


[Cdn_Cuda]

Starting with the easy stuff, removing the Dye grips
first. Haven’t seen a non-yellowed pair of this in forever!

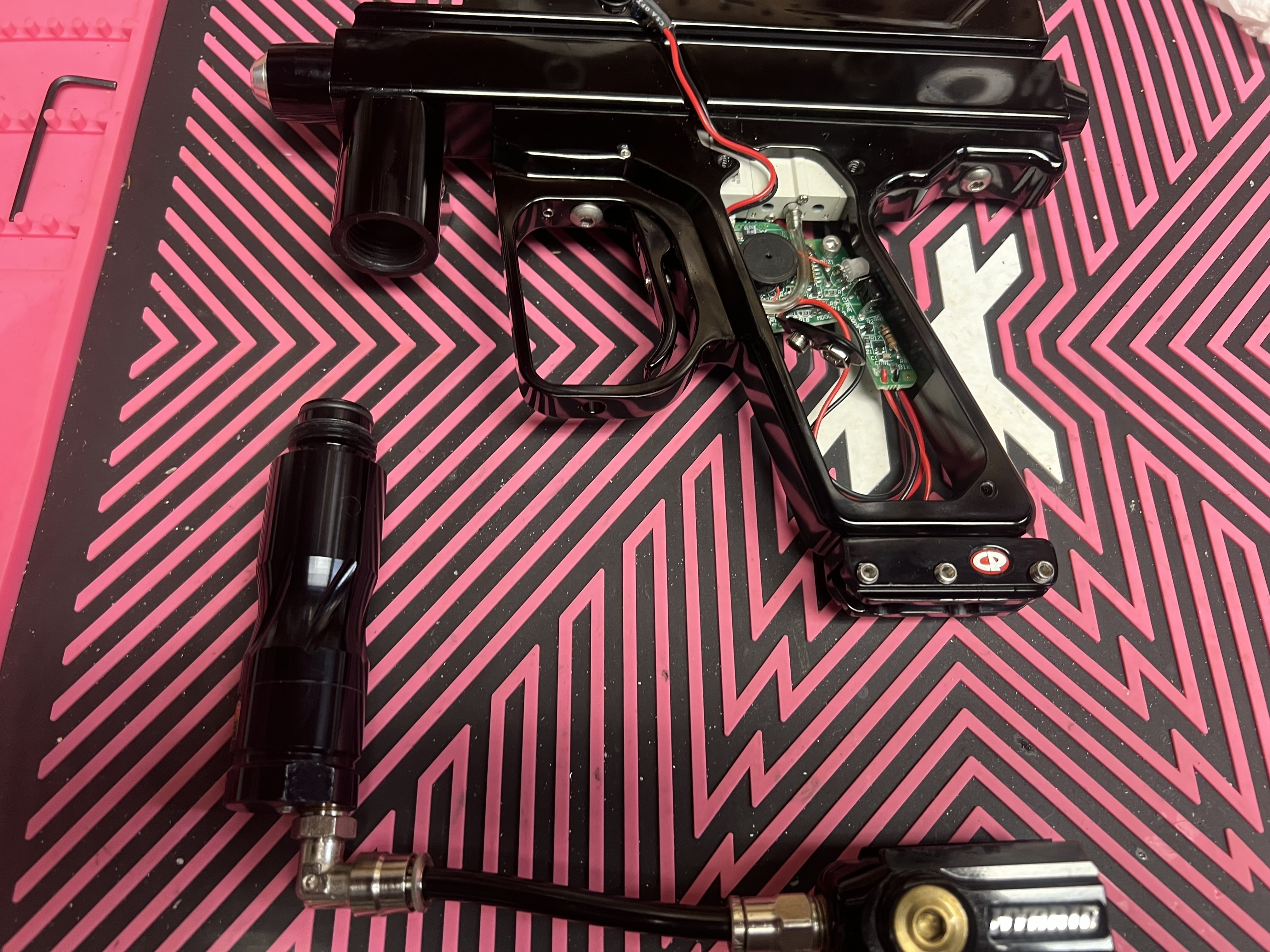

Then removing the bottom line:

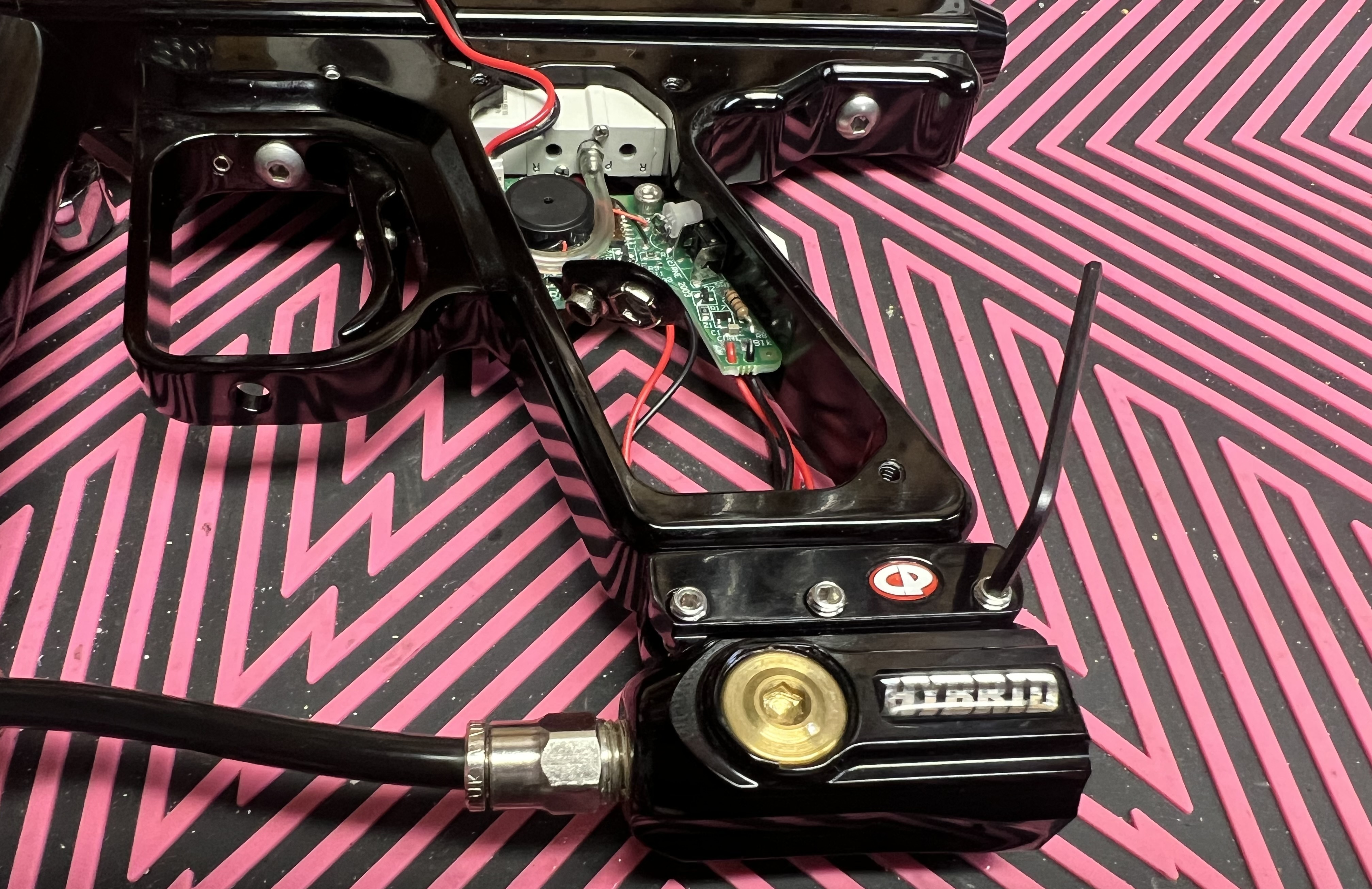

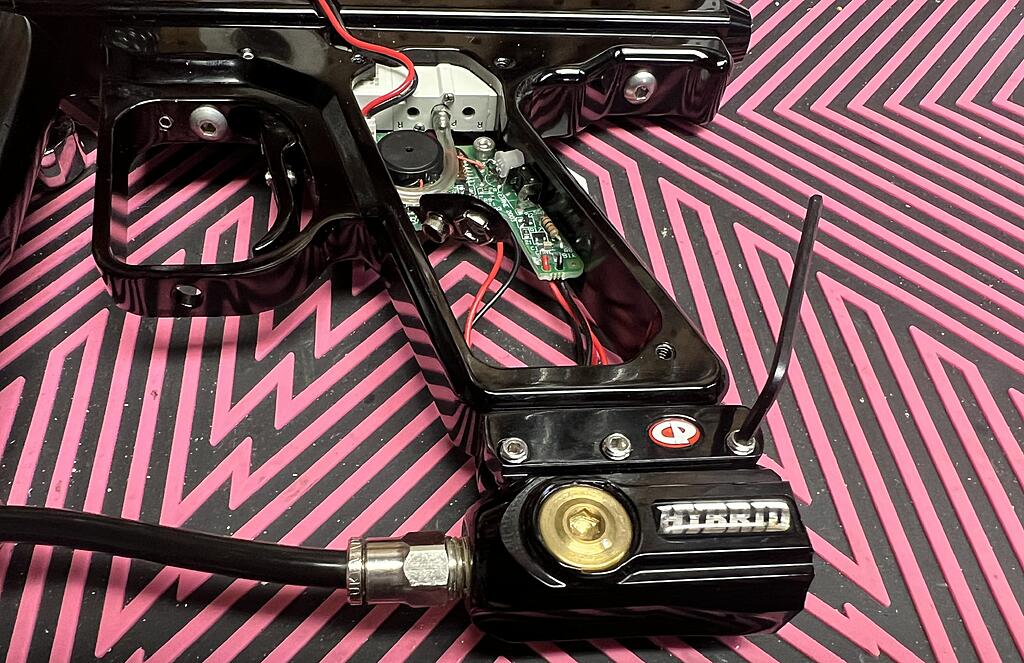

And removing the HPR:

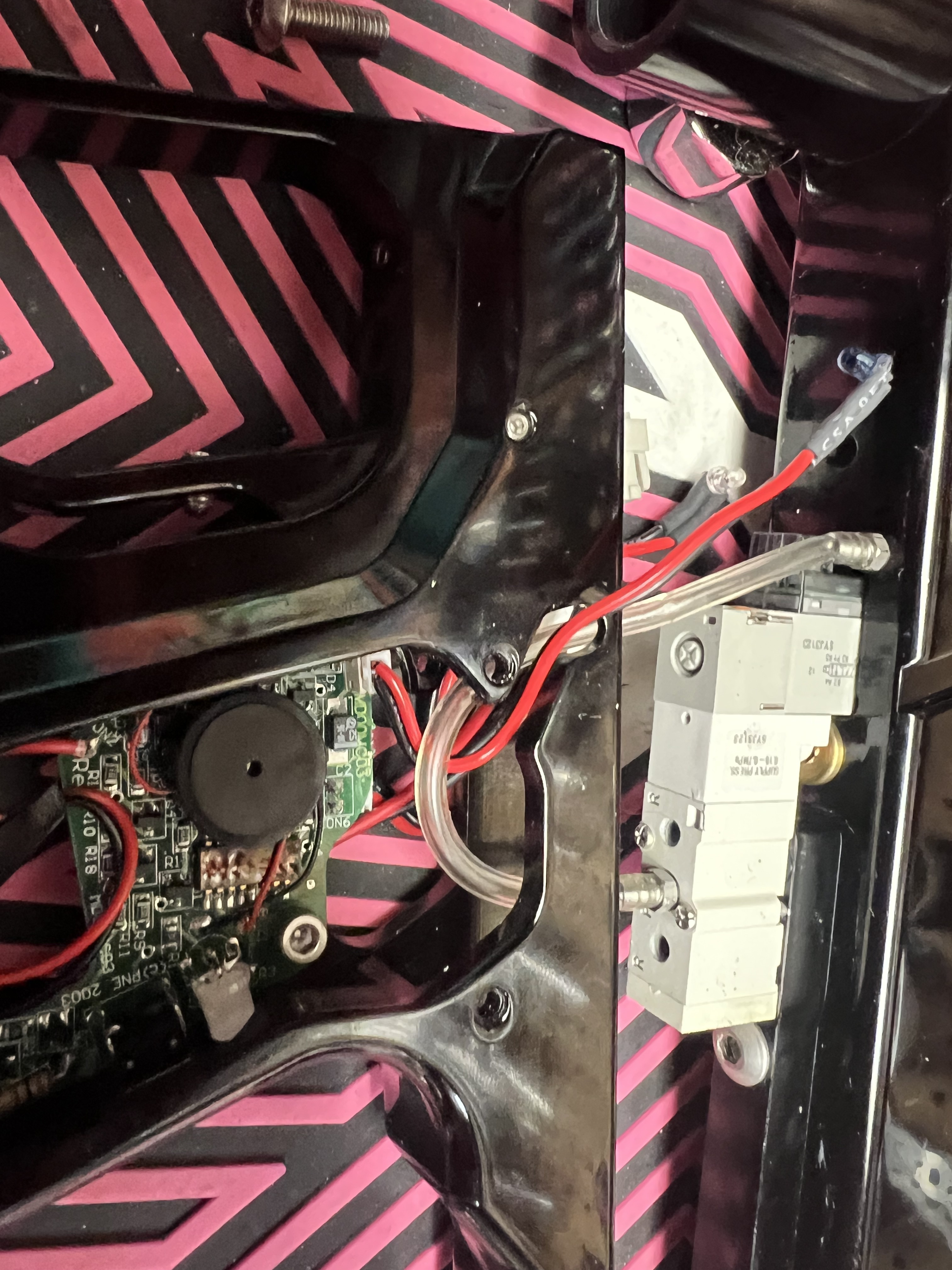

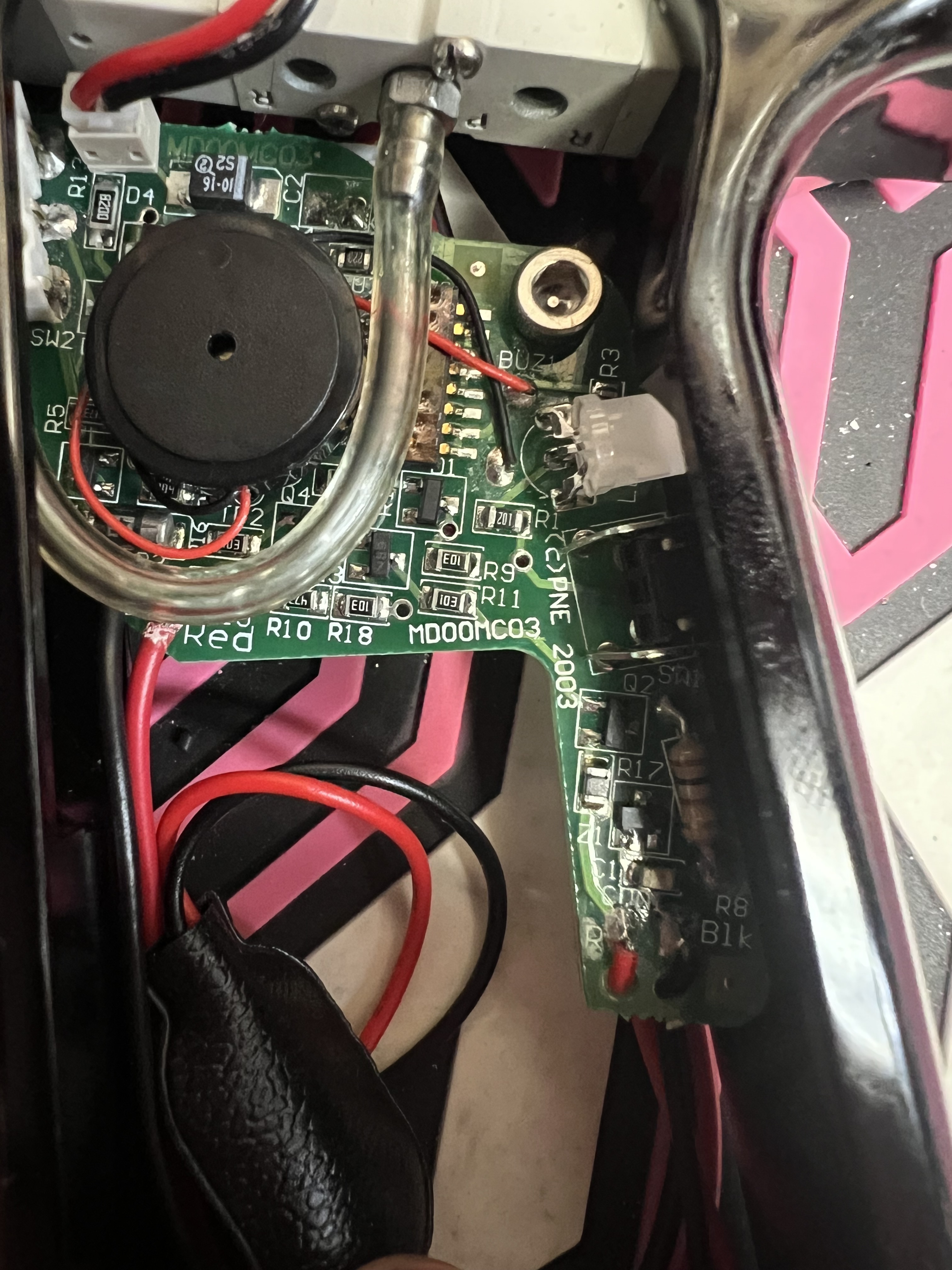

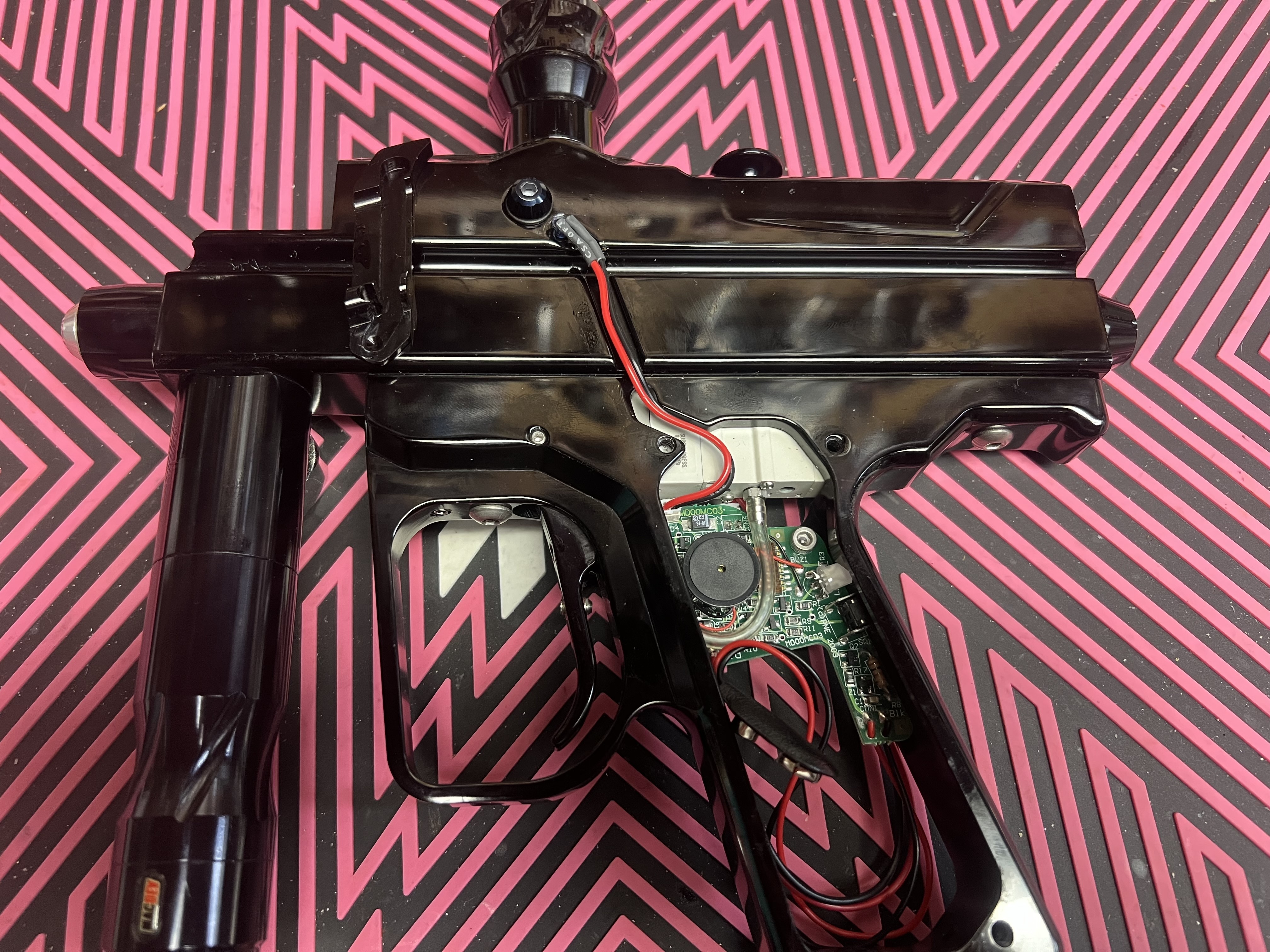

I always like checking out the boards for dates. This one is dated 2003! Make it old enough to be able to legally drink in the US!


[Sneak Miester]

Nice, how much did you pay for it, curious

[Cdn_Cuda]

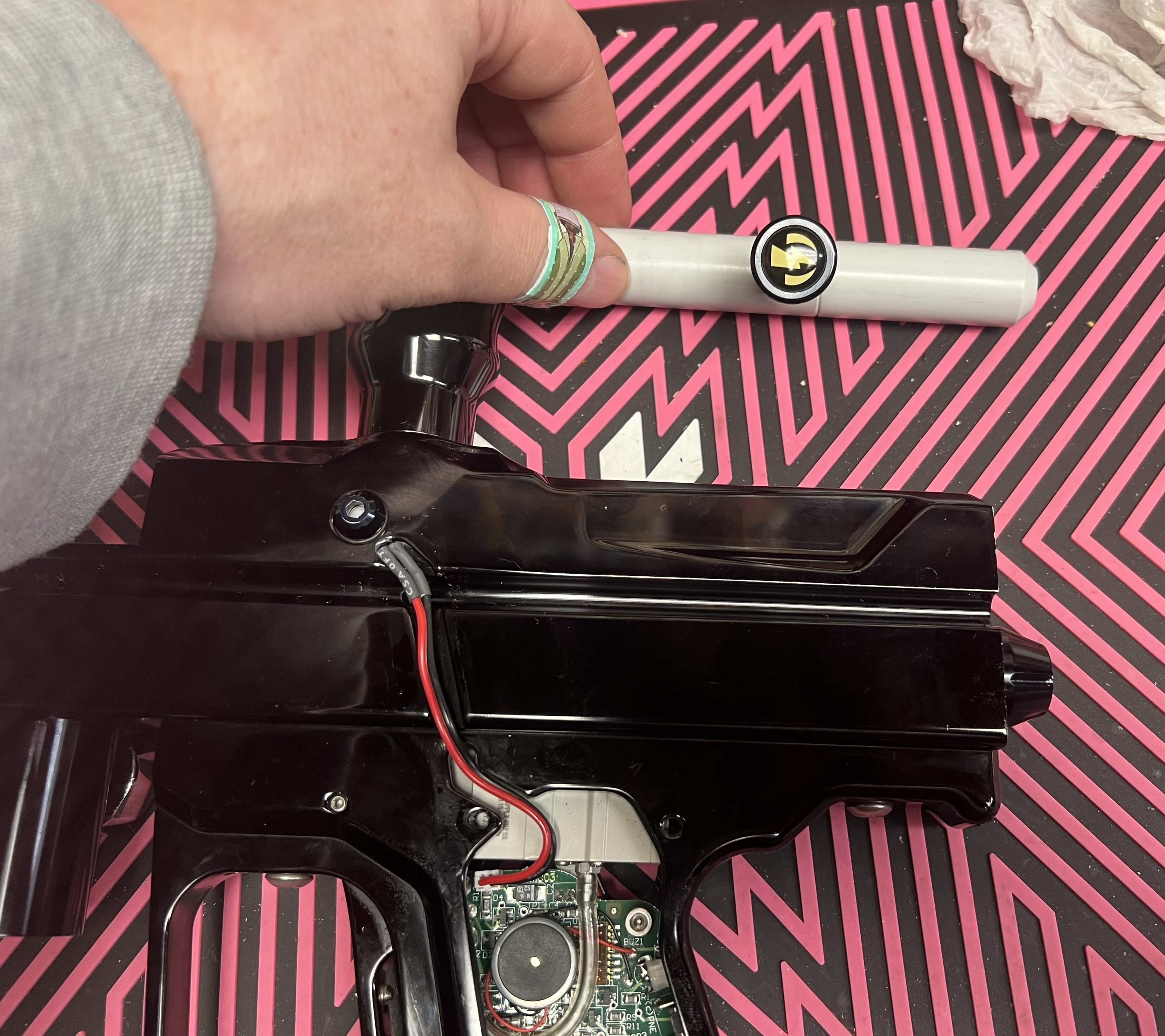

And remove the bolt:

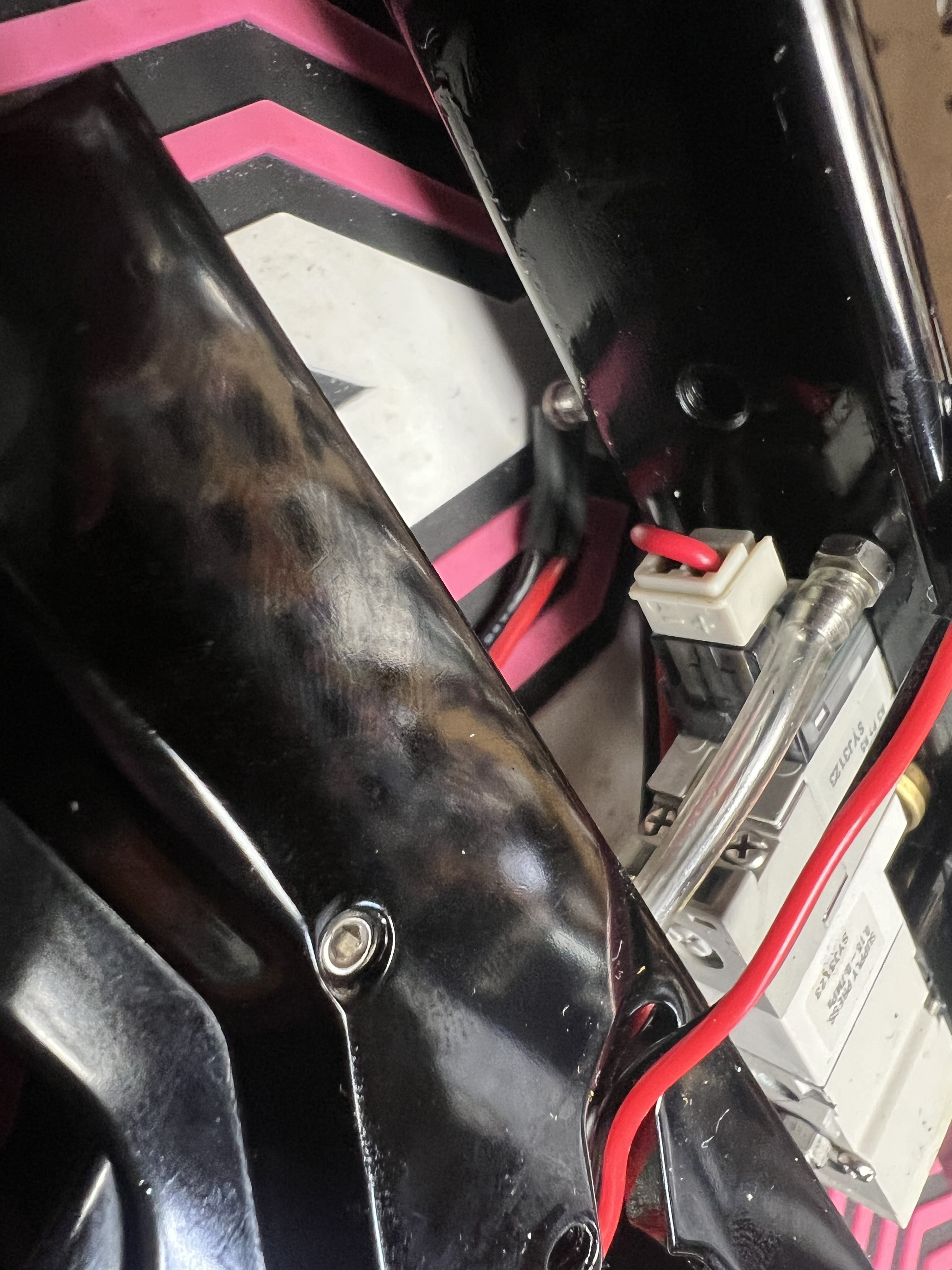

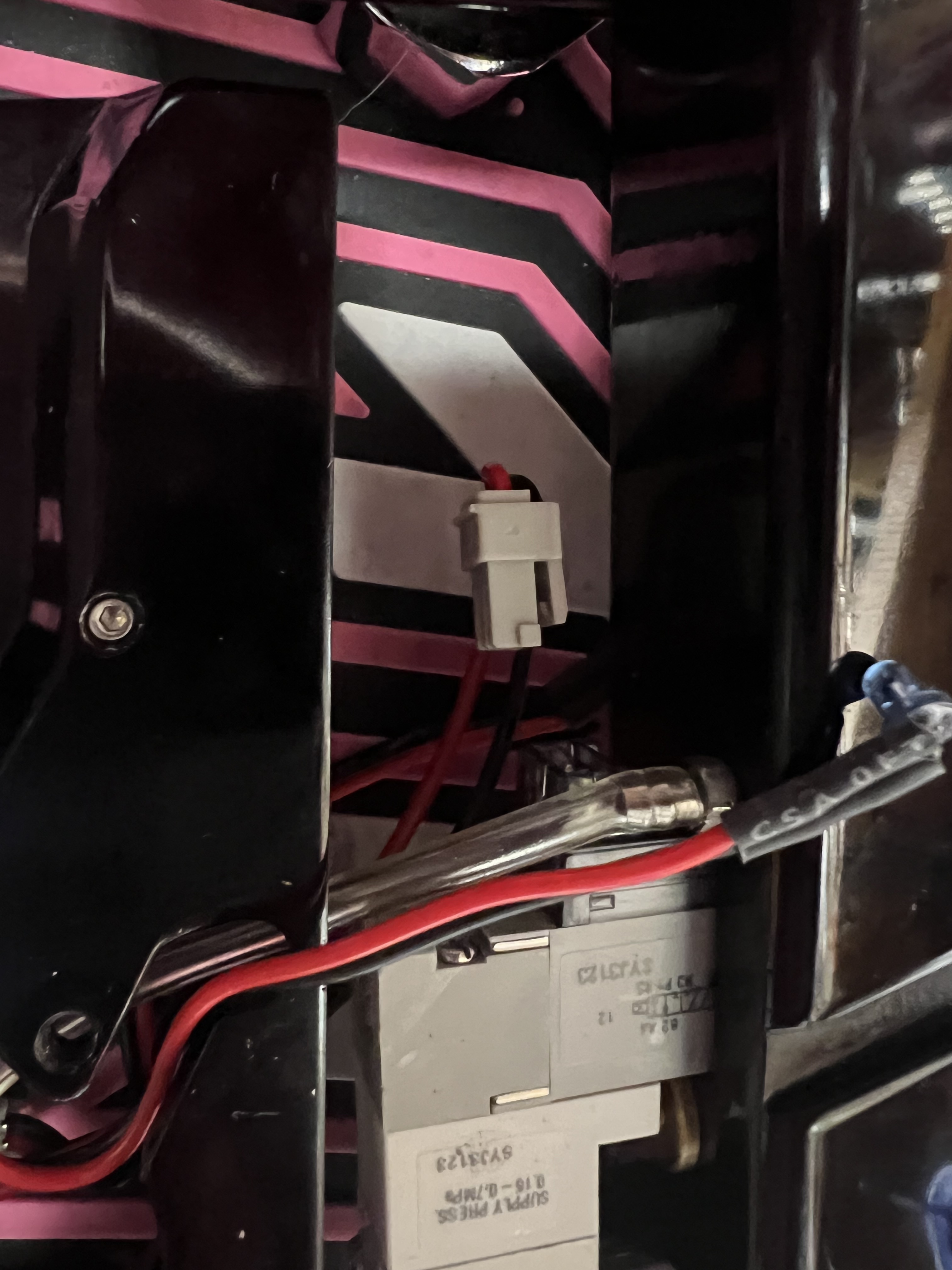

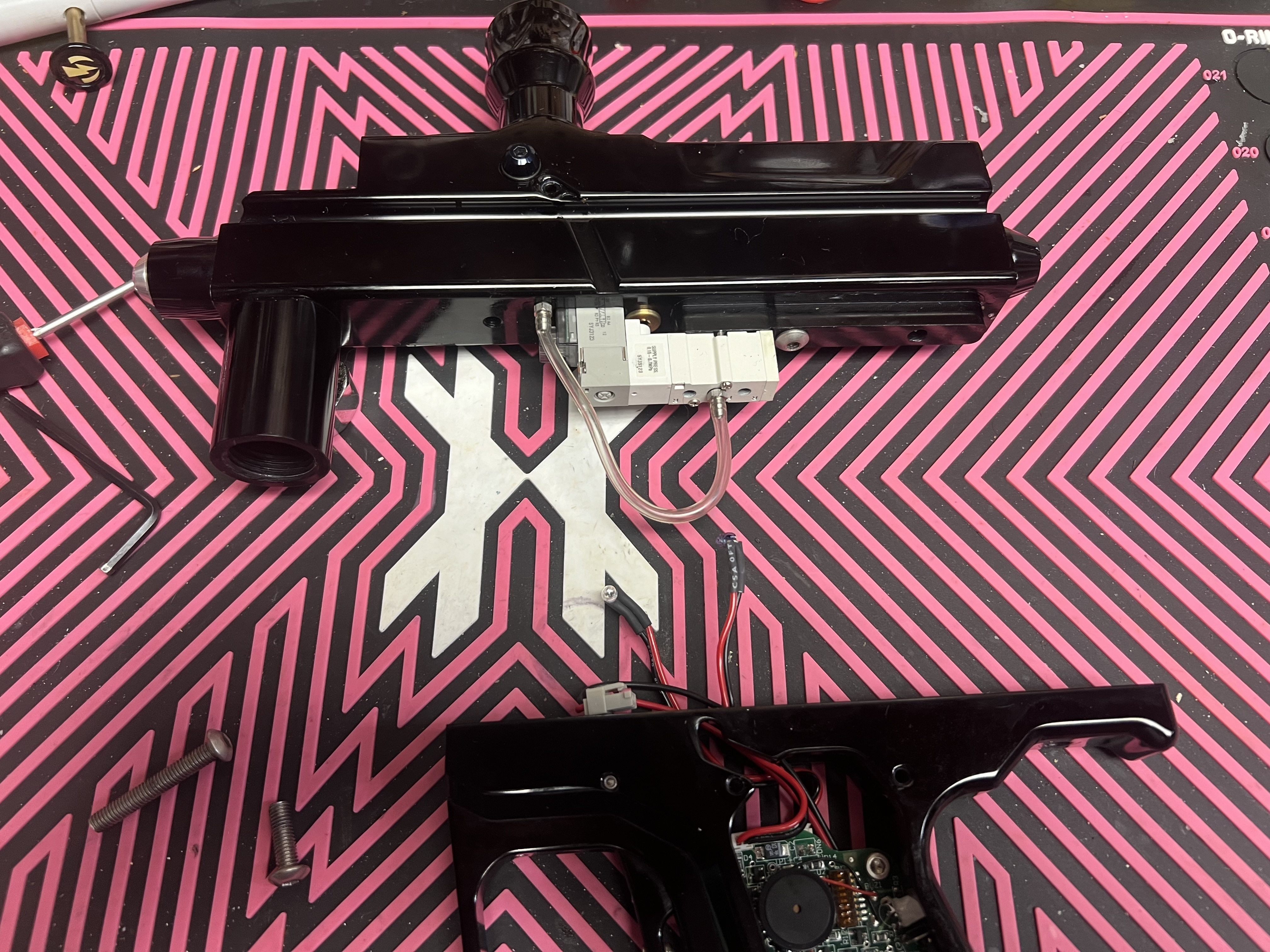

Then on to separating the body:
IMG_1108.jpg IMG_1106.jpg

IMG_1107.jpg IMG_1109.jpg

[Cdn_Cuda]

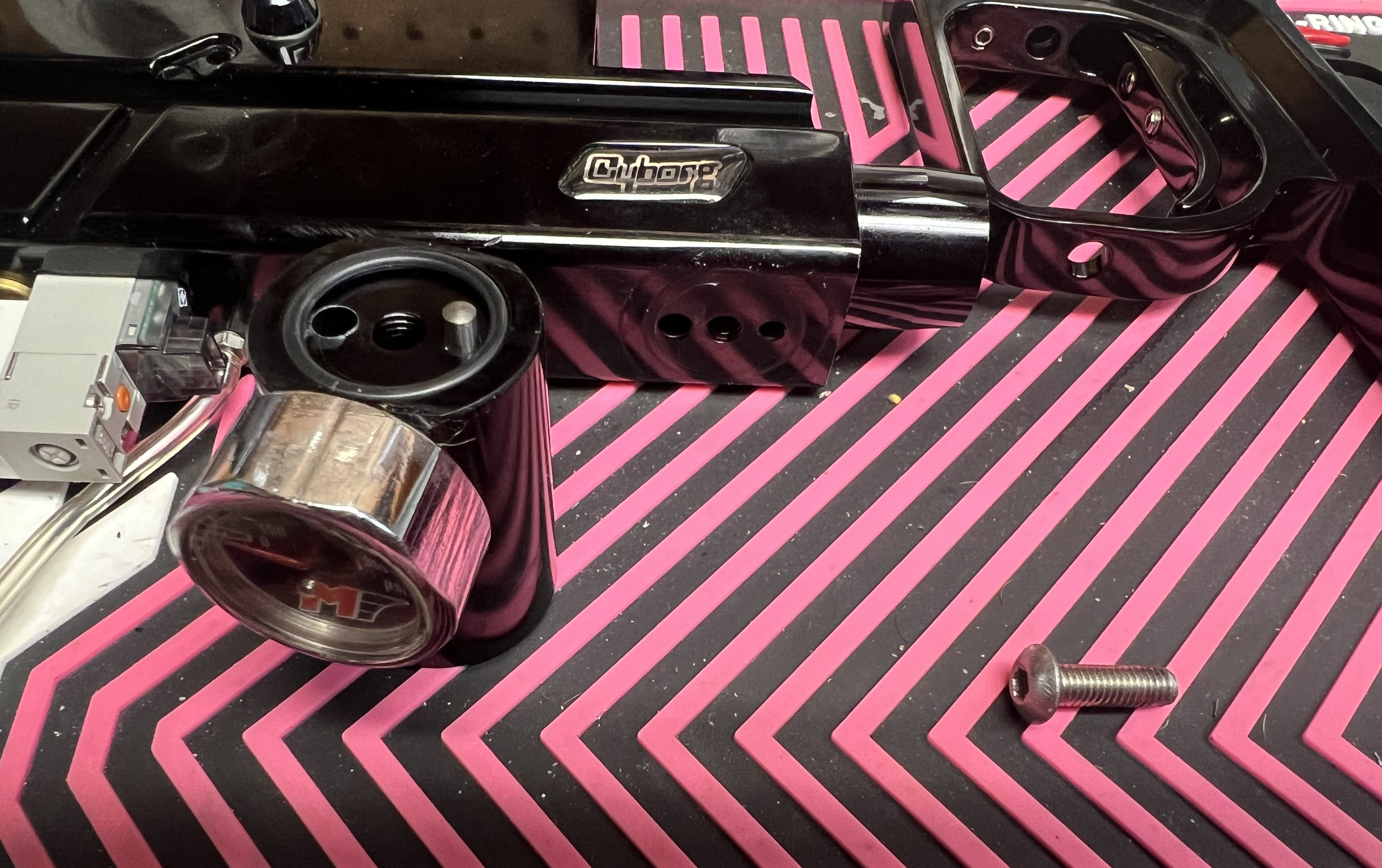

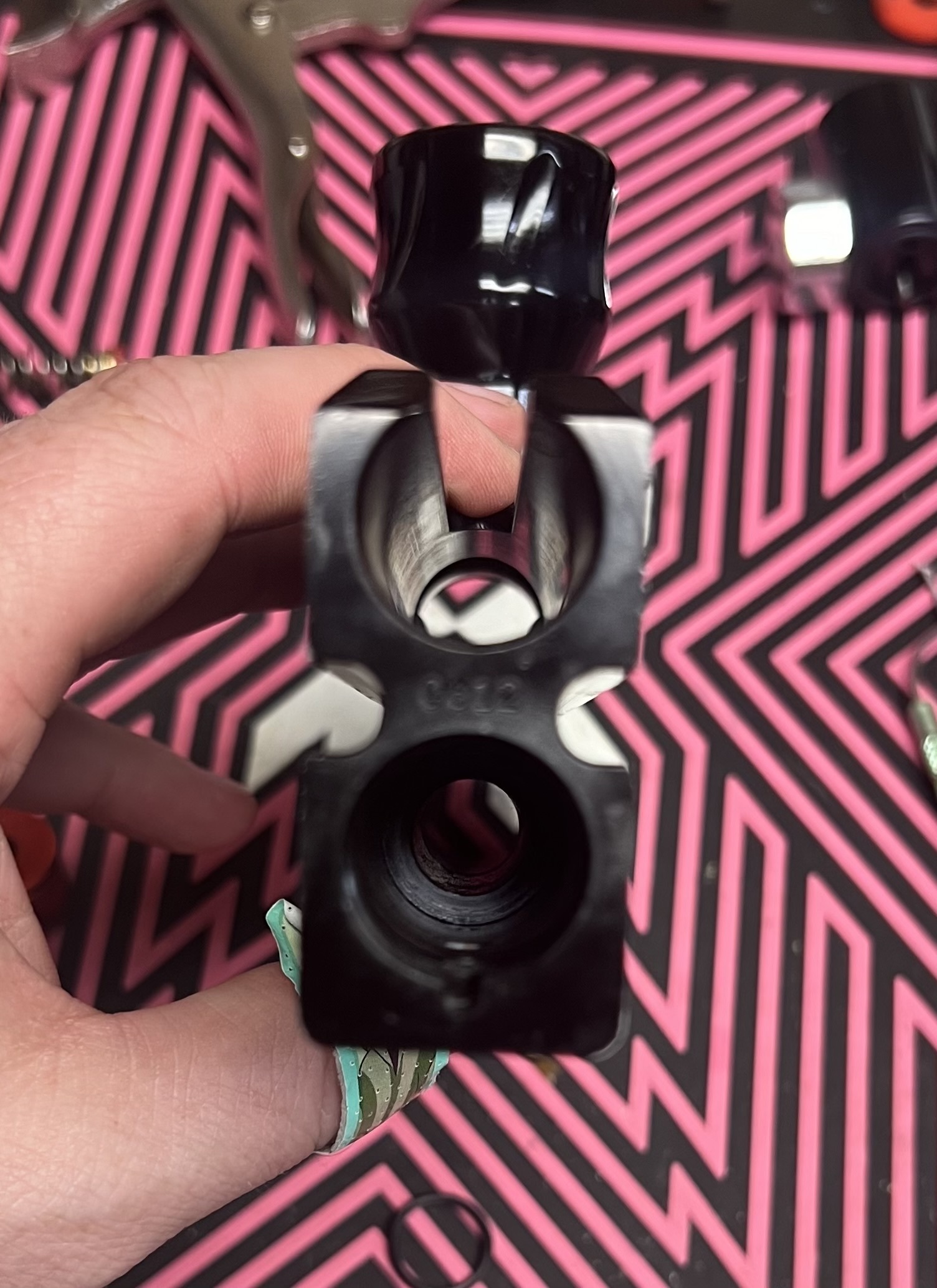

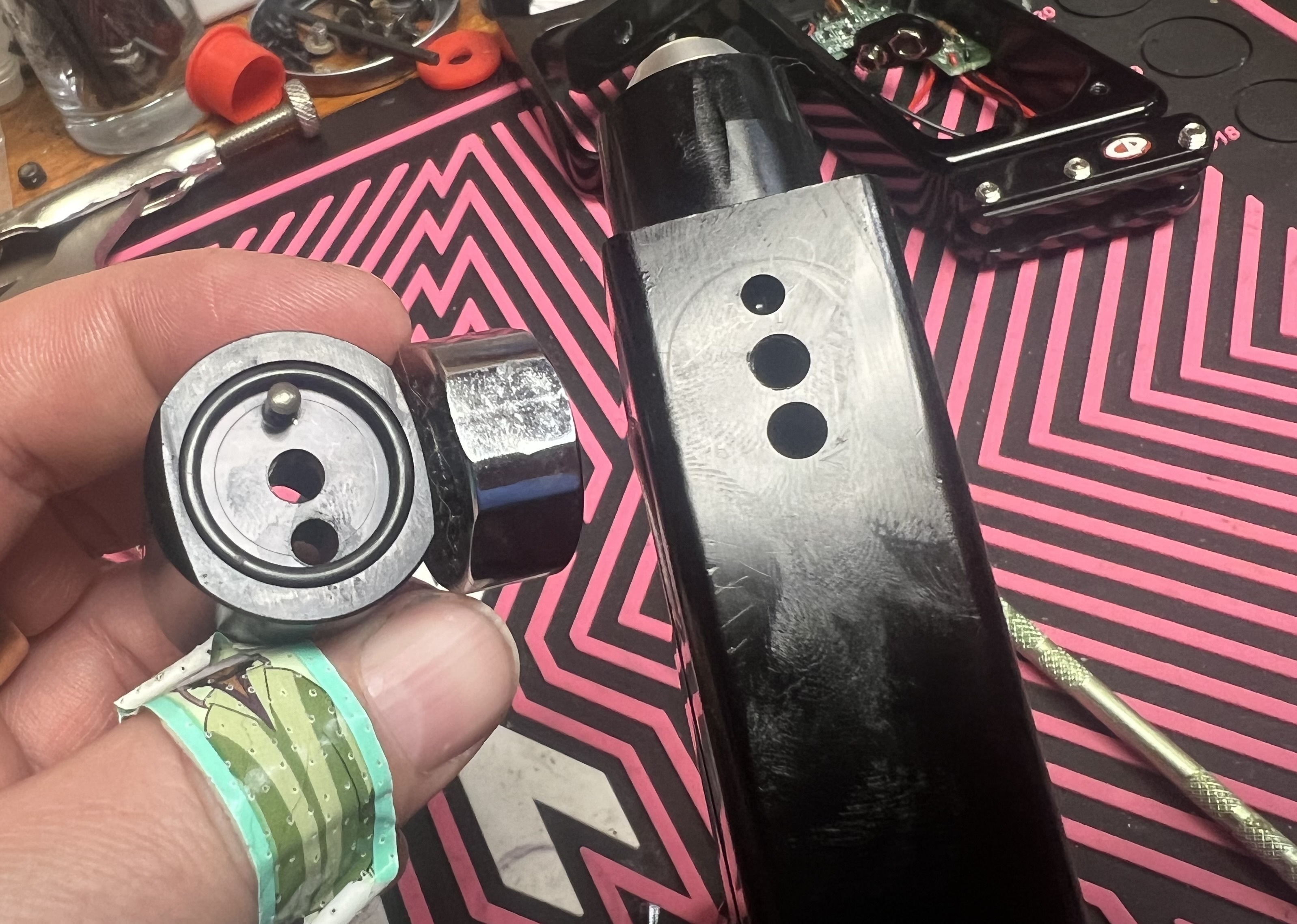

Next I’ll remove the ASA adaptor, which comes off easy enough:

IMG_1111.jpg IMG_1117.jpg

[Cdn_Cuda]

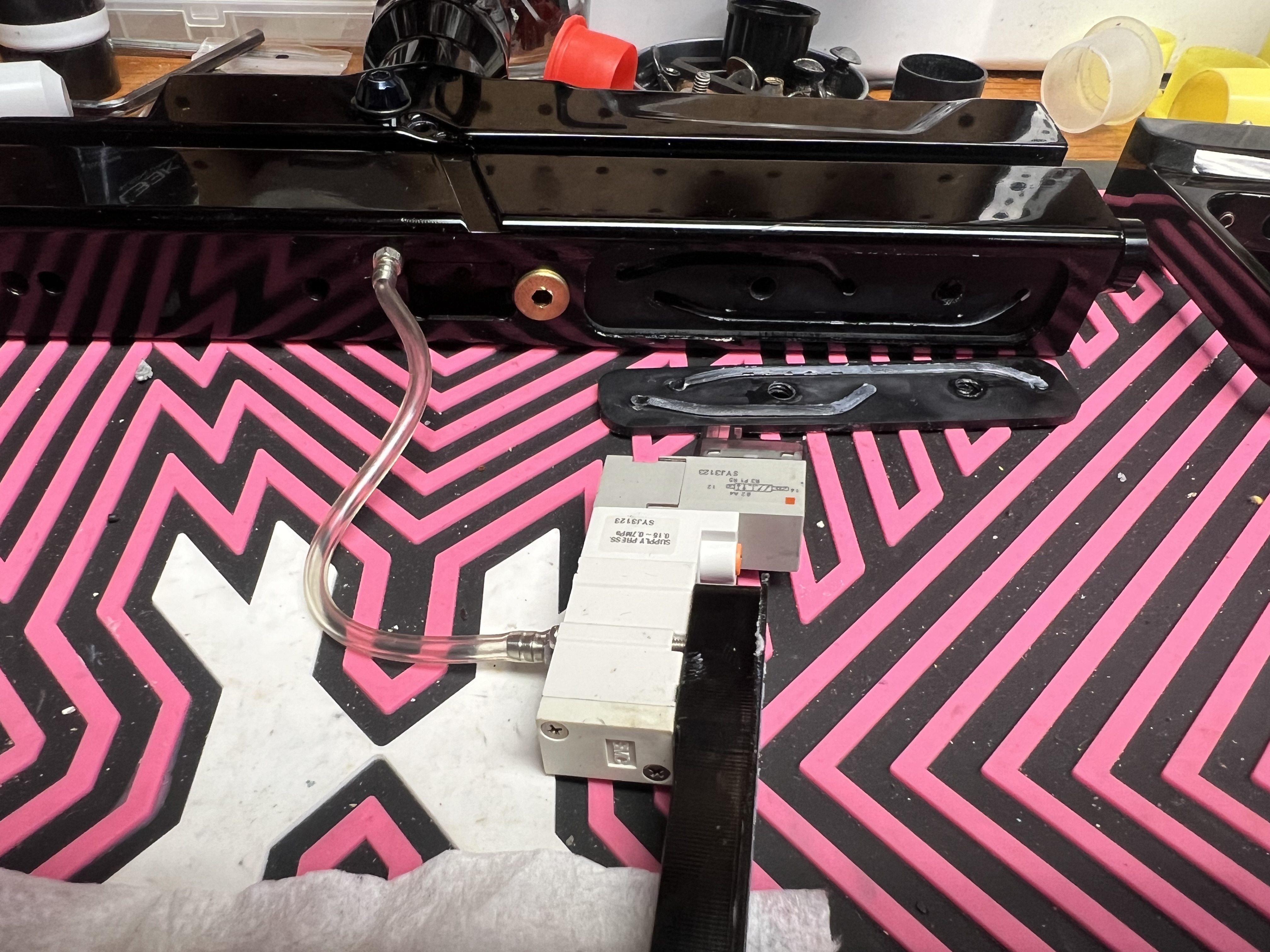

Then remove the solenoid, removing the one main screw:

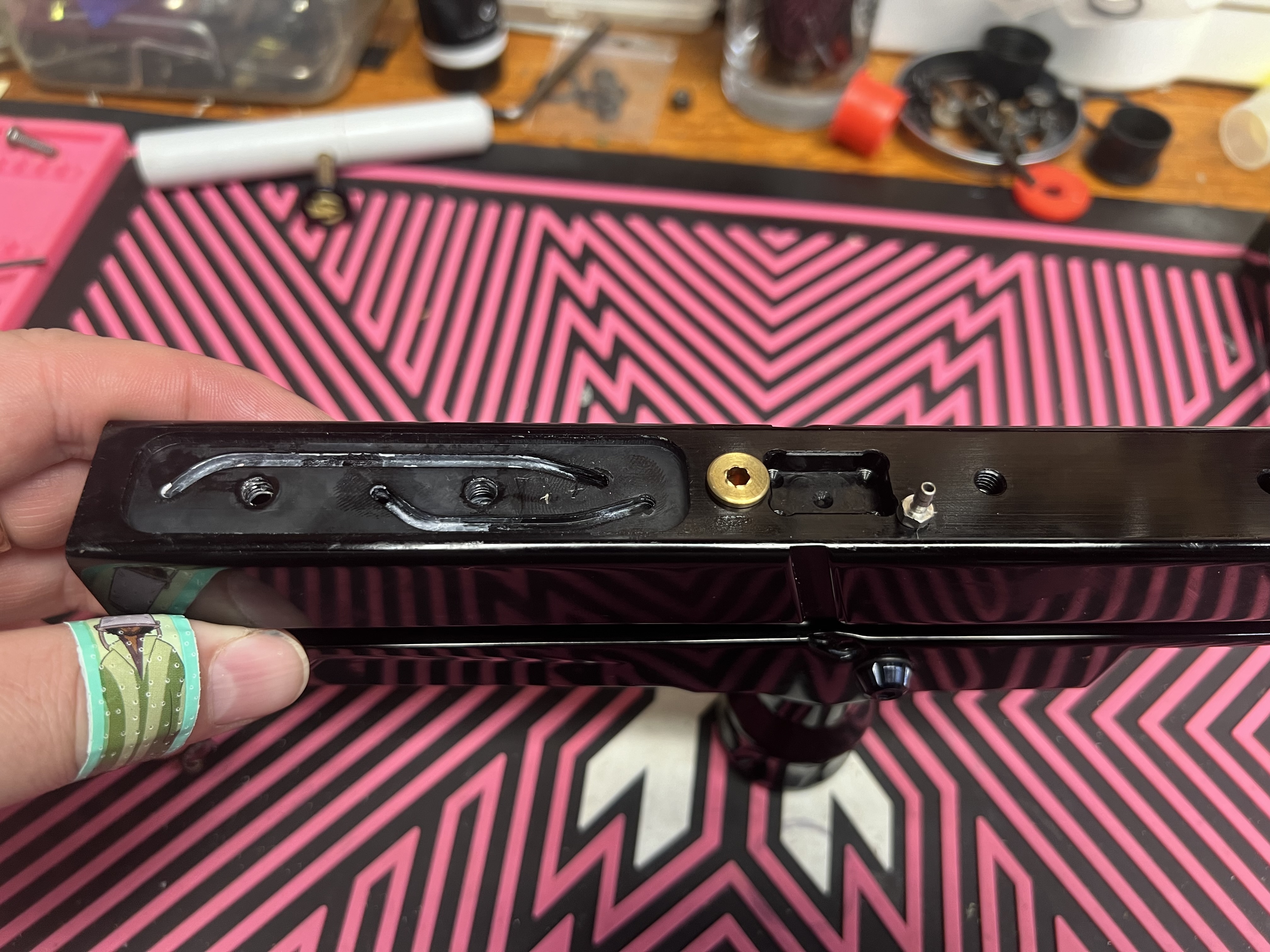

Above, you can see the large gasket that sits between the body and the grip frame. And below you can see the body with internal air lines.


[Cdn_Cuda]

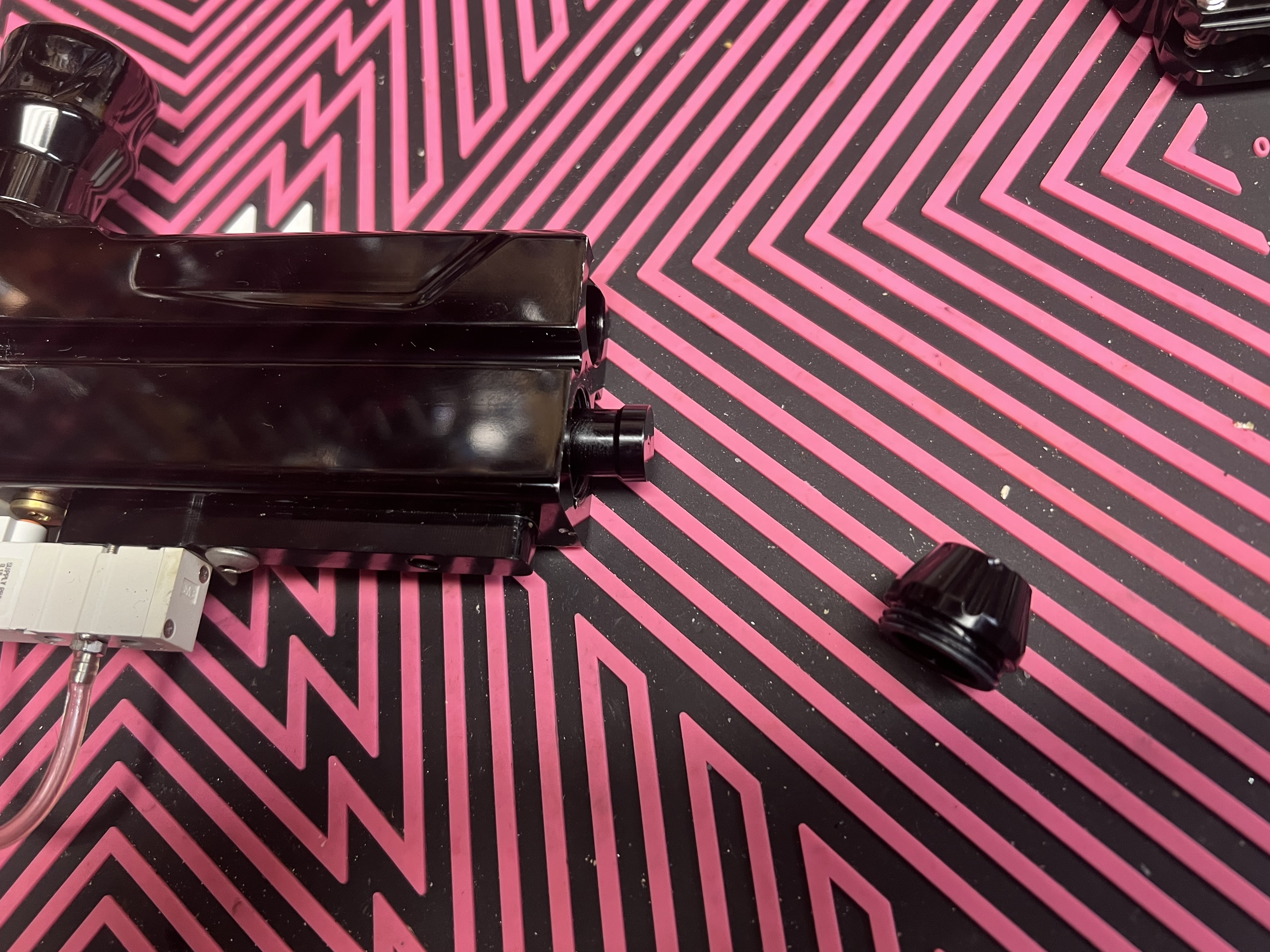

Turning to the back of the marker, I removed the back cap cover to expose what I assuming is the ram housing.

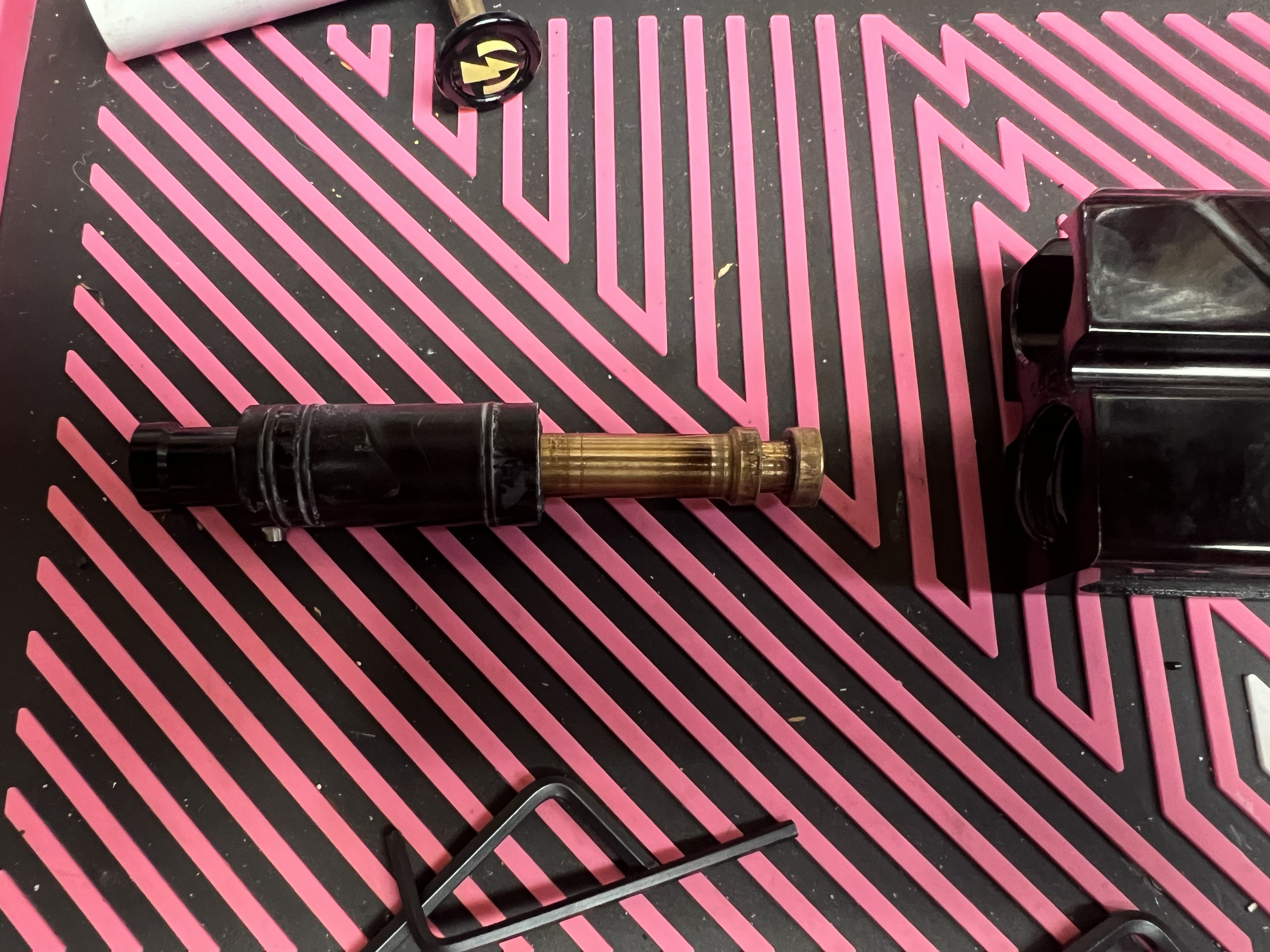

After fiddling a bit I realized this could just be pulled out

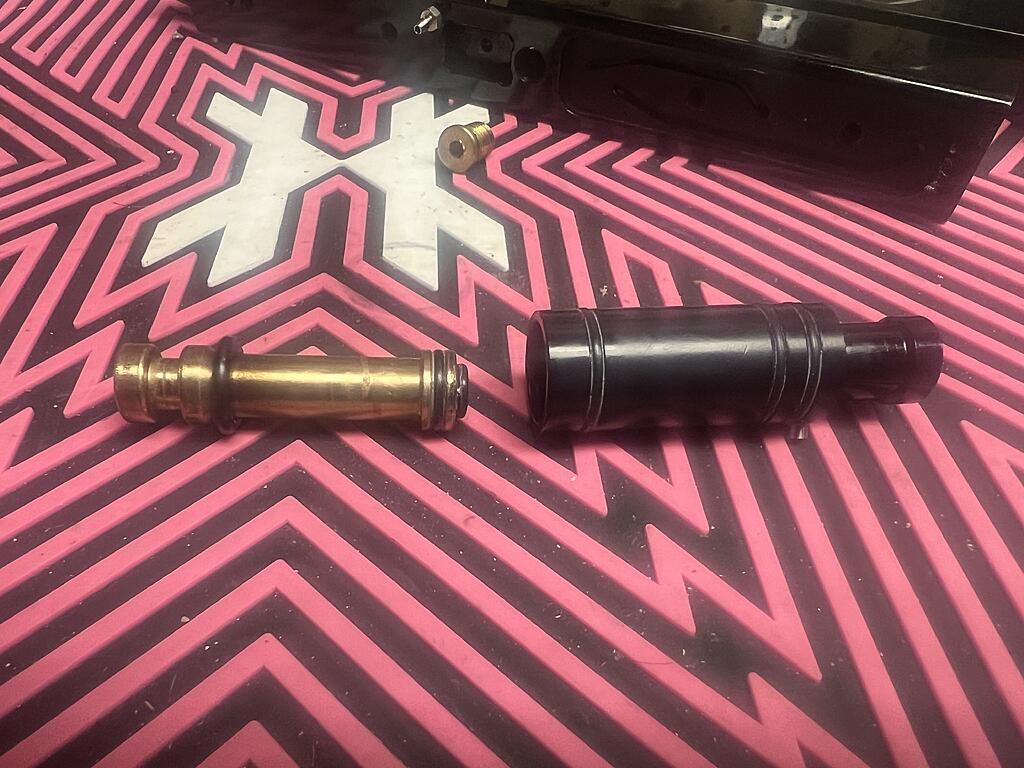

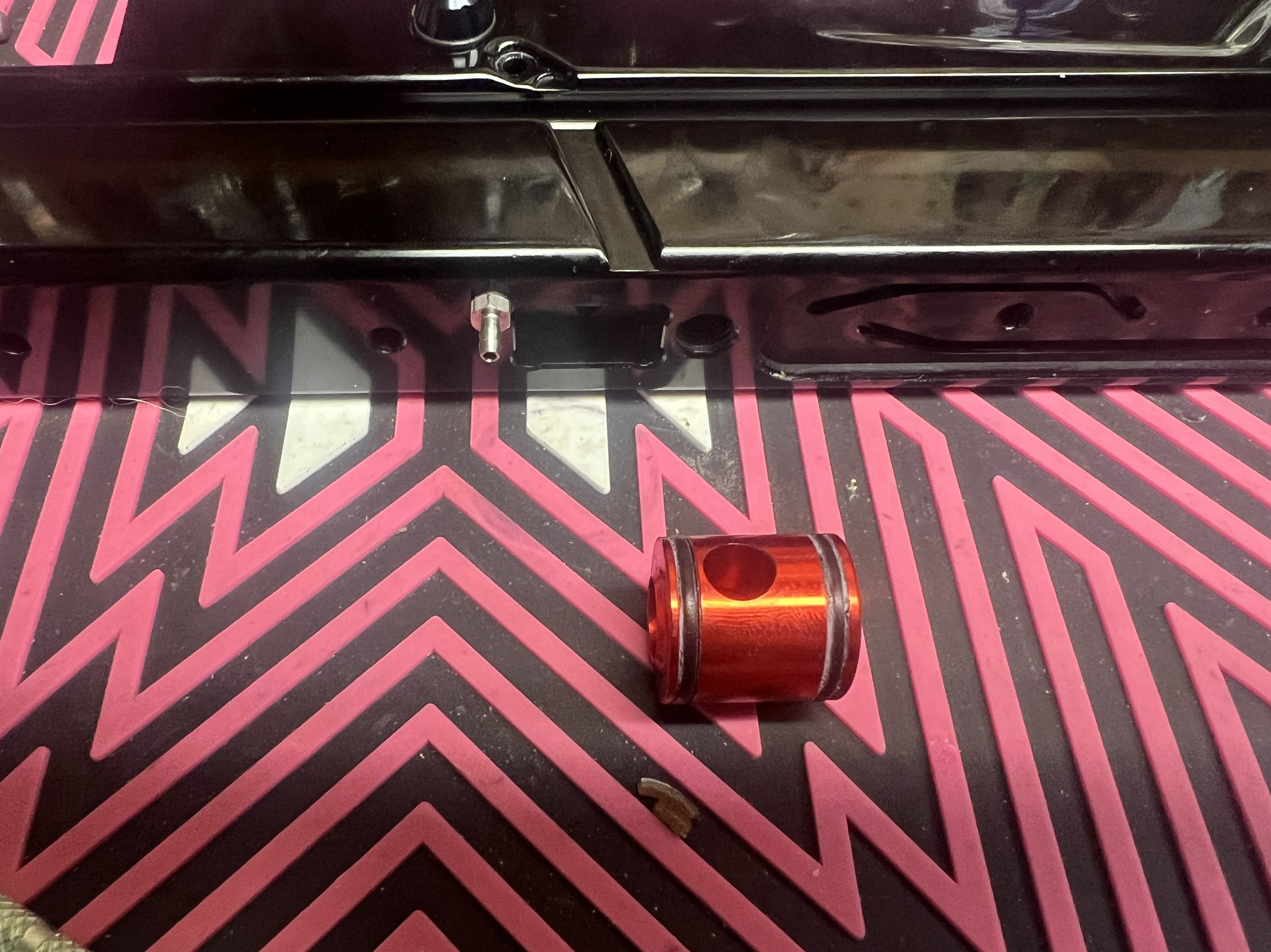

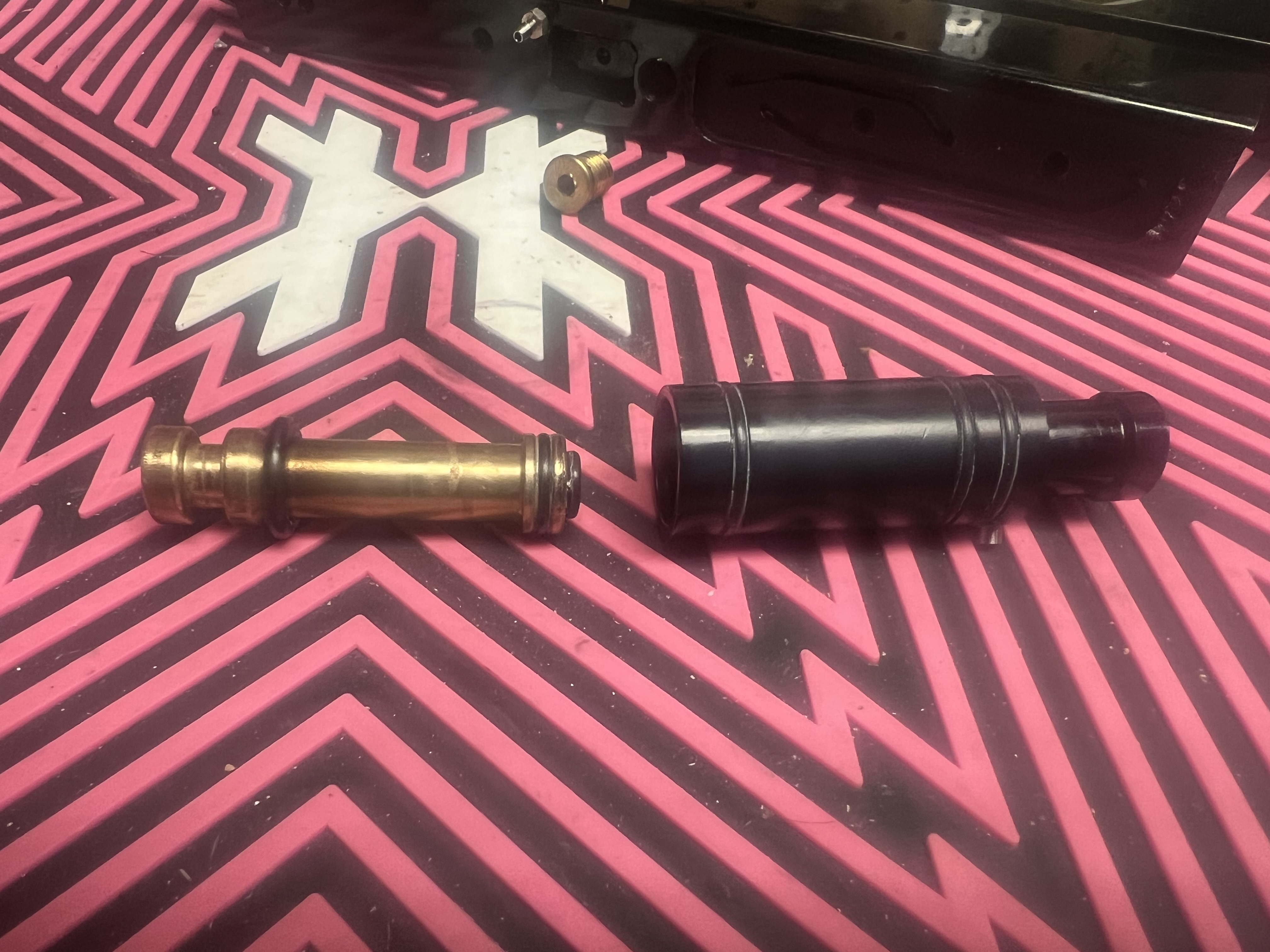

This ram further separates into two components. This marker has a significant amount of grease that I’ve cleaned off.


[Cdn_Cuda]

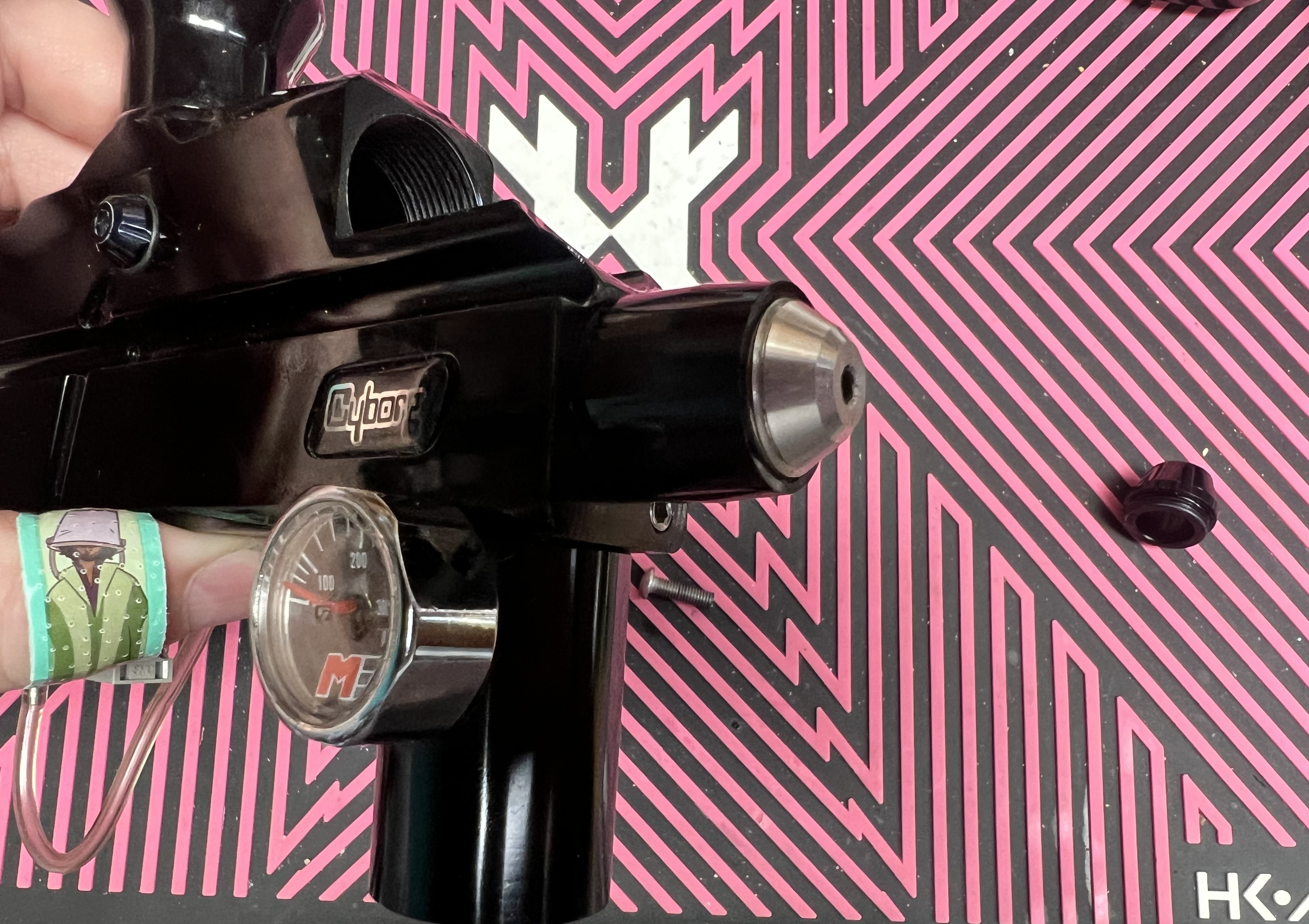

Flipping back to the front of the marker, I disassembled the LPR:

IMG_1112.jpg IMG_1115.jpg

[Cdn_Cuda]

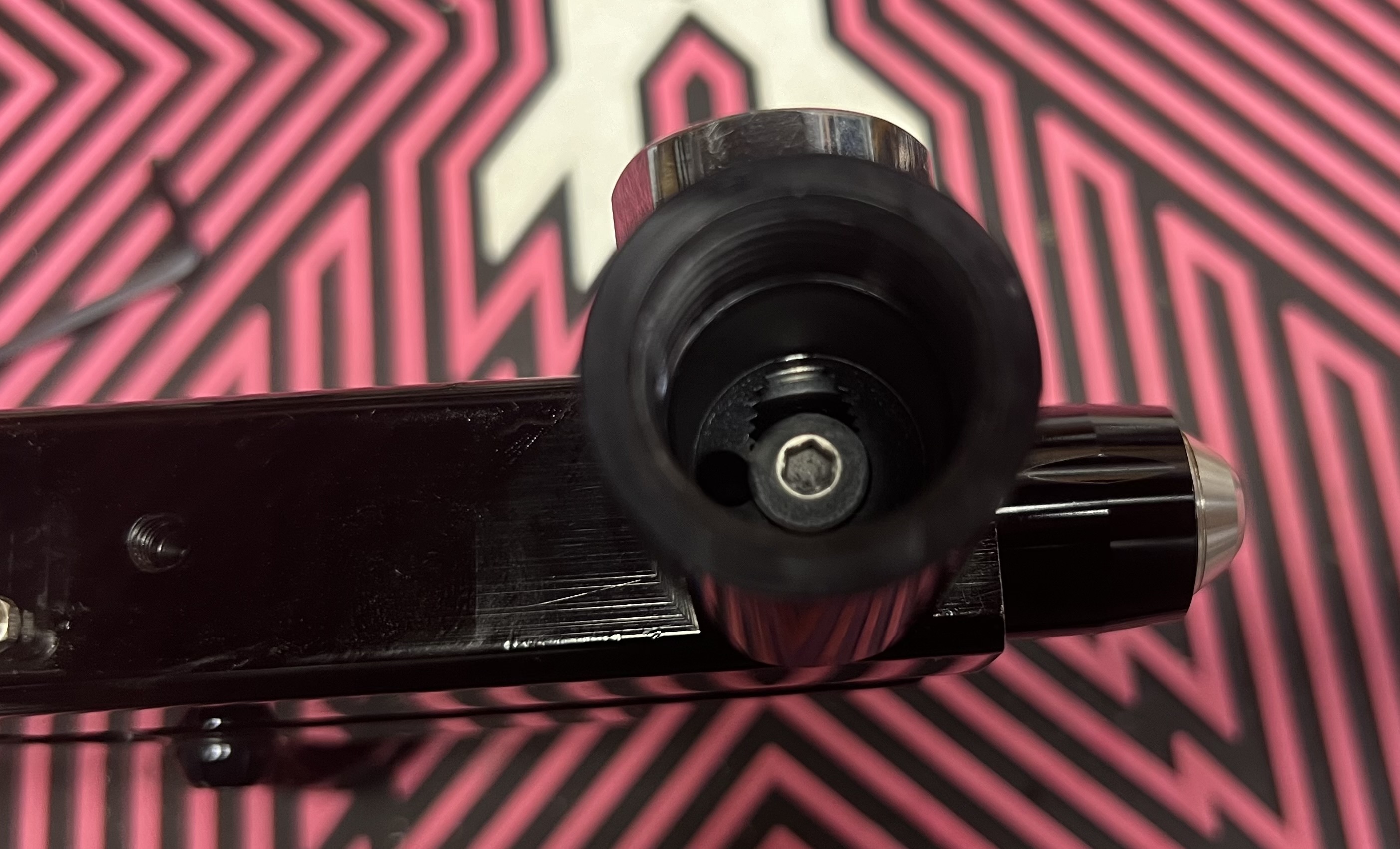

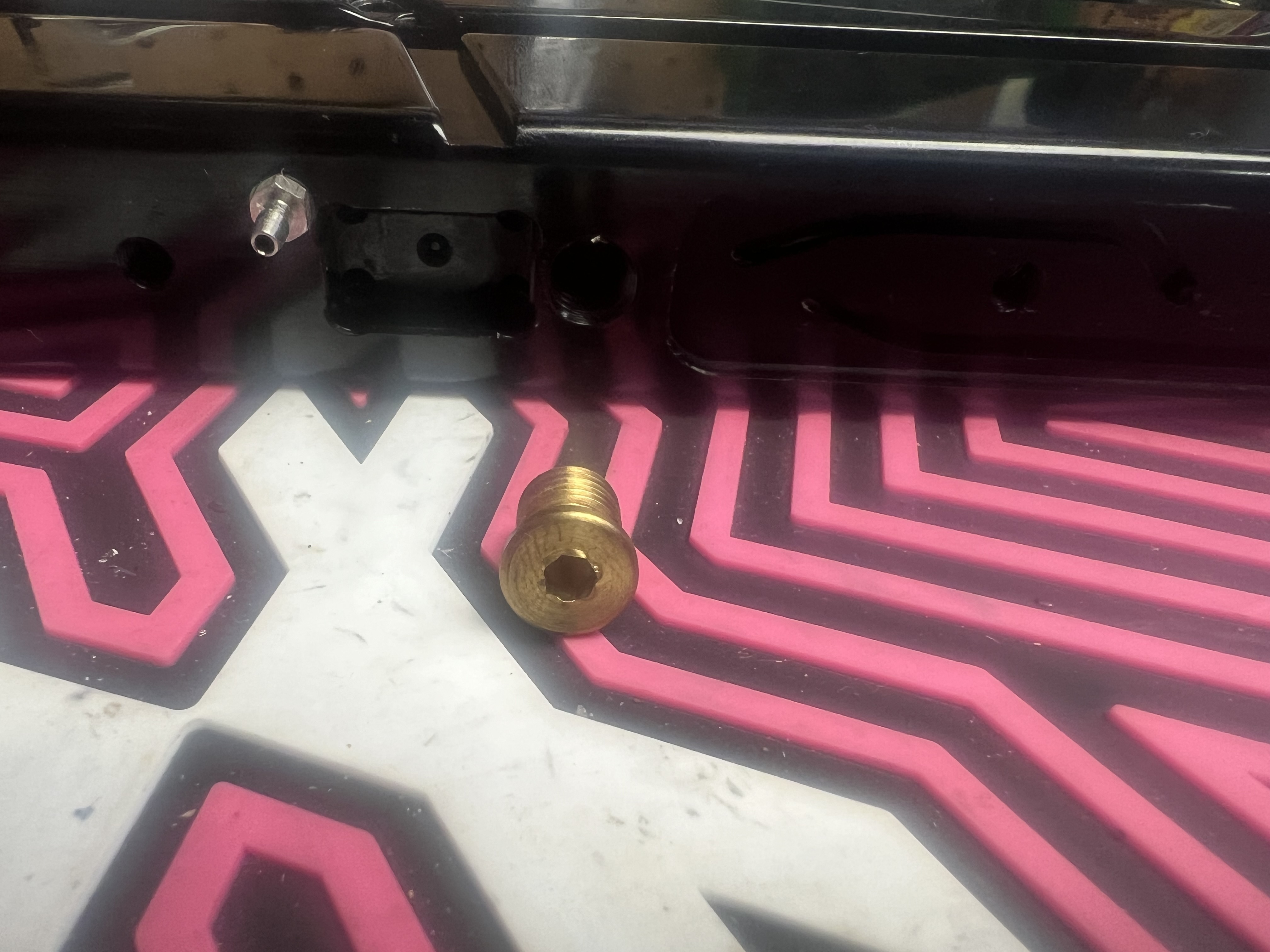

Not being sure how to remove the rest of the LPR, I removed the valve retention bolt:


[Cdn_Cuda]

And now I think I need to get my blow dryer out and a strap wrench to make any further progress.

[Sneak Miester]

Wow so cheap,
i”m too new to PM yet

[Cdn_Cuda]

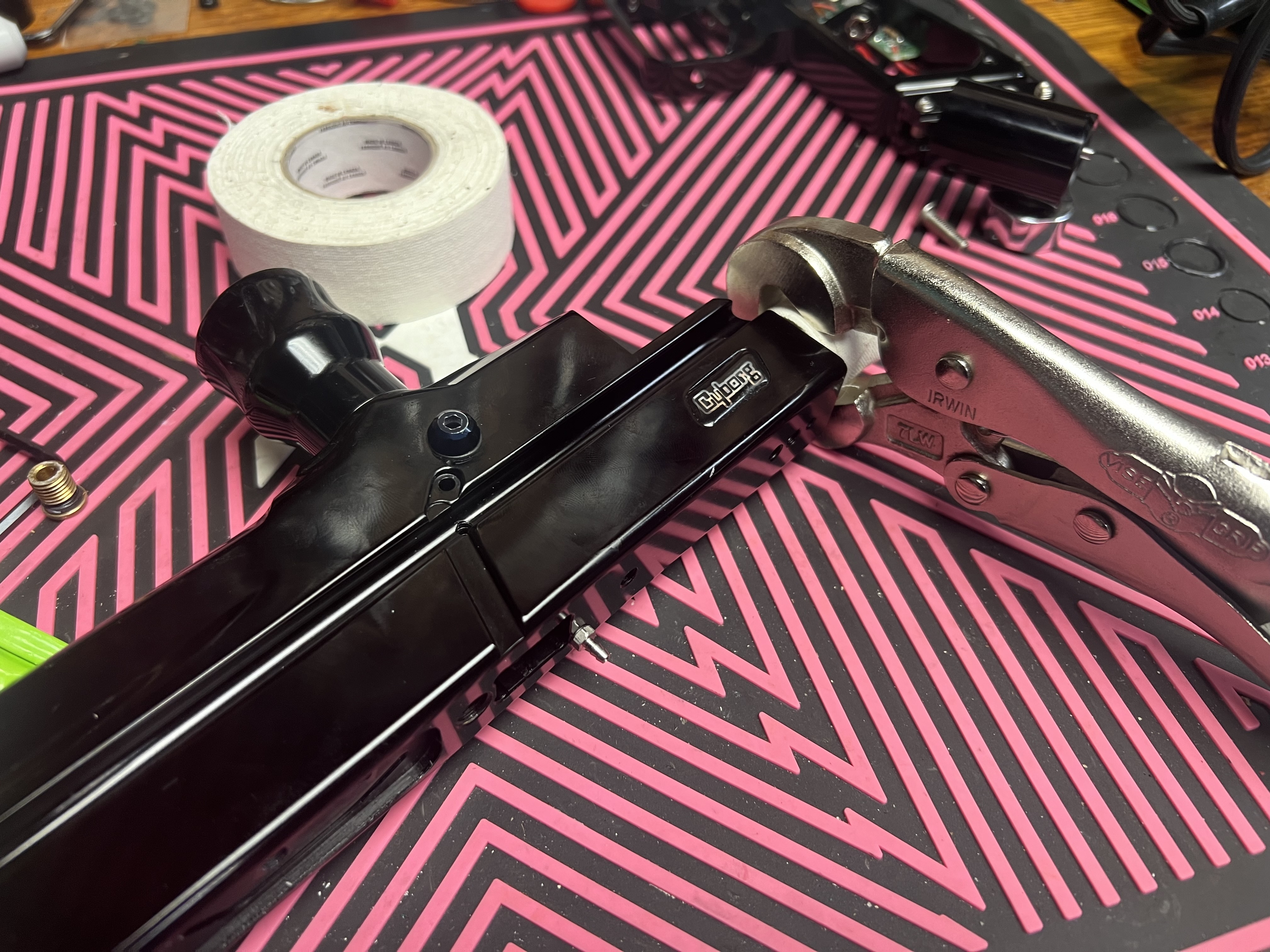

Success! My trusty blow dryer pays off yet again. Used some hockey tape to prevent marking the LPR housing:

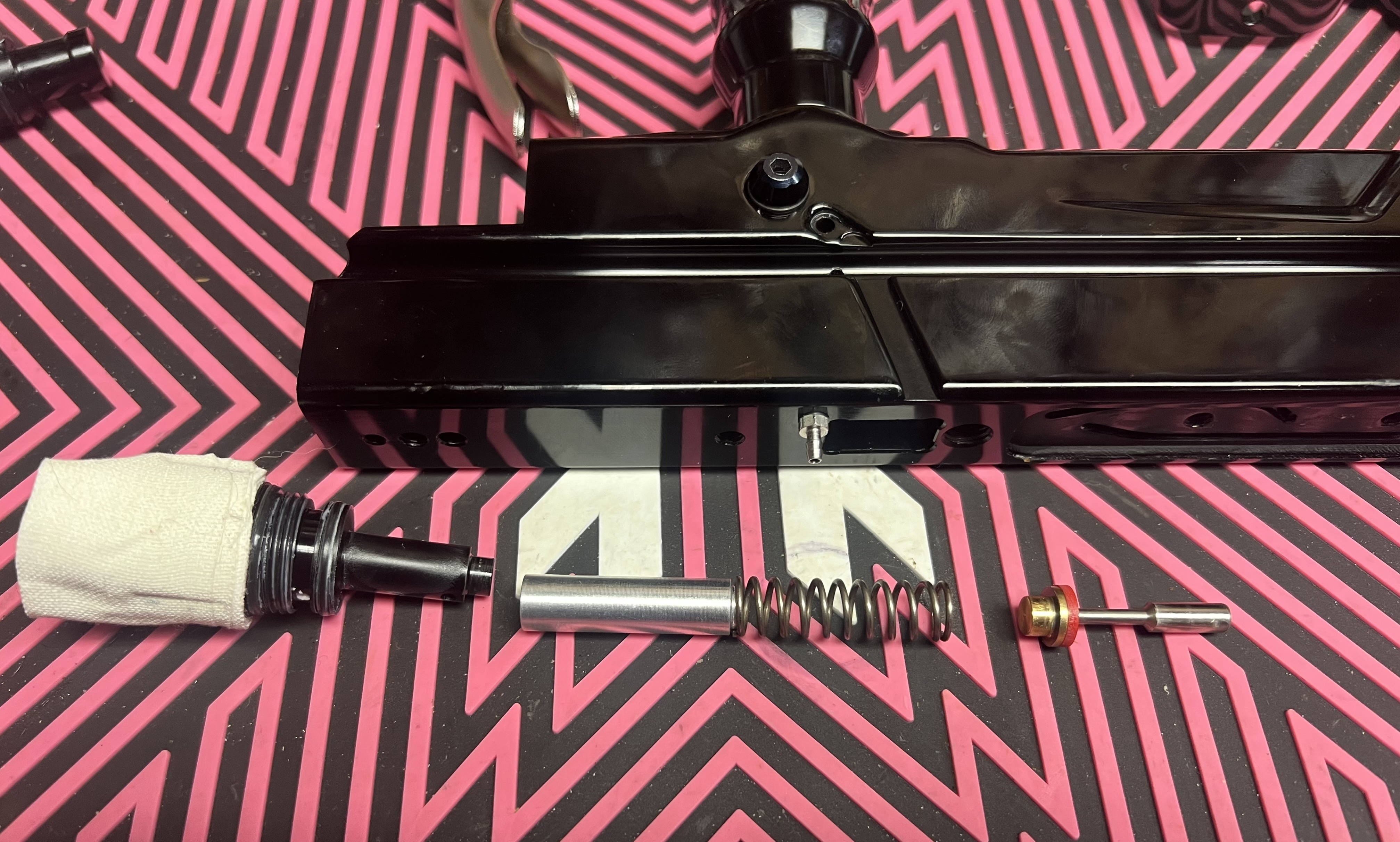

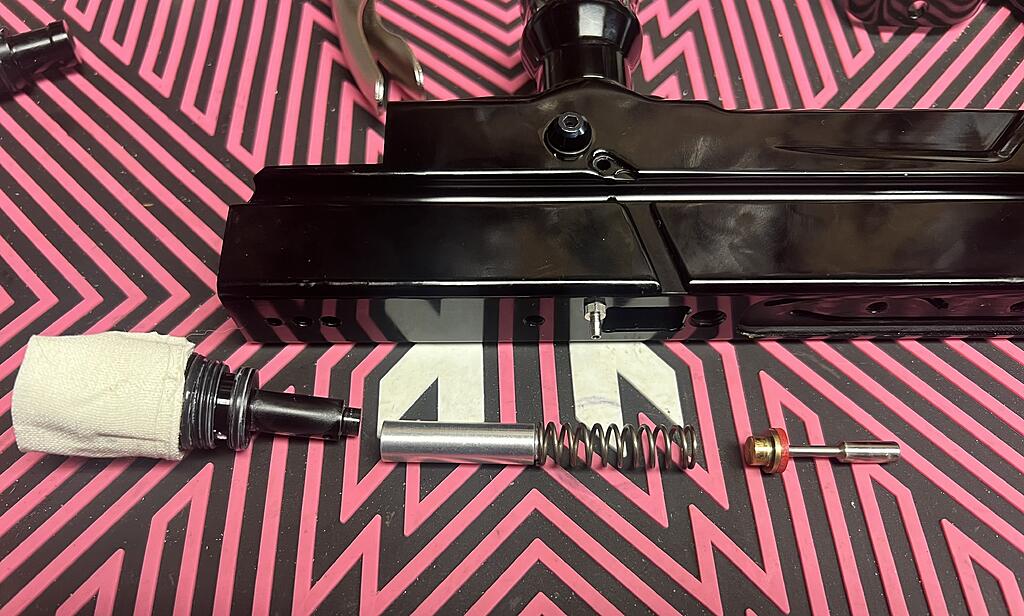

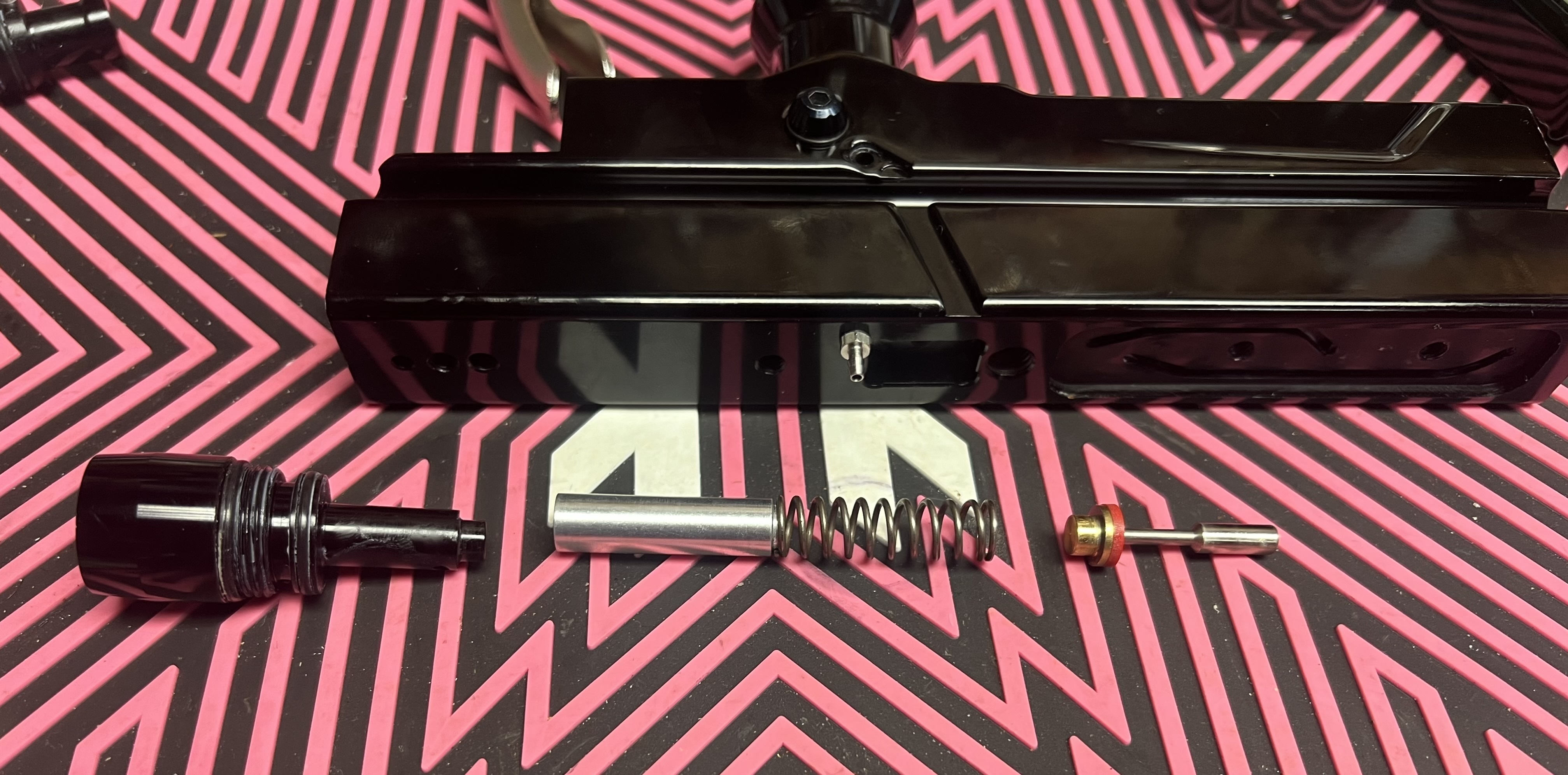

And here is the LPR and valve for the Cyborg:

IMG_1125.jpg IMG_1126.jpg

[Cdn_Cuda]

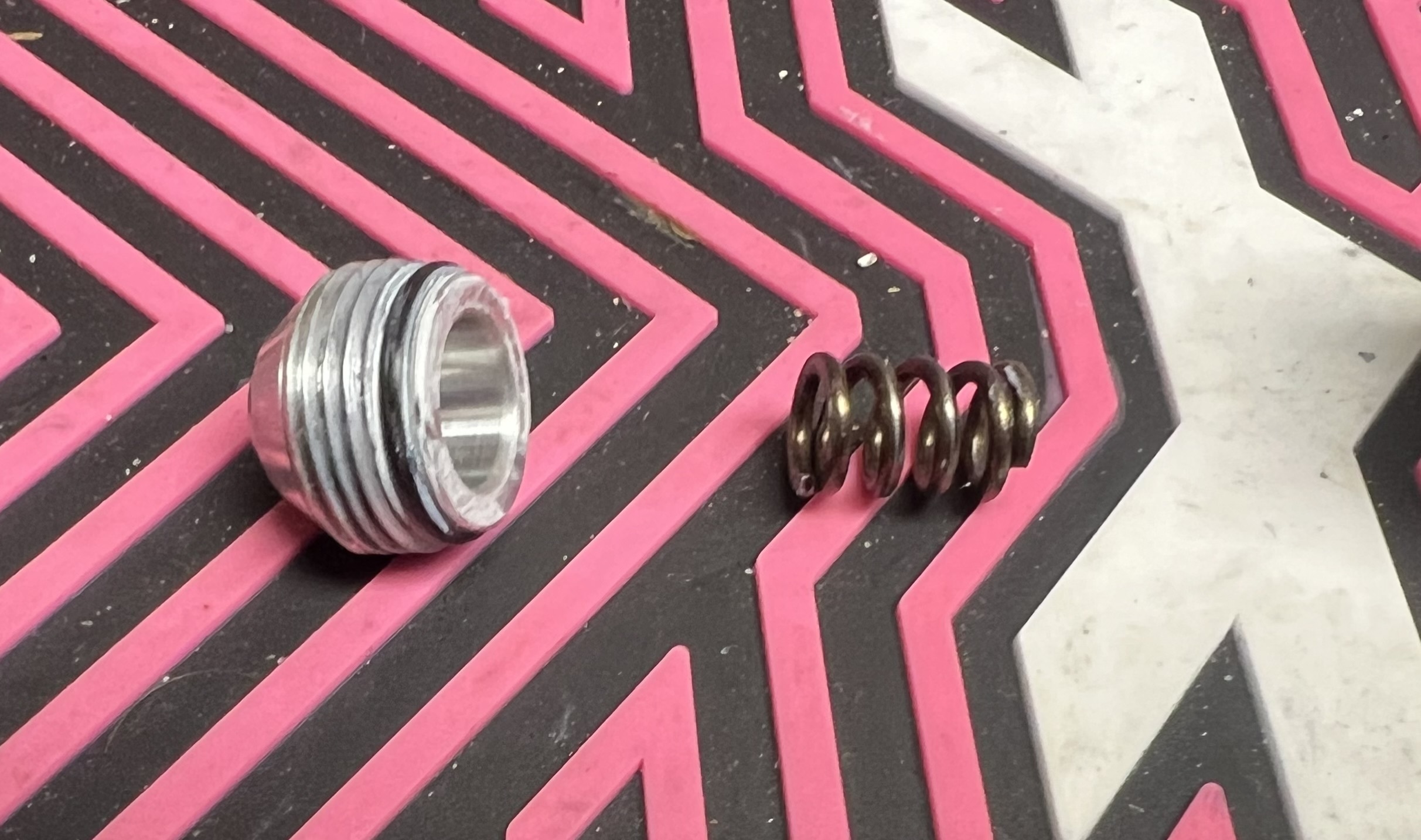

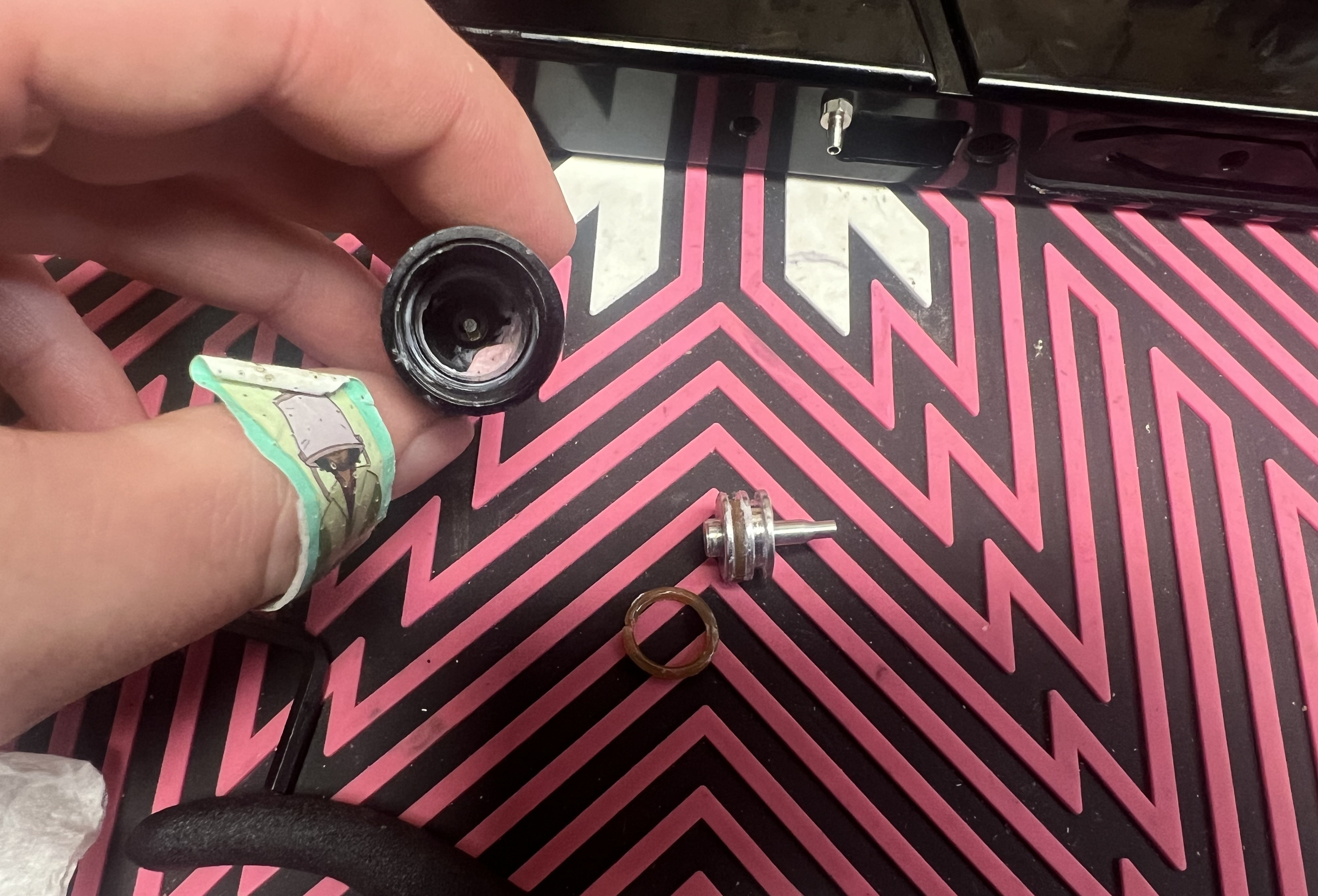

And now the last little piece of the LPR needs to be removed:

As you can see the o-rings are completely rotten.

And then finally pop out the valve:

[Cdn_Cuda]

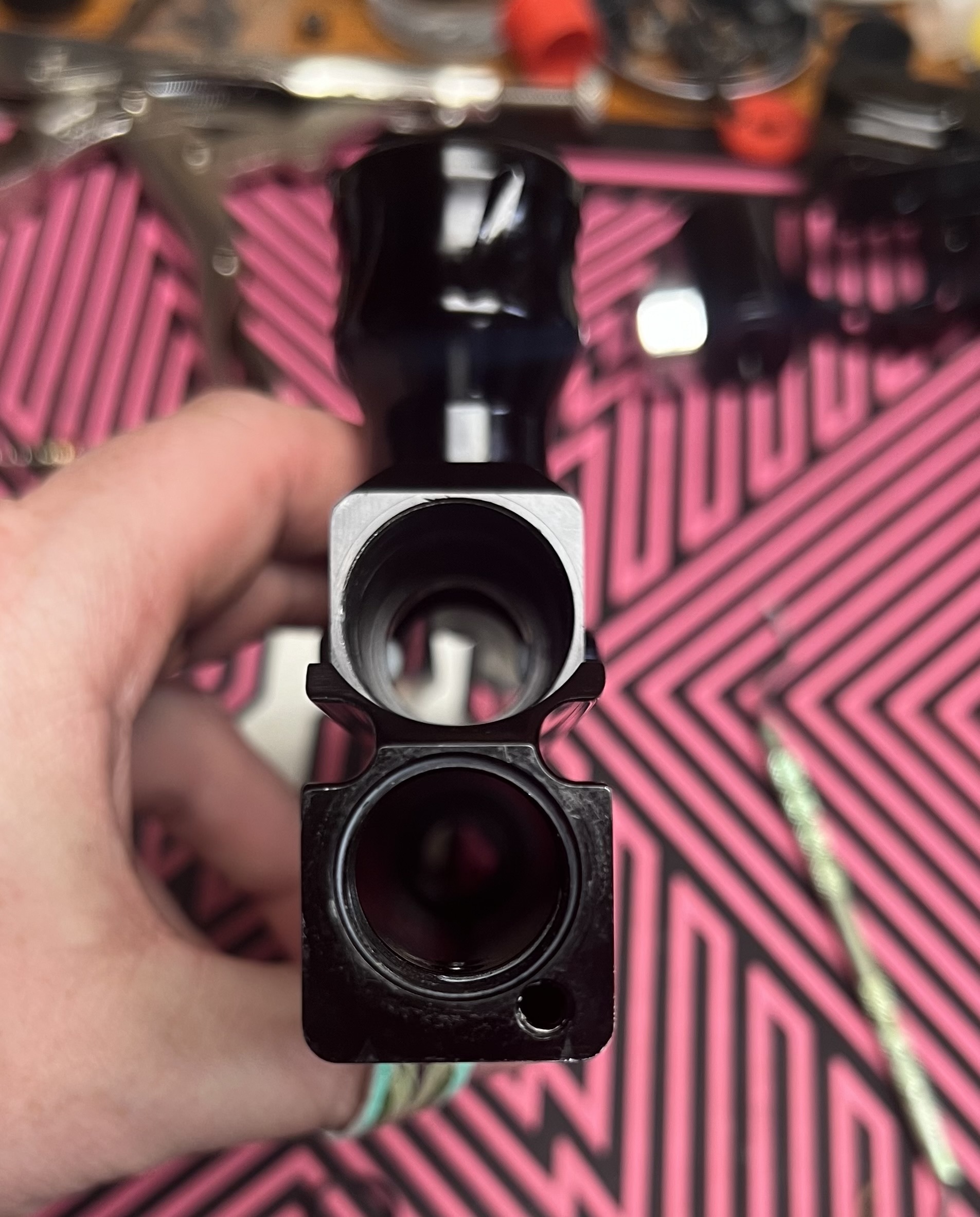

And here’s a look at the empty body:

IMG_1130.jpg IMG_1129.jpg
And when putting parts back on the body, remember to put the LPR back in before putting the ASA adaptor back as there’s a retention peg in the Adaptor.

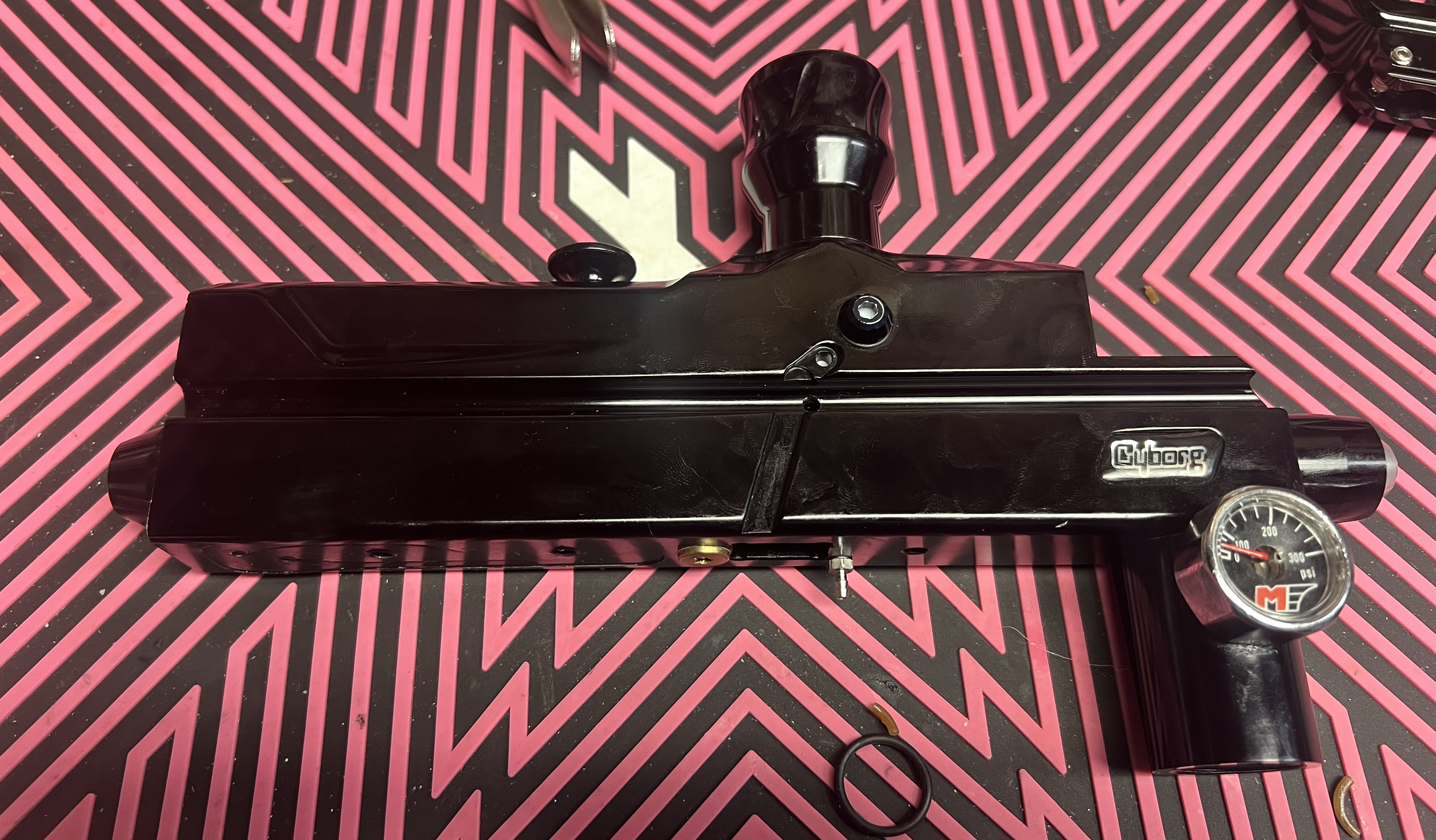

And now the body is back together:


[Cdn_Cuda]

Next step is the Gladiator reg and the. I can add some air and see if it lives again! But that’s for another time.
