Working on getting a old houndstooth (belive that's what it is.) working for Slims.

I've got air leaking well everywhere.

How do i get the internal aluminum pieces out. All the diagrams show those as a two piece with a oring. I think that oring is dead. Already have the VA and all plugs out. I can rotate the internal tube but can get it to move otherwise.

Done just pound it put from the back to front of the gun?

[Loophole]

Once you have the VA removed you’ll have two parts.
the first piece is what the VA screws into (the shorter piece in the diagrams) and the second piece is skinnier and has an -012 oring on it.

I first wiggle the shorter piece loose. Slide it slightly over so you have enough space to basically poke it with something to apply pressure so with your other hand you push something inside the skinnier valve body (I use a small wooden dowel that I sprayed with flex seal spray lol).

hopefully this makes sense…

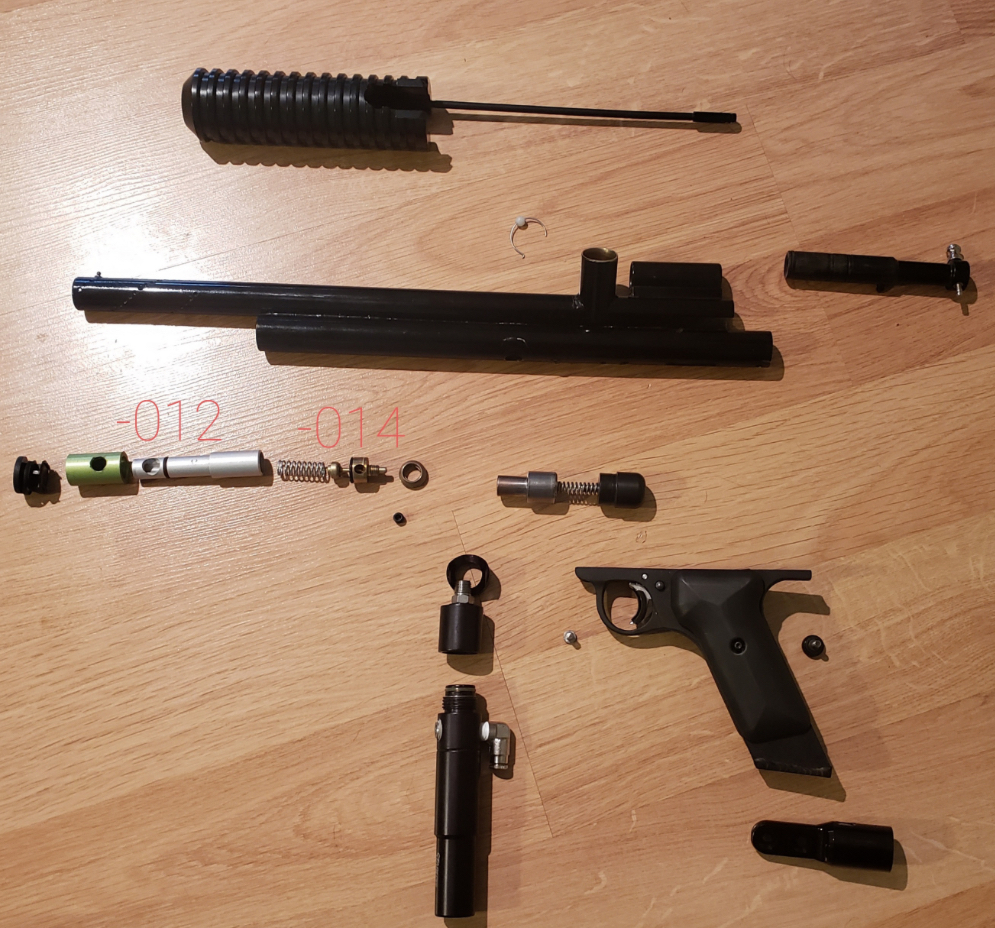

[Loophole]

Green = short piece
Silver = skinnier


IIRC
green goes towards the barrel
Silver goes out towards the RVA

[HammerD]

Looks familiar. 🤪

[cougar20th]

Well after much trying I have come to the conclusion that a previous owner fubared this thing to much. I'm gonna get the internals remade. And improve on what palmers did while at it.

[Socalpumpballer]

Taking palmers completely down has a high probability of surfaces that will never seal again. Yes there is definitely a better way to make the internals. A cartridge valve with the air transfer tube built in would be 1000% Better than playing the game of loctite on the vert ASA only to find that the valve oring or air transfer tube oring refuses to seat and leaks after everything dries
