Pneumatic Assists Unite!

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    #16
    If your looking at a full length arm from the block end 4.925 is where I was drilling them. Tap size is 4-40. If your looking for a screw you want a shoulder screw I forget the length exactly I'm pretty sure its over 1/8" you can try this part# from mcmaster carr 97345A101

    Comment


      #17
      a through hole AT arm would be a whole lot nicer than the pin i had to use because of the empire one (and sand down a bunch)

      Comment


        #18
        Originally posted by tjd10684 View Post
        If your looking at a full length arm from the block end 4.925 is where I was drilling them. Tap size is 4-40. If your looking for a screw you want a shoulder screw I forget the length exactly I'm pretty sure its over 1/8" you can try this part# from mcmaster carr 97345A101
        That's some great info! Thank you

        Now just to figure out a "hitman mod" for the lite PA 3-way

        Comment


          #19
          Well I'm not sure a hitman tang is a good idea on those. since there is no rotational stabilization it could just rotate to the right side of the gun and be really hard to "find" while playing. Secondly because the 3 way is only supported by the orings if you move the pull point away from the axis you might get binding or premature wear in the valve body and stem. All that being said though I can tell you that the set screw that holds the cap onto the valve stem is 10-32 so if you wanted to experiment for cheep you could just use a long 10-32 screw as your hitman mod. If its not binding and working how you want then you can just put some washers or a tube under the head and then you have a pretty simple hitman mod.

          Comment


            #20
            Originally posted by tjd10684 View Post
            tube under the head and then you have a pretty simple hitman mod.
            This is pretty much my first idea but haven't tried it yet. I have a second idea that is more involved but would cause less wear.

            Comment


              #21
              Click image for larger version

Name:	image_2020-10-06_195533.png
Views:	133
Size:	26.1 KB
ID:	40046

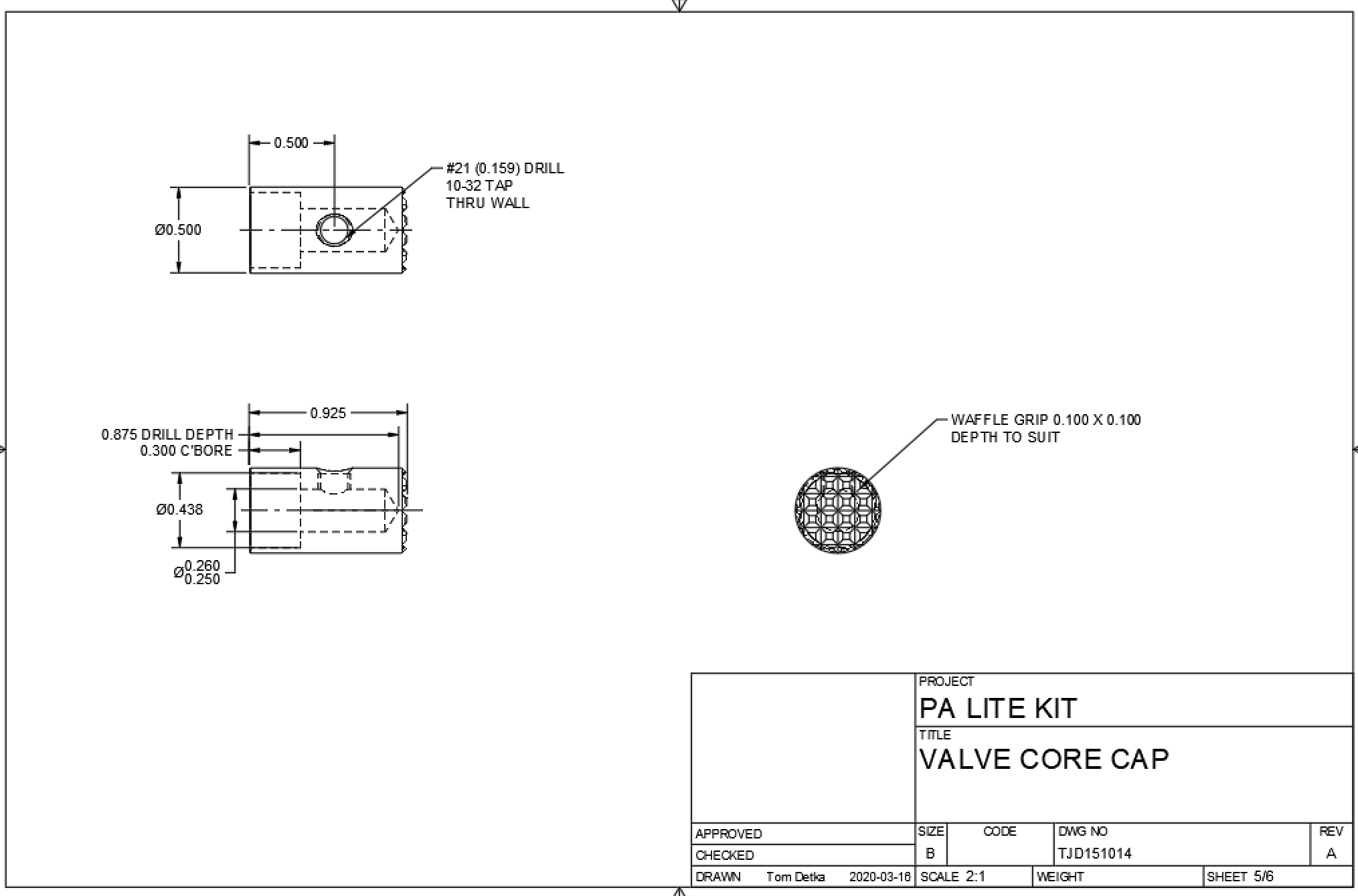

              Here is the drawing of the base cap if that helps. I was planning on releasing something like this so that if people wanted to try their hand at 3d printing their own they had a good reference to start with.

              Comment


                #22
                I've been thinking of picking up one of these and 3D print an over the barrel pump handle, then I found a complete kit ...

                Might have to revisit that option ...
                Love my brass ... Love my SSR ... Hard choices ...

                XEMON's phantom double sided feed


                Keep your ATS going: Project rATS 2.0
                My Feedback

                Comment


                  #23
                  If only full kits were available again....... cough cough

                  Comment


                    #24
                    I've had this for awhile.


                    Comment


                    • XEMON

                      XEMON

                      commented
                      Editing a comment
                      That's pretty much what I was wanting to build ... Then I found a tjd kit ...
                      That look sweet, how does it shoot?

                    #25
                    Haven't played with it in about 10 years but it was always a good time when I played with it. It never gave me an issues.
