    Fixing SMG 68 Aluminum Magazine?

    I've been trying to figure out a solution to the stock aluminum magazine of the SMG 68 deforming after sustained use.
    Has anyone had success in addressing this problem? I've seen photos of people flipping the magazine around and remaking the holes on the unused end, but has anyone made a more permanent solution?

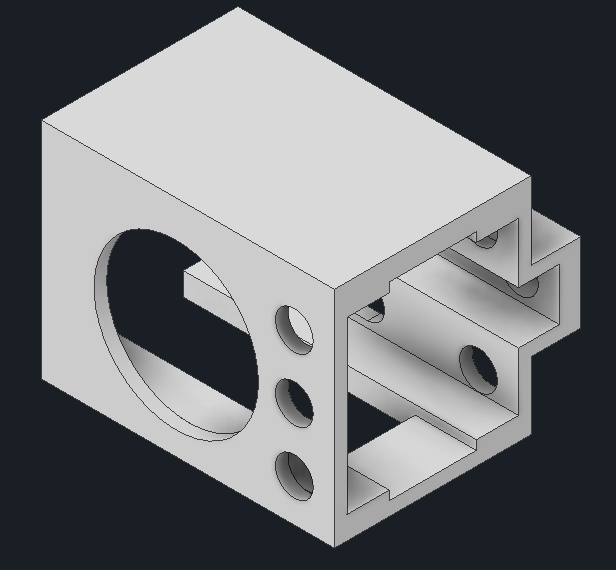

    Click image for larger version

Name:	Front.PNG
Views:	190
Size:	47.7 KB
ID:	129136
    I messed around with the idea of making some sort of an adapter of a stronger material. I don't have anywhere near the machining capabilities to do something like this myself though, and it looks like it would be pretty expensive if I wanted someone else to do it. The unique cross section of the magazine is throwing me for a loop. Every other aspect of the marker runs flawlessly, and it's an absolute thrill to use when the magazine opening is actually functioning.

    #2
    I had considered making something out of steel, like what you have there, but my motivation to do so was seriously lacking.
    Peculiar Paintball on Youtube

    Peculiar Paintball on Facebook

    RuleOfSines Feedback

    Comment


    • Tominator
      Tominator commented
      Editing a comment
      I was gung-ho about it for the past couple days, but the hypothetical price tag hit me like a brick wall

    #3
    BretG netsurferdude2 COB
    Carp 's Feedback
    Carp 's WTB/WTT

    Comment


      #4
      A solution to the self destructing magazine could allow these gems to see the field again. BretG found a way to breathe new life into the SMG60 and 68 Special with his valve mod. A new Mag or Mag Adaptor could make this gun the beast of the field again. I have 2 begging for help.

      Comment


        #5
        Click image for larger version

Name:	photo_2021-07-24_11-33-02.jpg
Views:	51
Size:	95.0 KB
ID:	154234Click image for larger version

Name:	photo_2021-07-24_11-33-04.jpg
Views:	49
Size:	93.6 KB
ID:	154235Click image for larger version

Name:	photo_2021-07-24_11-33-06.jpg
Views:	48
Size:	95.0 KB
ID:	154236

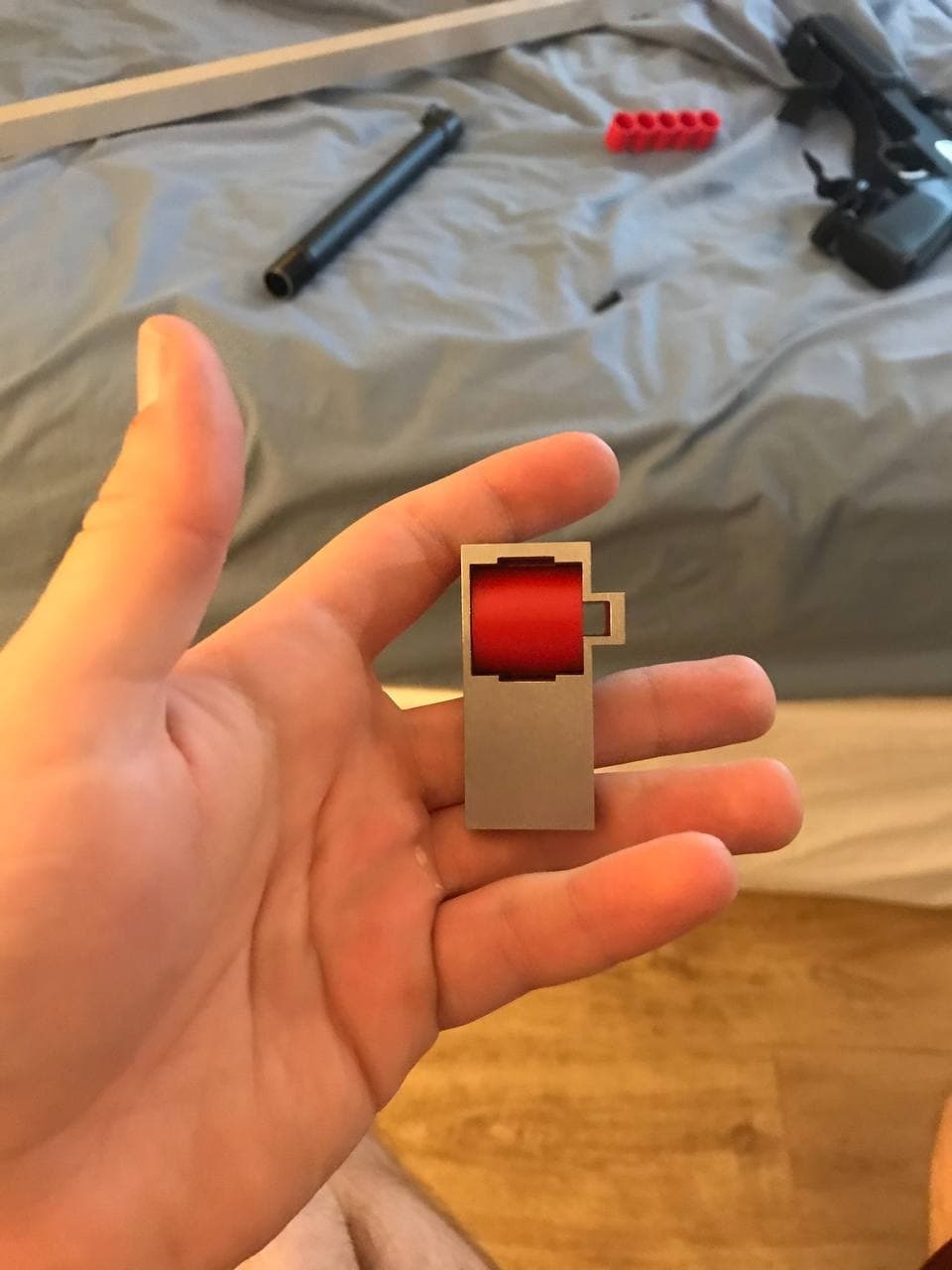

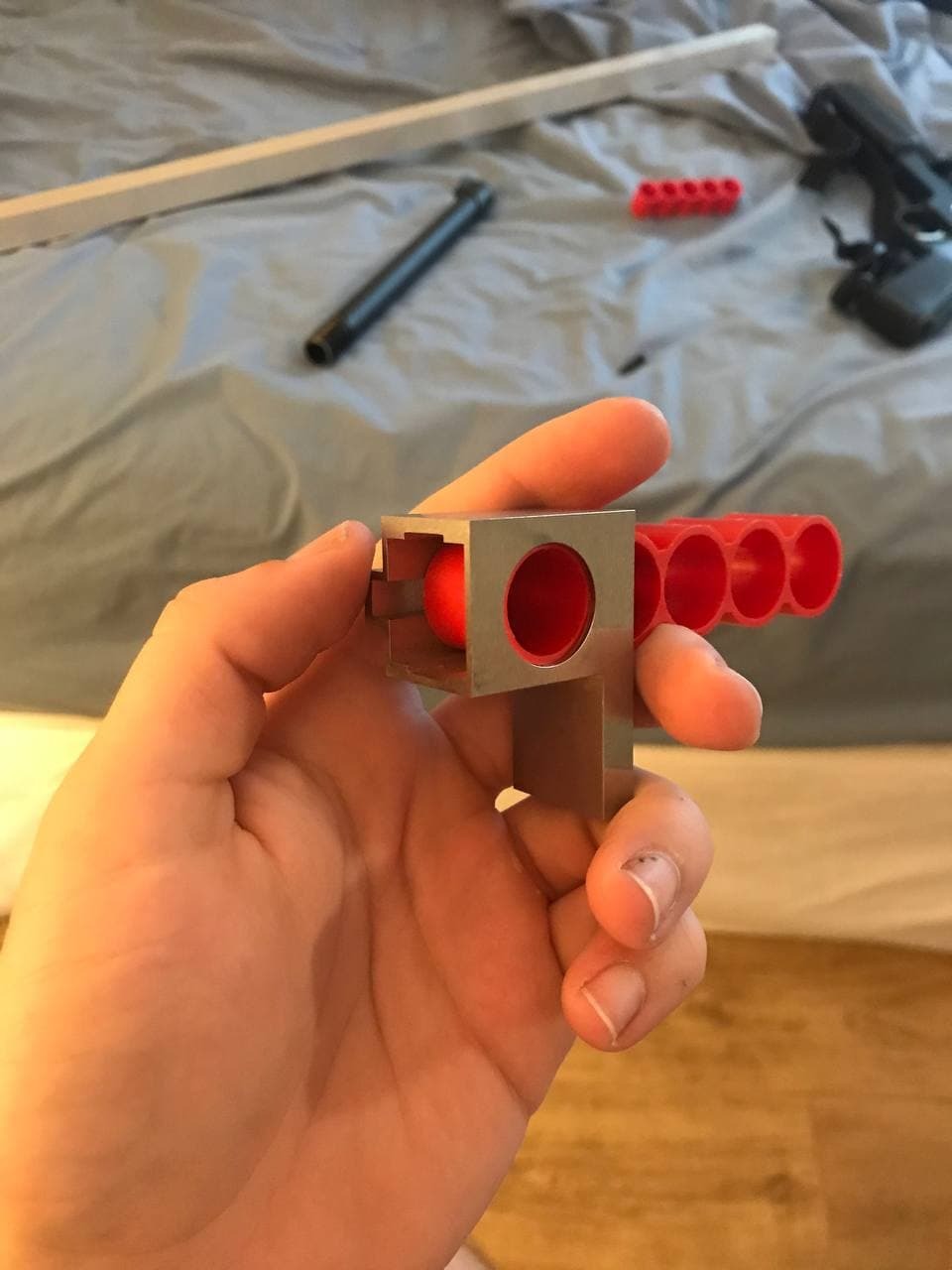

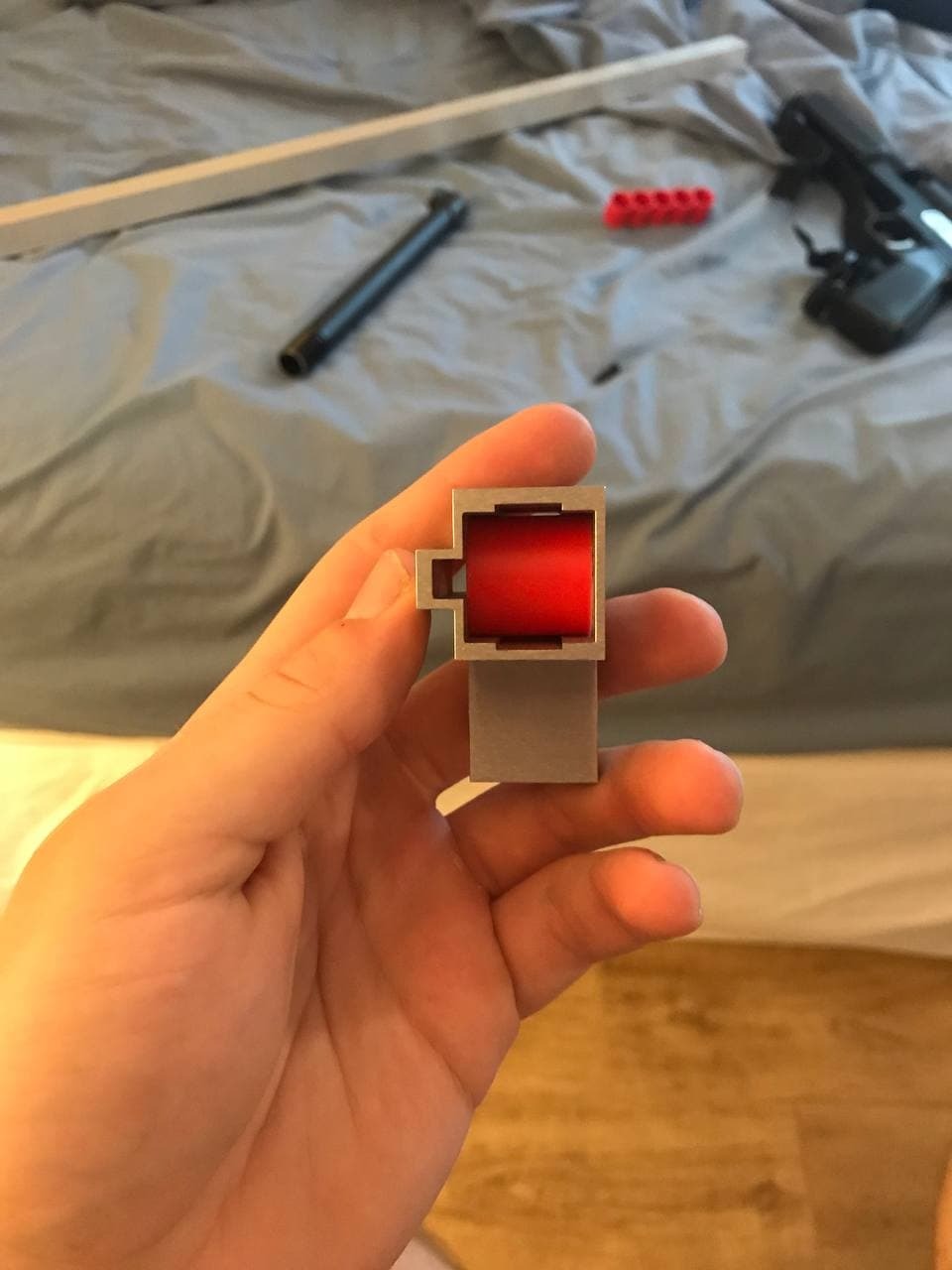

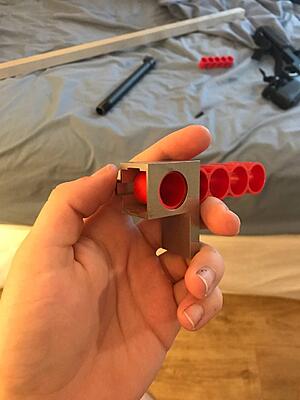

        Alright folks, I went ahead with the adapter idea. Gonna make the rest of the magazine out of some aluminum square tubing and drill the rest of the needed holes into the adapter. I've been simultaneously modifying the valve for HPA, and I'm getting close to what I need. I will report back with either incredible success or epic failure.

        Comment


          #6
          Did you bite the financial bullet and have it machined from billet?
          Dulce et decorum est pro comoedia mori

          Comment


          • Tominator
            Tominator commented
            Editing a comment
            William The Third recommended a website called Fictiv, which is what I ended up using. I removed a lot of the features I could do myself so the cost came down to about $120.

          #7

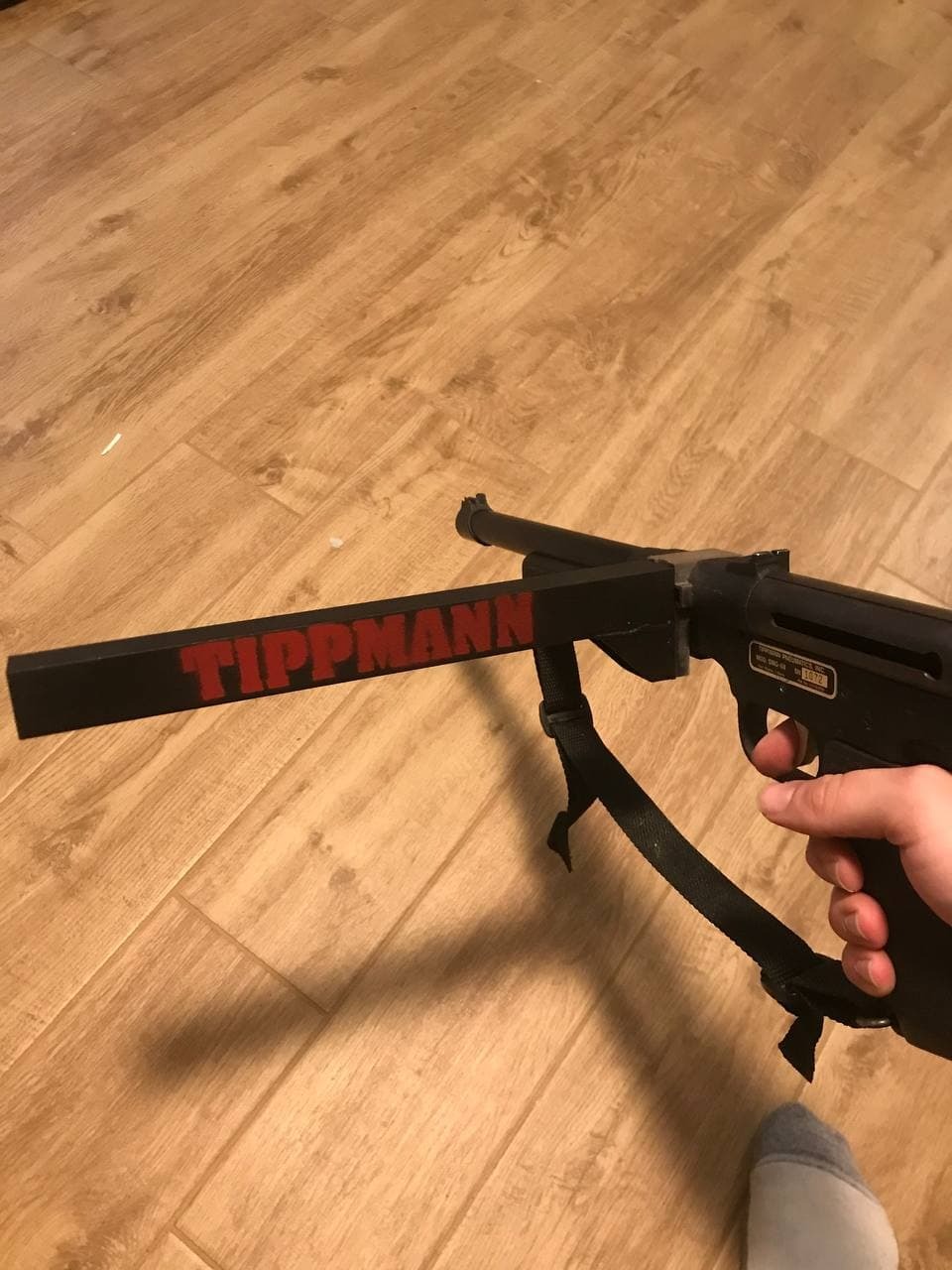

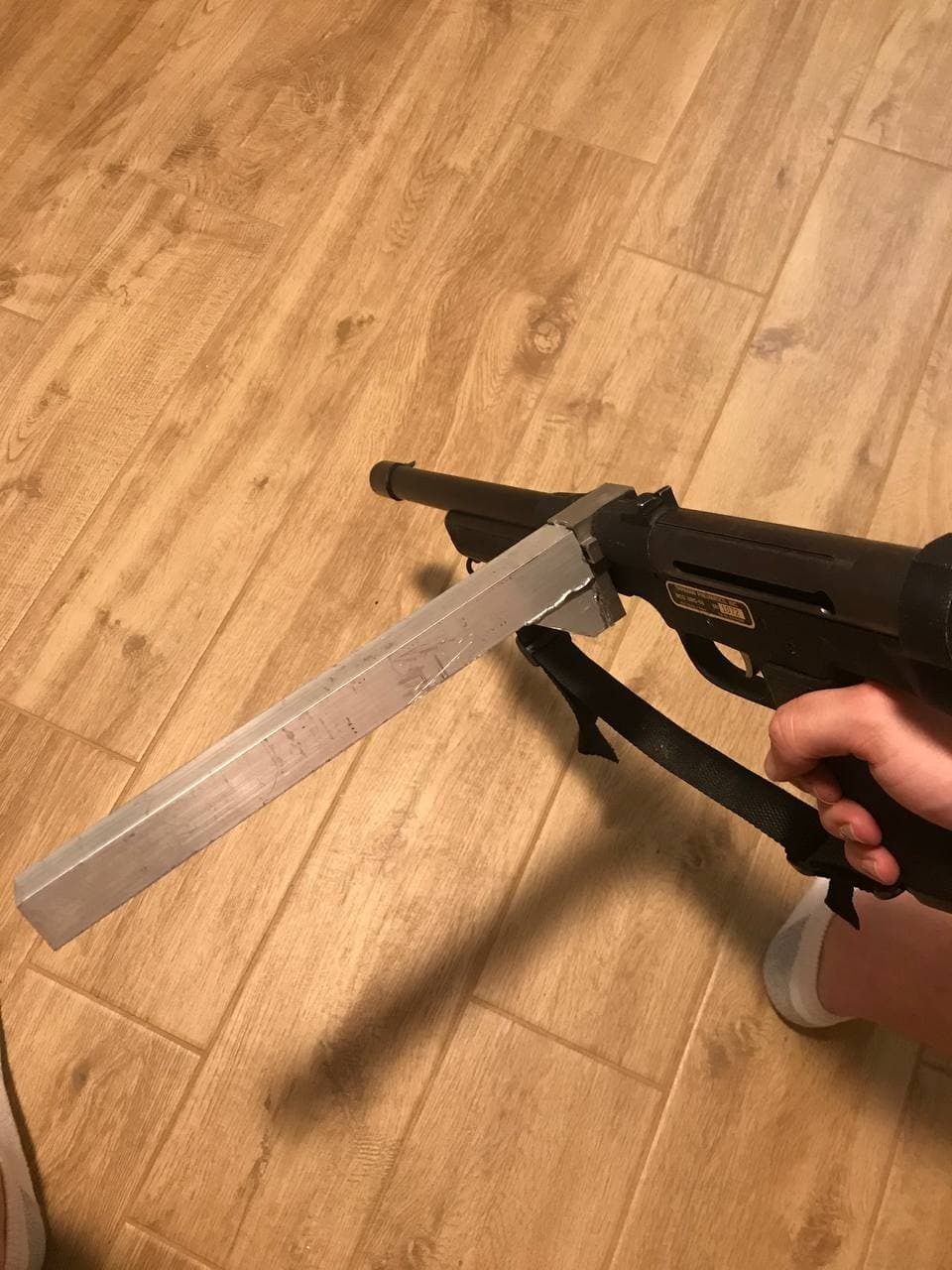

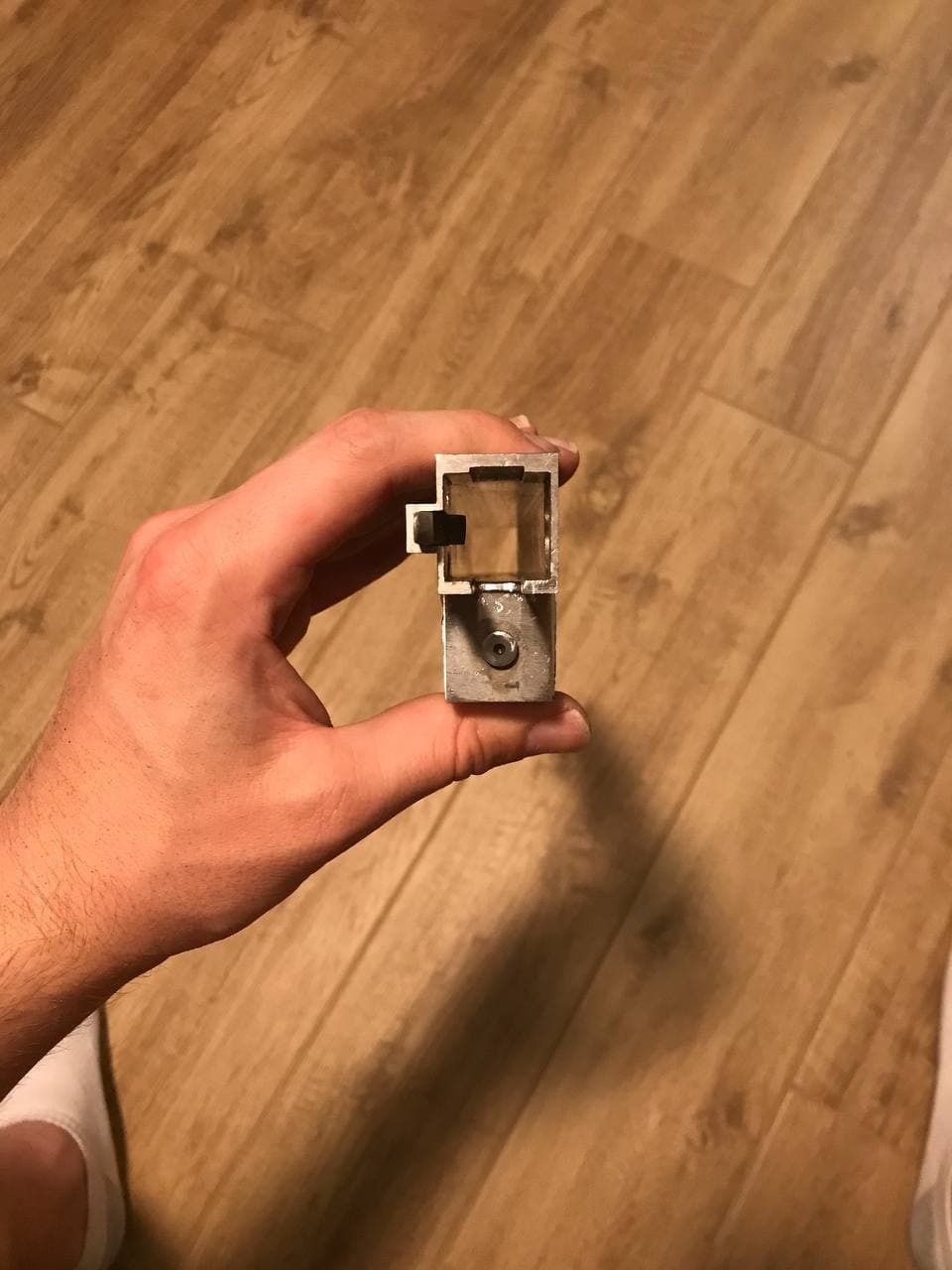

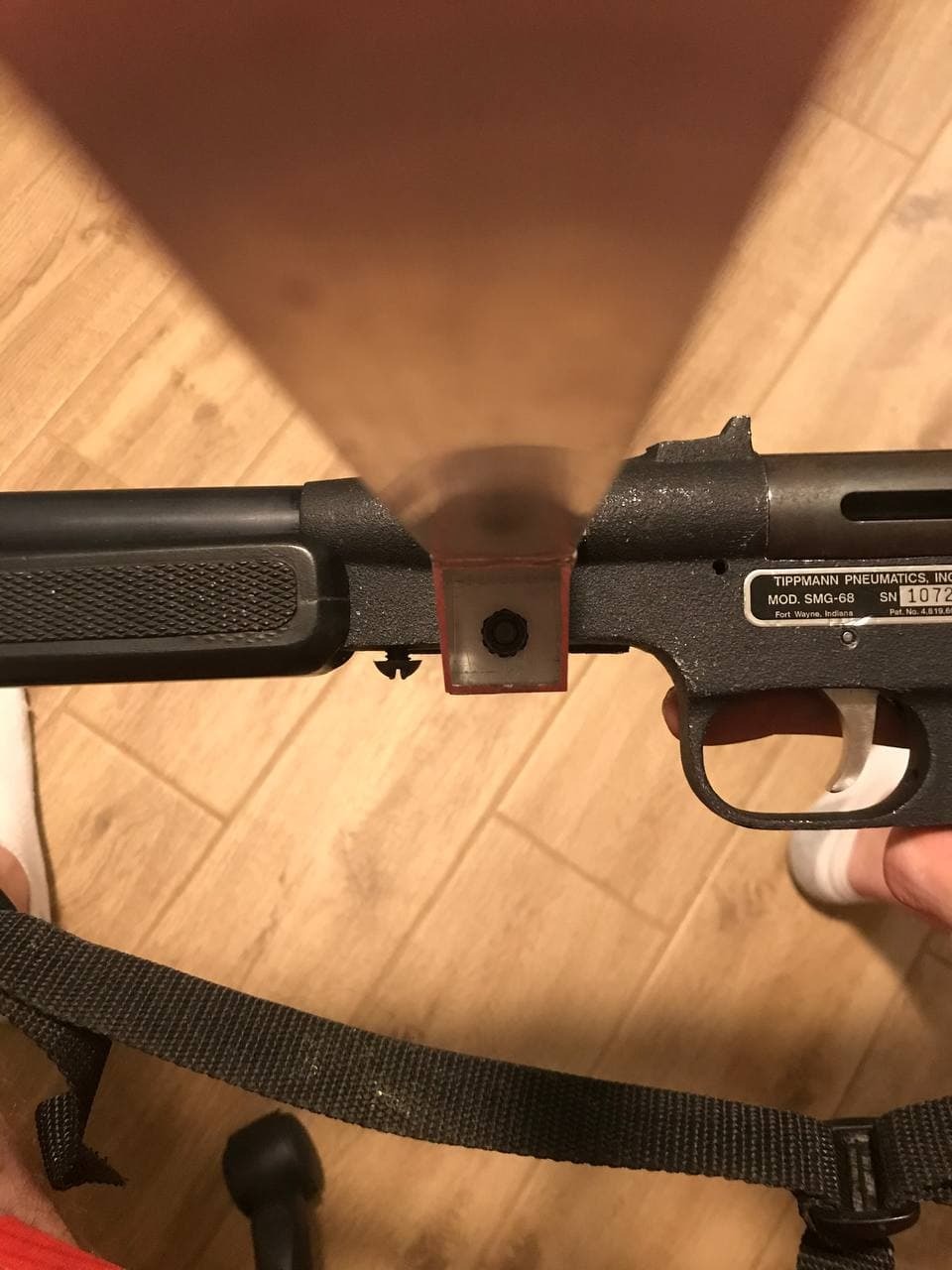

          It's in a pretty rough state aesthetically, but the whole feed mechanism is working properly. Picked up a 1" x 1" aluminum square tube and some brazing rods from Home Depot to craft the magazine. First time trying that so the joints were a little rough. I have plenty left though so I might mess around and make a 10-rounder or cut a nice big slot on the side so you can watch the clips advance.

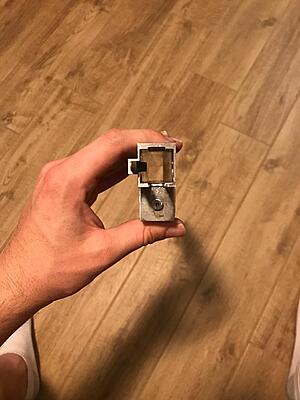

          Click image for larger version  Name:	photo_2021-08-04_15-41-43 (2).jpg Views:	0 Size:	193.1 KB ID:	157566 Click image for larger version  Name:	photo_2021-08-04_15-41-46.jpg Views:	0 Size:	112.8 KB ID:	157567 Click image for larger version  Name:	photo_2021-08-04_15-41-43.jpg Views:	0 Size:	133.2 KB ID:	157568​​

          A video and some other photos: https://photos.app.goo.gl/zbhNzs7RhThLFBAK9

          Comment


            #8
            Awesome!!! I'm impressed that they managed to machine those features so cheaply. Is it milled or is it sintered metal?

            Comment


            • Tominator
              Tominator commented
              Editing a comment
              I tried my darnedest to find any other information on how they made it, but the website just says "CNC Mill." I don't really care what kind of magic they ended up using though cause the part works like a charm.

            #9
            Is it milled or printed?

            You actually did just give me a killer idea. I totally forgot the company that I use for my emek body printing offers stainless steel SLS printing. If I design that exact piece that you did I might be able to recover the mess that is my as my smg68

            Comment


            • Tominator
              Tominator commented
              Editing a comment
              The website swears it was milled. I would love to see as many SMG68s up and running as possible so if you want I could send the CAD I used for the part.

            • Ecapnation

              Ecapnation

              commented
              Editing a comment
              If you don't mind... It would save me some steps.

              Need anything file wise yourself?

            • Tominator
              Tominator commented
              Editing a comment
              Don't worry about it. I'll throw up a link to a folder that has the two files I messed around with.

            #10
            Here's a link to the files I used for the adapter: https://drive.google.com/drive/folde...Ah?usp=sharing
            The "Simple" one was what I sent to Fictiv. The other has every feature as measured from the aluminum magazine that came with my SMG68.
