SMG-60 Valve Plunger measurements

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

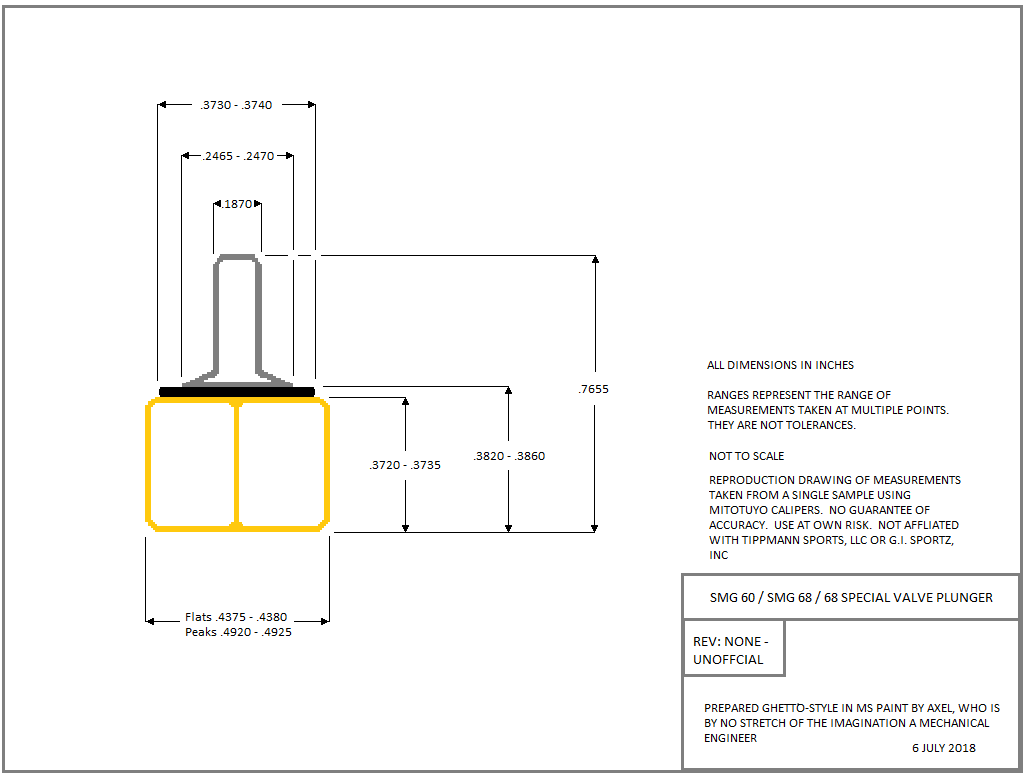

    SMG-60 Valve Plunger measurements

    According to my ability to work a pair of calipers
    Attached Files
    Feedback

    And the past, it will decay, so sing goodbye to yesterday...

    #2
    love the revision note.
    Are we there yet?

    Comment


      #3
      I should trust it as far as I can throw it. Luckily I can throw it pretty far so we’re good to go. It all works out I the end, nice work

      Comment


        #4
        Thanks. I don't expect these things require exceptionally precise tolerances to function well. Small enough to fit, and large enough to return to a properly seated position between shots should be enough

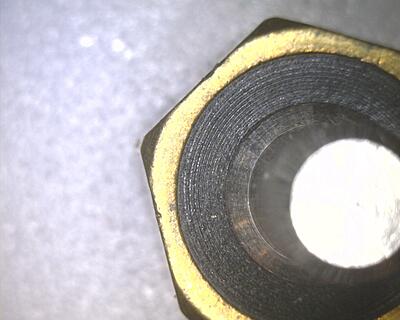

        It would be nice to know the material and durometer of the seals. They also have a raised "bull's-eye" pattern. Whatever the material is, it's stood up well over time, but the last of the NOS must be long past it's shelf life. It shouldn't be too difficult to make a rebuildable version where the valve stem is threaded rather than press fit; then punching the seals from a flat sheet of whatever material is fairly simple.



        Of course, they really should be machined to bretg HPA conversion if we're going to bother with all that
        Feedback

        And the past, it will decay, so sing goodbye to yesterday...

        Comment


          #5
          When I cut them, the stem of the poppet is exposed and I sometimes punch them through and the flip the seal and reassemble. Works.
