Paintball shell-ejecting shotgun demo

[MuKen]

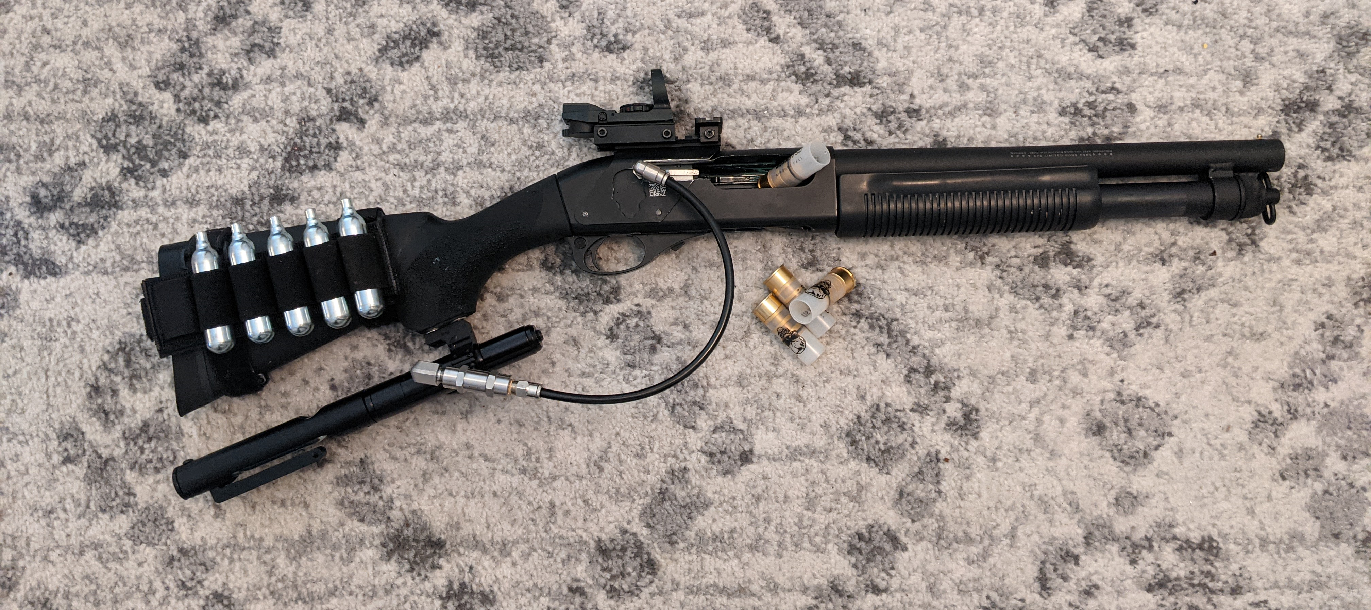

Finally finished this project and wanted to show how fun it is to use!

It's based on a CAM870 MKII, to which I've made a number of modifications:

- Bolt valve spring lightened and trigger hammer spring strengthened to dramatically increase velocity
- Bolt drilled and tapped to accept 1/8 NPT air fitting
- Receiver dremelled to allow travel of attached air fitting
- Hogue stock cut and drilled to mount bottomline regulator ASA to allow easy control of input pressure and thus velocity adjustment
- 12g co2 or HPA remote line configurations
- Check valve installed to improve 12g efficiency

(The cell phone doesn't capture audio very well, it is MUCH louder in person)

(un-gassed firing video)

Obviously I need to work more on my shotgun quad-loading skills, but that's part of the fun of the marker

[packersrule729]

Sweet! Would love to see a live-fire video with some air.

[MuKen]

Taking it out for a Halloween paintball session this weekend, I'll see if I can get some footage then! I live in the city, so there's nowhere to gas it up at home without pissing off my neighbors :P

[packersrule729]

Especially with a marker that looks like that. Understandable.

[AnarchicArctic]

Well that’s something you don’t see everyday. Well done

[MuKen]

Almost forgot, but grabbed some footage at the firing range while I was out at the field today! Added to first post.

[ReconSWS]

Wow that is so well done!

[Siress]

That's really cool! Nice job. How'd the first day of play go?

[MuKen]

Thanks, it was super fun! It was definitely a heavy handicap, it felt even more limiting than stock class play. But it was super satisfying getting eliminations with a shotgun, and learning to work in different types of shotgun reloads in weird positions was really fun too.

[maggot]

This thing is really cool. Thanks for posting.

Googling not coming up with many options for buying one. Where did you buy yours? What do the shells cost?

[MuKen]

https://www.evike.com/products/54640/

You can find shells from here too. Do keep in mind that I made a LOT of modifications listed in the OP to be viable for paintball. Out of the box you are going to get 200-210 fps on first strike, even less on roundball, with no way to adjust velocity, and you are going to have recharge the bolt with a special co2 charger midgame every 10-15 shots or so.

[Seajay]

Awesome!
