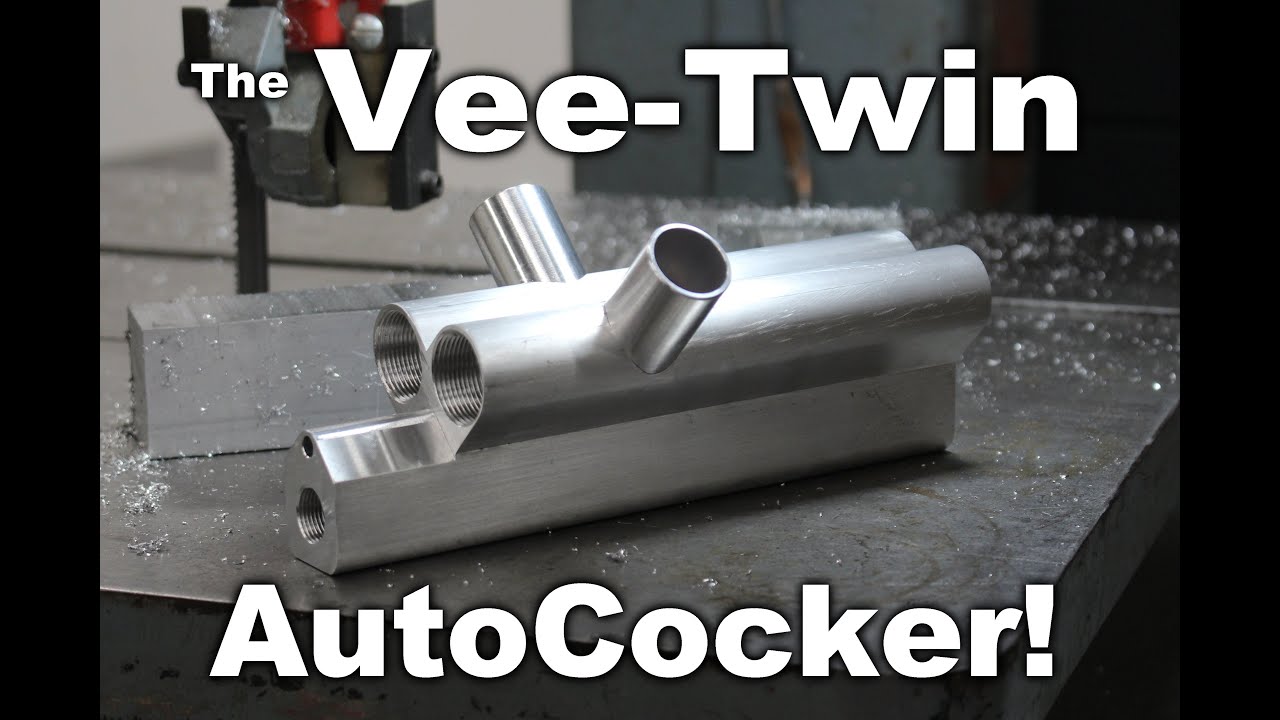

Vee Twin Autococker

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    Loving these in-process shots, Doc.

    I've always wondered what the shot spread is like on these dual barrel monsters. Barrel threads aren't exactly designed to seat the same way consistently, and minor differences will be magnified at range. The video posted earlier seems to have ~4-5ft of spread at the target, but it's really hard to tell from the video.
    Click here to edit your signature. - Paintball Selection and Storage - How to make your niche paintball part idea.

    B/S/T Listings: FiburX - MCB Feedback

    Give me your lost, your abandoned, your huddled masses yearning to talk paintball, The wretched refuse of your teeming gear bag. Send these, the homeless, tempest-tost to me,I lift my lamp upon the MCB Forum!
    -In memory of MCB 1.0, 2.0, SCP, PHOG, OtterPB, PBReview, OTF, et al.

    Comment


      Originally posted by Siress View Post
      Loving these in-process shots, Doc.

      I've always wondered what the shot spread is like on these dual barrel monsters. Barrel threads aren't exactly designed to seat the same way consistently, and minor differences will be magnified at range. The video posted earlier seems to have ~4-5ft of spread at the target, but it's really hard to tell from the video.
      Yeah so many variables will change the spread. But last time I played with my deuce I did see that far of a spread. Some guys said they saw one ball, ducked their head one direction only to be hit by the other ball. Some are like where that ball come from and remember there is a guy out there with a double barrel. Other said the same thing when they got on other body parts.

      Comment


        Haven't forgotten about you gents, I've just been absolutely swamped- in part thanks to some of my own bad planning.

        This coming week is very much a crunch time for me, with no less than five fairly major projects that have to be out the door by no later than Friday.

        On the plus side, that should very nearly clear my tables for the moment, but until then, that's another week 'til I can get back to these badboys.

        On the other plus side, while I had the rotary table set up for another project, I took one of the "spare" backblocks (since a couple of these will be midblocked) and made a sort of "cutaway" demo bit.



        When I have time, I'll have a couple sections representing the bolts and a valve in there, to show more of a true cutaway. But in the meantime, that gives you an idea how the air passages will go.

        Doc.
        Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
        The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
        Paintball in the Movies!

        Comment


          Still haven't forgotten about you lot. I got four out of those five things delivered on time, and expect to finish and deliver the fifth by Tuesday. I have a couple other less-time-dependent jobs to finish up and get off the table after that, and at least a solid day of cleaning the shop. It looks like I hosted a particularly rowdy kegger for the entire 9th Armored Division in there, only with slightly fewer whiskey bottles.

          But, with luck, by Thursday or Friday, I can get back to this and firewall the throttles 'til I can start getting finished kits out to you gents.

          Thank you for your patience.

          Doc.
          Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
          The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
          Paintball in the Movies!

          Comment


            And we're back!

            I had a ton of must-do work that... well, I had to do, and all of it took me longer than expected. (Which, of course, it always does. You'd think that at some point I'd learn. )

            But, all the immediate fires have been put out, the cat's been fed and I told my secretary to hold all my calls, so it's time to get back to these badboys!

            Starting off, there was this little weehaw on the 'nose' of the body, where I couldn't reach with the corner-rounding endmill.



            Easy enough to take care of- I'm no Clickspring, but I know my way around a file.

            And here's a trick for a situation like this: I want to take the bit at the 'peak' off, but NOT scar up the barrel faces, so you use a "safe edge" file like so:



            I know it's kind of hard to see, but basically I just hit the narrow faces of the file with the belt grinder, 'til the teeth were basically gone. That way, it can't cut on that face, and you get a nice, sharp corner where the two faces meet.

            A few careful minutes on each one and the form is now perfect. A touch of sandpaper when it comes time to finish each body, and it'll be smooth as glass.





            Now, here's one of the tricky bits some of you fellers were asking about. Back when I've made individual bodies, I've just used a cheap angle vise, but in this case, I wanted something faster and more repeatable. So I took a few minutes to make some quick and dirty angled vise jaws:



            Those hold the body just like this, securely and repeatably, at the exact angle necessary to drill the gas ports up from the valve.



            Like so:



            After finding the center of the bore, and the proper spacing, the hole is drilled through from the top, unlike a typical 'Cocker.



            The upper part of the new hole is then tapped in the same setup.



            And looking up from the normal valve retaining screw hole underneath, you can see they juuuust about meet at the top of the valve.



            Do all that approximately sixty more times, and we're partway there!



            Now, the trick: I turn an aluminum plug, with dead-ended threads, like so:



            That gets a liberal dose of red LocTite (one of the very few times you should use red anywhere near a paintball gun) and then screwed hard into the threaded hole.



            After that's had a chance to cure slightly, and the stub is sawed off (that's what the groove is for, to make that easier and quicker) I use the same mill vise setup to very closely shave off the bulk of the plug.



            And then, back to the file vise, a couple careful strokes with a fine file, and the unnecessary part of the hole is basically gone!



            I just have to finish up the rest of the holes, and all of a sudden it'll be time for feed necks!

            As always, Stand By! More coming soon!

            Doc.
            Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
            The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
            Paintball in the Movies!

            Comment


              Nice trick with the plug and drilling the air holes. I was wondering if you drilled from the top, but didn't know if you would have enough meat in that top wall to plug like that.

              2 questions though:

              1.) I assume you use the same aluminum to help hid it after anodize? no color differences due to reacting differently?
              2.) the red loctite holds up okay through anodize? I don't remember if heat is used or not (been a while since I worked with anodizers), but don't they use some acidic liquids too?

              Comment


                The only issue Red Loctite could have with anodizing (after fully curing) is if it broke the electrical contact with the rest of the body or had a significant electrical resistance that would cause variation in color or effectiveness of the the anodizing. According to the guys in our proto-shop they've never had a problem with red Loctite and anodizing other then when they did not fully clean up the surface to expose the aluminum. Given Doc filed away the plug cleanly this should not be an issue.


                "When you are asked if you can do a job, tell 'em, 'Certainly I can!' Then get busy and find out how to do it." - Theodore Roosevelt

                Feedback Link - https://www.mcarterbrown.com/forum/b...del-s-feedback

                Comment


                  Not much to show today, apart from getting the holes plugged.



                  I'd hope to get some or all of them filed down, too, but I just didn't have time.



                  It does kind of frustrate me, though: Making these plugs was rather time consuming, and I should be able to do this sort of thing on my shiny new CNCs. Well, actually, I can, this would have been a fairly simple part to code, but in this case, I'm still nowhere near good enough- or fast enough- that it'd actually save time making just sixteen plugs.

                  If I was making 200 or more, you bet your boots I'd take the time to set the CNC up for it. (Although at this point, I'd still need a spindle liner, bar-puller and parting tool to do it right.)

                  Anyway, with a little luck... Feed necks by Friday!

                  Doc.
                  Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
                  The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
                  Paintball in the Movies!

                  Comment


                    On the anodizing, no. No issues. I used the exact same technique on all the other bodies I've made, including the one in Firpo's video shown earlier. The red loctite, once cured, is surprisingly chemical resistant, and when the plugs are tightened solidly, there's no issue with an electrical connection. (Only time I ever had a problem with that was plugging the front ASA on a VM body. I sealed it with JB Weld, which did, in fact, electrically insulate the new plug, and the shop told me it wouldn't take anno because of it. Looked okay, though.)

                    Doc.
                    Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
                    The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
                    Paintball in the Movies!

                    Comment


                      Got all (but one) bodies successfully filed and smoothed down today:



                      And now it's time to start segregating the individual bodies, as the overall build and milling will start to vary per customer. These four will be "standard" builds, with normal backblocks and whatnot.



                      I wanted to start installing feed necks today, but as per a conversation over on The Guild, this is, really, a good opportunity to practice a little short-run CNC stuff. As such, I spent the day making another tool for my CNC, so that I can make a batch of them accurately and consistently.

                      I should be able to get that coded up and run on Friday, maybe have the first few installed by Friday afternoon.

                      Get'cher checkbooks ready; with a little luck, I think I might be able to start shipping some of these out next week!

                      Doc.
                      Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
                      The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
                      Paintball in the Movies!

                      Comment


                      • Chuck E Ducky

                        Chuck E Ducky

                        commented
                        Editing a comment
                        Ready when you are boss, I can’t wait!

                      Originally posted by DocsMachine View Post

                      Get'cher checkbooks ready; with a little luck, I think I might be able to start shipping some of these out next week!

                      Doc.
                      Please check your email and send me some info about my build when you get a chance.

                      "What could go wrong?" - Sethzilla!

                      Member of WORR BOYZ pump paintball team
                      Playing since 1986: Stock, Pump, Mech, Electro, tourney, but now mostly rec.

                      Feedback:
                      https://www.mcarterbrown.com/forum/b...lla-s-feedback

                      WTB:
                      https://www.mcarterbrown.com/forum/b...-wtb-wgp-parts

                      Comment


                      • Cunha
                        Cunha commented
                        Editing a comment
                        I'm glad you got one of these bad boys coming.

                      Boy, did I need practice. A feed neck tube is absurdly simple, and for whatever reason, this thing took me way to long to program.

                      After all too many iterations, at way too late in the evening, I finally got my first successful part....



                      Which was spot-on dimensionally, even though the code is ugly and about six times longer than it should be, and all my feeds and speeds are seat-of-the-pants.

                      Made my batch plus a few extra, in case I either screw one up or maybe make more VT's in the future.



                      Now it was time to slap one together. Well... 'slap' isn't really the right word, as I'd forgotten one of the big steps. Ideally, one should sand and smooth the body before installing the feed necks. That way it's easier and straighter to sand without the neck in the way.

                      This part is always tedious, and typically takes up a couple sheets of sandpaper- or most of them, anyway. I tend to "wet sand", which helps eliminate the dust issue, and makes the paper last longer- it doesn't load up as fast. (You need "wet or dry" paper, though- and guess what? The purple stuff... isn't. )



                      After approximately fourteen hours and three elbow transplants, I had it at least acceptably smooth. It'll still need some work before polishing, but the heavy sanding to get rid of the tool marks, is done.



                      Then, back to the mill to bore the opening for the new necks...



                      And then a ride through the forty-ton press to mash the neck into place. (Obviously, along with a dash of red Loctite.)



                      That's an .0025" interference fit, she's not comin' out of there.

                      And there she is! I promised feednecks by Friday, and by my clock I still have 30 minutes.



                      Big update on Monday!

                      Doc.
                      Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
                      The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
                      Paintball in the Movies!

                      Comment


                        Just a little something extra for you gents...



                        Doc.
                        Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
                        The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
                        Paintball in the Movies!

                        Comment


                        • Chuck E Ducky

                          Chuck E Ducky

                          commented
                          Editing a comment
                          Love it ❤️

                        • Mr. Hick

                          Mr. Hick

                          commented
                          Editing a comment
                          That poor, poor shopvac.

                        Interesting question: Who made the first double-barrel AutoCocker?

                        Near as I can tell, I was the first, and apart from Ken's Ma-Deuces, and I think a Chipley one-off, no one else has made one. Have they?

                        Since this thread started, I've had a couple people tell me "yeah, that's cool, but this other guy made one first".

                        Now, I made the first one in '04, and I'm told Simon's been showing off his (which IS my first one) at events for years, and of course Ken made a few Ma-Deuces over the years, so I'm thinking those people are thinking my old ones, are the ones "made before". In other words, they're basically telling me I made them before I made them.

                        BUT... is that true? Does anyone know of a double-'Cocker from prior to '04? When I made that first one, not a single person suggested someone had done one before, and apart from Ken's, I've never seen one or heard of one, since.

                        Anyone know? I'd be very curious to hear.... And whatever happened to that multi-barrel market thread?

                        (And, does anyone have a pic of Simon's?)

                        Doc.
                        Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
                        The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
                        Paintball in the Movies!

                        Comment


                        • Ecapnation

                          Ecapnation

                          commented
                          Editing a comment
                          Prior to yours I don't recall any that were not multiple guns bolted together.

                          I made a pair of double snipers around 2011/2012 but it was a total cheat because I did them in brass then brazed them together and cleaned them up to look solid.

                        • DocsMachine

                          DocsMachine

                          commented
                          Editing a comment
                          Well, '11 would also be some seven years after I did my first one. Got any pics of the brass monster?
                          Doc.

                        As usual, hoped to have a little more done this weekend than I managed, but hey, I've always been an optimist.

                        Got the other three of the first four bodies bored and the feed necks pressed in:



                        Then rebored and rereamed to of course remove the parts of both the plugs and the feed necks that protrude into the bolt bore.



                        And, of course I utterly forgot a trick I'd come up with the last time I made one of these, and meant to use on the next one: On these, I drilled and reamed to final bore size before the plug or feed neck were installed. What I should have done is bored to just undersize- the step before reaming- and then left it there 'til it was time to do the plugs and feed necks.

                        After those were in place, then final ream to size. Would have saved a few steps, and on this batch, probably three or four hours, total.

                        Anyway, Et voilá!



                        ... Huh. I should make a sticker out of that.

                        Now, a confession: I, the Mighty Doc... made a mistake. My brain slipped out of gear momentarily and I almost mis-bored one feed neck:



                        I caught it in time, but it left a slight error that is not easily correctible.It does not affect the operation of the marker in any way, nor does it compromise the strength of the feed neck. It's purely cosmetic, and not very obvious.

                        However, I also can't easily fix it, I'd rather not start over, nor do I have a spare to swap over to. I am making one of these for myself, but that's the "mini" body I already had- no one wanted a mini, so I figured I'd just make it for myself.

                        If one of you gents, that are getting a standard full-sized body with back-block, can live with such an obvious and egregious error, I'll take $100 off your bill, OR, your choice, optionally offer $100 (or more) in additional work, such as a full polish job (which would usually be closer to $200) or additional cosmetic body milling.

                        Let me know at doc (at) docsmachine.com and I'll update your order as needed.

                        Anyway- as I said, I didn't have as much time as I wanted this weekend (who does? ) but one other thing I did take a moment to do was chop up some bar to start the front blocks...



                        And chopped, faced and centerdrilled enough Delrin rod to make bolts for these first four.



                        More to come!

                        Doc.


                        Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
                        The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
                        Paintball in the Movies!

                        Comment
