Sheridan rebuild kit (With 3D printed face seal)

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    Sheridan rebuild kit (With 3D printed face seal)

    Hello MCB,

    I am finally offering Sheridan rebuild kit; This is for the non-cartridge vale (the cartridge valve is coming soon).
    They do not include a cup seal/stem. I may add the o-ring needed to rebuild them if people request it.

    All shipping will be in a regular envelope (I can ship priority mail if buyer pay shipping).
    For our friends north of the border, add $2.00 to the total to cover shipping expanse.

    There is 2 “version” of the kit, the PGP (short bolt, 1 o-ring bolt) and the PMI (long bolt, 3 o-rings bolt). If you are not sure which kit to get, let me know, I can help you figure it out.

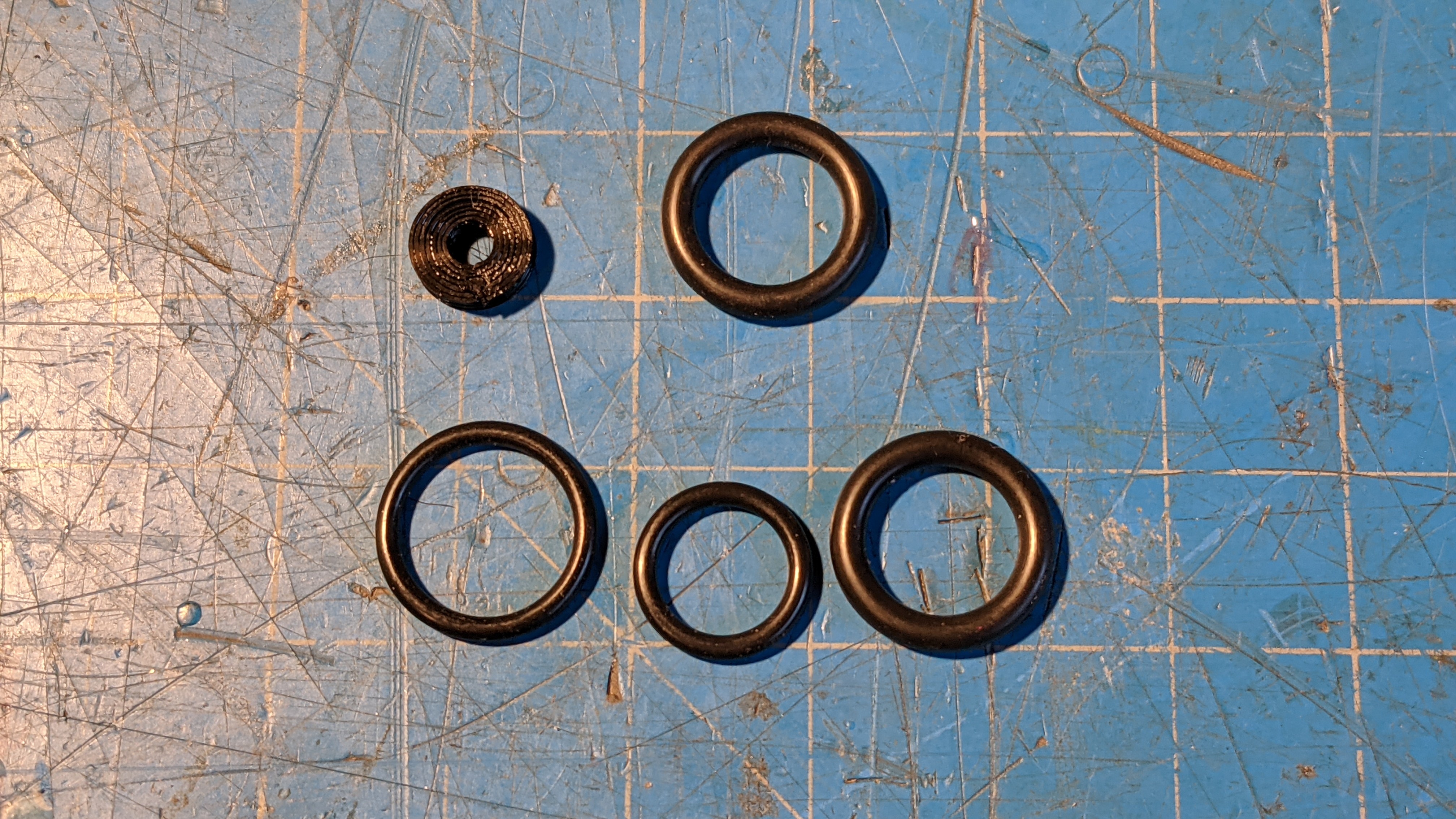

    Here is the content of the PGP (short bolt, 1 o-ring bolt) kit:
    - 3D printed 12g seal (install with shiny side toward the 12g)
    - Valve front o-ring (1 piece)
    - Valve rear o-ring (1 piece)
    - Bolt o-ring (1 piece)
    - Feed tube plug o-ring (same as bolt)

    Click image for larger version  Name:	PGP kit.jpg Views:	0 Size:	2.40 MB ID:	99866

    Price: $7.00 for the first set, $5.00 for each additional shipped and PP in an envelope.
    So, 1 set is $7; 2 sets are $12.00; 3 sets are $17 and so on ...

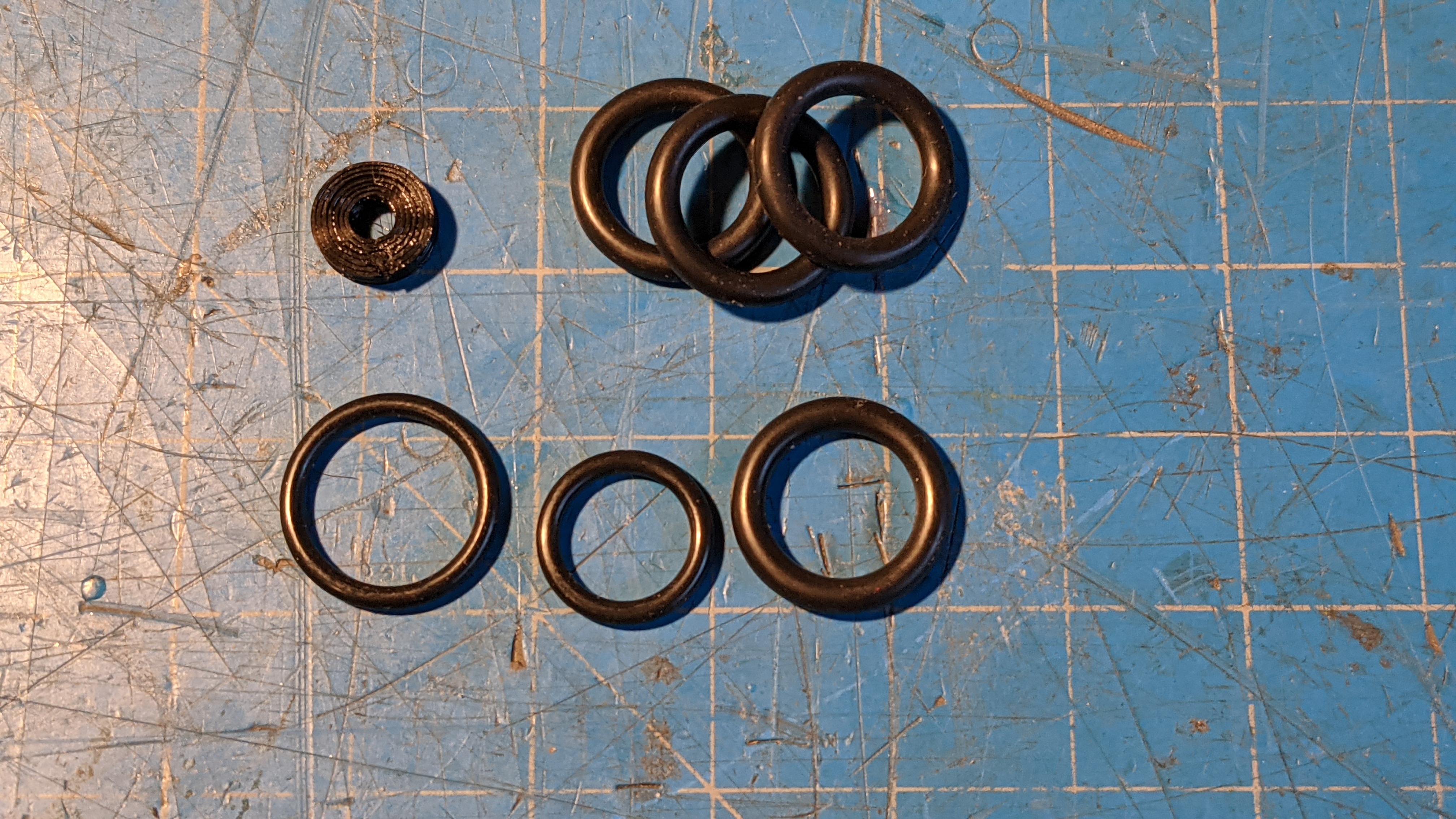

    Here is the content of the PMI (long bolt, 3 o-rings bolt) kit:
    - 3D printed 12g seal (install with shiny side toward the 12g)
    - Valve front o-ring (1 piece)
    - Valve rear o-ring (1 piece)
    - Bolt o-ring (3 pieces)
    - Feed tube plug o-ring (same as bolt)

    Click image for larger version  Name:	PMI Kit.jpg Views:	0 Size:	2.37 MB ID:	99867

    Price: $7.50 for the first set, $5.50 for each additional shipped and PP in an envelope.
    So, 1 set is $7.50; 2 sets are $13.00; 3 sets are $18.50 and so on ...

    My rules and how I operate:
    - No payment due until everything is ready to ship.
    - PayPal only, NO gift payment, all PayPal fee included.
    - I try to ship with a few days of payment.
    - I work a full time job that requires travel, often at the last minute. This mean that I may not be ready to ship immediately. I will let you know when I can ship.

    As always, don't hesitate to PM me if you have any questions.
    Thank you.
    X

    PS: My other sale thread:
    Air Power Vector Screw Kit
    ATS Screw Kit
    Last edited by XEMON; 10-07-2023, 11:38 AM.
    Love my brass ... Love my SSR ... Hard choices ...

    XEMON's phantom double sided feed
    Keep your ATS going: Project rATS 2.0
    My Feedback

    #2
    Here is a little "How-To" on installing the face seal:

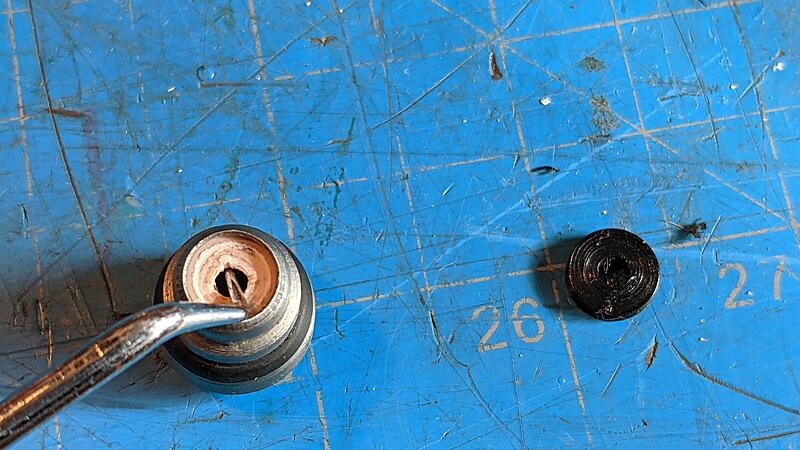

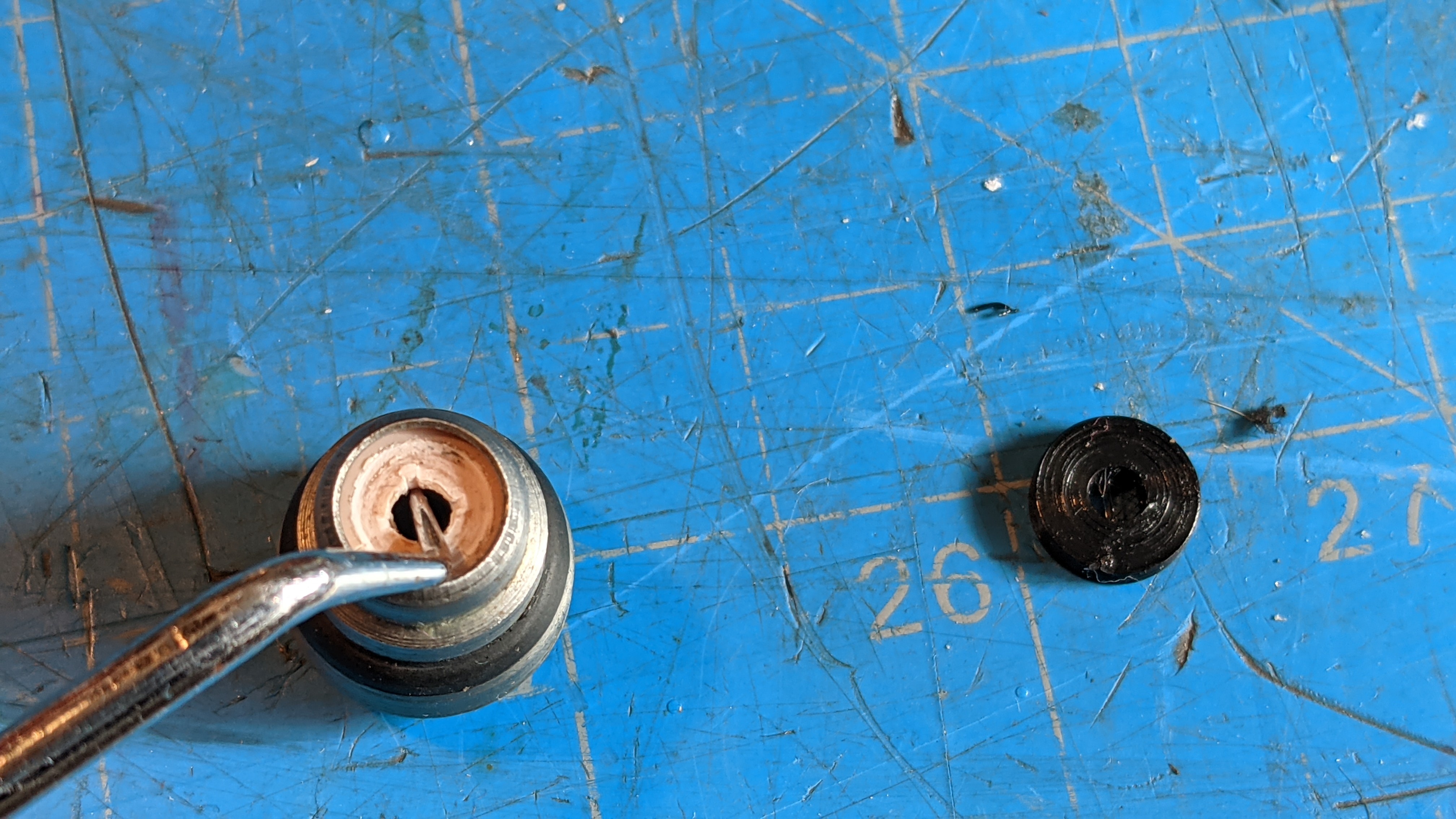

    1 - Remove the old seal.
    I like to use a pick for this, get all the old stuff out, and clean it. Be carful not to damage the front metal part, it is shaped to hold the seal in place.

    Click image for larger version

Name:	PXL_20210308_200052679.jpg
Views:	618
Size:	1.77 MB
ID:	102148

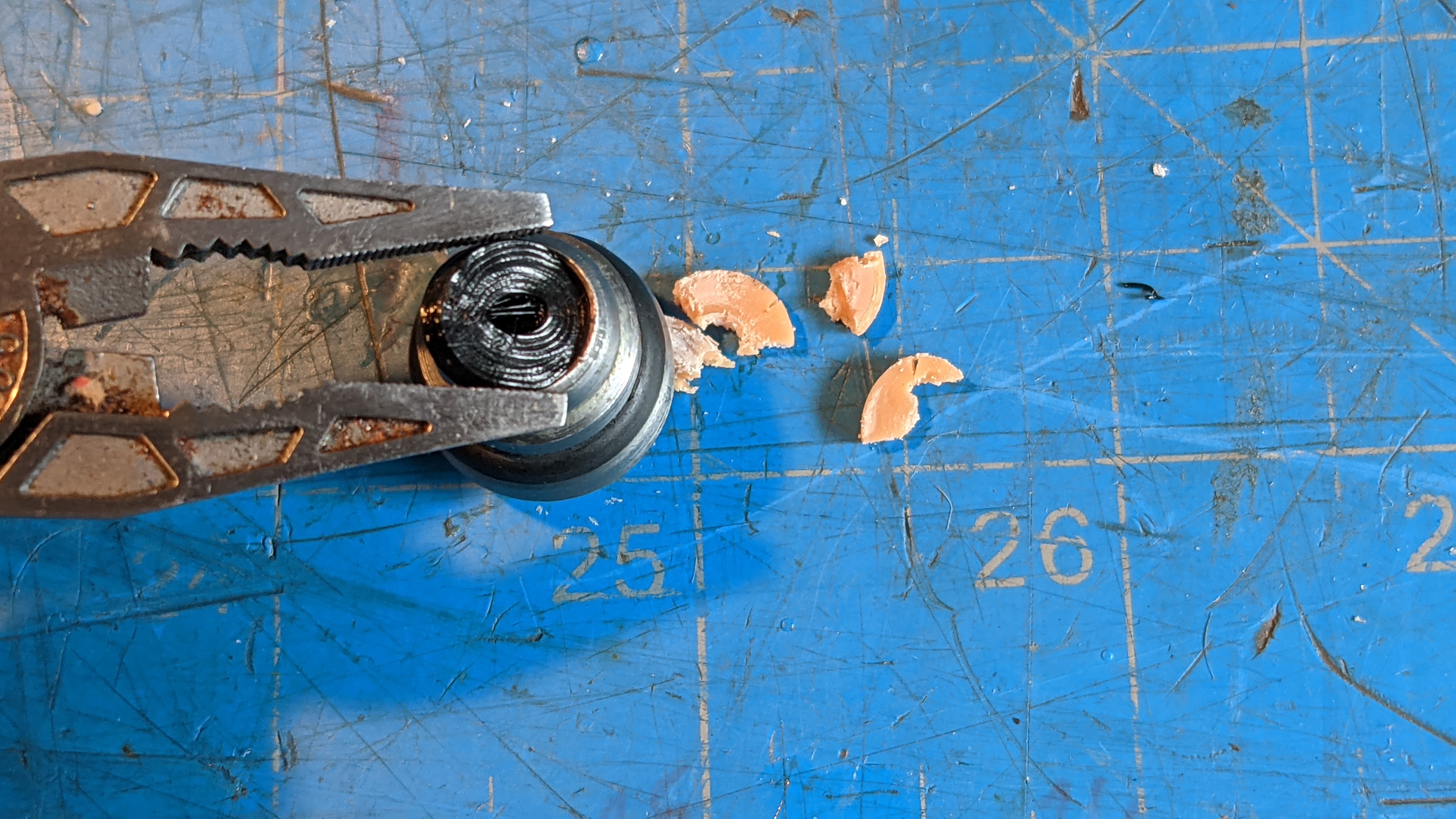

    2- Start putting the new seal in. Shiny side toward the 12g.
    The seal is larger than the front of the opening, it will need to be squized in. A small needle noise plier works great for this.
    Make sure not to scratch or cut the seal.

    Click image for larger version

Name:	PXL_20210308_200214822.jpg
Views:	623
Size:	1.99 MB
ID:	102150

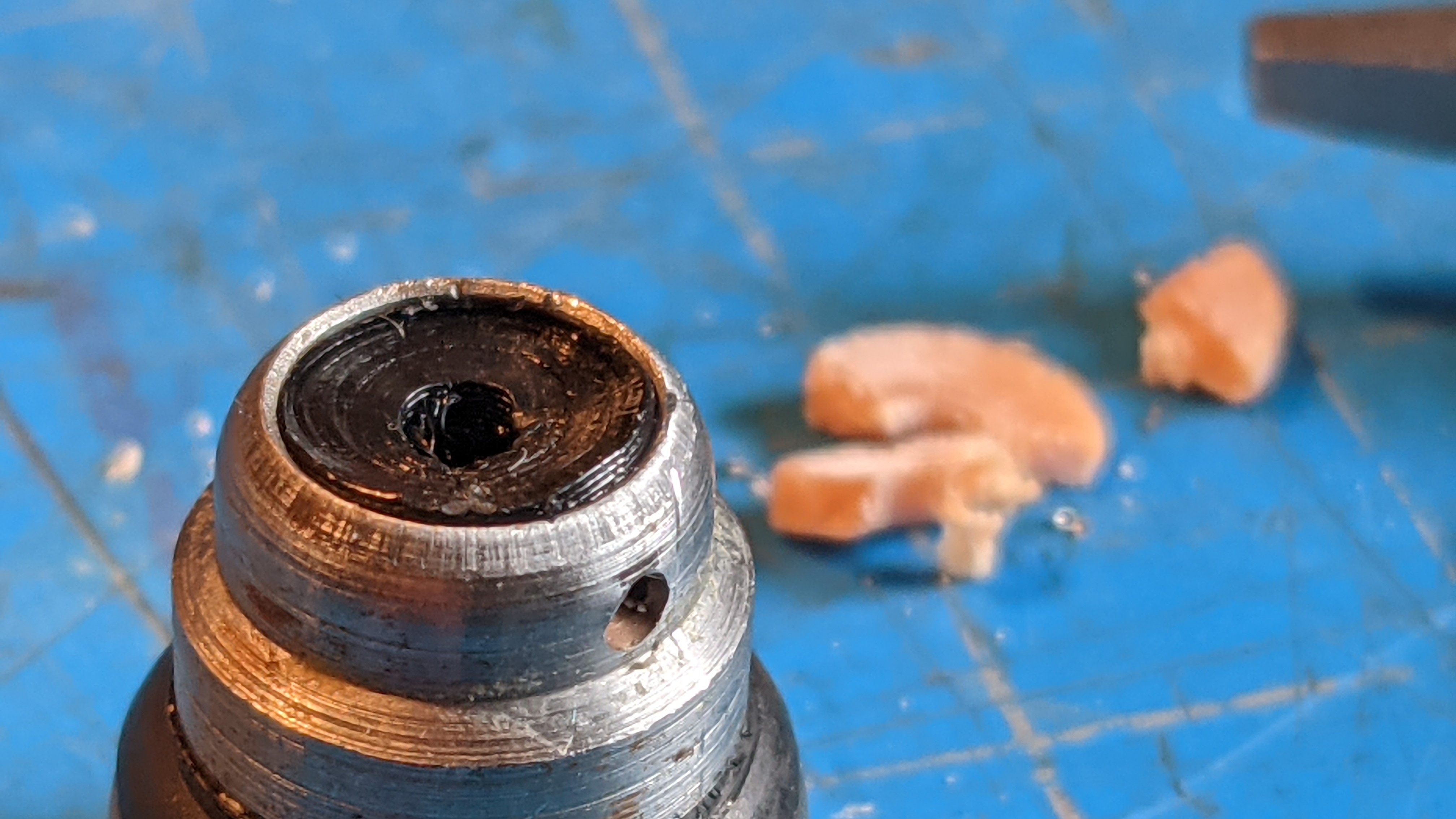

    3 - This is not in all the way.
    You can see part of the seal protruding from the side and the top is not flat.

    Click image for larger version

Name:	PXL_20210308_200245905.jpg
Views:	610
Size:	1.27 MB
ID:	102151

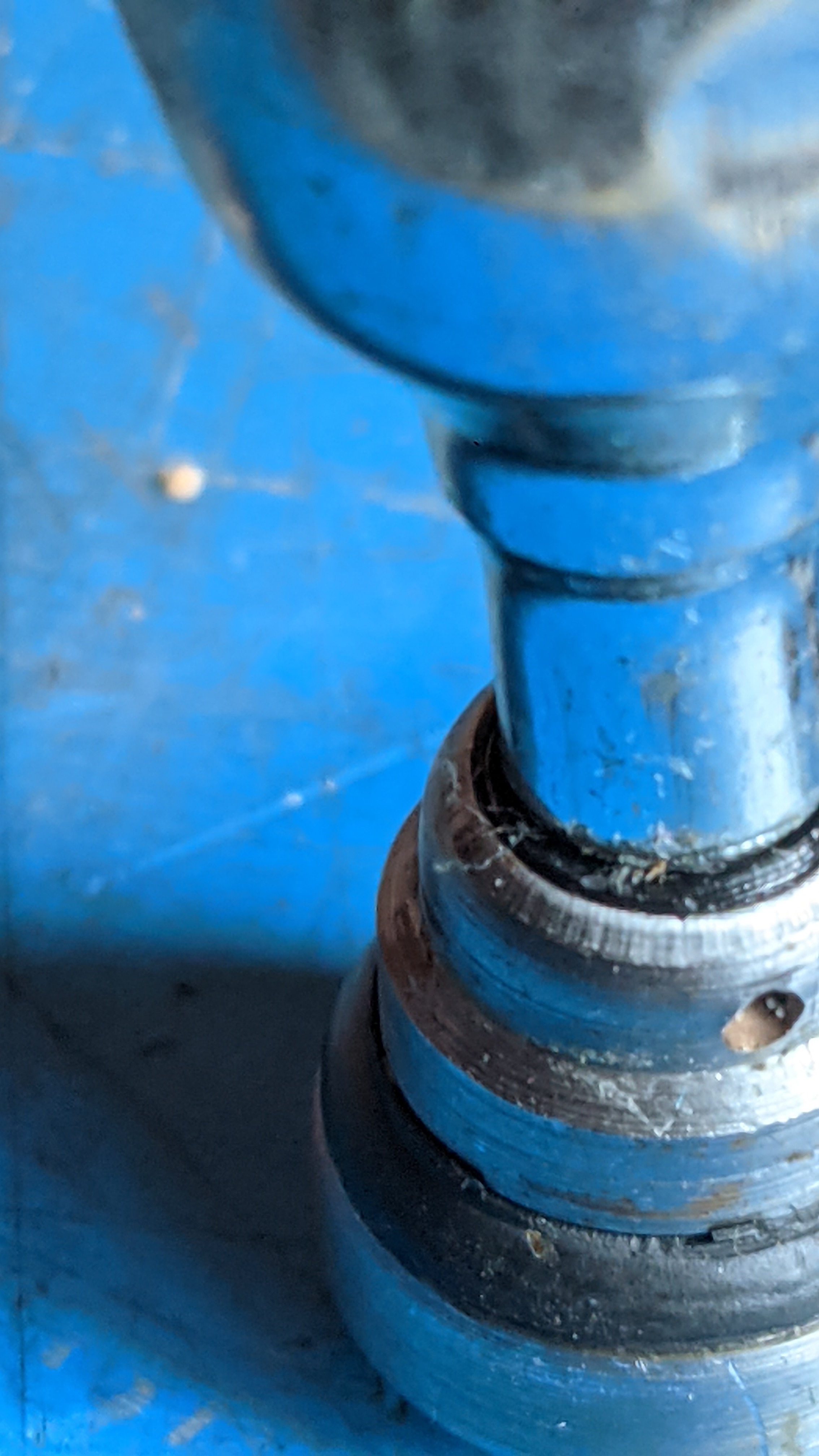

    4 - press the seal all the way in.
    a 12g is great for this step (sorry for the wired crop)

    Click image for larger version

Name:	PXL_20210308_200258470.jpg
Views:	616
Size:	1.29 MB
ID:	102152

    5- This is how it looks properly installed:
    (My picture is all blurry, ill put a proper picture up when i get a minute)

    As always, feel free to reach out if you have any questions or encounter any issues.
    Last edited by XEMON; 03-08-2021, 04:29 PM.
    Love my brass ... Love my SSR ... Hard choices ...

    XEMON's phantom double sided feed
    Keep your ATS going: Project rATS 2.0
    My Feedback

    Comment


      #3
      Heck yeah, I'll try a few. I'll drop you a pm....
      Carp 's Feedback
      Carp 's WTB/WTT

      Comment


        #4
        Nice. I’ll take a few of the PGP rebuild kits

        Comment


          #5
          Awesome--PM'ing!
          Feedback

          "The man in black fled across the desert and the gunslinger followed."

          Comment


            #6
            pmd, I'll take 3 of the pmi seal kits

            Comment


              #7
              What oring does the cupseal take? I may have to try to rebuild my Dynavalve.
              And God turned to Gabriel and said: “I shall create a land called Canada of outstanding natural beauty, with majestic mountains soaring with eagles, sparkling lakes abundant with bass and trout, forests full of elk and moose, and rivers stocked with salmon. I shall make the land rich in oil so the inhabitants prosper and call them Canadians, and they shall be praised as the friendliest of all people.”

              “But Lord,” asked Gabriel, “Is this not too generous to these Canadians?”

              And God replied, “Just wait and see the neighbors I shall inflict upon them."

              Comment


              • chplnstone

                chplnstone

                commented
                Editing a comment
                also curious, with the potential shortage coming i may need to start rebuilding some of the dead cupseal stem pile

              • Jordan

                Jordan

                commented
                Editing a comment
                chplnstone - I've been using a 009-90 buna seal with success, although I wonder if urethane might be a better material.

              • XEMON

                XEMON

                commented
                Editing a comment
                I checked my notes and its a P5 oring.
                It still holding up in the 3 Sheridan i did it to. Ill add it to the kit next time i restock 👍

              #8
              I'm in for sure.
              Originally posted by Terry A. Davis
              God said 640x480 16 color was a covenant like circumcision.

              Comment


                #9
                Back in stock!
                Got enough parts to put together a few dozen kits 👍
                Love my brass ... Love my SSR ... Hard choices ...

                XEMON's phantom double sided feed
                Keep your ATS going: Project rATS 2.0
                My Feedback

                Comment


                • Blauerruck
                  Blauerruck commented
                  Editing a comment
                  Hello, can I get 2 PMI rebuild kits?

                #10
                Any available for the cartridge style valve? Thanks

                Comment


                • JeeperCreeper

                  JeeperCreeper

                  commented
                  Editing a comment
                  I was just about to put this link in your thread

                #11
                Originally posted by VintageZoomer View Post
                Any available for the cartridge style valve? Thanks
                The face seal is the same, but I'll test to make sure it fit.
                I should also Have orings on hand, but I don't know how many.

                How many kits do you need?
                Love my brass ... Love my SSR ... Hard choices ...

                XEMON's phantom double sided feed
                Keep your ATS going: Project rATS 2.0
                My Feedback

                Comment


                  #12
                  Originally posted by XEMON View Post

                  The face seal is the same, but I'll test to make sure it fit.
                  I should also Have orings on hand, but I don't know how many.

                  How many kits do you need?
                  It's a tough fit - I used a face seal that Alexndl printed for me on a cartridge valve and had to trim a little to make it work.

                  The threaded hole for the frame screw lets the seal mush out into that hole and makes it hard to seat properly.
                  And God turned to Gabriel and said: “I shall create a land called Canada of outstanding natural beauty, with majestic mountains soaring with eagles, sparkling lakes abundant with bass and trout, forests full of elk and moose, and rivers stocked with salmon. I shall make the land rich in oil so the inhabitants prosper and call them Canadians, and they shall be praised as the friendliest of all people.”

                  “But Lord,” asked Gabriel, “Is this not too generous to these Canadians?”

                  And God replied, “Just wait and see the neighbors I shall inflict upon them."

                  Comment


                    #13
                    Originally posted by XEMON View Post

                    The face seal is the same, but I'll test to make sure it fit.
                    I should also Have orings on hand, but I don't know how many.

                    How many kits do you need?
                    Pm sent. Thanks
