POP Contest - Rainmaker's entry

[Rainmaker]

Here's my starting pile of parts. All of which I have had in the trunk of my car for over a year (wow, has it really been that long? )

I don't have a clear path forward yet, but I did get it all out of the trunk and take pictures, so there's that at least.

- Most of a WGP autococker
- Functioning Rainmaker board and solenoid


EDIT: Finished!
Parts list:
- $60: Base autococker
- $40: Rainmaker parts
- $6: Brass tubing
- $8: Material for 3D printed parts
- $3: Random wiring and switches
- $5: New barb for LPR
TOTAL: $122

[Alexndl]

You where hiding this in the trunk of your car so the wife wont know you bought more parts again?

This path does not seem clear for us too... but I like where it seem to go already.
Interesting cross breeding between Brass eagle and WGP

[Rainmaker]

Ha ha. You caught me.

My thought was to replace the cocker 3way with the rainmaker solenoid, and hide the board somewhere. I don't know, maybe it won't work. If it did, I guess I'll call it the Raincocker? Or the Cockmaker?

[Axel]

I'll list it as "Raincocker" for now, let me know if you want it switched to something else

[Arthur]

I dunno but Cockmaker gets my vote, just sayin.

[DavidBoren]

Cockmaker.

[Jordan]

I'd recommend an open bolt conversion of some kind.

[Rainmaker]

I'd recommend an open bolt conversion of some kind.

I have no idea how I would do that, but definitely open to the idea! I'll have to do some research

[Jordan]

Lock the bolt and hammer together via the backblock and use the RM board and noid to drive the ram - voila, instant Ego/Timmy.

[Axel]

My, Jordan, you ARE the evil genius. I love it

[Rainmaker]

Sweet! Sounds like a plan

[Rainmaker]

This is where im thinking if mounting the solenoid. I'd probably make a 3d printed bracket to mount it off of the 3way threaded hole. Then mount the board and 9 volt in the grip (fingers crossed). That might mean a 3d printed grip frame too.

[Riot]

Cockmaker, for sure.

[XEMON]

Hell yeah!

[Rainmaker]

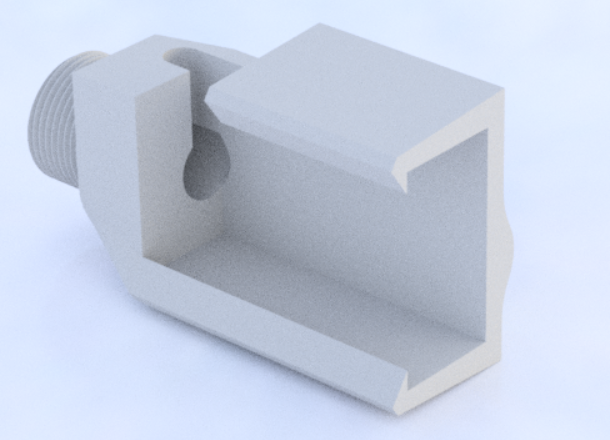

Solenoid bracket, rough draft. Printing now...

[Rainmaker]

Like a glove!

Bracket printed and solenoid mounted. I added a hole through the threaded portion si I can run the solenoid wires through when I'm ready to clean up the wiring.

[Rainmaker]

Front block mocked up

[XEMON]

Dam you're quick ...
looks good 👍

[Rainmaker]

Lock the bolt and hammer together via the backblock and use the RM board and noid to drive the ram - voila, instant Ego/Timmy.

So Jordan, would I be able to remove the sear entirely then?

[Jordan]

Yes...and the mainspring/IVG.

[Rainmaker]

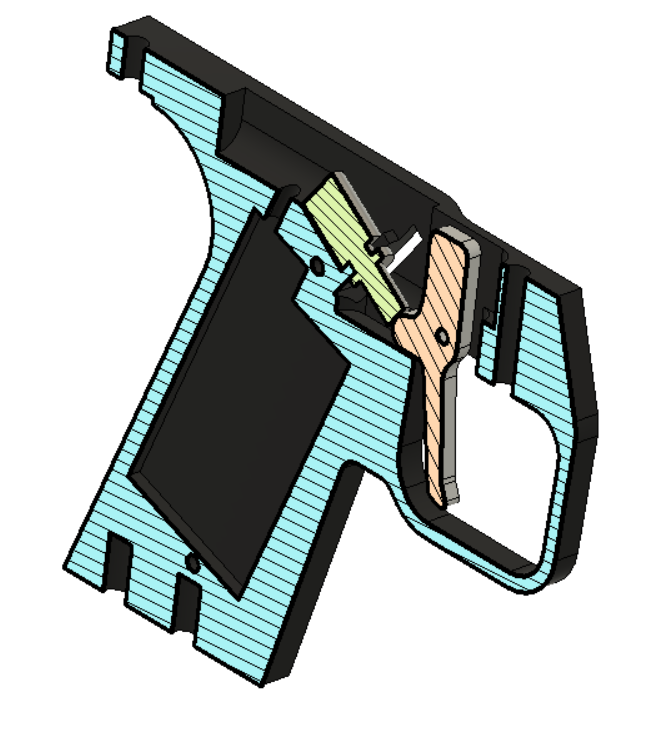

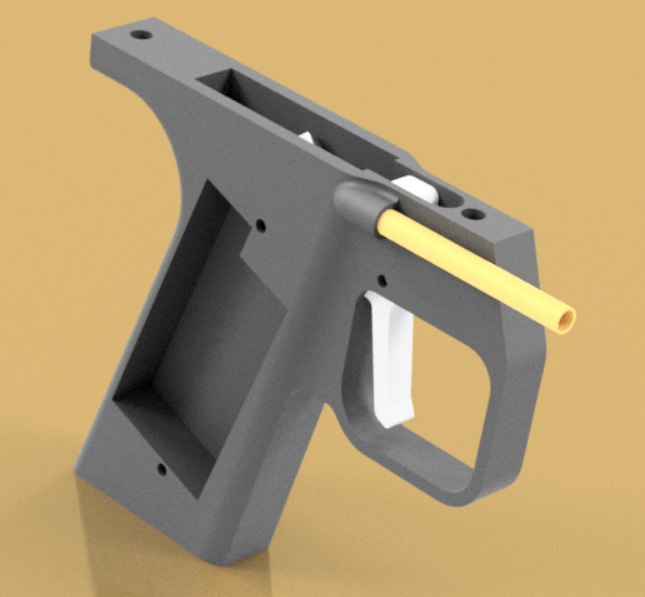

Working on the grip frame:

[Rainmaker]

Well, let's go an ugly direction. It's supposed to be Poo after all.

So the RM board just baaarely fits into the grip frame I made. There's not enough room in there for the 9v battery as well. So I thought of a couple options.
Mount a battery box on the sight rail
Make some kind of foregrip for the battery
Or just screw it, I'll make a fat chunky grip thing and stick it in there.

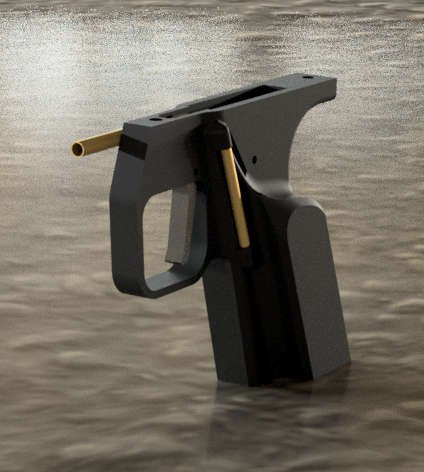

I went for the last option, and here it is. The top of the battery area is kinda doubling as a thumb rest, which is neat. But it's definitely not pretty. The brass tubes are going to be for routing wires.

[XEMON]

I kinda like the look of the battery on the side of the frame ... Looks like a the rest ...

[RuleOfSines]

Really doesn't look bad, that battery hump doesn't seem any more aggressive than a set of match grips

[KMDPB]

That's dope! Are you 3d printing the frame?

Sent from my SM-N950U using Tapatalk
