    Azodin KP Teardown

    Picked up an Azodin Pump and did a quick teardown. Nothing fancy, but gives one the general idea.

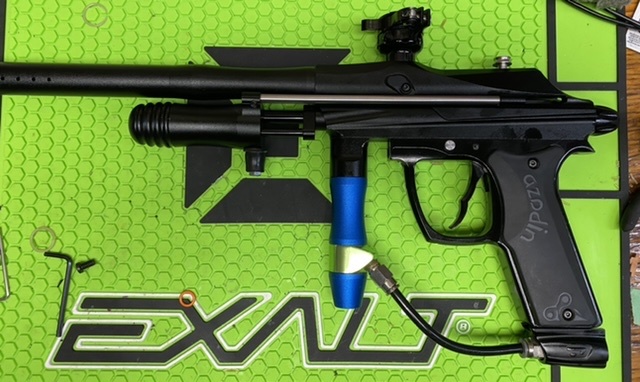

    Full Gun (reg replace by original owner)

    Click image for larger version  Name:	435D82FA-0FCA-4DC3-9857-82EDBF9E8F05.jpeg Views:	0 Size:	106.9 KB ID:	144945

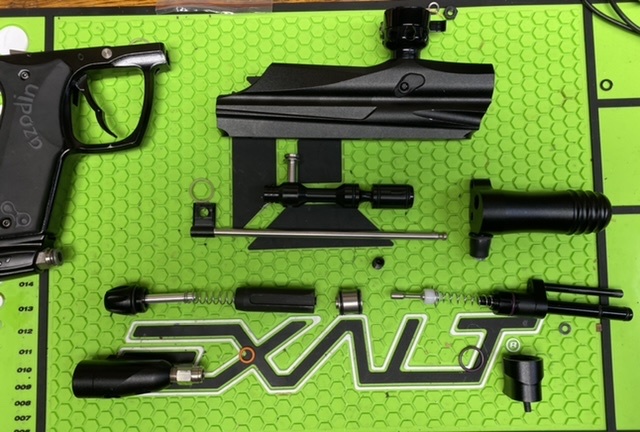

    Exploded View: All the bits and pieces. Spyder-like internals. Techt Hush Bolt.

    Click image for larger version  Name:	B66A2AA6-AC4D-4858-98C7-EC019DEA940A.jpeg Views:	0 Size:	118.0 KB ID:	144947

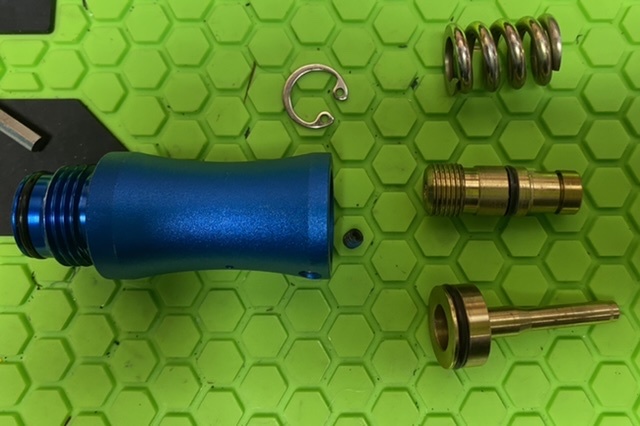

    Regulator Exploded View:

    Click image for larger version  Name:	A50B663B-9D34-46BF-8E65-DA5250FD1556.jpeg Views:	0 Size:	76.9 KB ID:	144946

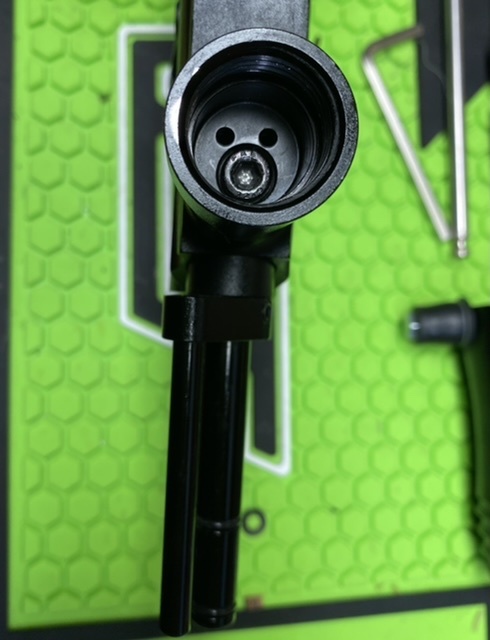

    In order to remove the front block you need to remove the vertical asa bolt as it retains the front block piece, in this case the pump rod:

    Click image for larger version

Name:	FE749012-A7D0-4BF8-8A4F-FE4DA17D577D.jpeg
Views:	161
Size:	71.1 KB
ID:	144948

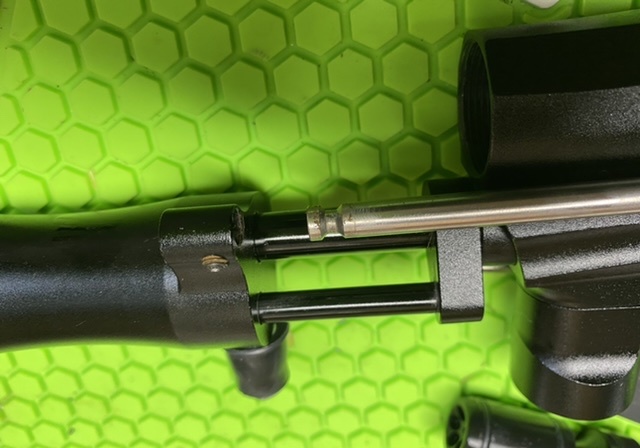

    Pump Rod Connection: Pump rod held in place by grub screw. Makes for easy removal of the pump handle for disassembly.

    Click image for larger version  Name:	30861B62-2094-40AD-A738-D62BEC96CBF7.jpeg Views:	0 Size:	77.4 KB ID:	144944
    Cuda's Feedback

    #2

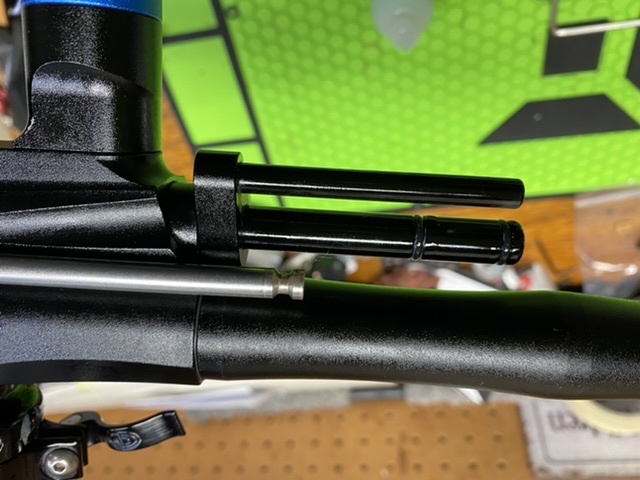

    Pump Rods: dual orings on the main rod.

    Click image for larger version

Name:	C620DE81-4758-4EEC-B887-9921D7E33772.jpeg
Views:	148
Size:	95.0 KB
ID:	144956

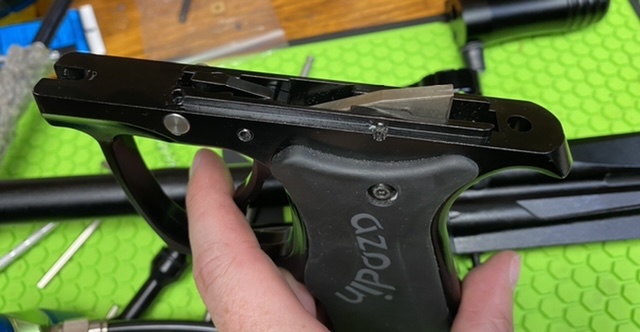

    Trigger Frame:

    Click image for larger version

Name:	D85A6BE3-917A-4102-87DF-40AD67DF576E.jpeg
Views:	166
Size:	64.5 KB
ID:	144955
    ​​​​​​

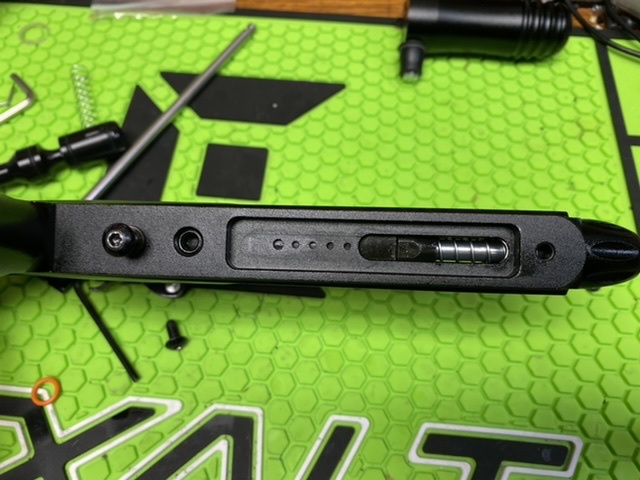

    Bottom of body showing where the frame attaches.

    Click image for larger version

Name:	89134A15-8591-4568-A240-05196ED675E1.jpeg
Views:	164
Size:	101.3 KB
ID:	144957
    Cuda's Feedback

    Comment


      #3
      Very nice. Thanks.

      Question: What purpose do the dual pump guide o-rings serve?
      New Feedback

      Comment


      • devilzcall
        devilzcall commented
        Editing a comment
        fairly sure they are just a costeffective way to eliminate any slop in the linear motion without having to bother with tolerances too much.

      #4
      Not sure. Maybe act as a spacer for the pump handle to keep it from directly contacting the main pump rod? So the handle would “glide” along the orings and not twist or bind? It does have a secondary rod as well, so didn’t notice any twisting. Pump stroke felt pretty nice.
      Cuda's Feedback

      Comment


        #5
        Any idea what threading the feed neck on these are? I see this one has a CP neck.

        Comment


          #6
          I think they are Ion/Impulse threaded, at least Kaos uses that feedneck:
