    phantom double sided feed (3D printed) - Interest thread




    Note: This thread is now locked, lets regroup and keep all the information about my feed in 1 place.
    XEMON's phantom double sided feed (3D printed) - Info, how-to and Q&A





    Hello MCB,

    I have been working on a feed for my phantom and I'm currently in the final prototype phase.
    This feed is similar to the one made by apoc4lypse; It works exactly in the same manner. So credit where credit is due.

    I am hoping to have half a dozen of the prototype out by the end of the month, and the first batch by the end of th next month.
    (this is a temporary timeline ... no guaranty ...)

    This thread is solely to judge the interest for the first batch, this is not a pre-order.
    A specific thread will be made when they are ready to ship with all the details.


    It is designed to take a CCI feed tube on the back, or cram'n'jam a 10rd tube.
    On the front, there is 2 options:
    - Use a CCI feed tube (as pictured bellow)
    - Use a carbon fiber tube (more details and picture to come)

    Looking forward on you thoughts and feedback.
    Let me know if there any questions.

    Originally posted by XEMON View Post
    Q&A part 1

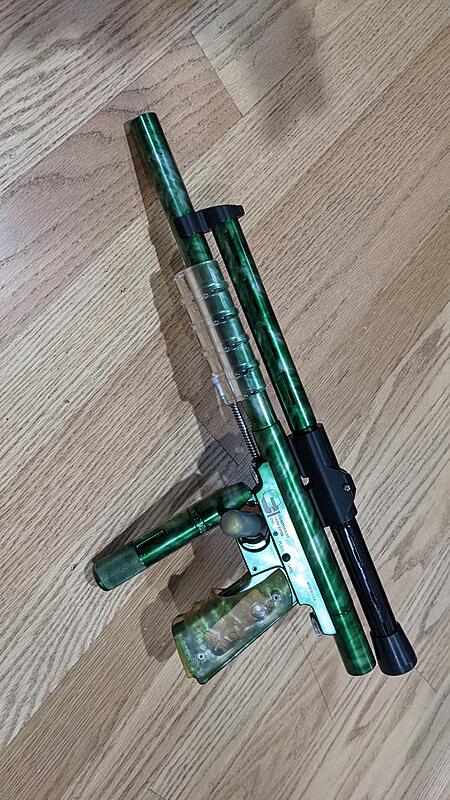

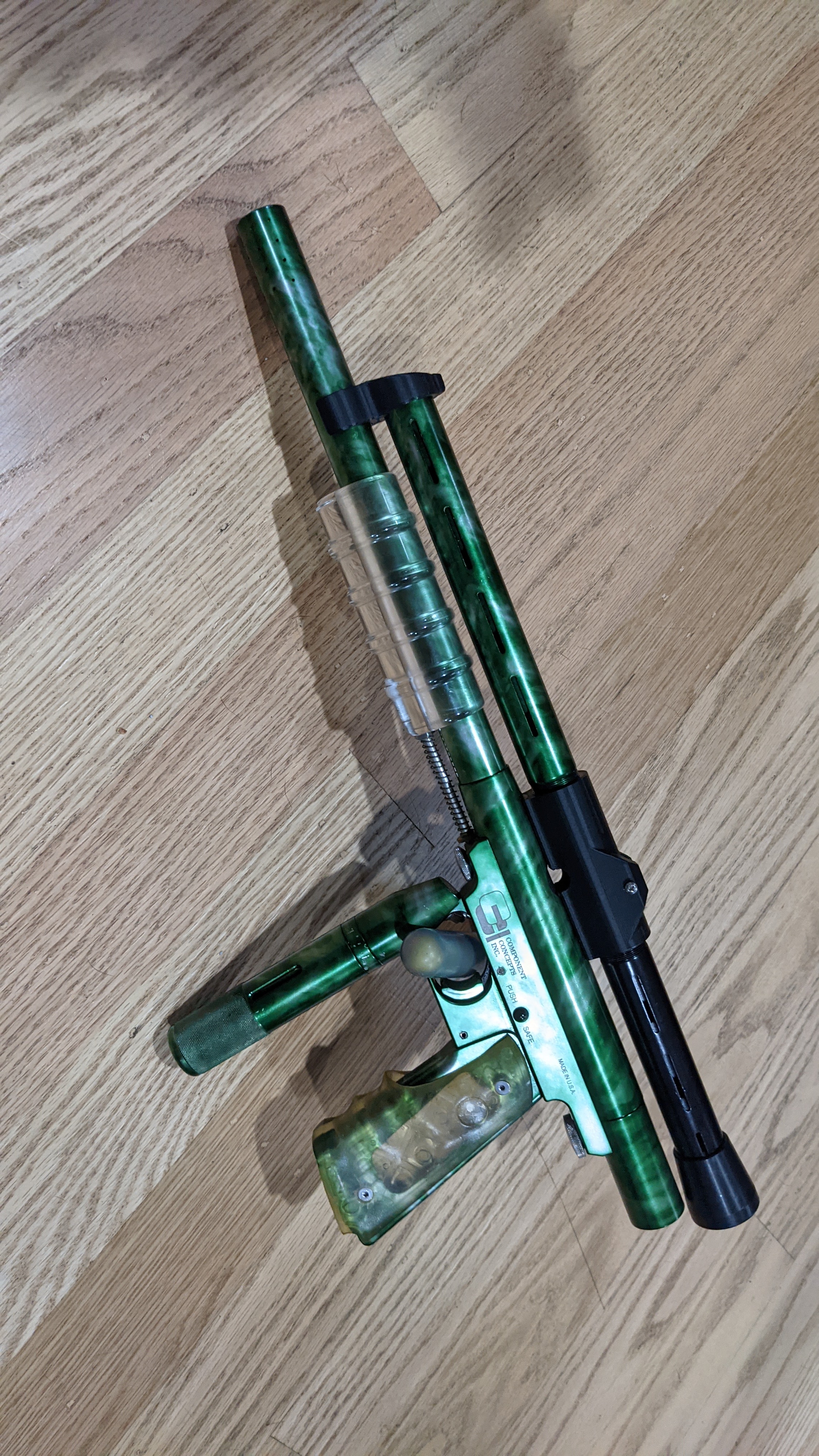

    This is the first prototype (the final version will be a bit different) :

    Click image for larger version  Name:	PXL_20210714_033532895.jpg Views:	27 Size:	3.59 MB ID:	150697

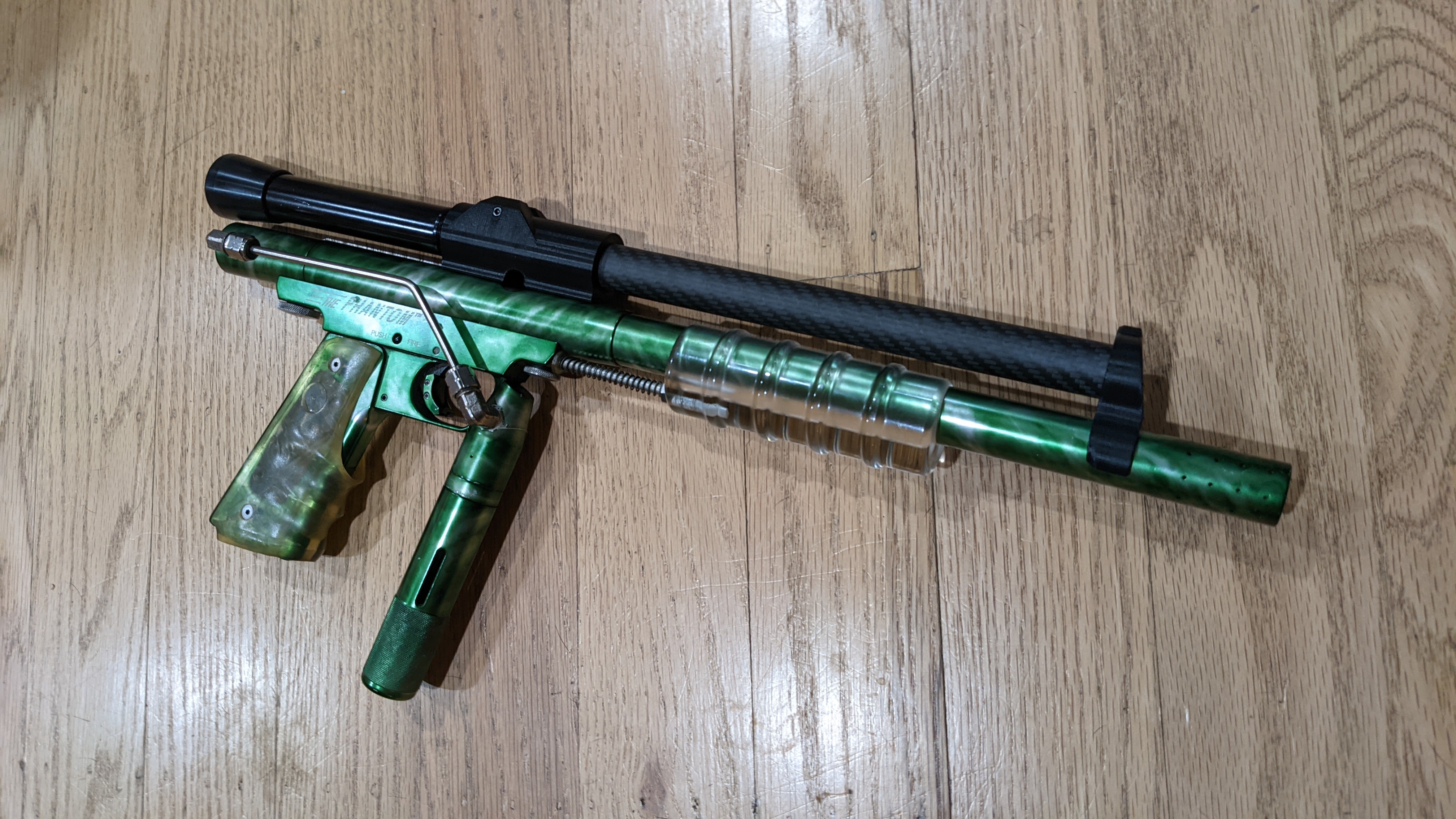

    And the first first carbon fiber version:
    It holds 15 rounds in the front.
    Click image for larger version  Name:	PXL_20210718_063624385.jpg Views:	63 Size:	3.04 MB ID:	151669

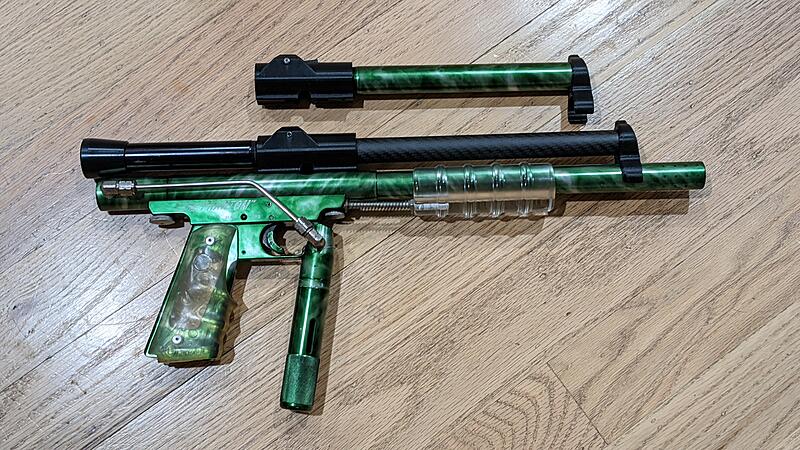

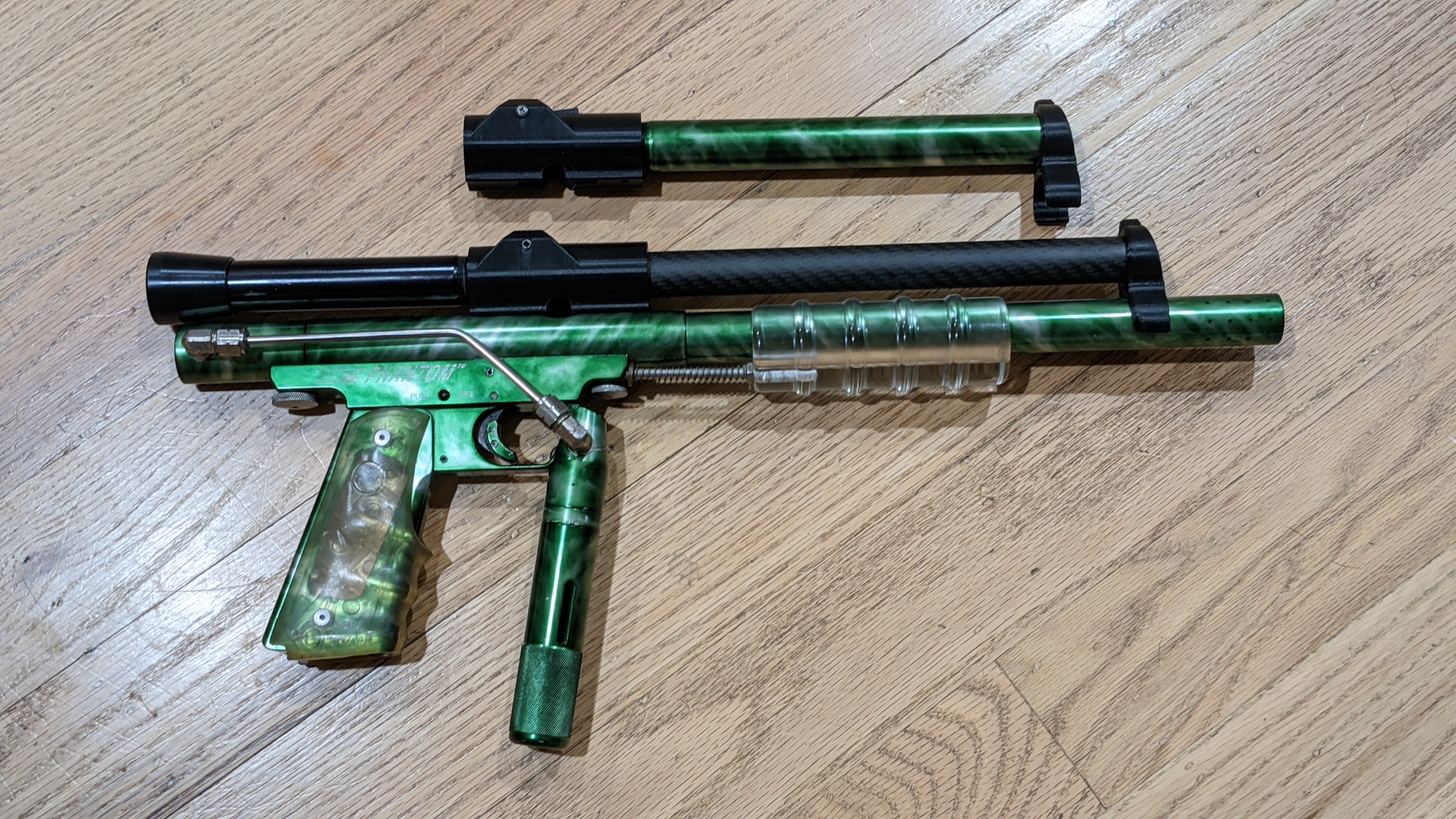

    And both side by side:
    The green tube is a CCI 15 rounds feed, the black tube is a CCI 10 rounds feed.
    Click image for larger version  Name:	PXL_20210718_063702104.jpg Views:	62 Size:	2.84 MB ID:	151670

    Thanks,
    X
    Last edited by XEMON; 07-21-2021, 09:14 PM.
    Love my brass ... Love my SSR ... Hard choices ...

    XEMON's phantom double sided feed

    Keep your ATS going: Project rATS 2.0
    My Feedback

    #2
    Reserved for more info/pictures ...
    Love my brass ... Love my SSR ... Hard choices ...

    XEMON's phantom double sided feed

    Keep your ATS going: Project rATS 2.0
    My Feedback

    Comment


      #3
      I definitely like it! Is the front tube going to be spring fed? If not, will you sell the plastic bits separately by themselves? If so, how much shipped? 😁
      Carp 's Feedback
      Carp 's WTB/WTT

      Comment


        #4
        I would be interested in one, maybe even 2 of them.

        Comment


          #5
          Oh yea, setting up my tent to wait in line for one.

          Comment


            #6
            Originally posted by NONOBLITUS View Post
            Oh yea, setting up my tent to wait in line for one.
            You pansy! We sleep in the DIRT
            💀Wild Card, Ragnastock💀

            Comment


            • NONOBLITUS

              NONOBLITUS

              commented
              Editing a comment
              HAHA , my beat up older body needs some comfort

            #7
            Originally posted by Carp View Post
            I definitely like it! Is the front tube going to be spring fed?
            Thanks, the first batch is not going to be spring feed, but that is the next step!
            I am making those myself at home, so i need to find an efficient wat to slot the tube.


            Originally posted by Carp View Post
            If not, will you sell the plastic bits separately by themselves?
            If i cannot find a proper way to slot the tube myself, I am thinking of making a "kit" with all the bits (including spring and follower) and you trim and slot the tube yourself.
            But we can always figure something out if you just want the plastic bit.


            Originally posted by Carp View Post
            how much shipped?
            Im still putting pricing together (The prototype will be at reduce type for the trouble and thanks to the testers).
            Love my brass ... Love my SSR ... Hard choices ...

            XEMON's phantom double sided feed

            Keep your ATS going: Project rATS 2.0
            My Feedback

            Comment


              #8
              Yup, this is filling a niche market that I am interested in so will throw dollars your way!


              "When you are asked if you can do a job, tell 'em, 'Certainly I can!' Then get busy and find out how to do it." - Theodore Roosevelt

              Feedback Link - https://www.mcarterbrown.com/forum/b...del-s-feedback

              Comment


                #9
                count me in....

                Comment


                  #10
                  I'm interested in a couple CF feed tubs if you would do them separately

                  Comment


                  • XEMON

                    XEMON

                    commented
                    Editing a comment
                    Shoot me a PM with what you need.
                    I have been working with mate for a while (match my carbon fiber Blanc) but I also got gloss for this project.

                  #11
                  Oh rock and cock with a Apoc style speed gate? I would be down to try one. What are we printing this with?

                  Comment


                    #12

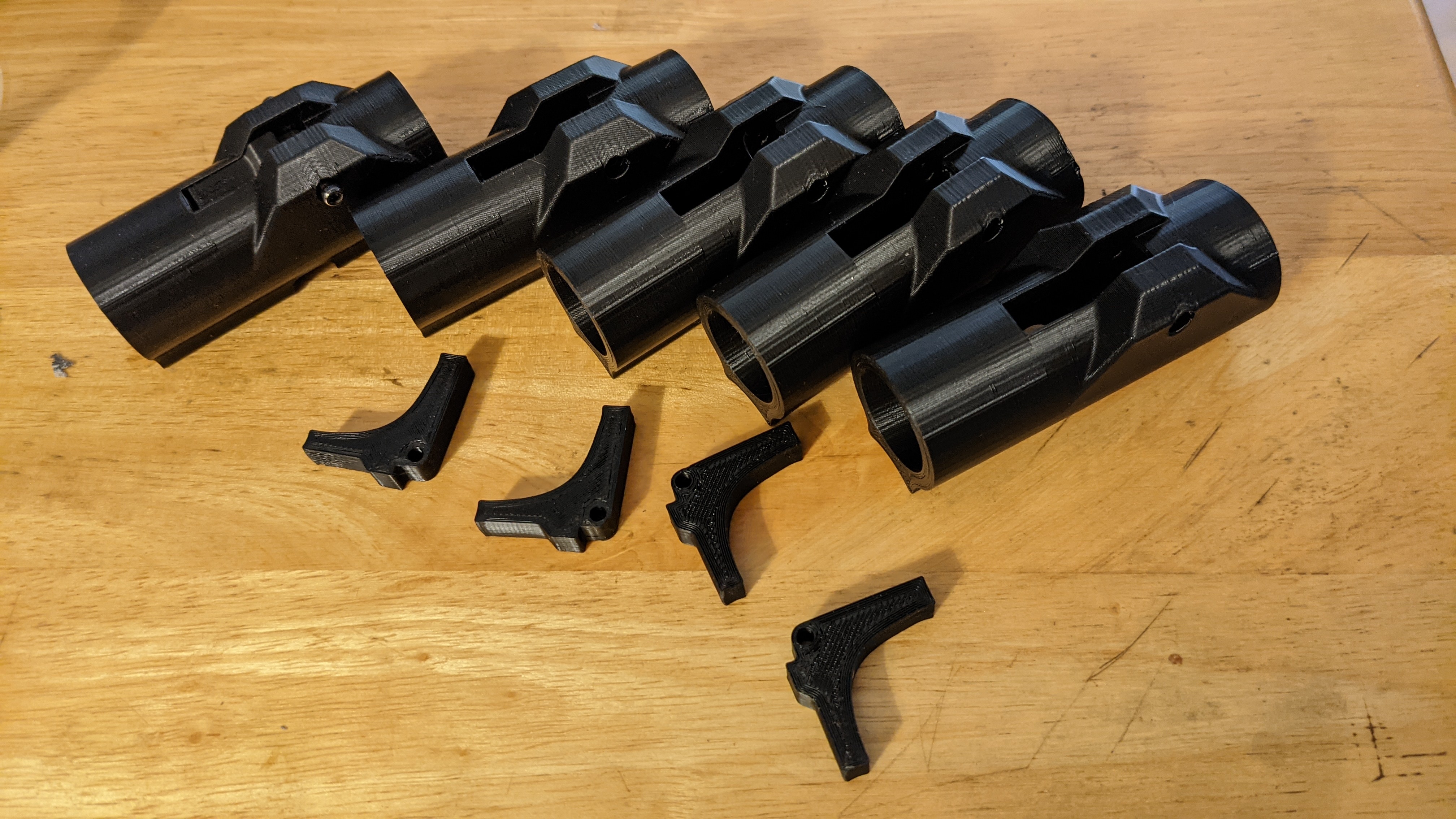

                    Printing the first 5 "pre-production" feed block.
                    the only difference are the bolt on the side: they are black and flush to the block.
                    Click image for larger version

Name:	PXL_20210717_193736138.jpg
Views:	166
Size:	2.53 MB
ID:	151587

                    PS:

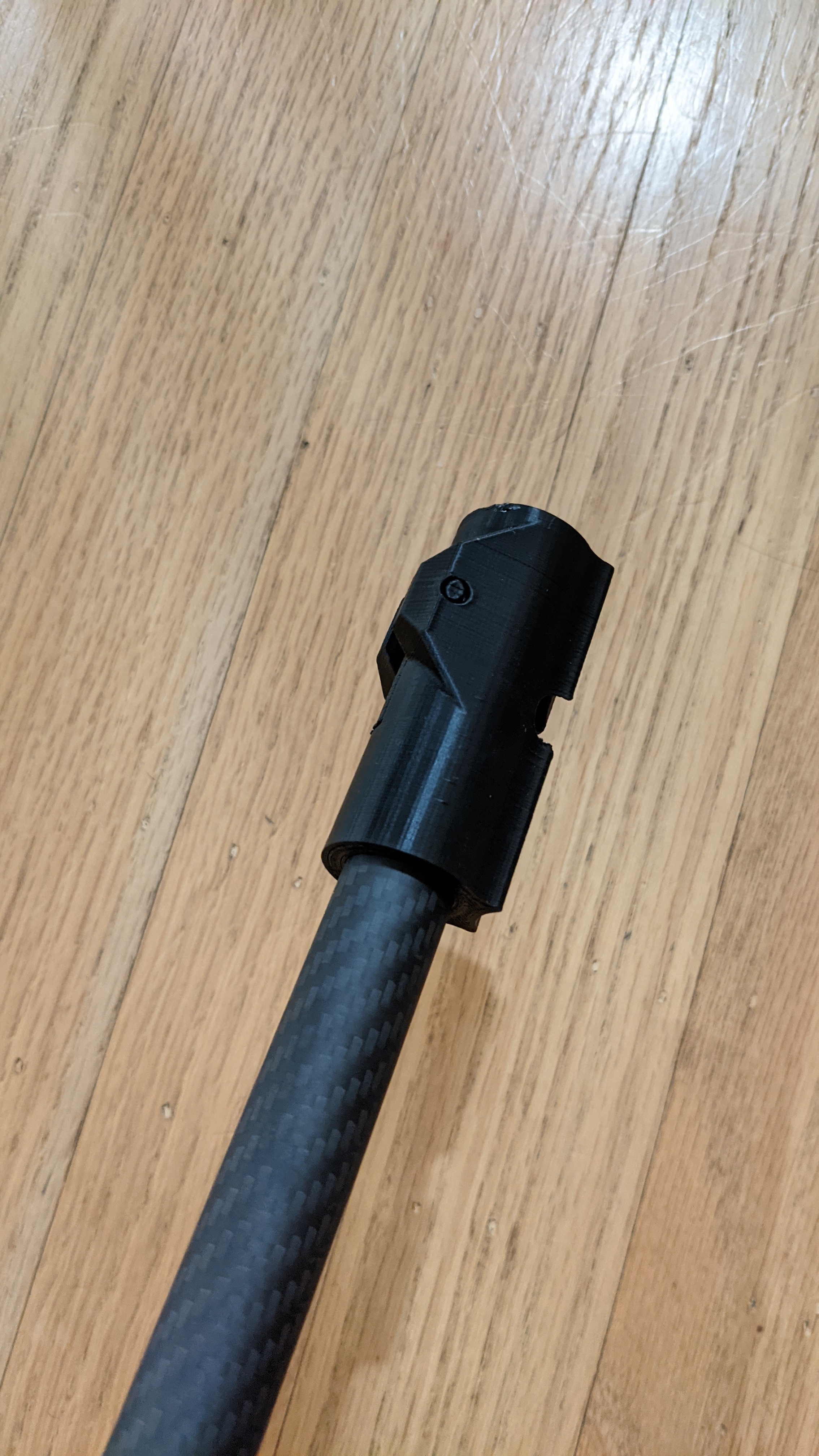

                    The carbon tube is a nice fit too:
                    Click image for larger version

Name:	PXL_20210717_230326227.jpg
Views:	165
Size:	2.83 MB
ID:	151588

                    Last edited by XEMON; 07-17-2021, 07:09 PM.
                    Love my brass ... Love my SSR ... Hard choices ...

                    XEMON's phantom double sided feed

                    Keep your ATS going: Project rATS 2.0
                    My Feedback

                    Comment


                    • NONOBLITUS

                      NONOBLITUS

                      commented
                      Editing a comment
                      Looking awesome !!!!!!

                    • XEMON

                      XEMON

                      commented
                      Editing a comment
                      Thanks, 2 of there are going into destructive test.
                      Printing the ones for carbon fiber tubes now ...

                    • Chuck E Ducky

                      Chuck E Ducky

                      commented
                      Editing a comment
                      So Fancy….

                    #13
                    Pictures of the carbon fiber feed added.
                    I'll attempt a video of the first destructive test tomorrow.
                    Love my brass ... Love my SSR ... Hard choices ...

                    XEMON's phantom double sided feed

                    Keep your ATS going: Project rATS 2.0
                    My Feedback

                    Comment


                      #14
                      I would be very interested, especially if there is going to be a spring feed version

                      Comment


                        #15
                        Dude!
                        Apocs feed is by far the 100% best non OEM phantom upgrade I have ever experienced.
                        if he is out (and I believe he is) please take the reigns and do it up. IIRC the springs were from D-Mags and the tubes were sourced.
                        I have used acrylic for rock back, there is a ton of CF tubing out there too. Go for it.
