    Automag oring list, manual and exploded view

    Information I gatered from automag.org forum and other place, I will also add the link later

    #2
    O-ring Sizes

    Still need to add more stuff but its a good start

    Classic Valve (for Automag 68 and Mini-Mag; 1 rebuild)
    4 Power Tube O-rings 010
    4 Teflon O-rings 006
    2 Barrel O-rings 018
    2 Reg. Piston O-rings 012
    1 Reg. Body O-ring 116

    RT Classic (1 rebuild)
    3 Field Strip Banjo O-rings 009
    3 Barrel O-rings 018
    2 Power Tube O-rings 010
    1 Reg. Piston O-ring 012
    2 Reg. Seat O-rings 008
    1 Reg. Body O-ring 018
    2 RT On/Off Small O-rings 004
    4 RT Reg. Valve Pin O-rings 006

    Level 10 Bolt (1 install)
    2 Carrier O-rings 008
    Attached Files

    Comment


      #3
      Airgun design video
      Automag classic


      Automag RT

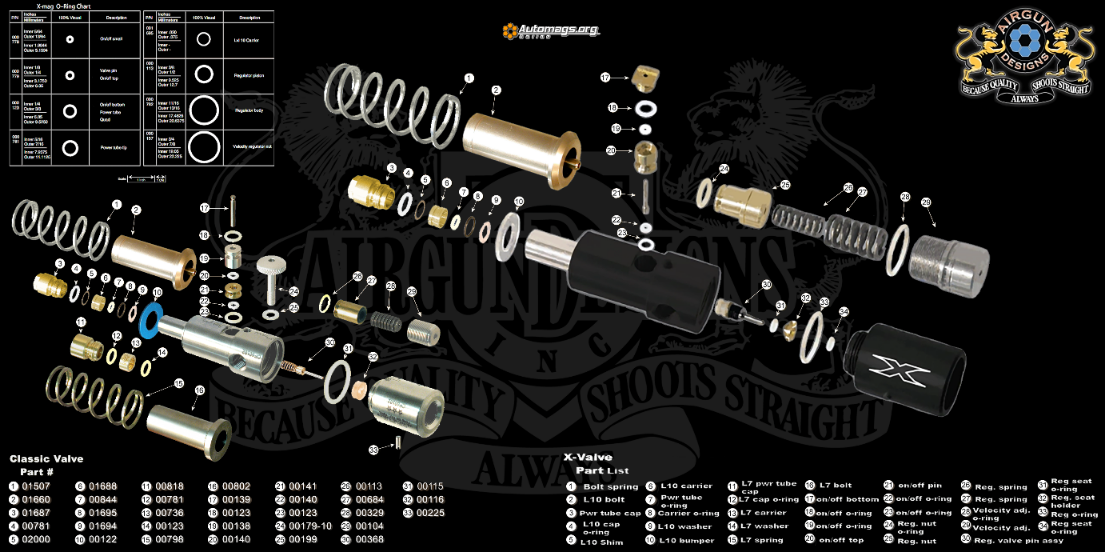

      Xvalve exploded view
      Been a while since I’ve worked on a Mag, more than 10 years. Anyone have a good diagram of the X valve with the o-ring identification? Needs a total rebuild. Thx. Sent from my iPhone using Tapatalk
      Last edited by Alexndl; 07-14-2020, 07:57 AM.

      Comment


        #4
        Saved to add information later

        Comment


          #5
          This should be stickied.
          Feedback

          Comment


            #6
            Got one for flatlines?
