BT-TM15 Teardown

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    BT-TM15 Teardown

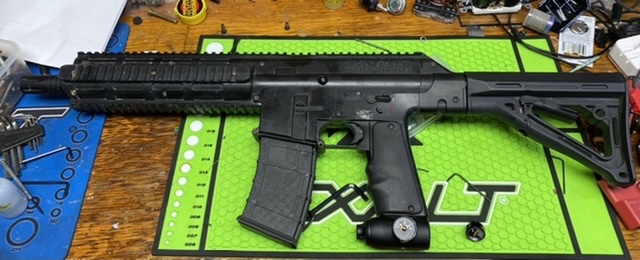

    Continuing my trend of taking things apart abs taking picture, here’s the disassembly of a BT TM15, which is a milsim take on the Mini. So taking a small light package and making it huge for some odd reason.

    Click image for larger version  Name:	FB19891E-36A3-44E2-BC82-9DB839073FA2.jpeg Views:	0 Size:	79.7 KB ID:	145705
    Next step is remove the few off bolts you may otherwise miss.

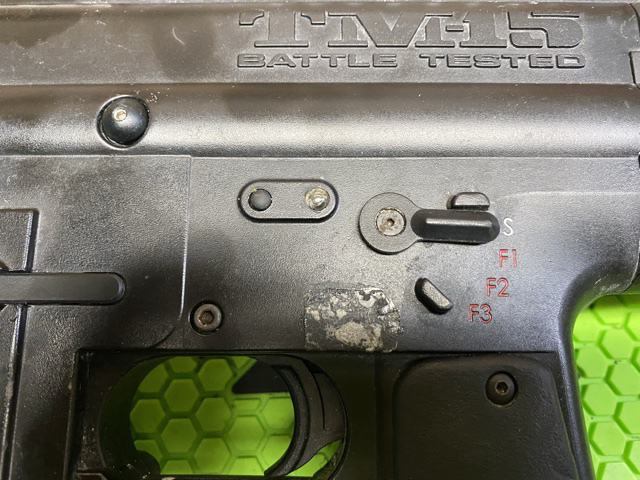

    1). The select fire switch does not need to be removed prior to separating halves. Large round bolt with an Allan head is the detent (one if each side). They do not have to be removed either.

    Click image for larger version  Name:	125D9A42-C46C-469F-BADE-F40B7B9982DC.jpeg Views:	0 Size:	160.6 KB ID:	145707

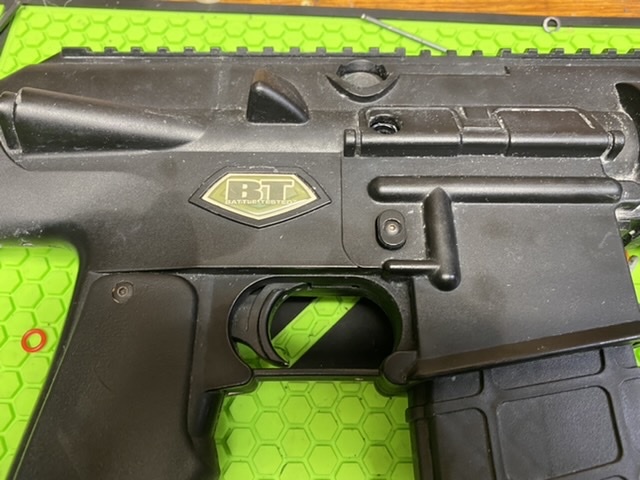

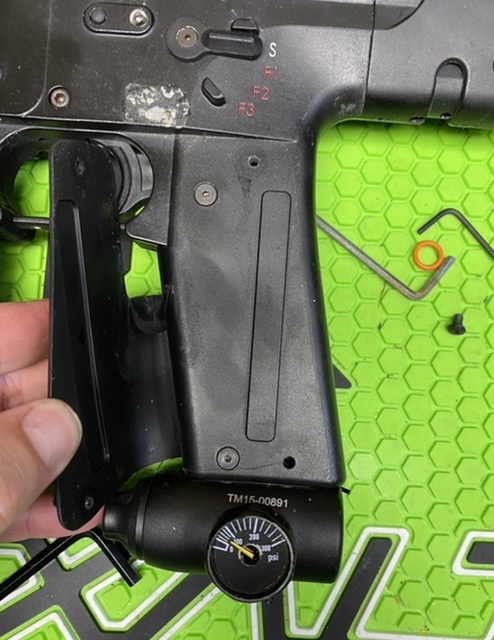

    Next you’ll need to flip the gun over and remove the small Allan holding the mag release. (Mag holds battery btw.)
    Click image for larger version  Name:	BA72F553-047E-43BC-B7DA-CEB6EEDC82E1.jpeg Views:	0 Size:	95.8 KB ID:	145708
    And finally there are two more small Allan heads under the grip frame that have to be removed as well.

    Click image for larger version  Name:	19268DE9-AD06-4F5C-829C-08E6C2906D61.jpeg Views:	0 Size:	113.1 KB ID:	145709

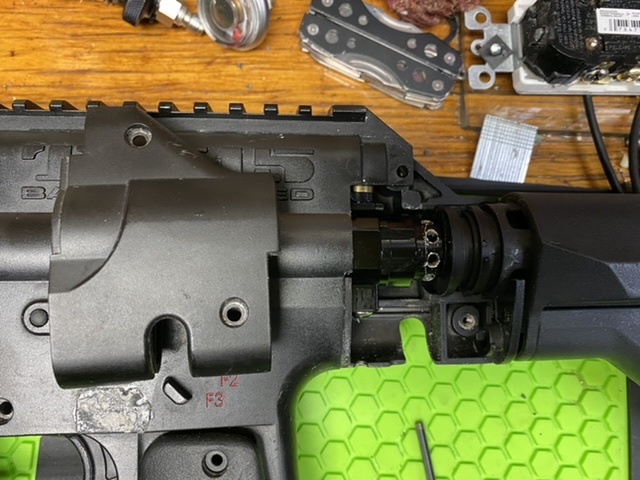

    Now you must remove the shroud cover that holds the stock in place. There are a few plastic pieces in here with various job. On slides to cover the velocity adjustment and another is a spacer to help hold the stock securely. (more pictures on this further on)

    Click image for larger version  Name:	image_16192.jpg Views:	27 Size:	116.1 KB ID:	145706
    Last edited by Cdn_Cuda; 07-01-2021, 01:18 PM. Reason: Updated info
    Cuda's Feedback

    #2

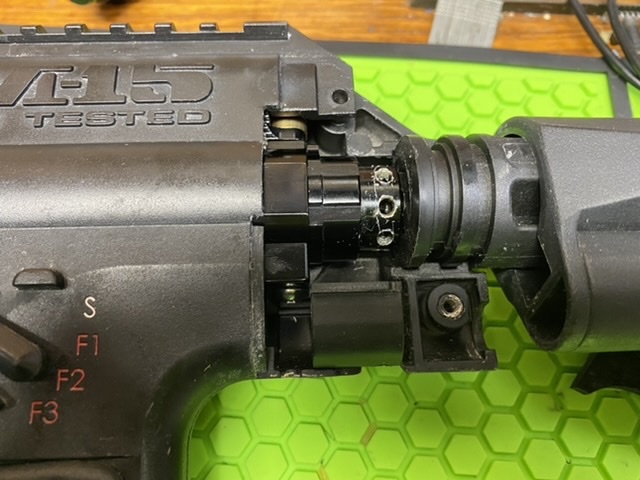

    First photos shows the little sliding door that covers the velocity adjustment:

    Click image for larger version

Name:	5DED4BF5-CBF5-496B-A06A-FF6B73591B5A.jpeg
Views:	140
Size:	93.8 KB

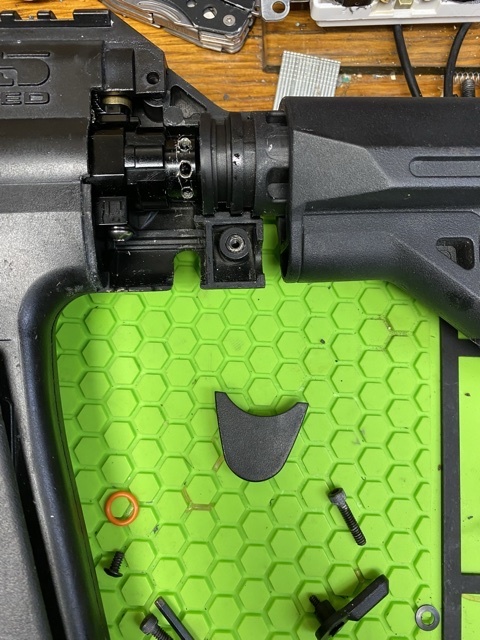

ID:	145712Second photo shows the stock spacer removed for easy ID.

    Click image for larger version

Name:	DBC4D191-1810-4DD2-95B8-4E78FB2B2C03.jpeg
Views:	129
Size:	133.5 KB
ID:	145713
    Cuda's Feedback

    Comment


      #3
      Now onto the good stuff, finish removing all the bolts around the gun (ignore the ones of the rails) and remove the body clamshell. Despite the size of the gun the internals are quite compact.

      To remove the core of the gun there is one screw and wire connection above the mag well. Unhook the wire, remove the bolt and lift the core out.



      The core itself:

      Cuda's Feedback

      Comment


      • Cdn_Cuda

        Cdn_Cuda

        commented
        Editing a comment
        Wonder what happened to these photos?! I’ll have to check if I still have them.

      #4

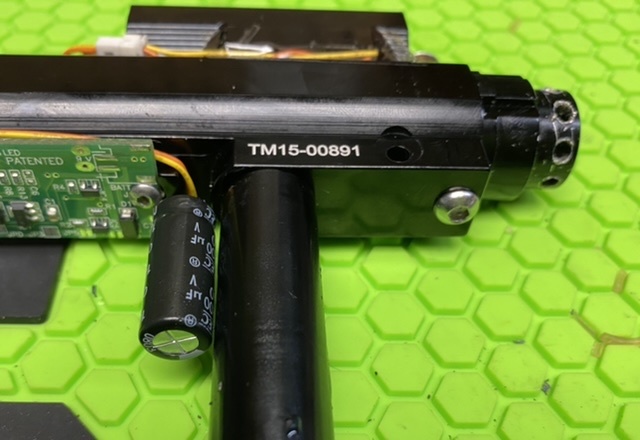

      Now to remove the bolt abs internals remove the silver screw at the base of the main section of the core. Don’t lose this. It’s a specific screw that I imagine will be a pain to replace!

      Click image for larger version  Name:	913A8755-F3F6-43E4-949F-C3E3FB160562.jpeg Views:	0 Size:	76.7 KB ID:	145727

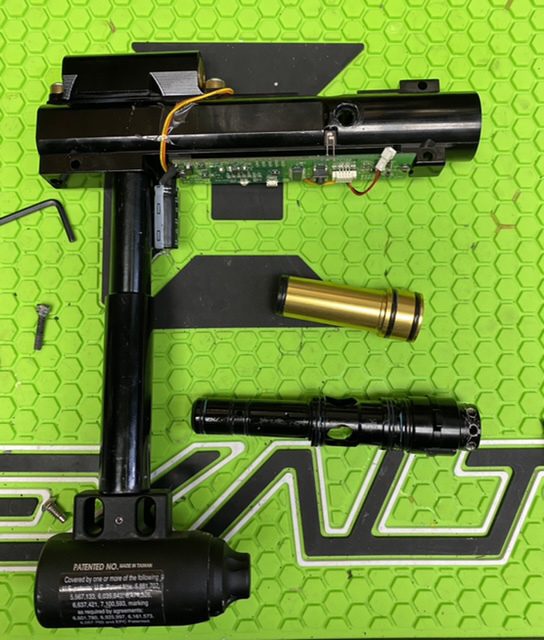

      Now hook an oring into the velocity adjuster and pull. Back end shop pop right off and give access to bolt and engine. Clean ‘em up, likely grease and reverse steps while speaking like Sean Connery.

      Click image for larger version  Name:	C852CA7D-6F15-4D29-836C-ED0AAF0F6713.jpeg Views:	0 Size:	175.0 KB ID:	145728

      Pretty easy to work on. Usually bolts are pretty gummy and need a good cleaning.
      Cuda's Feedback

      Comment


        #5
        I snagged one of these at D day for 2 bags of paint from a dude. Gun was a little rough and didn't shoot. Turned out it was just the trigger that needed adjustment. Fresh rebuild with some new o rings and she's shooting like a champ!! They are super quiet with that barrel shroud. I think BT just barely missed out on making the ultimate woodsball marker. If only It could have a true mag feed 😕.

        Comment


          #6
          This is my second one. Both times purchased with rip kits for under $100 CAD, cheaper than Tippmann A5s!
          Cuda's Feedback

          Comment


            #7
            I have a couple of these. I havent been into em for a bit, but I dont recall having ro rempve the selector switch to disassemble.... maybe I ought to go clean it up for a refresher.

            Comment


            • Cdn_Cuda

              Cdn_Cuda

              commented
              Editing a comment
              Correct, selector switch does not need to be removed.

            #8
            Fyi, I have scour pads packed into all of my shroud baffles. And it makes it cheater quiet.

            Comment


            • Cdn_Cuda

              Cdn_Cuda

              commented
              Editing a comment
              I was wondering about this. Seems odd to have a ported barrel and the enclose it in the shroud. I usually end up finding a lot of paint in those baffles

            • BrickHaus

              BrickHaus

              commented
              Editing a comment
              Thats the best part about the 3m scrubbers. They dont absorb the paint so they clean easily

            #9
            Originally posted by BrickHaus View Post
            Fyi, I have scour pads packed into all of my shroud baffles. And it makes it cheater quiet.
            I read this somewhere. May have to give it a shot myself 🤣.
