PMI II

[Heavy_D]

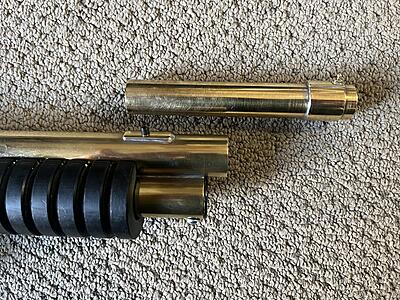

Shortened the Barrel, to 10" OAL, 5" of freak insert, and 5" tip, also added a ring and a bead sit to make it more than just a tube haha. Waiting on a brass thumb screw that will secure the barrel tip.

[Cal440]

Really like the look of the barrel front.

[Impactfour]

Man this is some really inspiring work. I'm asking my wife for a Mapp torch for Xmas this year. If her or Santa pull through I may be reaching out with some questions if you don't mind.

[Heavy_D]

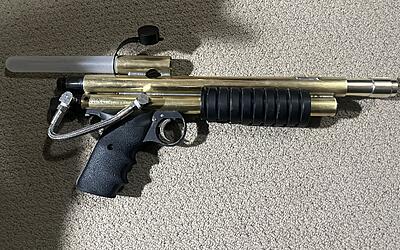

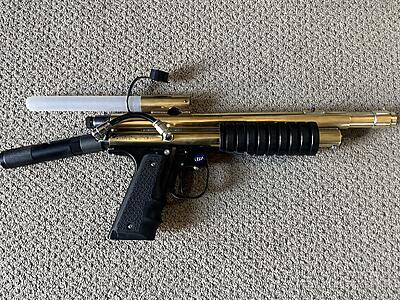

Had some cocker frame adapters 3d printed, and stuck a WGP 1.5 frame on it. Have to find a 7/8'' powerfeed plug for the front of the cram N jam, and am thinking of adding a T stock, either with a bottle mount on it or 12 gram lever changer T stock, something along those lines...

[Heavy_D]

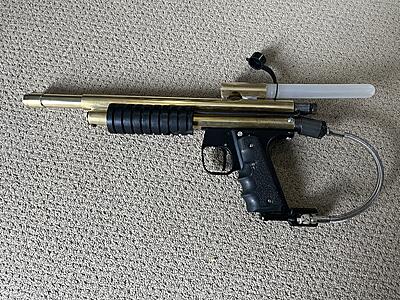

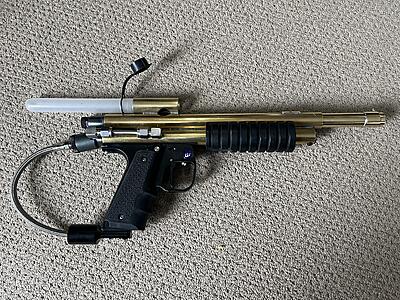

Made a Power feed Plug from a piece of Maple Dowel, painted black, Switched to macro line, kept having leaking issues with the hardline, did some test shooting today getting about 35 shots on a 12g C02 @ 285fps. eventually may add a rubber spyder style detent if double feeding becomes a issue in game.

[Cal440]

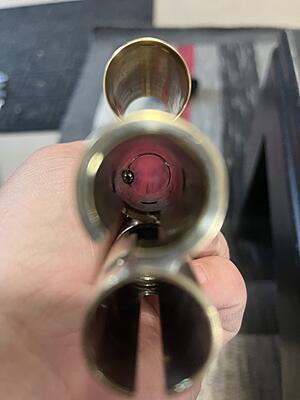

Looks great, really like the setup now with the 12 gram changer. Could you show a closeup of your barrel retention, also nice design on the barrel tip.

[Heavy_D]

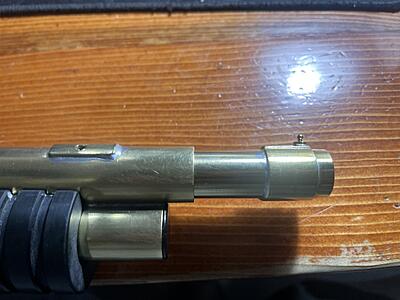

Its essentially friction fit, with a 8-32 brass tipped set screw. soldered on some more material to have more threads for the set screw. I tighten the set screw minimally.

[Cal440]

Thanks 😊

[Heavy_D]

Experienced a couple double feeds my first game out with the PMI II, so decided to install a Cocker detent to remedy that.

[Cal440]

Nice job!

[Impactfour]

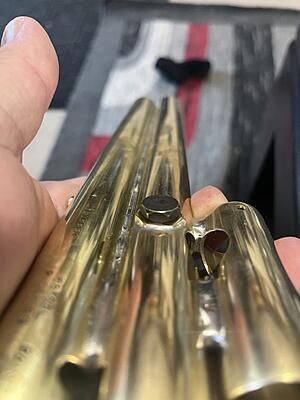

Did you just braze a flat onto the side or did you use a piece already threaded for cocker detent threads?

[Heavy_D]

Yes, I took a 3/8-24 brass nut, cut it in half, then sanded to the tube profile, drilled the tap size, used a dowel to align it, Solder it on, then tapped all the way through, then spent a while filing it to custom fit the depth of the detent.

[Cdn_Cuda]

That looks awesome! I’ve got a PMI-II I picked up out of Edmonton. Was great fun to play with but not near as pretty.

[Pumps4ever]

absolutely amazing!

Thank you for sharing
