    Tippmann FT-12 Breakdown

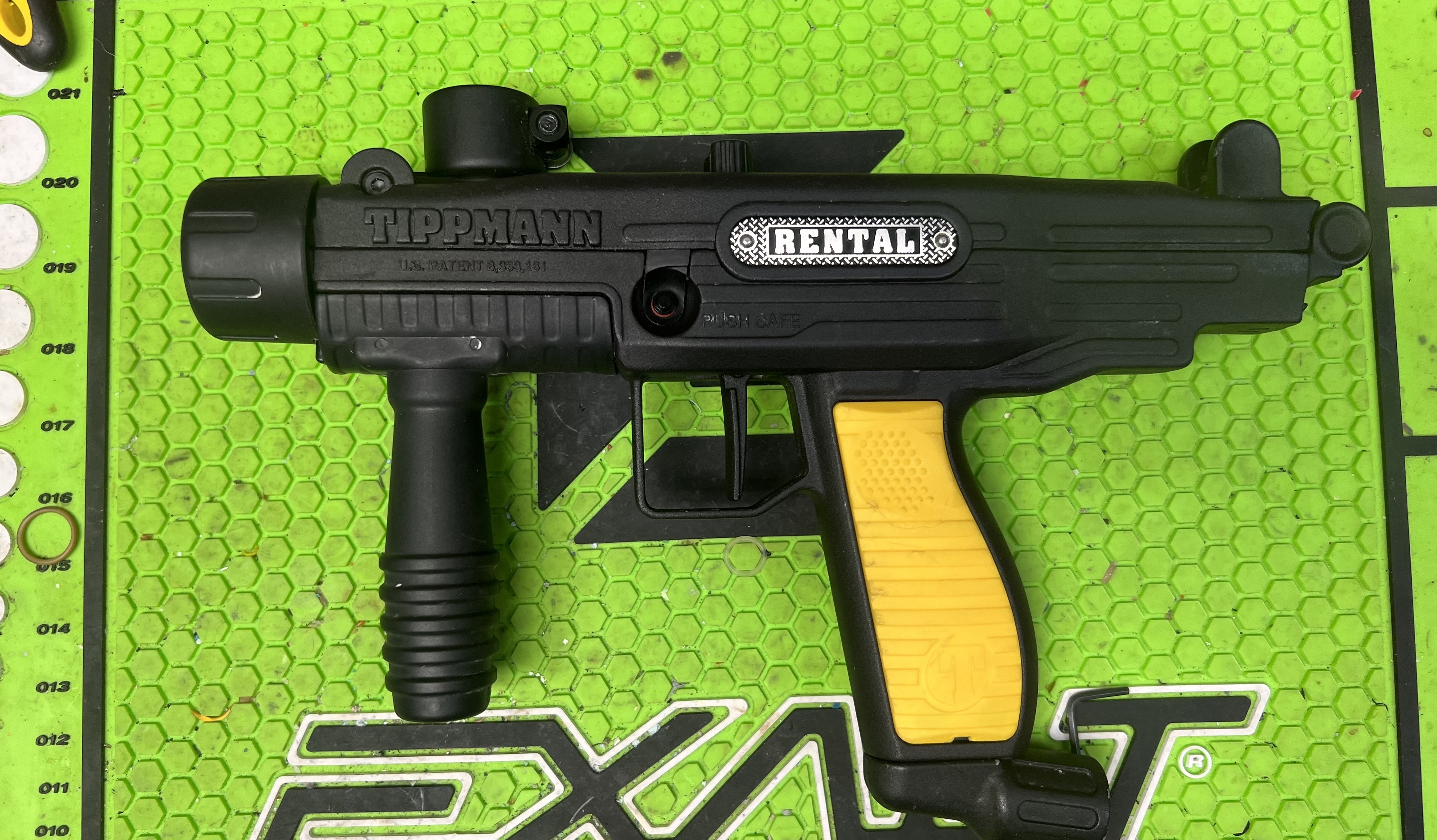

    Finally, the thread you’ve all been waiting for, aside for Jordan’s brass thread, a full breakdown of an FT-12 Rental! Be prepared to be amazed at all the thrilling features of one of the crappiest markets Tippmann has ever made!

    Click image for larger version

Name:	IMG_9220.jpg
Views:	311
Size:	2.38 MB
ID:	443613
    Cuda's Feedback

    #2
    There little suckers were designed to be quick and easy to disassemble, clean/fix and get back into action. While I’ve heard they are to bending, rendering them useless. They have variances of standard Tippmann parts, meaning they are not directly interchangeable save for the bolt and the rod that connects the bolt to the hammer. This kinda sucks.

    So let’s get into it!

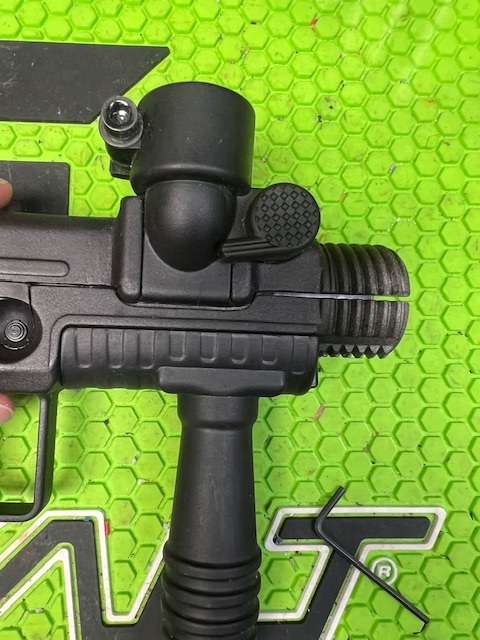

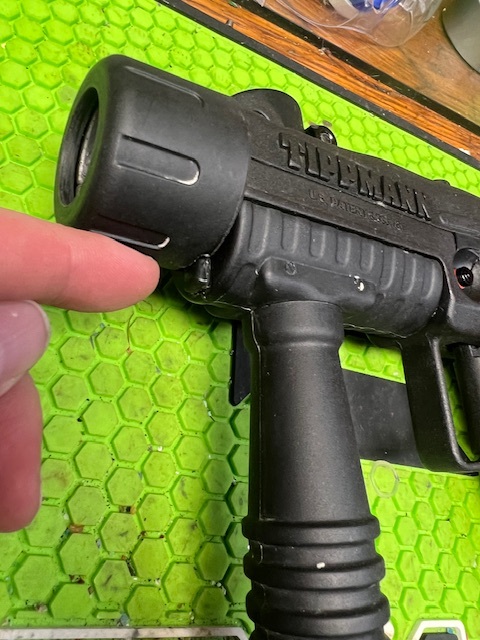

    The front collar needs to be removed. There’s a button on the underside of the barrel that needs to be depressed so you can spin the collar off.

    Click image for larger version  Name:	IMG_9221.jpg Views:	0 Size:	120.8 KB ID:	443621 Click image for larger version  Name:	IMG_9222.jpg Views:	0 Size:	99.4 KB ID:	443622 Click image for larger version  Name:	IMG_9223.jpg Views:	0 Size:	122.2 KB ID:	443623
    Cuda's Feedback

    Comment


      #3

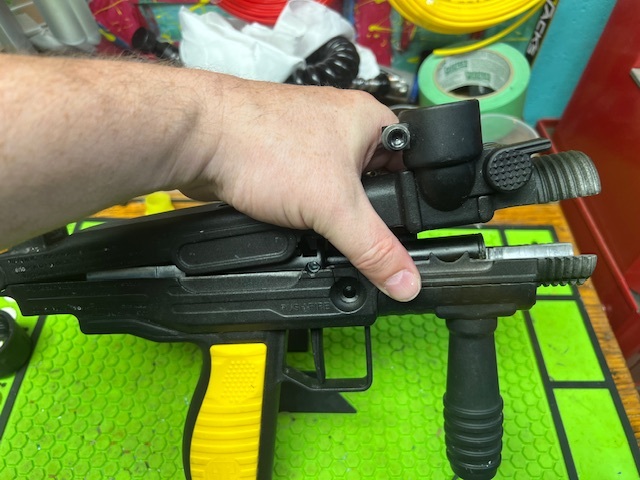

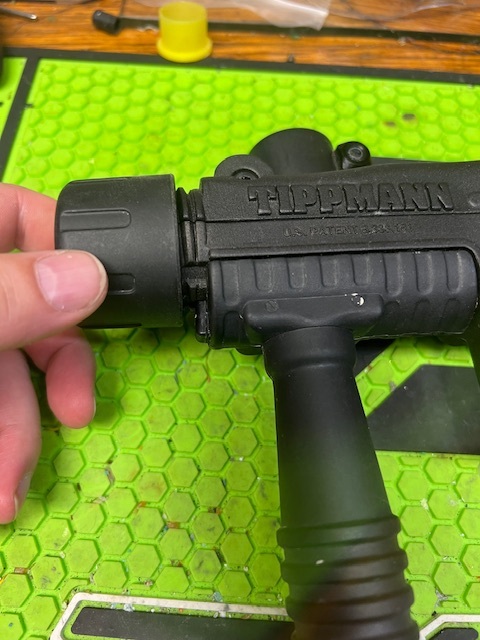

      With that collar removed, the FT-12 opens up like a Crocodile! snappy, snappy, snappy.

      Click image for larger version

Name:	IMG_9225.jpg
Views:	226
Size:	102.3 KB
ID:	443625

      With the collar off you can also remove the front grip. It slides off to reveal the ball detent! This is my FAVOURITE part of this marker after all the times I’ve put a Tippmann together only to realize I forgot the detent and have to take it all apart again.
      Click image for larger version

Name:	IMG_9226.jpg
Views:	200
Size:	92.2 KB
ID:	443626

      Sadly the front grip itself is not removable. If you want to try to make one of these into an Uzzi clone, you’ll need to hack it off completely.

      Cuda's Feedback

      Comment


        #4

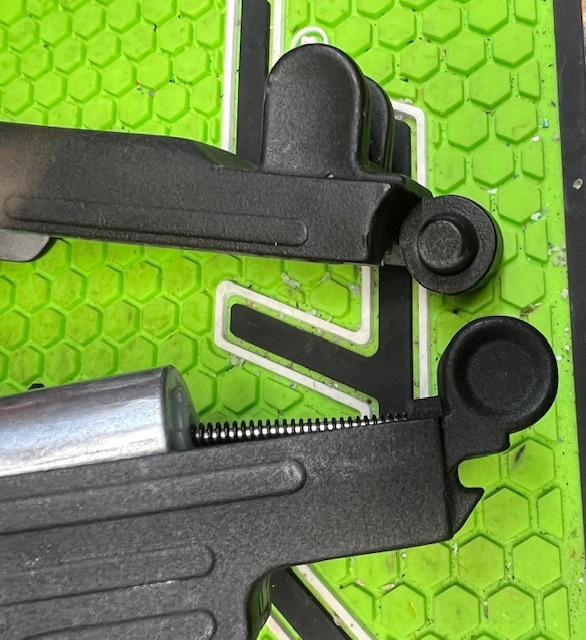

        The two halves are connected at the rear:

        Click image for larger version

Name:	IMG_9252.jpg
Views:	197
Size:	141.8 KB
ID:	443632

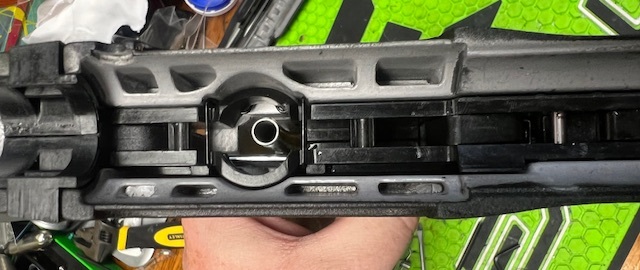

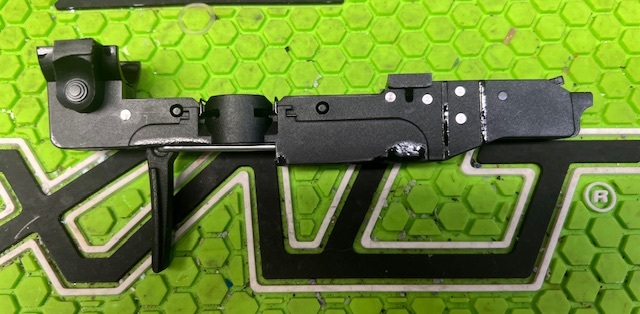

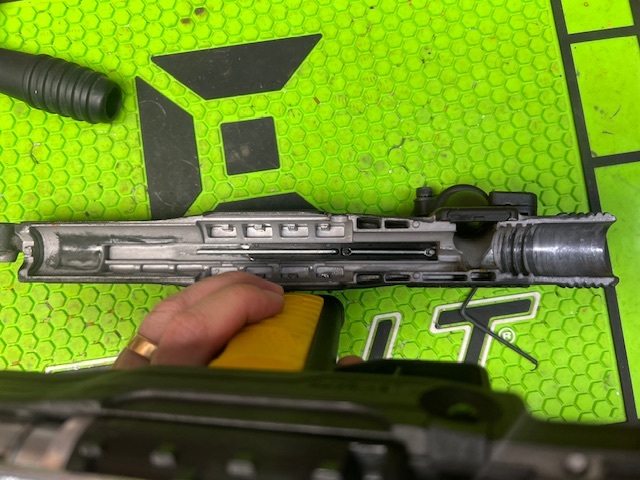

        With the top removed you can see the how the top cocking mechanism works. It’s not the most solid solution, and if the top plate gets bent, it will likely affect the ability to cock it.

        Click image for larger version

Name:	IMG_9227.jpg
Views:	206
Size:	116.3 KB
ID:	443633

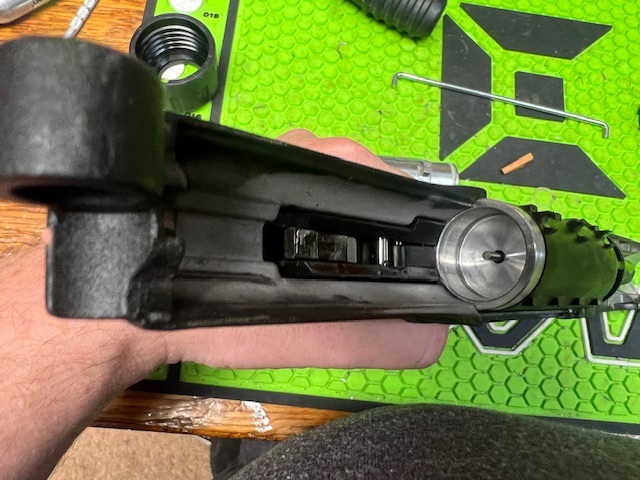

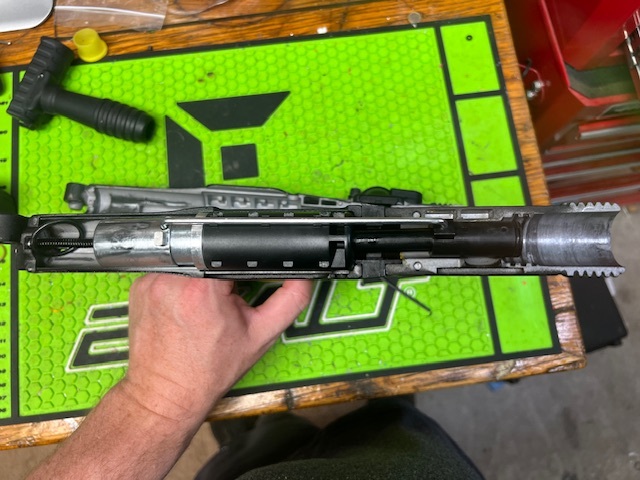

        And then this is what the internals look like. Lots of added bumps to hold various pieces in place.

        Click image for larger version

Name:	IMG_9228.jpg
Views:	193
Size:	109.6 KB
ID:	443634

        Cuda's Feedback

        Comment


          #5

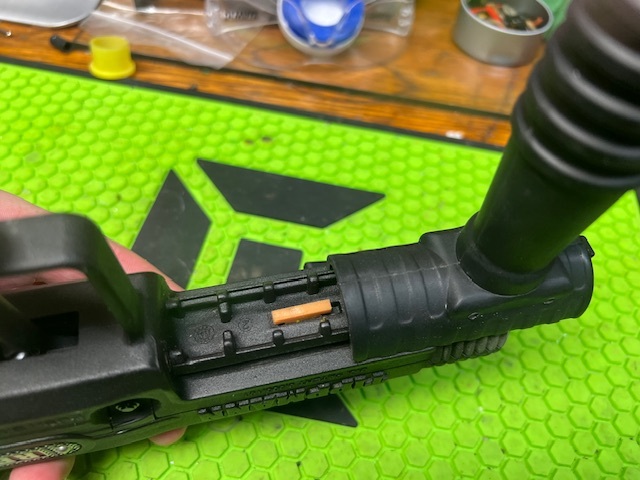

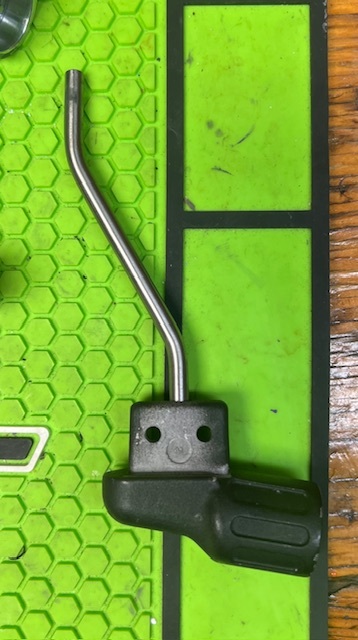

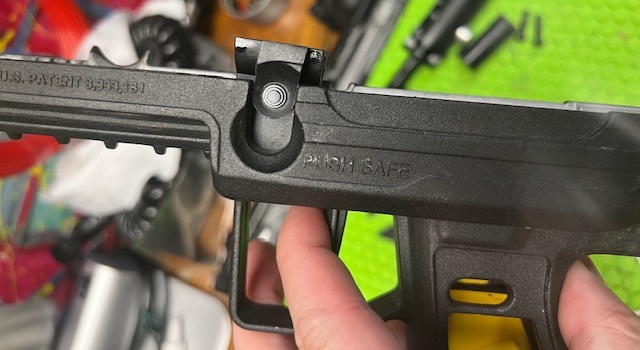

          So if you’ll notice, the hammer is grown a little nub on top. (Or it as just happy to see me). This nub is what interacts with the top cocking mechanism. The top cocking rod bumps into the hammer nub.

          Click image for larger version  Name:	IMG_9230.jpg Views:	0 Size:	124.5 KB ID:	443646

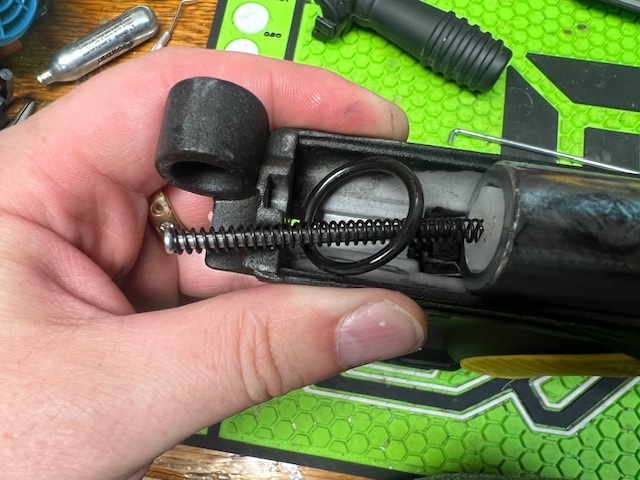

          Looking at the back of the marker, you can see there’s a nice little recess for the cocking pin and spring. I’ve managed still managed to shoot this across the room.

          Click image for larger version  Name:	IMG_9231.jpg Views:	0 Size:	113.0 KB ID:	443647

          And this just shows all the nubs on the powertube that guide the various rods.

          Click image for larger version

Name:	IMG_9232.jpg
Views:	201
Size:	116.8 KB
ID:	443649

          Cuda's Feedback

          Comment


            #6

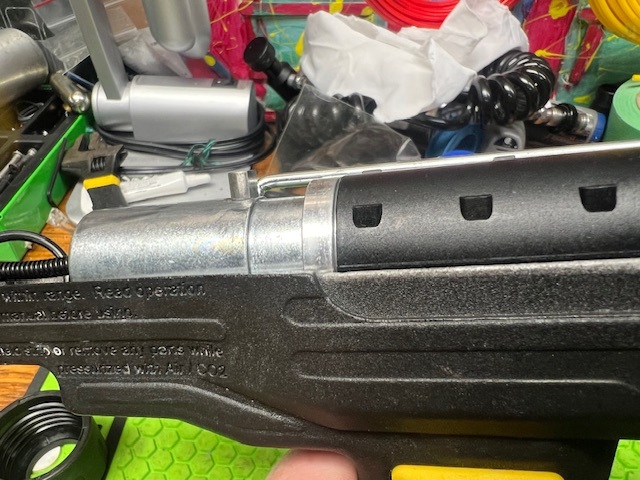

            This moves me to the bottom line. The power tube does not like to come out until the bottom line releases.

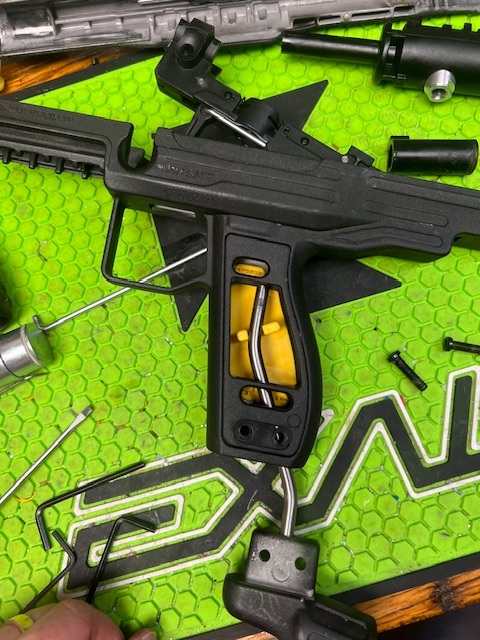

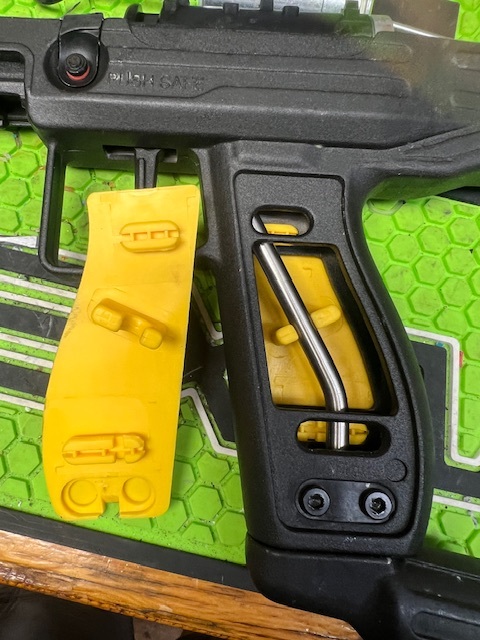

            As you can tell, the air line is internal on these. The airline goes up the grip frame into the powertube. The yellow grips just pull out. After a while I’m sure the material will wear out and they will fall off on their own.

            Click image for larger version  Name:	IMG_9234.jpg Views:	0 Size:	118.4 KB ID:	443653 Click image for larger version  Name:	IMG_9235.jpg Views:	0 Size:	118.6 KB ID:	443656

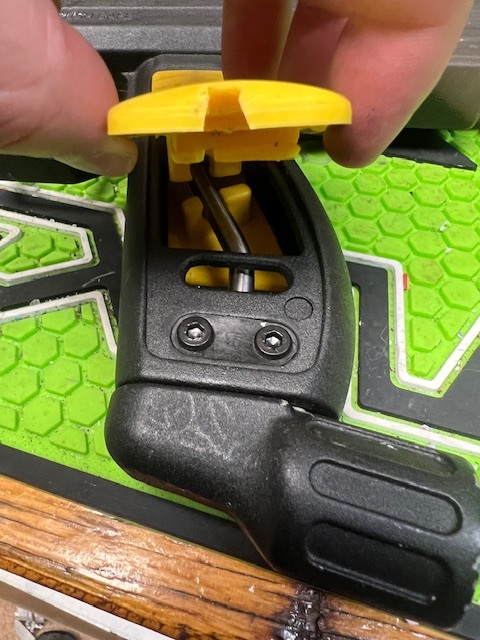

            With the grips removed you can see the airline. Remove the two bottom line screws, and pull the ASA down and the airline comes with it, and frees the powertube apparently, as that went flying.

            Click image for larger version  Name:	IMG_9237.jpg Views:	0 Size:	77.7 KB ID:	443654

            Click image for larger version

Name:	IMG_9236.jpg
Views:	210
Size:	147.2 KB
ID:	443655

            Cuda's Feedback

            Comment


              #7

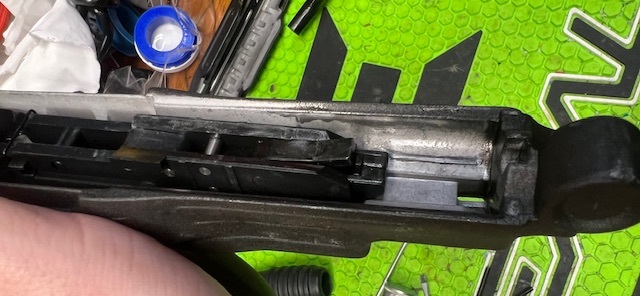

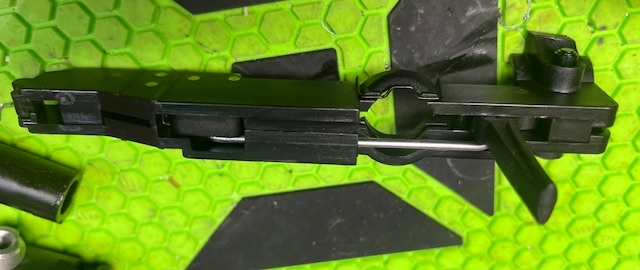

              With the airline and the power tube removed you can take out the trigger group.

              Click image for larger version  Name:	IMG_9243.jpg Views:	0 Size:	71.4 KB ID:	443707 Click image for larger version  Name:	IMG_9238.jpg Views:	0 Size:	83.8 KB ID:	443709 Click image for larger version  Name:	IMG_9240.jpg Views:	0 Size:	59.1 KB ID:	443706
              Cuda's Feedback

              Comment


                #8

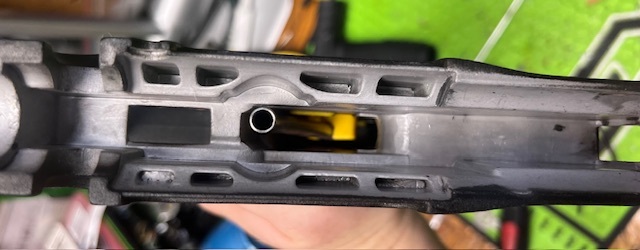

                To put things back together, re-install your air line and bottom line first:

                Click image for larger version

Name:	IMG_9246.jpg
Views:	177
Size:	50.3 KB
ID:	443713

                When putting the power tube back in, you need to slot the rear of the trigger frame below a metal catch or else it will not sit properly in the body:

                Click image for larger version

Name:	IMG_9244.jpg
Views:	169
Size:	77.2 KB
ID:	443715

                Then you slide the trigger group back and down so it sits properly in the body.

                Click image for larger version

Name:	IMG_9247.jpg
Views:	179
Size:	70.8 KB
ID:	443714



                Cuda's Feedback

                Comment


                  #9

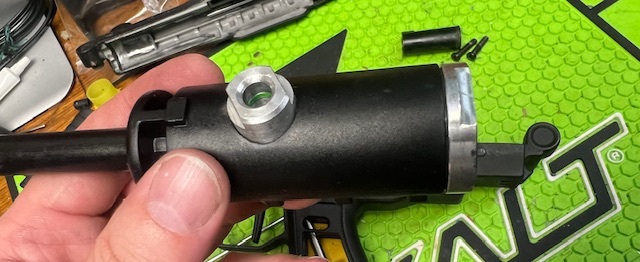

                  The power tube goes back in, and the is a fitting for the airline on it that needs to line up. There is a single oring in the fitting, so give it a little grease.

                  Click image for larger version  Name:	IMG_9248.jpg Views:	0 Size:	71.6 KB ID:	443718

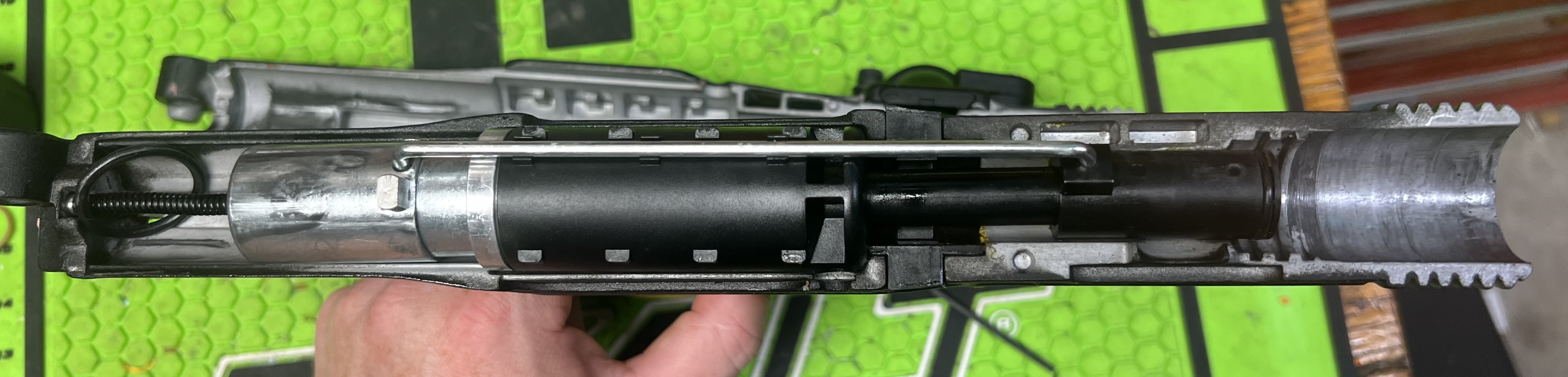

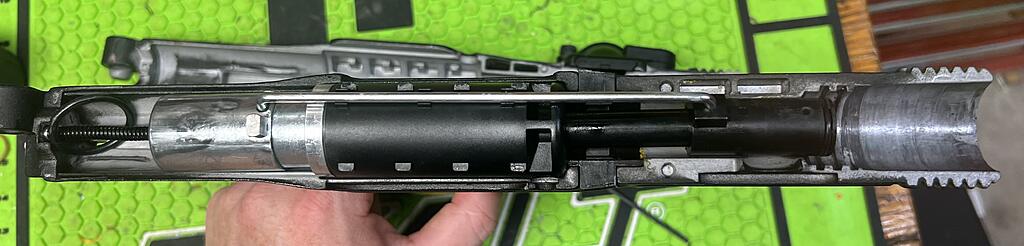

                  And put the rest of the parts back in. Take notice if the offset connecting rod between the hammer and bolt. The powertube has little supports built for it.

                  Click image for larger version

Name:	IMG_9228.jpg
Views:	164
Size:	914.6 KB
ID:	443719
                  Cuda's Feedback

                  Comment


                    #10
                    I have a pair of these and I have yet to shoot them, but they are going to feel pretty similar to a 98 Custom. There is little you can do to modify these and it’s disappointing that they use specialized parts that differ from the standard Tippmann parts which are plentiful.

                    i can see some potential for custom builds given the trigger group just pops right out. Yes, the trigger is terrible, but you’d have some freedom of design choices. With a little creativity you could do an Izzy-style build

                    What I really want to do is get one if those plastic alien/monster finger puppets with the crazy arms and put it on the cocking bolt so every time it fires he moves around waving all crazy.
                    Cuda's Feedback

                    Comment


                    • Toestr
                      Toestr commented
                      Editing a comment
                      Unfortunately I don't think the charging handle reciprocates.

                    • Cdn_Cuda

                      Cdn_Cuda

                      commented
                      Editing a comment
                      Dammit! Well at least the hands will wiggle when you move around then.

                    #11
                    I have fitted a modifed tippmann magazine well to the bottom of an FT-12, to make it magfed. It seems to work well.

                    Comment


                    • Cdn_Cuda

                      Cdn_Cuda

                      commented
                      Editing a comment
                      Good to know!
