    Spyder Re-imagineD

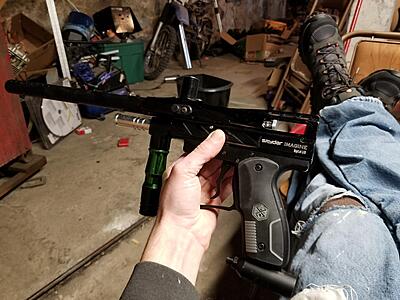

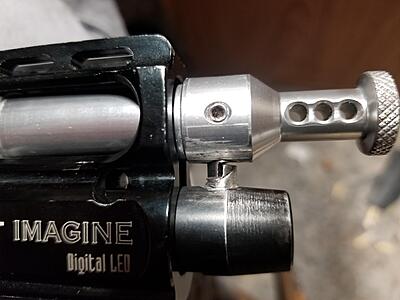

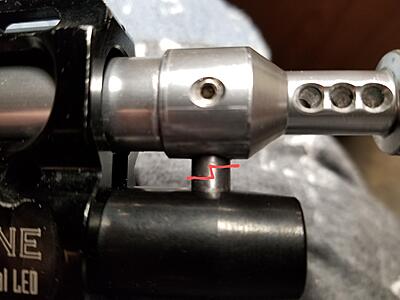

    So I would like to make my own pump marker, just in case there's ever a game in my area, and for a little target practice at home now and then maybe. I have this LCD Imagine that I already robbed the frame for an MR100, so it's now mech framed. I see alot of people slotting the hammer and I'll do that if I really have to, but after some thought couldn't I just modify the pin between the bolt and the hammer? If I cut it in half, then notch the pin like in the picture, then all I would have to do is weld or solder the pin onto the hammers it stays in place. Seems easier than to cut hardened steel. Also it's just the hammer face that needs to be hardened, so couldn't you draw back the temper with a torch, with the hammer face under water? Maybe I've been watching to many Forged in Fire reruns? I feel like the pin would work so I'm going to try that. Also the milling on the Imagine body is perfect and the bolt has holes so attaching a cocking rod seems like a breeze. I just have to make a over barrel pump handle, unless I can find one of those kits that screws into the volumizer. I hate how bulky and heavy the grip frame is, so I'll probably chop that up eventually. That funny green piece on the grip is actually the only piece I have from my first Imagine from forever ago. I only kept it because i used to smoke weed out of it . I found it in a parts bin in my closet.
    💀Team Ragnastock💀
    Ion Long Rifle
    Spyder Pump
    BST Feedback
    Brass Thread

    #2
    The little jig/jog cut on the pin is a great idea. Only drawback is that the pinhole on the striker is bigger by quite a margin. You'd have to decide a way to keep the pin at a specific height so it will always catch on when you pump. This is really interesting since my closed bolt spyder has a wedged out roll pin on my fatty striker. Maybe something like that would work and leave a lip near the rear to help with catching the pin as it moves back? My biggest concern would be anything that dropped into the path of the striker and the inner parts. (Main spring, sprig guide, etc...)
    Fred aka ChoSanJuan
    Team: With Intent
    Paintball parts and 3D Printed items!
    My Feedback

    Comment


    • JeeperCreeper

      JeeperCreeper

      commented
      Editing a comment
      Both halves of the pin would be mechanically attached in place. The pin would be welded or soldered into the hammer, and it has a set screw on the bolt. As long as I leave a little wiggle room for the tolerances of the components to the tubes, it should work. The hammer will be hitting the valve pin and spring before the split hammer to bolt pin would make contact, so it shouldn't get too beat up from the hammer.

    • JeeperCreeper

      JeeperCreeper

      commented
      Editing a comment
      Update on this: I soldered the pin in place on the hammer, and I have definitely cycled it at least 500 times since and it's holding strong!

    #3
    Think you might run into some issues with your current thought process... The marker would still fire semi auto, but would only load a paintball in on the manual 'cock' of the bolt. Not sure if that is what is intended or not.

    Comment


    • JeeperCreeper

      JeeperCreeper

      commented
      Editing a comment
      No blowback will be disabled. The valve pin gets modified to not let air into the lower chamber, and the hammers oring is removed.

    #4
    You can just buy a striker from azodin and there is only minor cutting
    https://azodinusa.com/collections/in...12324317069348

    Comment


      #5
      I cut the pin, notched the bottom and soldered it in place, then I lowered the top half of the pin and notched that as well. Everything works as it should, now I need a pump assembly.
      💀Team Ragnastock💀
      Ion Long Rifle
      Spyder Pump
      BST Feedback
      Brass Thread

      Comment


      • KMDPB

        KMDPB

        commented
        Editing a comment
        Absolutly Genius!

      #6
      https://youtu.be/ePosxzjJtqE
      💀Team Ragnastock💀
      Ion Long Rifle
      Spyder Pump
      BST Feedback
      Brass Thread

      Comment


        #7
        Does anyone have a pump kit for sale that would thread into the volumizer? Also looking for a 12g quick change for cheap.
        💀Team Ragnastock💀
        Ion Long Rifle
        Spyder Pump
        BST Feedback
        Brass Thread

        Comment


        • Brokeass_baller
          Brokeass_baller commented
          Editing a comment
          Trilogy pump kits should work. If you can find one.

        • Chuck E Ducky

          Chuck E Ducky

          commented
          Editing a comment
          Slice kit makes Trilly kits autococker.com has them.

        #8

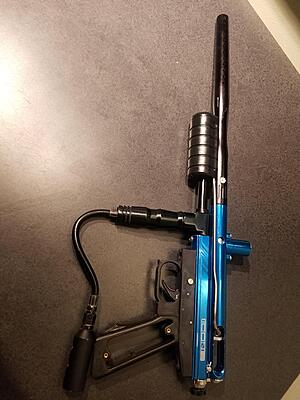

        I like this 32 degrees body a bit better. What do you think? All internals seemed to line up, as it appears to be a direct clone of the older style Imagine. Another plus is the inside of the Icon body is in better shape than the Imagine. Also this parts bin purchase has a single trigger that's currently hideous, but I'll fix it up
        Attached Files
        💀Team Ragnastock💀
        Ion Long Rifle
        Spyder Pump
        BST Feedback
        Brass Thread

        Comment


          #9
          Well I broke down and ordered a Trilogy slice pump kit. At least if it doesnt work for me I know where to sell it. Also started to make some refinements to the trigger frame. It's all plastic so it's easy to work with.
          💀Team Ragnastock💀
          Ion Long Rifle
          Spyder Pump
          BST Feedback
          Brass Thread

          Comment


          • KMDPB

            KMDPB

            commented
            Editing a comment
            I dont think the trilogy pump arm will thread all the way in a spyder front block (in my case atleast, the slice may be different.) It would leak so I tapped the front block slightly deeper to accommodate the longer threads.

          #10
          I have an LPR trilogy adapter on my closed bolt spyder. The pump kit will thread in without any issues. Maybe a little thread tape to seal it all up, but it'll go in.
          Fred aka ChoSanJuan
          Team: With Intent
          Paintball parts and 3D Printed items!
          My Feedback

          Comment


            #11

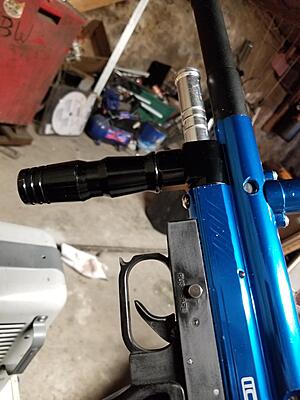

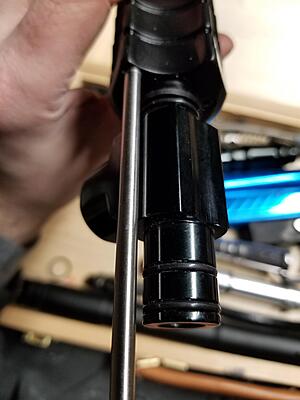

            Well I am having a couple fitment issues right off the bat. The pump guide won't thread in farther than this currently. I think I will have to file the first 2 threads off the guide, as I don't have a lathe to simply cut the front block threads deeper in (as stated by KMDPB). And currently the pump rod is too tight to the front block, so it will need to be bent outward, or more likely the block will need a relief cut so I can keep the rod tight to the groove in between the stacked tubes. I'm still not sure if I want to attempt a half back, or maybe some engraving? Either way I have 2 spare bodies for test subjects. Wish me luck
            Last edited by JeeperCreeper; 02-11-2021, 05:25 PM.
            💀Team Ragnastock💀
            Ion Long Rifle
            Spyder Pump
            BST Feedback
            Brass Thread

            Comment


            • scottieb

              scottieb

              commented
              Editing a comment
              I'm wishing you luck bro!

              Excited to see this to completion.

            • KMDPB

              KMDPB

              commented
              Editing a comment
              Best of luck! That's a clever idea to remove a couple threads with a file, i wouldnt have thought of that!

            #12

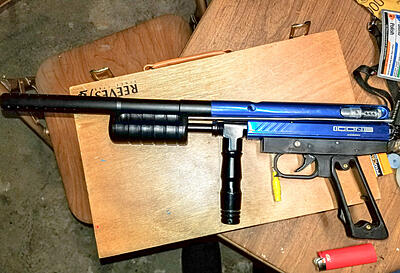

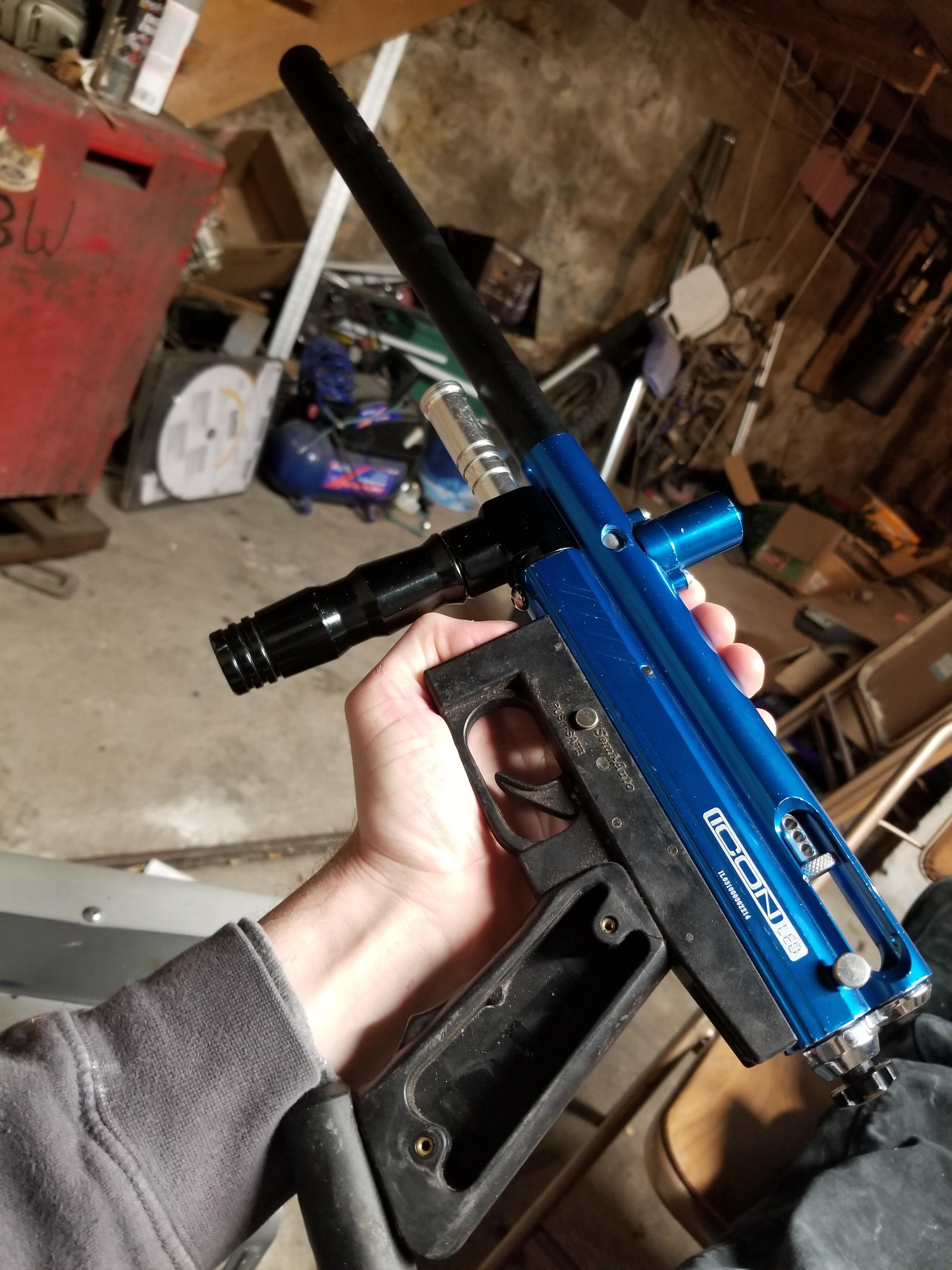

            This is what I have so far
            💀Team Ragnastock💀
            Ion Long Rifle
            Spyder Pump
            BST Feedback
            Brass Thread

            Comment


            • JeeperCreeper

              JeeperCreeper

              commented
              Editing a comment
              I think it's going to be a bit of both offset and some light cutting (or most likely grinding with a round file)

            • KMDPB

              KMDPB

              commented
              Editing a comment
              Looking good! I like that frame, STBBs look so much better with a single trigger

            • nobbie333

              nobbie333

              commented
              Editing a comment
              Your almost there

            #13

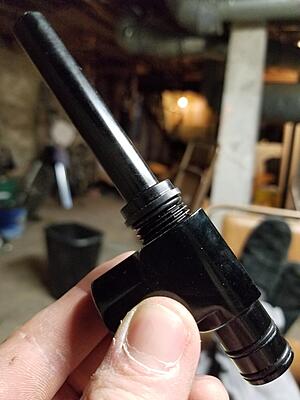

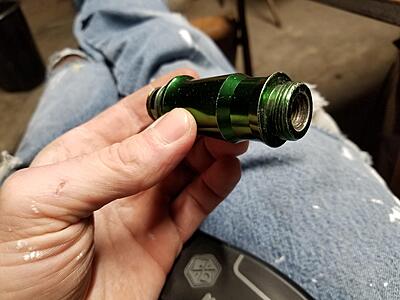

            So the problem with the guide rod is the threads were the correct pitch, but they were to large in diameter. I shaved the threads down to fit and now I can thread all the way in. Also I got the pump rod attached and functioning. Now all I have left is to modify the valve pin, and then I'm ready to make it pretty.
            💀Team Ragnastock💀
            Ion Long Rifle
            Spyder Pump
            BST Feedback
            Brass Thread

            Comment


            • Pbsteve13
              Pbsteve13 commented
              Editing a comment
              how much did you file down ?
              do you think it will work with a trilly lpr?

            • JeeperCreeper

              JeeperCreeper

              commented
              Editing a comment
              Not sure exactly but I kept shaving until it would thread in

            #14

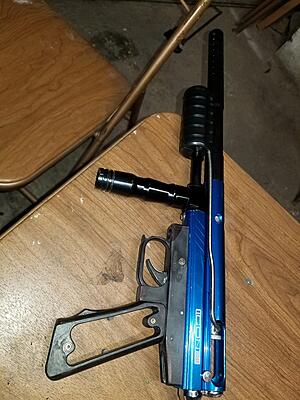

            I have everything functioning now, but it seems like the hammer bounces slightly on the valve pin. I feel like I probably need a spring kit to dial that in. As soon as I get some more air I'm going to chrono it and see where I'm at but otherwise it works. I want to get a 50 round hopper, and possibly make a stick feed for it so its interchangeable. Also I added a SP progressive barrel but it's probably a .689. I'm still looking for a spyder freak back, otherwise it's going to be rollout city.
            💀Team Ragnastock💀
            Ion Long Rifle
            Spyder Pump
            BST Feedback
            Brass Thread

            Comment


              #15
              So I got my spring kit in, aired it up and it sounds like the hammer is double tapping the valve. I have the stiffest valve spring in and a soft hammer spring. The pin has been modified to be completely round so minimal air can get to the hammer, which has the oring removed. I'm about to drill a vent hole just past the valve to vent any air getting through the valve. Also its shooting like 360 so I might throw a reg on it to lower the fps. It's either that or cut a loop off the spring. Also the body leaks around the valve and the front block so I think I'm going back to the original Imagine body. Any tips to deal with the hammer double taping the valve?
              💀Team Ragnastock💀
              Ion Long Rifle
              Spyder Pump
              BST Feedback
              Brass Thread

              Comment


              • Myrkul

                Myrkul

                commented
                Editing a comment
                I usually end up cutting about a half inch off spump main springs to get the velocity into the playable range. A vent hole will help, you might want to cut some chunks/slots out of the face of the stock hammer as well just to be damn sure that it's not catching any blowback gas still.

                Body leaks are 99% just bad "o" rings, I notice some spyder bodies like to "clip" "o" rings during installation, so I'm guessing that's what happened here.

              • JeeperCreeper

                JeeperCreeper

                commented
                Editing a comment
                What about a regulator to bring velocity down? My body leaks were definitely because of the difference in size on the 32' body was larger by a half mm. I switched back to the Imagine body. I might do a halfback too. I kinda put this on the shelf for a while as I'm in the middle of rebuilding the engine in my Jeep
