    rawbutter's pneumag gallery

    This is a show-off thread for all the different pneumags I've built over the years, and also a price thread for those interested in hiring me for a project.

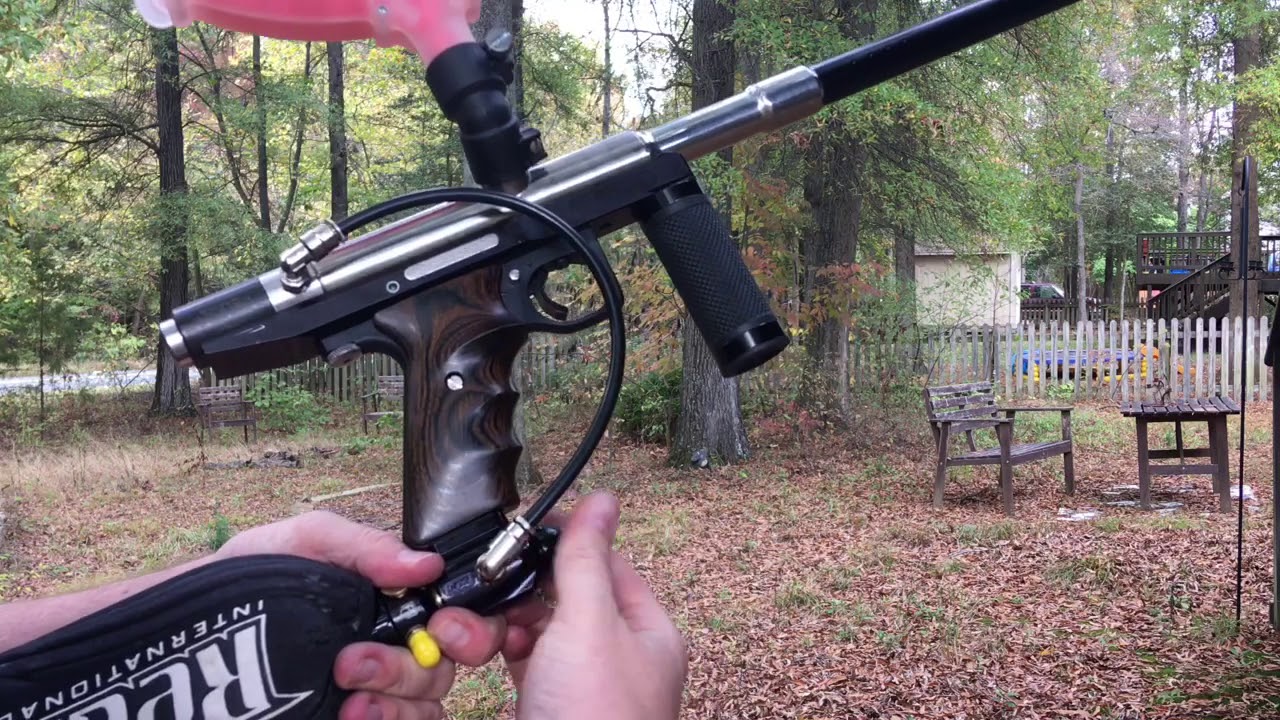

    Here's the first taste:



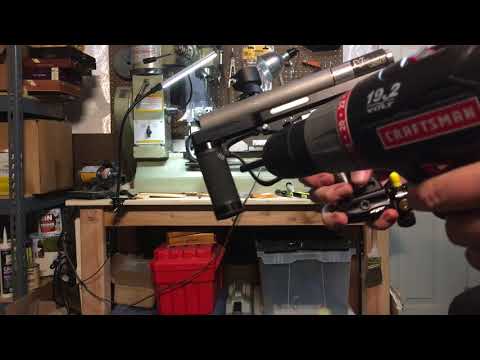

    If you want to make your own pneumag, you should check out these videos. They will walk you through the process. This is the cheapest way to go.If you already have the tools you need (a drill, a vice, some taps, etc.) then you can make your own pneumag for less than $100.

    If you want me to build a pneumag for you, should should read through everything else in this thread. Then post a reply (to up the thread) and PM me. We can then talk it over and I can give you a quote.

    How much does this cost? It depends on what you want. But the starting point is $100.
    • The $100 includes a custom-made air piston, frame milling, any brackets that are needed, trigger stops, magnetic trigger return (if needed), and the time required to make your project (typically 5-6 hours). It also includes return shipping in a small flat-rate box. (If your project needs something bigger, you'll have to pay the difference.)

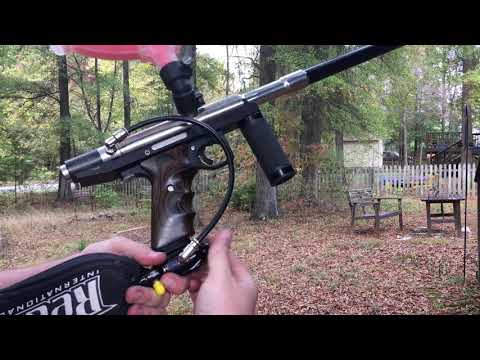

    • For the trigger valve, you can choose a MAC-33 valve for $75 more, or an MSV-2 for $40 more. Here's a video comparing the two. The MAC-33 has a shorter trigger stroke, no post-travel, and it doesn't vent when you hold down the trigger, but it's a tiny bit heavier than the MSV-2 (still walkable, though). The MSV-2, on the other hand, has a slightly longer trigger stroke, and it vents a little when you hold down the trigger. It can also be set up to have more post travel. (The trigger can keep moving past the activation point.)
    • You will need an LPR for any pneumag project. I can usually sell you one for $50. It will be used, but it will have fresh seals and springs inside. (See the next post for more information about LPRs.)
    • Sleeper installs are anywhere from $25 to $75 dollars. Big, spacious frames like ultralight Dye frames and vertical Angel frames are easy to do, so I only charge $25 for those. But Intelliframes are much harder and time-consuming, so those cost $75. (Again, there's a later post that explains sleeper set-ups in more detail.)
    • If you have a non-AGD frame you want to use for a pneumag build, I can do that too. Many of the older-style frames with flat tops (like PMR frames or Angel frames) are really great for pneumag builds. However, you should know that in most cases these frame mods cost a lot more because they need additional modifications to work correctly. If I need to add a safety, that's an extra $25 because it takes about an hour to do that work. If I need to drill new mounting holes and countersink them for screws, that's another $25. If I need to mill off the front so the frame doesn't hit the VASA, that's another $25.
    All my pneumag frames come with spare parts, a video manual, and great customer service. I stand behind all my frames and will work with you if anything ever goes wrong.

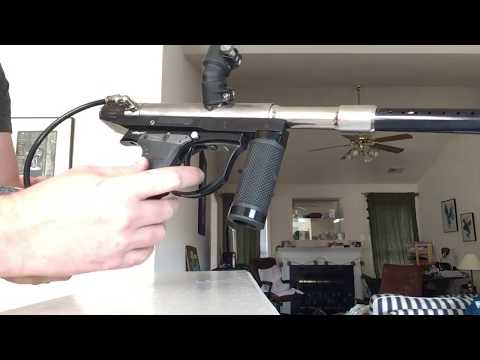

    One last thing: If you want a fast pneumag that can keep up with electronic markers, you really need an RT on/off or a ULT on/off. It doesn't matter if you only have a classic valve, but you need a better on/off assembly. I can still make a pneumag with a classic on/off assembly, and the trigger pull will be really light, but the valve won't reset fast enough to really walk the marker reliably.




    Price List:
    • Base cost (includes piston + trigger stops + frame milling to fit piston) = $100
    • new MAC-33 solenoid + fittings = $75
    • new MSV-2 + fittings = $40
    • used LPR (with new fitting and new seals) = $60 (price increased 11/1/22 because inflation?)
    • drill new mounting holes in non-AGD frames = $25
    • milling non-AGD frames to size = $25
    • rail milling for hidden air lines= $25
    • ASA sleeper mods (mill pocket for o-ring and drill air passage) = $25
    • easy frame sleeper mod (drill and tap hole for LPR) = $25
    • medium sleeper mod (drill/tap hole + frame milling) = $50
    • hard sleeper mod (make manifold) = $75
    • add or modify a safety = $25
    • valve rebuild = $50 + cost of parts


    last update = 11/17/2021
    Last edited by rawbutter; 11-01-2022, 02:19 PM.
    View my feedback or read about my Virginia woodsball club.

    Let me make you something. I build pneumags, auto-response frames, and wooden pill cases.

    #2
    Let's talk about LPRs.

    The most common question I get about pneumags is "Which LPR should I use?" And the short answer is to just use whatever you want. It doesn't make a difference.

    As for the long answer....yes, we all know that some LPRs are better than others. The bigger ones have much more volume inside, so they can recharge faster. However, keep in mind that these LPRs are designed to fill a dump chamber or half a tube or something big like that. Pneumatic components, on the other hand, are TINY. The LPR in a pneumag only has to refill the trigger valve and the piston, which hold less than a cubic centimeter of air all together. So, it doesn't matter if your LPR is cheap and tiny. It will still work great.

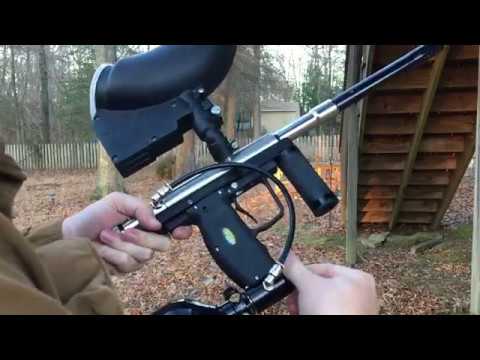

    If you need proof, take a look at this video. This pneumag frame uses a "bullet" LPR, which is about as small and cheap as you can get. It's being fed by a 48/3000 First Strike tank with standard output (800 psi, I believe). And it can fire at 20+ bps.



    So....yeah. Don't stress over the LPR. Just use whatever you want.


    The second most common question I get about LPRs is "Where should I mount the LPR?" And again, the answer is pretty much to put it wherever you want. Here are a few ideas. (Some of these pictures aren't mine, but you get the idea.)

    You can attach the LPR to the ASA and run the air hose up through the grips. (Usually you need to notch the grips to do this.)

    Click image for larger version  Name:	IMG_20160924_113727033_HDR.jpg Views:	0 Size:	230.5 KB ID:	9401
    Click image for larger version  Name:	19sEPFR.jpg Views:	0 Size:	172.5 KB ID:	9402not mine


    You can mount the LPR to the VASA and have it pointed forward, Autococker style. You can then run the air line outside the rail or have the rail milled so the air line can go inside.

    not mine


    Click image for larger version  Name:	cool pneumag.jpg Views:	0 Size:	62.3 KB ID:	9467not mine

    Finally, you can also forego the LPR and instead use a regulator that has a low-pressure kit. Then you can mount the regulator like a foregrip and run the air line up through the rail. This mag uses an Ion regulator.

    Click image for larger version  Name:	image_1663.jpg Views:	4 Size:	184.2 KB ID:	9403

    This one uses a Palmer's Fatty Stabilizer.

    Click image for larger version  Name:	pneumag(left).jpg Views:	0 Size:	75.6 KB ID:	9405
    Last edited by rawbutter; 07-24-2020, 01:27 PM.
    View my feedback or read about my Virginia woodsball club.

    Let me make you something. I build pneumags, auto-response frames, and wooden pill cases.

    Comment


      #3
      Let's talk about sleeper set-ups.

      A "sleeper" pneumag has the LPR installed inside the grip frame. Functionally, these are no better than standard pneumags. If you ever need to adjust the LPR, they are also more annoying since you have to remove the grips to access the LPR. But they definitely look cool, and they let you arrange the external parts of your marker however you like.

      Click image for larger version  Name:	IMG_2448.JPG Views:	0 Size:	336.6 KB ID:	9417

      The easiest way to make a sleeper is to use a frame that has been designed for it. The MP90 from Luke's Customs is one such example. But in practice, almost any frame can be modified into a sleeper. Some just take more work than others.

      In any case, you need to think about which ASA you're planning to use. Again, any ASA could work, but some require more time and effort (and therefore they cost more). Here's a few of my most-preferred ASAs.
      Personally, I like to use CP ASAs because they are cheap, they are easy to use, and they match the horizontal-tube aesthetics of an Automag. But if you really want to use something else, it's probably fine. Just check with me first.
      Last edited by rawbutter; 11-17-2021, 10:24 AM.
      View my feedback or read about my Virginia woodsball club.

      Let me make you something. I build pneumags, auto-response frames, and wooden pill cases.

      Comment


        #4
        Here are a few samples of my work:

        Sleeper set-up in a Dye NT frame.
        Click image for larger version  Name:	IMG_5101.JPG Views:	0 Size:	216.4 KB ID:	9422

        Click image for larger version  Name:	IMG_5094.JPG Views:	0 Size:	66.1 KB ID:	9423


        Sleeper set-up in a DM3 vertical frame with a classic CP ASA.

        Click image for larger version  Name:	IMG_2800.JPG Views:	0 Size:	75.8 KB ID:	9424

        Click image for larger version  Name:	IMG_3089 (1).JPG Views:	0 Size:	435.5 KB ID:	9425

        Last edited by rawbutter; 07-24-2020, 12:32 PM.
        View my feedback or read about my Virginia woodsball club.

        Let me make you something. I build pneumags, auto-response frames, and wooden pill cases.

        Comment


          #5
          Here's a ETEK frame with sleeper LPR and a matching ASA to boot.

          Click image for larger version

Name:	IMG_0381.JPG
Views:	1069
Size:	513.8 KB
ID:	9434

          Click image for larger version

Name:	IMG_0374.JPG
Views:	1020
Size:	526.8 KB
ID:	9433




          And an Angel frame with a custom safety and all the bells and whistles:

          Click image for larger version

Name:	image4.JPG
Views:	1021
Size:	243.0 KB
ID:	9435

          Click image for larger version

Name:	IMG_8714.JPG
Views:	990
Size:	427.7 KB
ID:	9436


          Last edited by rawbutter; 07-24-2020, 12:42 PM.
          View my feedback or read about my Virginia woodsball club.

          Let me make you something. I build pneumags, auto-response frames, and wooden pill cases.

          Comment


            #6
            A sleeper Intelliframe with a custom manifold:

            Click image for larger version  Name:	2grips.JPG Views:	0 Size:	44.0 KB ID:	9437

            Click image for larger version  Name:	2right.JPG Views:	0 Size:	40.5 KB ID:	9438

            Click image for larger version  Name:	all parts 2.JPG Views:	0 Size:	62.2 KB ID:	9439
            Last edited by rawbutter; 07-24-2020, 12:47 PM.
            View my feedback or read about my Virginia woodsball club.

            Let me make you something. I build pneumags, auto-response frames, and wooden pill cases.

            Comment


              #7
              And finally, a pneumatic single-trigger carbon fiber frame. This will be getting a sleeper-treatment eventually, just as soon as I can figure out how to build an LPR that's thin enough to go inside. I'll bump the thread when that happens.

              Click image for larger version  Name:	IMG_1263.JPG Views:	0 Size:	220.9 KB ID:	9443

              Click image for larger version  Name:	IMG_1262.JPG Views:	0 Size:	187.1 KB ID:	9441

              Click image for larger version  Name:	IMG_1261.JPG Views:	0 Size:	158.7 KB ID:	9442

              Click image for larger version  Name:	IMG_1265.JPG Views:	0 Size:	161.4 KB ID:	9444

              View my feedback or read about my Virginia woodsball club.

              Let me make you something. I build pneumags, auto-response frames, and wooden pill cases.

              Comment


                #8
                Wow

                Comment


                  #9
                  That last "not mine" pneumag is/was Pneumagger's, from the old AO days. Man that takes me back. I was at the field with him and Behemoth, and a few others, the day he took that photo. We all lined up our mags on the bench and took "family" photos. Lol. He was a good dude. I wonder what ever happened to him.
                  Sorry about the off-topic nostalgia trip. I hadn't thought about those days in a while.
                  Feedback

                  Comment


                    #10
                    That's cool. I didn't know him personally, but pneumagger was really an inspiration to me. The first mod I ever did was basically a copy of his Airwalk pneumag.
                    View my feedback or read about my Virginia woodsball club.

                    Let me make you something. I build pneumags, auto-response frames, and wooden pill cases.

                    Comment


                    • rawbutter

                      rawbutter

                      commented
                      Editing a comment
                      That's a shame. I seem to remember at one time he was building a whole paintball marker from scratch. It was basically an Automag knockoff, but still, that's impressive. He drafted up all the designs on the computer and planned to make the parts himself. I wonder if that was for a school project.

                    • Brokeass_baller
                      Brokeass_baller commented
                      Editing a comment
                      Oh crap, yeah I forgot about that. It was a project for school. I think he ended up basing it off of a shocker, but mechanical. He built a prototype. I think it had leak issues, but functioned. I'm pretty certain he machine it all himself, though it was very basic in design. I can't remember if he programmed a CNC to do it, or if he turned and milled it by hand

                    • Brokeass_baller
                      Brokeass_baller commented
                      Editing a comment
                      I saw it in pieces in his basement once. He had SO MUCH paintball crap there. Lol. But he showed me his progress on it, told me what he wanted to do with it. Then we went outside, got drunk with some of his other friends, and shot a potato canon at a bunch of stuff. Lol

                    #11
                    I haven't updated this thread in a while because I've been building SPAR valves, but hopefully I will get back into this more now that I've ended production.

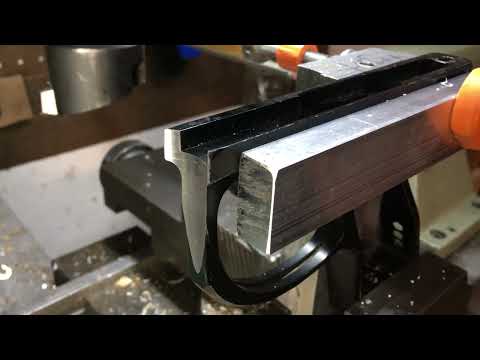

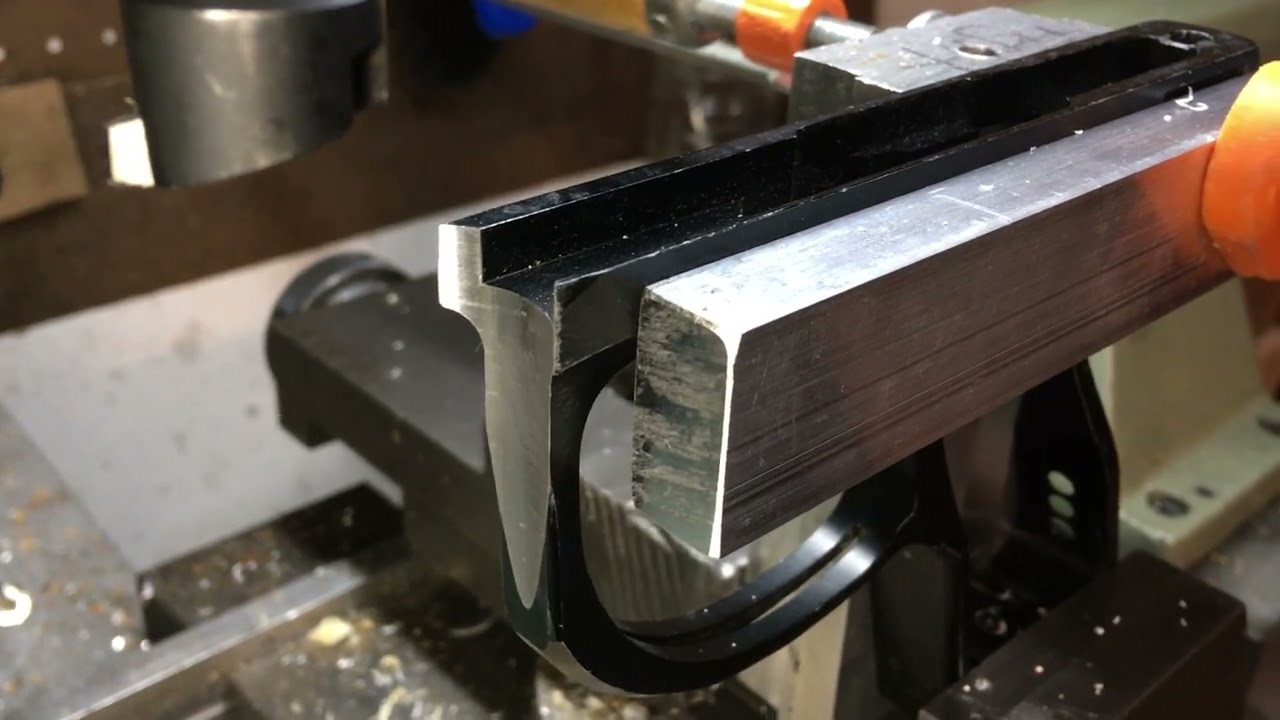

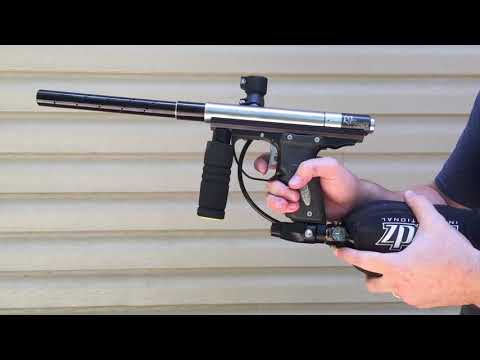

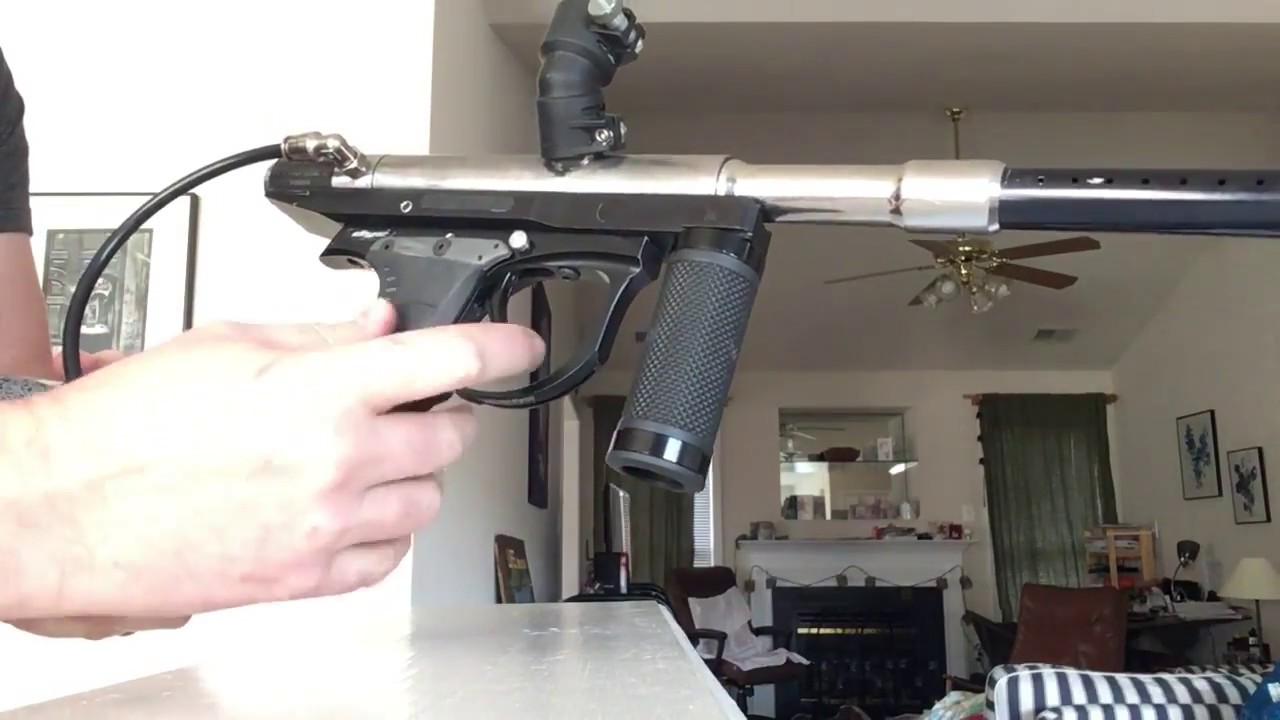

                    Today I wanted to share a technique I've been working on. I've figured out a way to do a curved cut on the front of non-AGD frames so they can better fit up against an Automag VASAs. Check it out.
