Evil Omen Disassembly

[Cdn_Cuda]

It’s time to get a little Evil….


Let’s get this frickin’ show on the road!

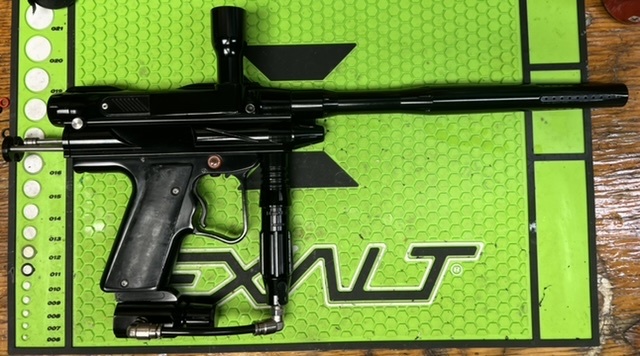

Here will have an Evil Omen. Someone with more knowledge that I have will be able to identify whether this is a 1 or a 1.5. I’m fair certain it’s not a 2.

01C4A8DE-DDD3-458C-A1C5-F35EF012E49E.jpeg FCA75D2D-CD71-407A-AF0A-301691288FCA.jpeg 9CB91C0F-50CA-4BE4-BEAA-EC2561C3F2D9.jpeg

[Cdn_Cuda]

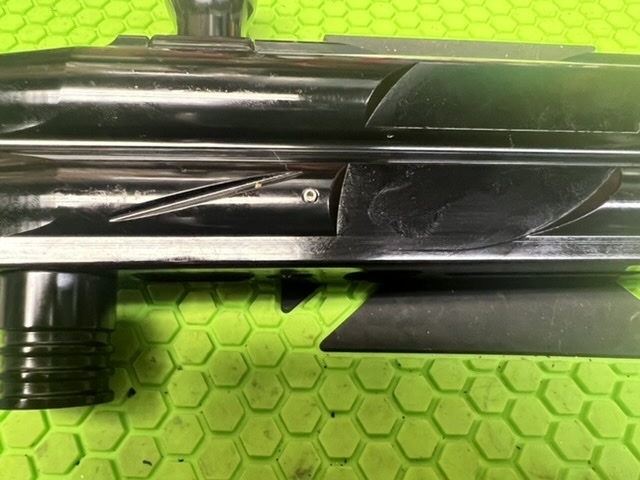

So the most notable aspect of these markers is the ubique and rather strange method of feeding balls. Instead of having a standard ball stack, letting balls fall into breach, the feedneck has a noticeable offset to the side of the marker.


In this offset are two long “planks” that I shall now refer to by their more technical name: “ball slappers”. As you can guess by their technical name, the ball slappers slap the balls into the breach.

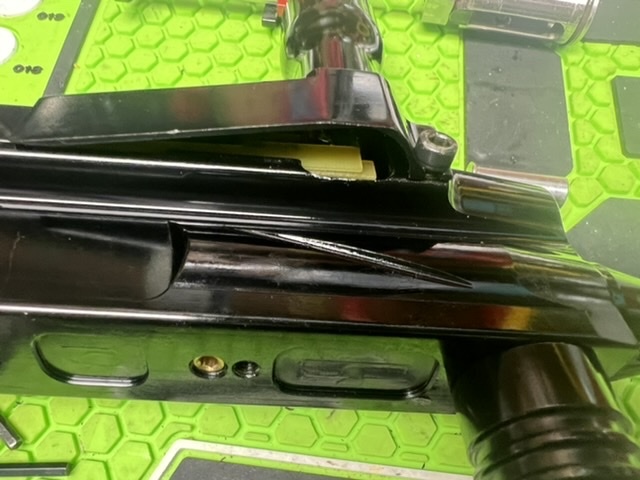

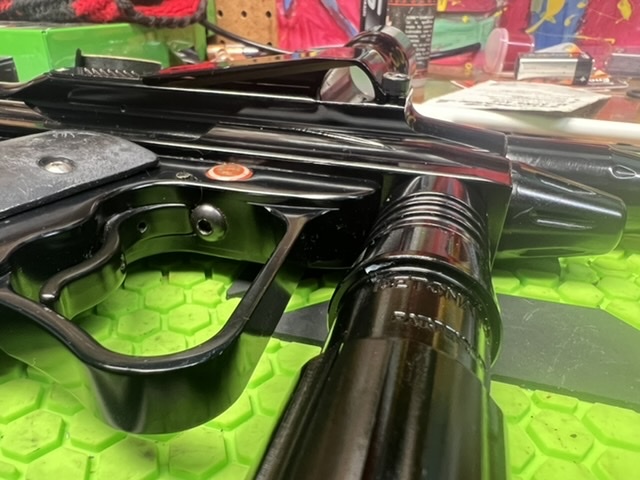

And the feedneck itself is secure by an Allen bolt. Once release the entire feed system swings up and out of the way, leaving the ball slappers completely exposed. So in a way, it’s kind of like an Angel breach, except much rougher on your balls.


[Cdn_Cuda]

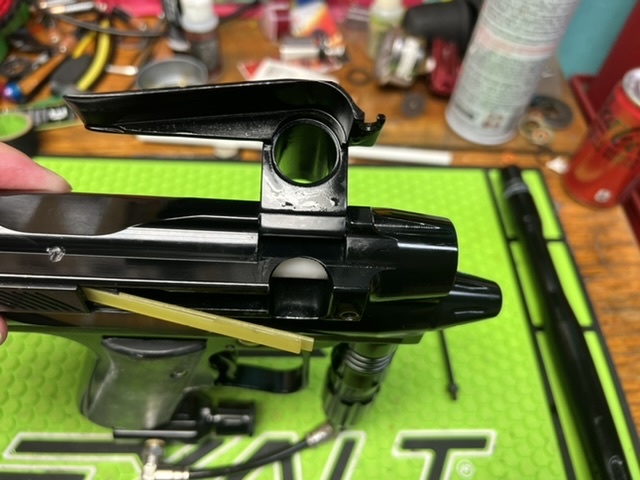

So when the bolt is forward, the ball slappers is at rest.

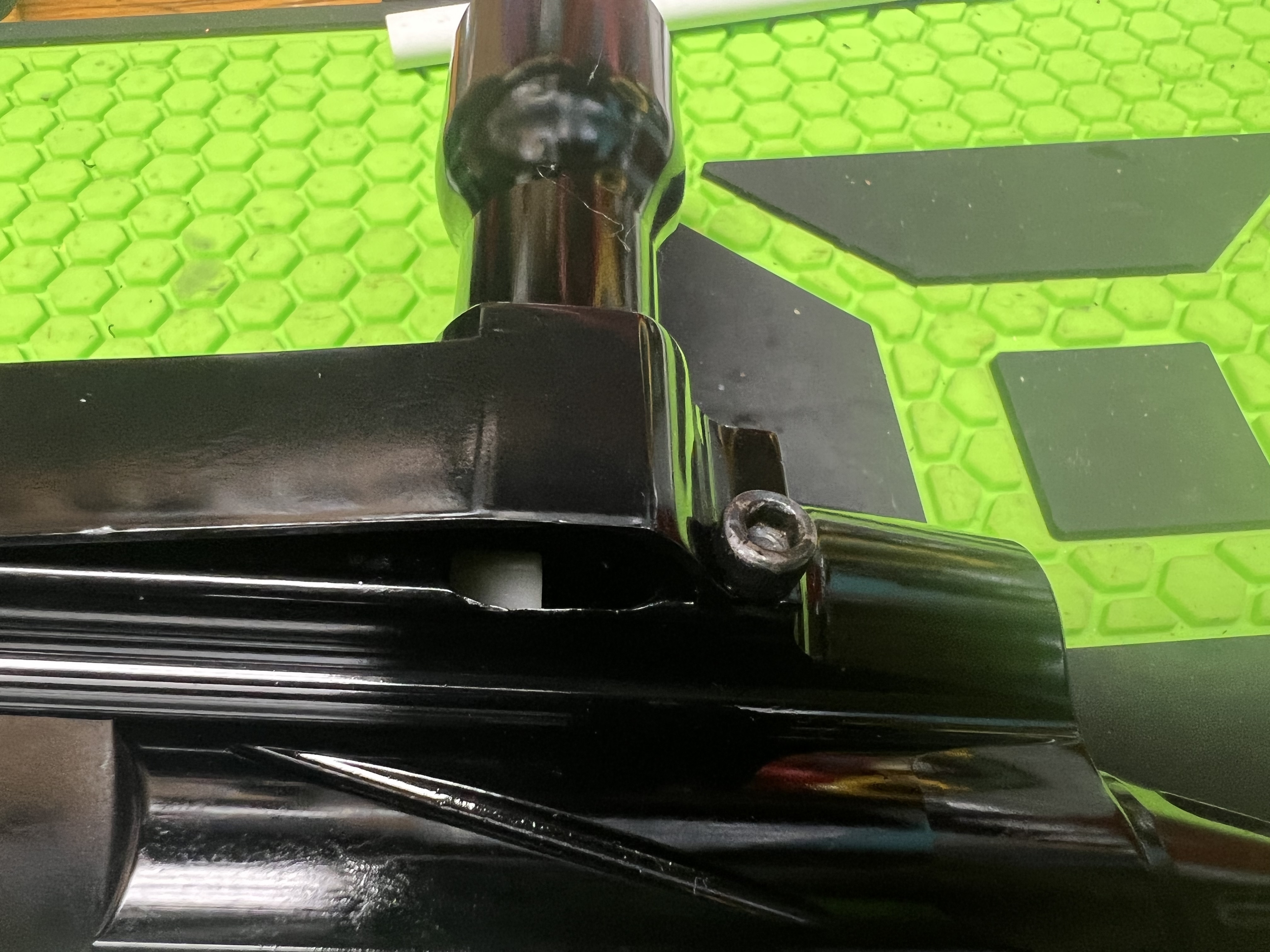

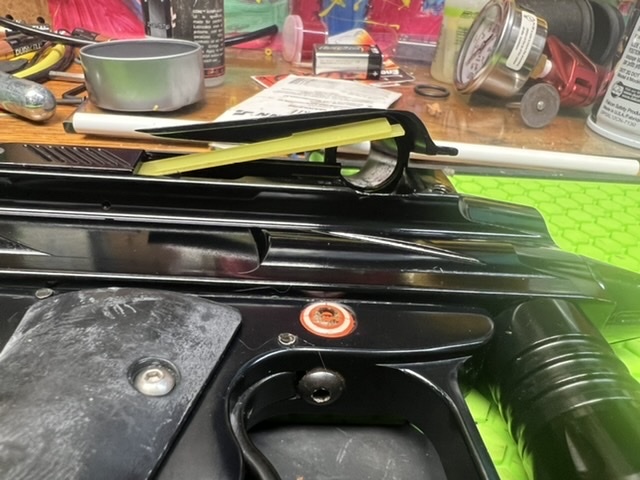

So in the picture below you can see the white of the bolt at the breach:
Once the bolt moves backwards, it triggers the cam in the body (will show this later in the disassembly) and the ball slapper slaps the ball into the breach and hold it there until the bolt returns forward. Yes, this loveable oddball is actually a closed bolt shooter!

[Cdn_Cuda]

So now that we’ve gotten our balls slapped around a little, let’s continue with the disassembly.

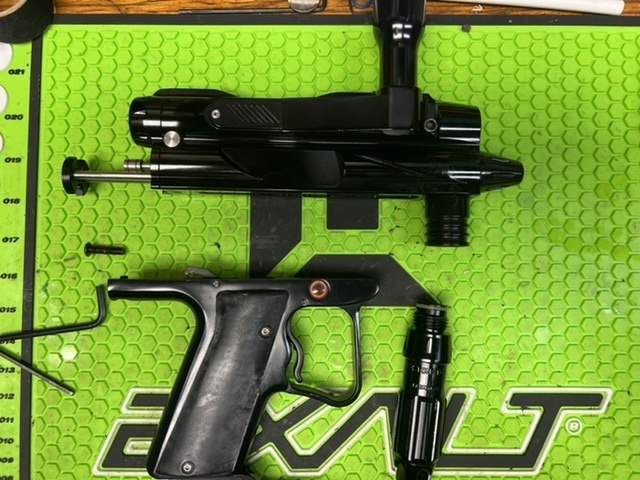

The grip frame uses the standard two-screw layout. There are no eyes on the marker, so the frame separates easily. The Evil Detonator reg comes off easily as well and the body is free.

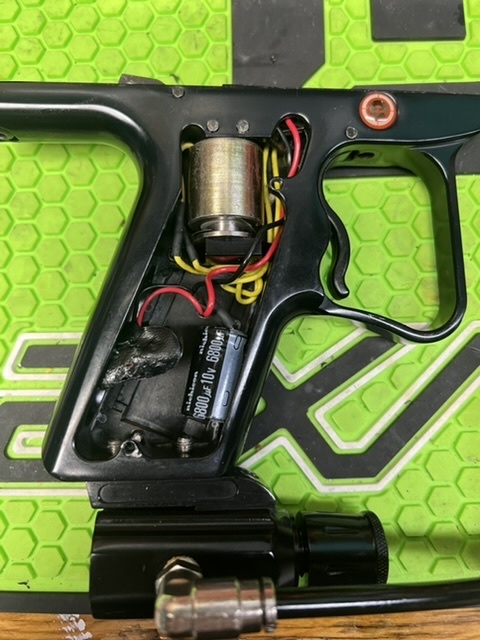

5CFB1DBC-9E16-456E-9319-71375B32FB8C.jpegThe grip frame is nothing fancy, and has room for a capacitor and a battery, and the board is along the top of the frame, as you can see by all the wires.

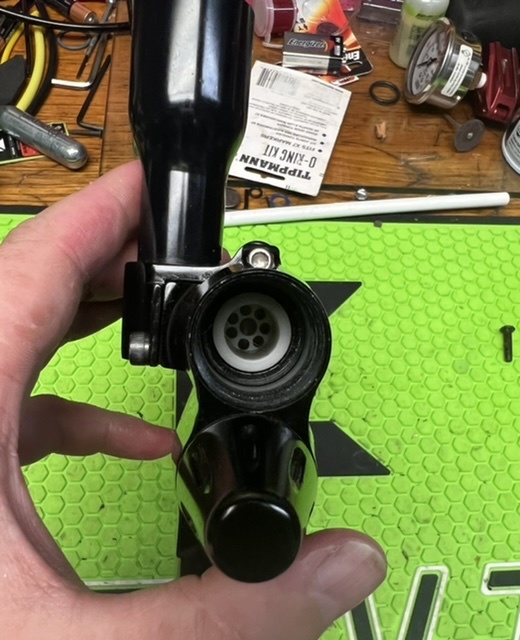

You can the pop the quick release pin in the body and slide out the internals:

[Cdn_Cuda]

At this point, the valve is still in the gun, as well as the valve spring and pin. There’s a bit of a secret with the valve that I initially missed, but I’ll cover that later.

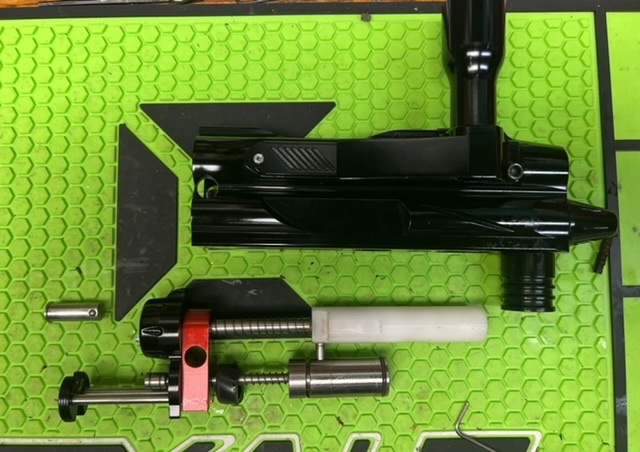

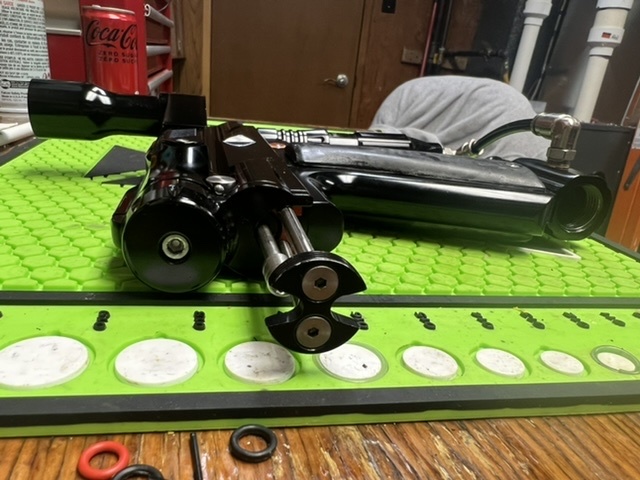

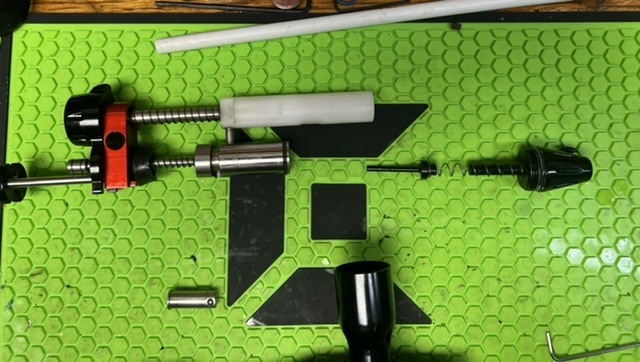

For now, let’s look at the bits and pieces we just removed. I have also removed the front air chamber, which contains the valve spring and pin:

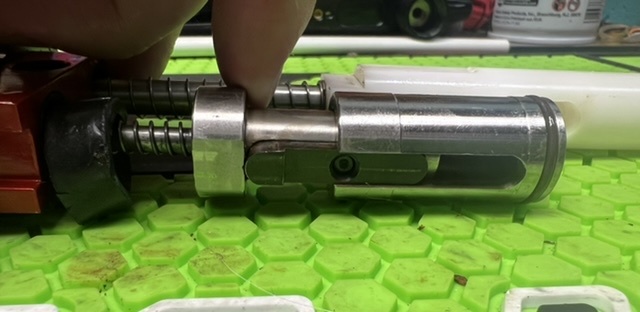

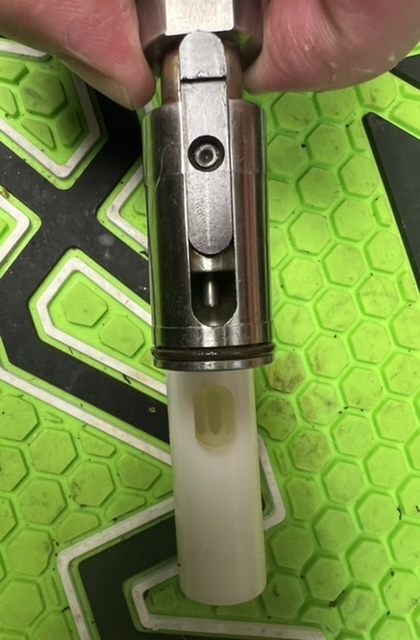

Overall it looks pretty Spyder-like, until you notice the hammer, which has two pieces:

To be perfectly honest, I don’t really understand why they used a two-piece hammer, other than to all you to cock the hammer without slapping any balls into the breach. But it alls for a much cooler way to cock the marker than a standard Spyder:


Simply yank that middle rod and you cock the hammer, similar to an Autococker.

[Cdn_Cuda]

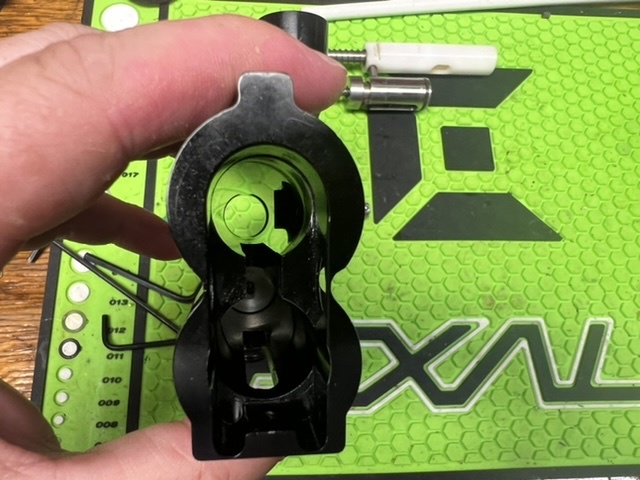

Now let’s turn our attention back to the body for a
monent, as we’ll need to take a look at the cam that activates the ball slapper:

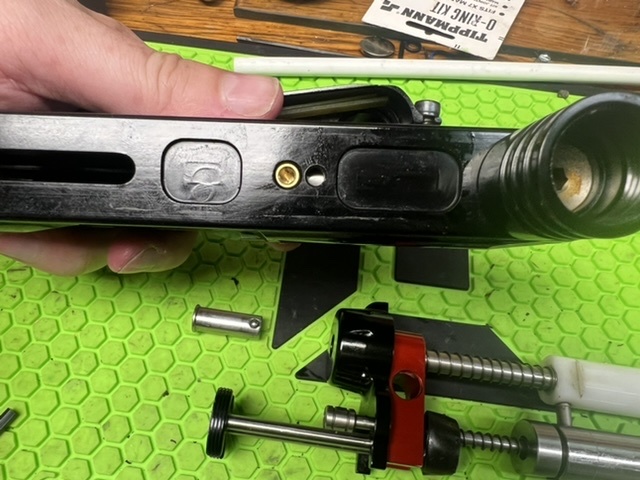

3A4023BD-807F-49F5-890F-027EA6C03056.jpeg As you can see, it’s located on the right side of the body along the outcropping for the feed. As the bolt passes by this cam, balls are advanced into the breach.

So the final part still in the body is the actual valve itself. It looks fairly similar to a Spyder or cocker vavle, but has a side passage in it. As it turns out this is a very important detail.

As is standard for cocker and Spyder bodied, there is a valve retention screw in the bottom of the body:

I foolishly thought that was all I needed to remove to get the valve out, but the darn things was jammed in tight. Even hammer it with a dowel didn’t make it budge…. And that’s where the little screw on the other side of the body comes in:
The wee little bugger, that is very easy to overlook, is actually a second valve retention screw. Not sure why they were so worried about the valve moving, but thankfully I did not damage the long grub screw to the point where I could not remove it. Don’t be me and whack the valve with a hammer repeatedly!

shooter311 clarified that this screw is for setting the recocking of the marker. It should be screwed in at the beginning of the day, and adjusted by making quarter turns to ensure marker recocks softly enough. If set too far out, the recock is too strong and it becomes a paint blender.
