    Jeepers single shot PGP build

    It seems the PGP fever is making its way around again, so I might as well share what I'm doing with the rest of the class.

    Inspired by a recent repost of the Freaky thread, Ive decided to take on the challenge, and add my own personal flair to it along the way.

    So just like many others, I disassembled the PG, and clamped it down in a vice. I evenly heated each joint until I could see the solder running out, then heated a little more and popped the joints using a wooden dowel in each tube as to not scratch anything. While the tubes were still hot, I scraped as much solder off as I could. Less to file off later.

    Then started to clean up the tubes with some wet 150 grit. I sanded and sanded, until finally the tubes started to fit together. So then, I cut down the old feed tube to spec and the insert fits perfectly.

    More to come as I get around to it. Still waiting on one important puzzle piece before any major progress will happen.
    Last edited by JeeperCreeper; 05-10-2022, 09:49 PM.
    Egg Force Hopper
    Ion Long Rifle
    Spyder Pump the easy way
    BST Feedback
    Freak PGP

    #2
    Everything fits like a glove.
    Egg Force Hopper
    Ion Long Rifle
    Spyder Pump the easy way
    BST Feedback
    Freak PGP

    Comment


      #3

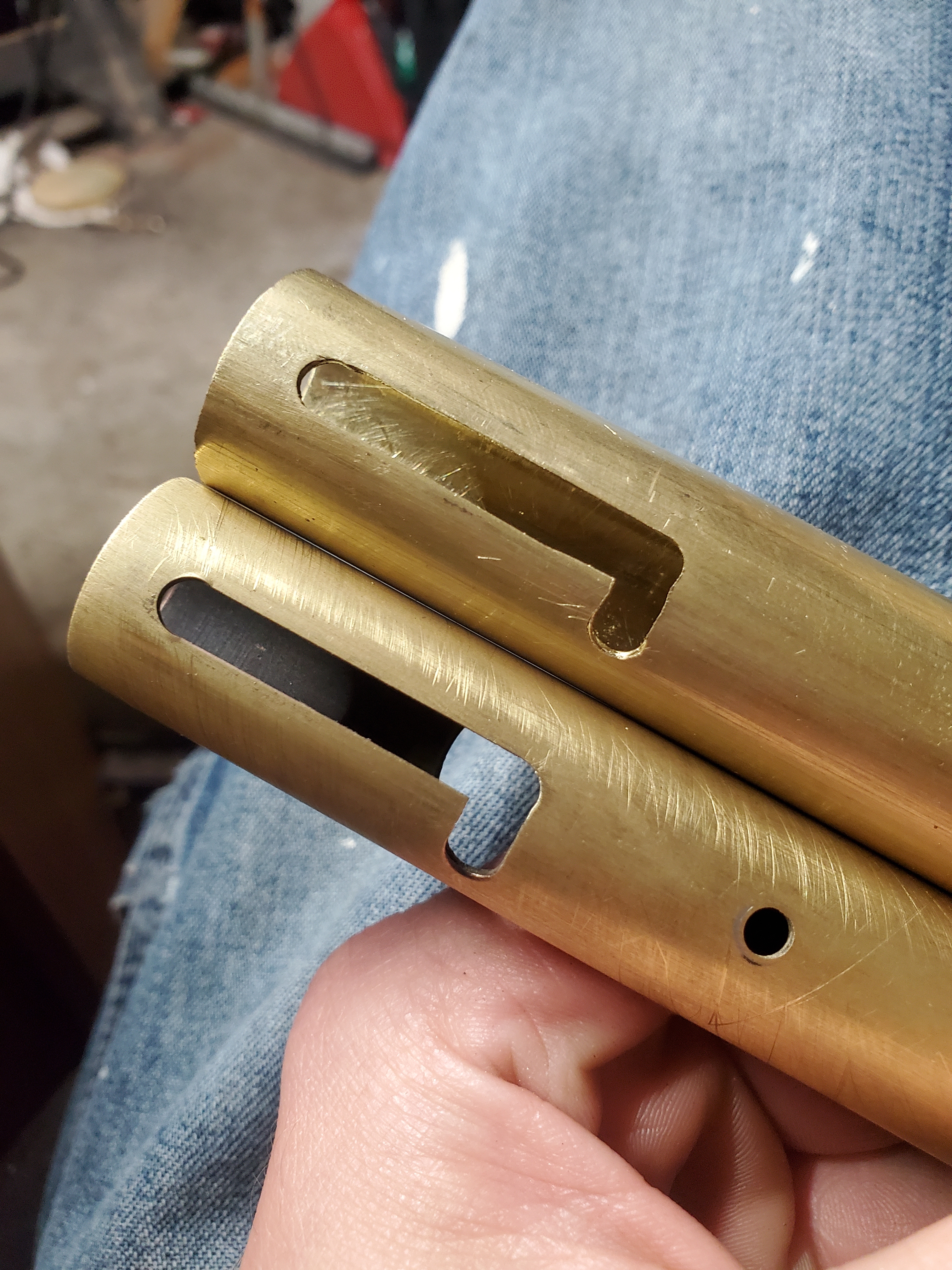

      Got the main slot cut today. It's not precise, but it will work, and it matches the original close enough.
      Attached Files
      Egg Force Hopper
      Ion Long Rifle
      Spyder Pump the easy way
      BST Feedback
      Freak PGP

      Comment


      • WALZ

        WALZ

        commented
        Editing a comment
        Looking good...

      #4
      Got my bolt in. It's a Speed Demon for a larger model Sheridan. I chose this because it will make this PGP centerfire, as in the air will push on the middle of the back of the paintball, instead of pushing upwards on the back of the ball, like what happens on a normal PGP. The centerfire will aid in getting fsr out in one piece, and will be more consistent for roundball.

      Now I cut my breech to accommodate this bolt, it will push the paintball right into the bore insert (which is pretty close to the measurement from the Walz Freak how to) so I shouldn't need detents. Check back soon, I'm sure I'll have updates in no time.
      Egg Force Hopper
      Ion Long Rifle
      Spyder Pump the easy way
      BST Feedback
      Freak PGP

      Comment


        #5
        Got my detent holes drilled on the internal breech section, everything is cut and ready for the hot stuff (I know I still have to clean up the bottom tube.)

        With this tip, I have a total length of 10.5" for the whole top tube, but only about 7" of actual barrel.

        Next update will either be good, or very bad. We will see what Velcor decides. With some helpful tips i got from WALZ, and probably a few others here, I'm confident I can stick these 2 tubes together. It's just a matter of how many attempts it's going to take. See yall soon.
        Egg Force Hopper
        Ion Long Rifle
        Spyder Pump the easy way
        BST Feedback
        Freak PGP

        Comment


          #6
          Good from afar, far from good. It is stuck together, but it's a mess. I should have picked up smaller gauge solder, but I work with what I have. Some file work and this will look just fine after.
          Egg Force Hopper
          Ion Long Rifle
          Spyder Pump the easy way
          BST Feedback
          Freak PGP

          Comment


            #7
            Time to cut the feed hole. I made sure it fell between the orings for a good seal. I got the rough hole cut out, just need to grind it down.
            Egg Force Hopper
            Ion Long Rifle
            Spyder Pump the easy way
            BST Feedback
            Freak PGP

            Comment


              #8
              Just gonna leave this here. Thanks for the valve rebuild AnarchicArctic
              video, sharing, camera phone, video phone, free, upload
              Egg Force Hopper
              Ion Long Rifle
              Spyder Pump the easy way
              BST Feedback
              Freak PGP

              Comment


              • AnarchicArctic

                AnarchicArctic

                commented
                Editing a comment
                No problem, glad it’s up and running now!

              #9
              Quick strip slot cut
              Egg Force Hopper
              Ion Long Rifle
              Spyder Pump the easy way
              BST Feedback
              Freak PGP

              Comment


                #10
                Ghost ring front sight added, rear drilled and tapped for stock sight
                Egg Force Hopper
                Ion Long Rifle
                Spyder Pump the easy way
                BST Feedback
                Freak PGP

                Comment


                  #11
                  Started my barrel retention idea. 5/16 tubing on the side, with a pin inside the end on the tip to align the sights perfectly every time. Just needs a set screw drilled and tapped.
                  It's also a throwback to the old Colt Army revolver ejector rod.
                  Egg Force Hopper
                  Ion Long Rifle
                  Spyder Pump the easy way
                  BST Feedback
                  Freak PGP

                  Comment


                  • Chuck E Ducky

                    Chuck E Ducky

                    commented
                    Editing a comment
                    Great idea keeps the top clean to.

                  • WALZ

                    WALZ

                    commented
                    Editing a comment
                    Nice, I like your barrel retention system,
                    Coming out real sweet...

                  #12
                  Started grinding down excess solder and polishing.
                  Egg Force Hopper
                  Ion Long Rifle
                  Spyder Pump the easy way
                  BST Feedback
                  Freak PGP

                  Comment


                    #13
                    Quick tip for anyone with a Sheridan with RVA, if you lost your ball bearing for the spring, a 6mm bb will fit perfectly.
                    Egg Force Hopper
                    Ion Long Rifle
                    Spyder Pump the easy way
                    BST Feedback
                    Freak PGP

                    Comment


                    • BrickHaus

                      BrickHaus

                      commented
                      Editing a comment
                      Airsoft saving paintball? Whaaaa?

                    • XEMON

                      XEMON

                      commented
                      Editing a comment
                      Nice one đź‘Ť

                      A cut nail also works well, and keep the spring straight ...

                    • Chuck E Ducky

                      Chuck E Ducky

                      commented
                      Editing a comment
                      I’m missing mine to I know I can find one of those on the ground at APE.

                    #14
                    Polished up. I left a little of that copper layer on the bottom tube, just to see how it's gonna patina. I'm pretty happy with this. It shoots very consistent, and it was doing good with a .682 insert with some leftover Graffiti. Then I tried out the First Strikes. This thing makes me giggle. I can't wait to build another. Stay tuned.
                    Egg Force Hopper
                    Ion Long Rifle
                    Spyder Pump the easy way
                    BST Feedback
                    Freak PGP

                    Comment


                      #15
                      Round 2...
