Clear part kit for PGP - interest thread

[jdgreen76]

How about some clear grips to finish it all off? All of that would look so classy on a nickel plated PGP

I'd take a pair of those too 😆

[XEMON]

If you can whip up a feed plug with a parabolic tip on it, a front feed plug, and this pump handle, it would be a dope upgrade kit for the pgpness.

That's the plan 😅
I've tried bolts but they don't hold up ...

How about some clear grips to finish it all off? All of that would look so classy on a nickel plated PGP

I've been struggling making a good cad file for them, but I have plans to cast some metals one ... Aluminum, maybe copper and brass 😁


Ok ... Given the enthusiasm, I'll make a first batch and figure it out from here 😜
As always, thank everyone for the support

[JeeperCreeper]

Cast ones would be awesome! Especially if you could do the PMI style palm swells

[XEMON]

That's the plan, how did you read my mind 😜

[XEMON]

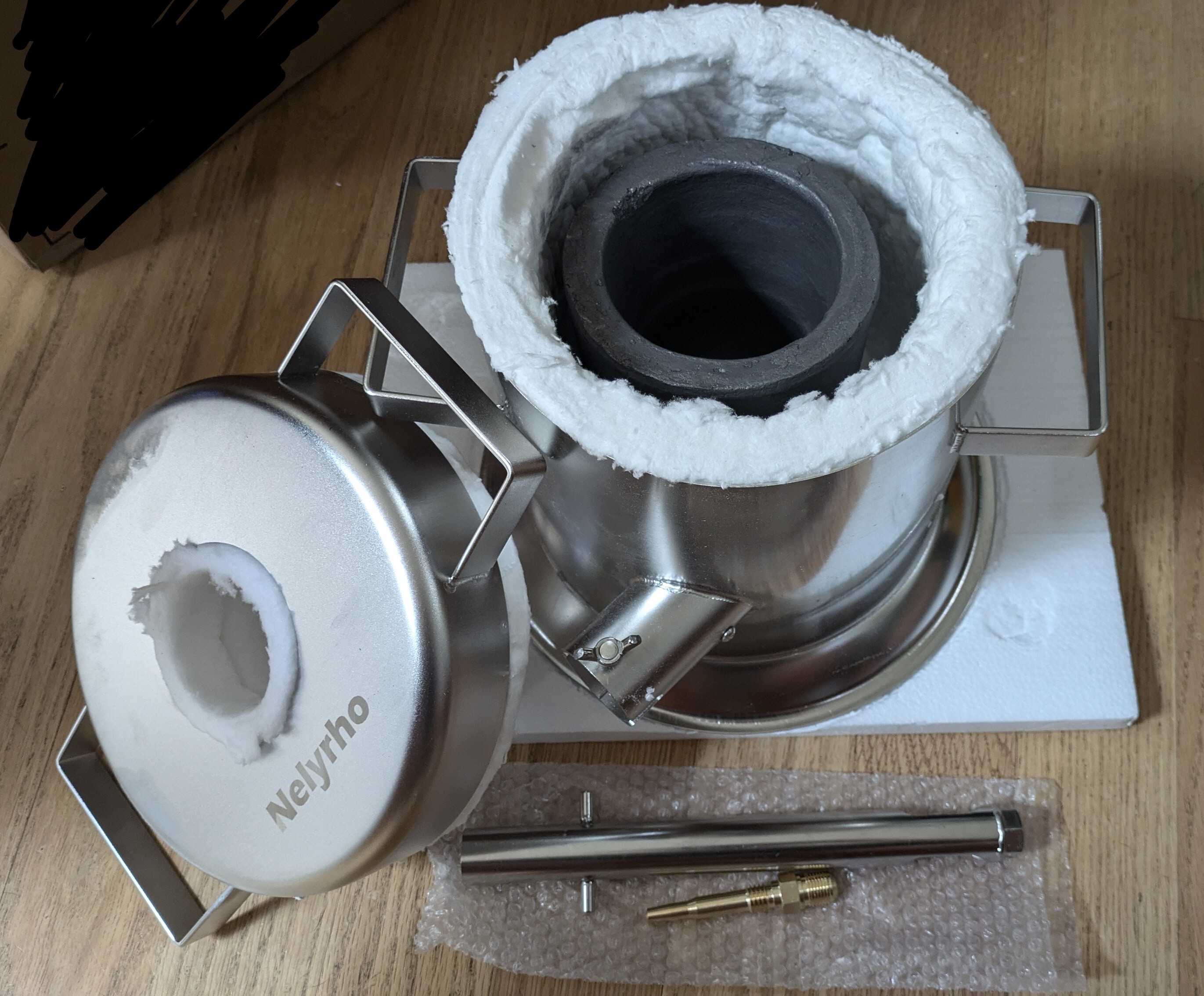

I have plans to cast some metals one ... Aluminum, maybe copper and brass 😁

One step closer to those grips 😅

[JeeperCreeper]

I have one of these somewhere, maybe I should try it out some time

[XEMON]

I would like to incorporate a threaded insert to help longevity at the pump arm threads, but i will need to make some custom tooling and a bit more R&D to make it fit properly ...

Checking inserts sizes, they are all too big to fit this close to the body 😒
So, i have 2 options:
1) same as above, but pumping like Godzilla will rip the threads off the handle
2) having a bolt run inside the handle and a coupling nut recessed in the back for the pump arm to thread into. It will be a lot more sturdy, but not quite as clean of an aesthetics.


Any thoughts?

[BrickHaus]

What about a heat set insert, i know you had issues with it blowing out with heat, but what if you made an almost clearance fit. Then made the hole stepped from the front. You would have the insert slide in on the front of the grip on a raised plane. then epoxied? Then it would have material to support it, and it would be plenty sturdy.

[XEMON]

CNC kitchen did an awesome video on fitting them on resin parts, but I've had very bad results... No matter what I tried 😕
Heat set insert have very small lip, so they can pull through and resin ten to dramatically explode when failing ... I have a "through bolt" one printing, it's gonna be with the hardware I have on hand (silver) but I sourced all the hardware in brass if I go that route.

[jdgreen76]

I'm one for sturdy 🤷

[XEMON]

I'm one for sturdy 🤷

after thinking on it, thats is where im going for the first batch. I feel more comfortable selling them with the sturdier hardware.
Good news is i found all the hardware in brass so it will match the PGP. But I have stainless hardware on hand, so the second prototype will have stainless hardware 😁

[Trbo323]

I'd be interested in figuring out the price for clear for the parts you are working on for me right now. I mainly chose white because I didn't think there was a good clear option out there.

Sent from my motorola edge 5G UW (2021) using Tapatalk

[XEMON]

Let me figure out the process first then I'll do whatever you want in it 😜
Seriously, I can give it a go, but I need the process first 👍

[XEMON]

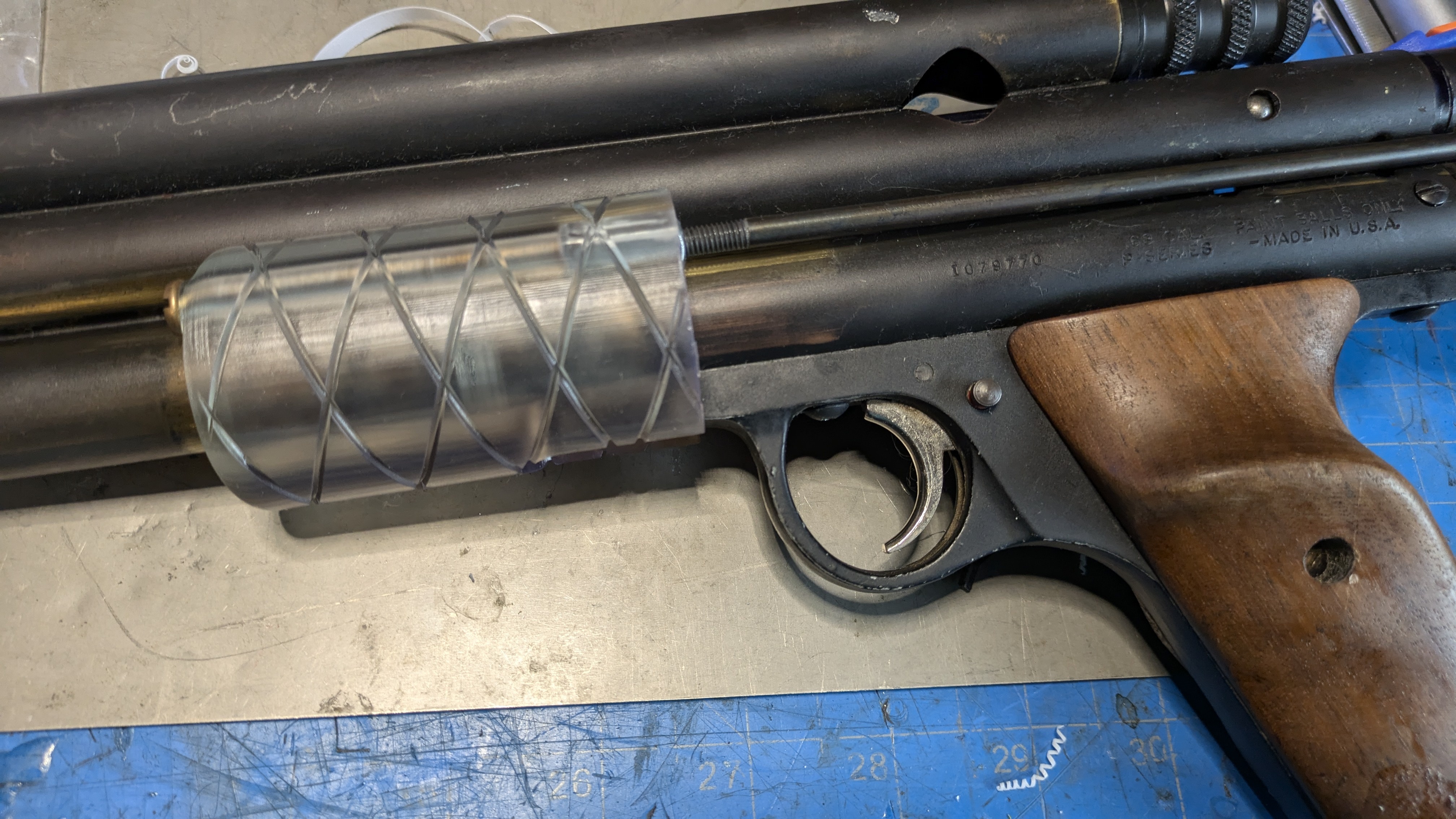

Ok, got some issues and needs a bit more sanding before coating, but the hardware is more discreet than I was worried, so I call that a winner 🥳

I'll get started on a batch and have more details and pricing shortly 👍

[Trbo323]

H

Sent from my motorola edge 5G UW (2021) using Tapatalk

[XEMON]

Dam 😓

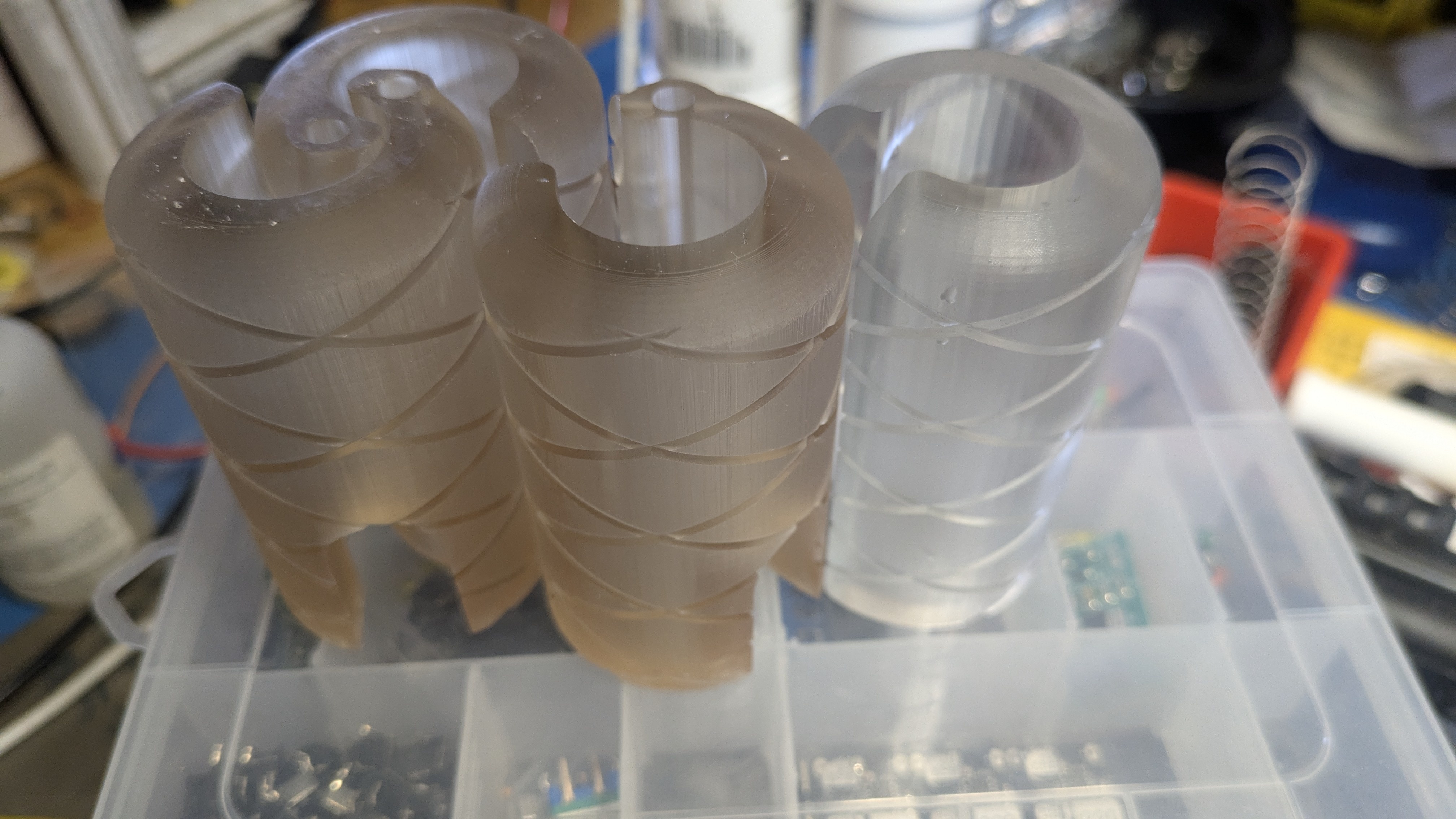

My new curing station spit fire, the first batch printed great, but turned a bit brown in the curing ... I need to dial it back just a tad 😅

[netsurferdude2]

I wouldn't mind a darker one!

[Havoc]

I kinda like the brown ones

[XEMON]

Alright alright ... I'll finish them, and it's gonna give a good excuse to price it out all the way and see how my process unfold 😁

[Trbo323]

..... If it's a cartridge valve..... Could the whole body be printed clear?

I know I just set a lot of wheels turning

Sent from my motorola edge 5G UW (2021) using Tapatalk

[XEMON]

There is no way the polymer can hold the 12g in place ... but you could have some large windows underneath ...

[Drunkscriblerian]

..... If it's a cartridge valve..... Could the whole body be printed clear?

I know I just set a lot of wheels turning

Sent from my motorola edge 5G UW (2021) using Tapatalk

Bruh....that's a dope idea!

Heck, even just having the top two tubes clear would be cool.

[XEMON]

I made 2 CF-PGP, one of them with both top tube 100% carbon fiber ...
I have some clear tubing to make a feed tube, but im not sure about the barrel ...

[Trbo323]

XEMON saw your comment eventually.

This is MCB man, we can find a way to hold a 12g in

Sent from my motorola edge 5G UW (2021) using Tapatalk

[XEMON]

Got 7 or 8 good ones 🥳

And a few failed that are far enough to use as tester 😅

[Trbo323]

What is that you used for color?

Sent from my motorola edge 5G UW (2021) using Tapatalk

[XEMON]

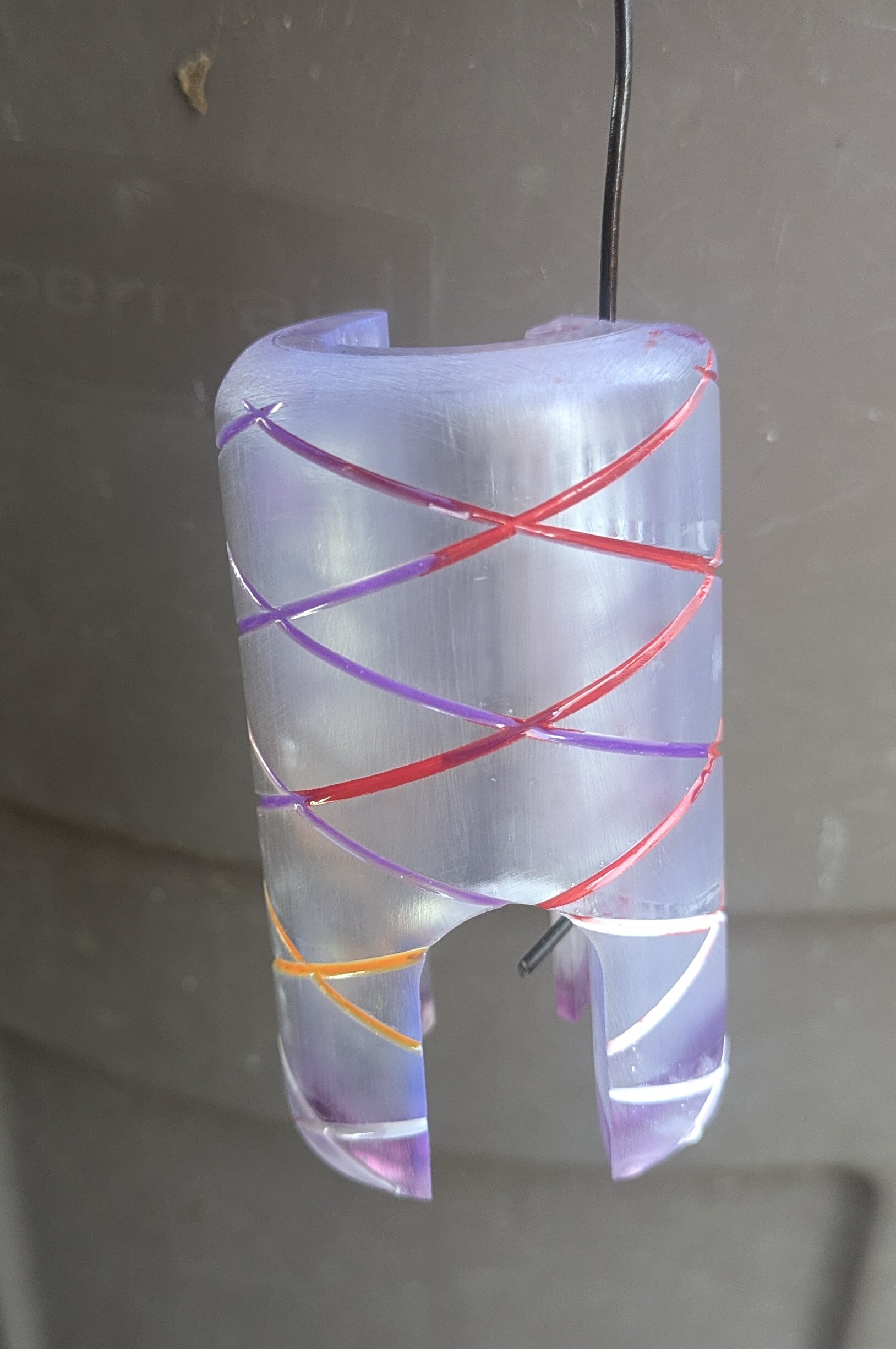

This is UV cure nail polish, it's expensive but I've had great results using it to highlight recess on prints.
