Just got my first brass marker and I could use advice

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    #16

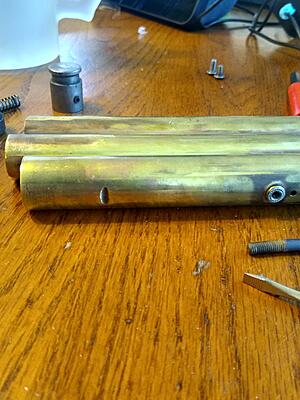

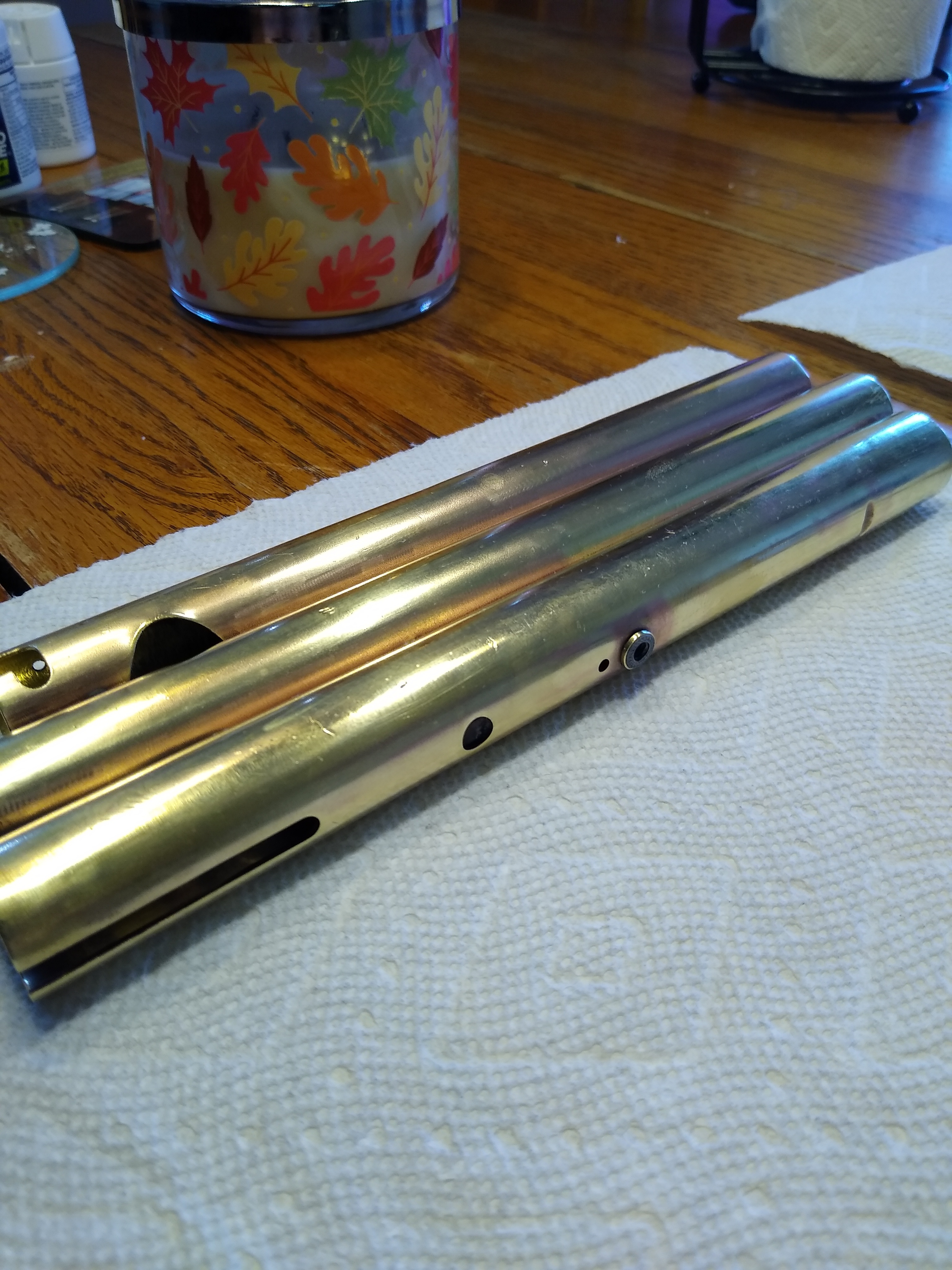

    So I just noticed this divot across the lower tube. I'm guessing this is to keep the pump handle in the forward position? It looks like a bb from an airgun might fit nicely in this spot if I drill out the pump for one. Am I reading things wrong or on the right track?

    I've got a valve tool coming as well, so I'll be sure to update things once I can get to the bottom of the the issues from yesterday. Velocity was ranging from 160-260 one shot after another, with the sound signature varying from a quiet putter to a loud pop, I'm guessing that some brasso has gunked up the valve but there's no real way to know yet.
    Last edited by Impactfour; 06-26-2022, 12:54 PM.

    Comment


      #17
      I have the matching pump, you will need to find the bearing and the spring. Pm me
      Egg Force Hopper
      Ion Long Rifle
      Spyder Pump the easy way
      BST Feedback
      Freak PGP

      Comment


      • Impactfour

        Impactfour

        commented
        Editing a comment
        Sounds like a deal!

      #18
      So I was able to get the valve out today, it was definitely gunked out from some very dirty brasso (lesson learned haha). That being said, I wanted to ensure it was set up properly before putting it back in for trouble shooting.

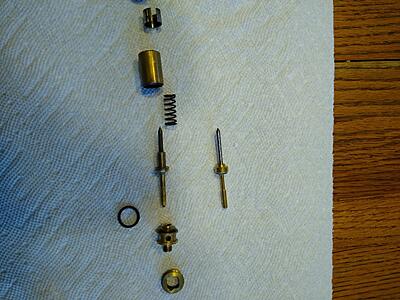

      Could anyone confirm the parts are laid out properly? I also was wondering if the valve pin placed off to the side (from the PPS seal kit) would be a better option than the pin I'm currently using?

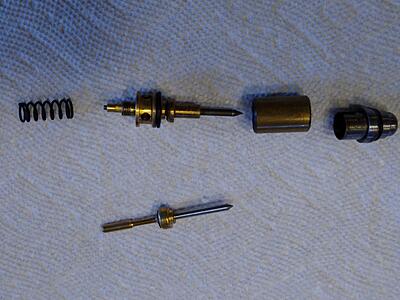

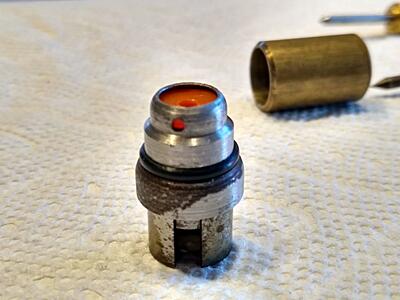

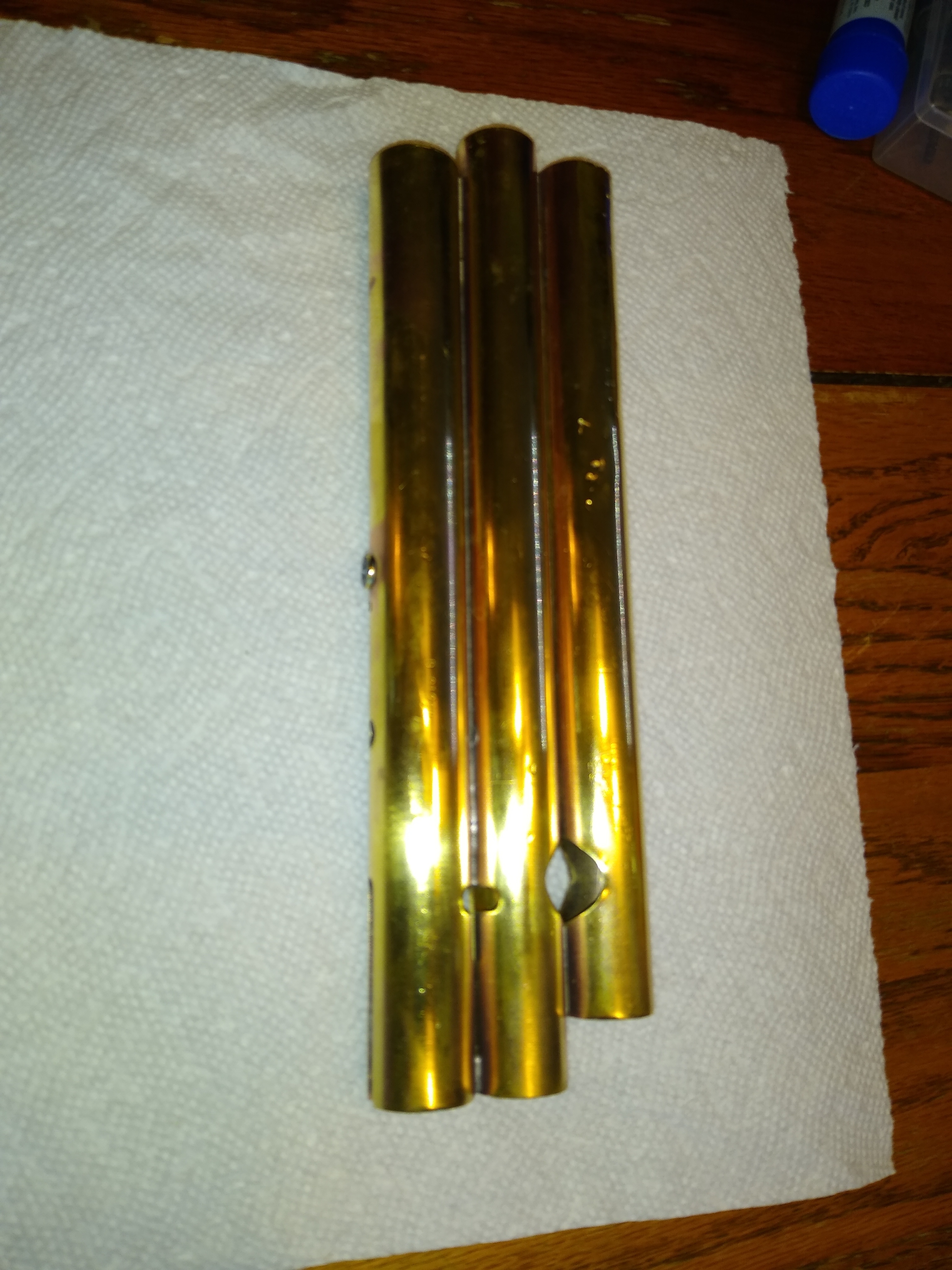

      The first and second photo shows the layout of the valve parts as best as I could tell they want to lay. The third photo show how the cup seal is currently sitting. The last two photos are just to show off how shiny I was able to get the marker with today's polishing efforts.

      Comment


        #19

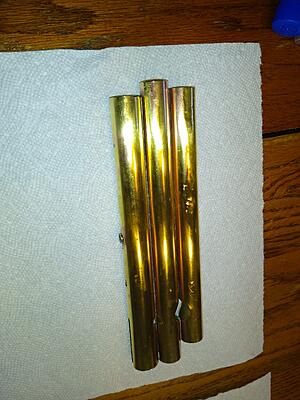

        Photos 4+5
        Attached Files

        Comment


          #20

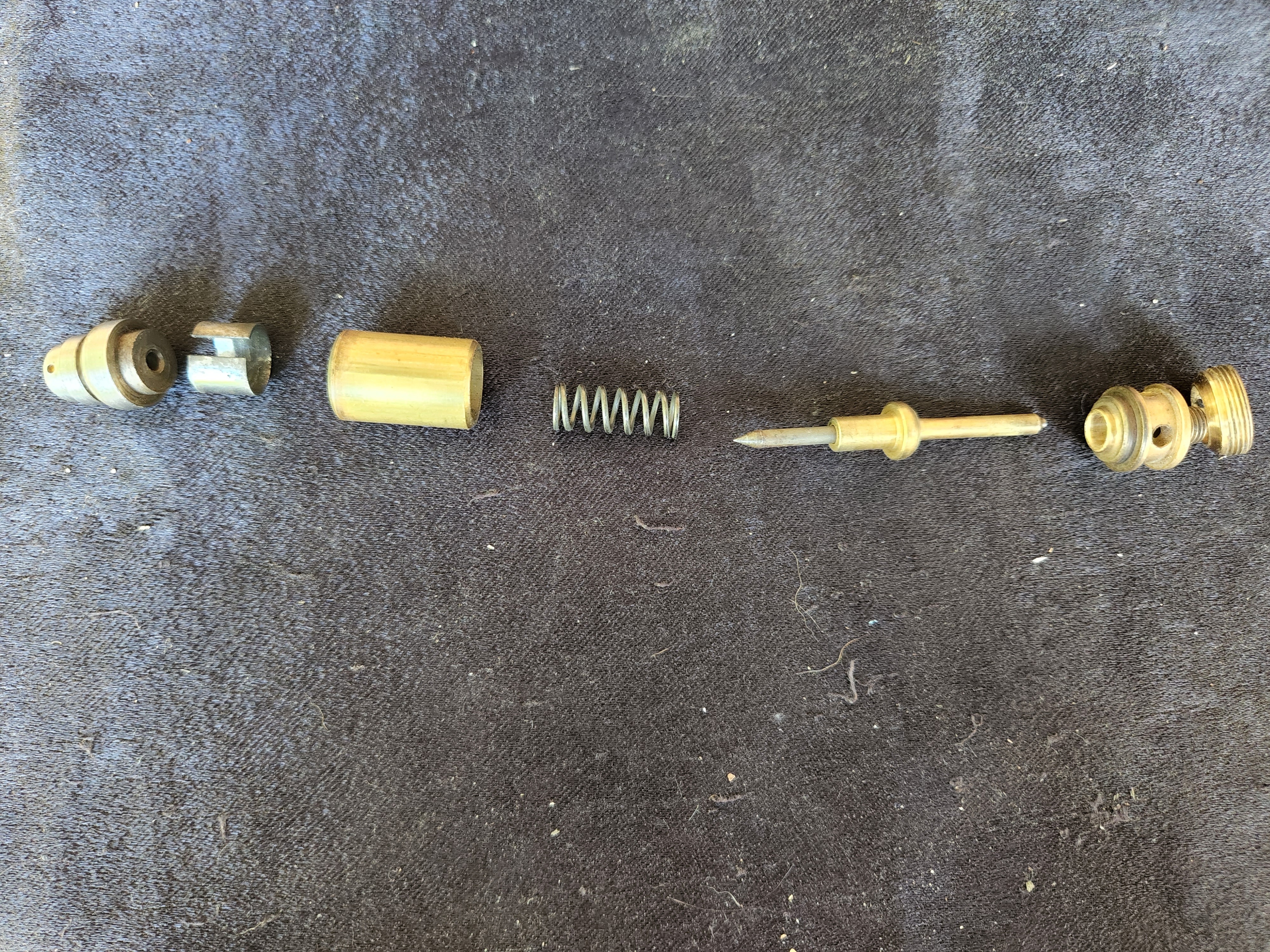

          This is the order
          Attached Files
          Egg Force Hopper
          Ion Long Rifle
          Spyder Pump the easy way
          BST Feedback
          Freak PGP

          Comment


            #21

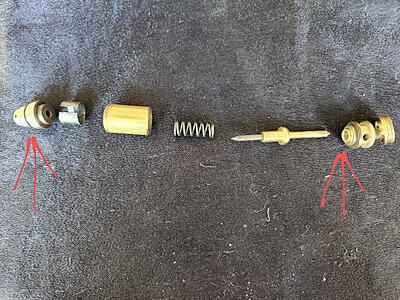

            Of course I forgot, you need seals here and here
            Egg Force Hopper
            Ion Long Rifle
            Spyder Pump the easy way
            BST Feedback
            Freak PGP

            Comment


            • Impactfour

              Impactfour

              commented
              Editing a comment
              Well I just put it back together and put a couple of rounds through it, seems like just getting the gunk off it got it shooting much better. Hopefully this upcoming week I can clean up a few more pieces, and drill out the feed tube. Almost there!

            • JeeperCreeper

              JeeperCreeper

              commented
              Editing a comment
              It's amazing how simple they are. Just a good cleaning and some oil goes a long way with these

            #22

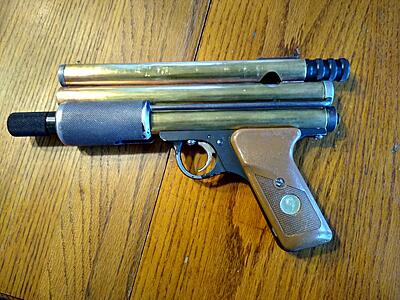

            JeeperCreeper generously hooked me up with a new pump handle bored out for a bb bearing, a front sight, and an entirely new trigger frame with a safety. With the PPS parts I got, this is how the marker currently sits.

            I was able to cut down a mechanical pencil spring, and used a .177 bb as a bearing in the new pump, it works brilliantly. I'll drill out the plastic pump I started with to match in case someone else needs a pump with a bearing.

            I plan to drill an allen key hole in the new frame, but
            I'm debating painting this one matte black rather than gloss, any thoughts would be appreciated. On a related note, does anyone know how to remove the safety from the grip frame?

            I also did a bit of research and found that drilling brass is a little more complex than I expected from my experience with aluminum and stainless. Apparently entirely different bits are required, so I was thinking I should get some practice first. Anyone have a good source for a comparable tube of brass to practice drilling on?

            Comment


            • Carp

              Carp

              commented
              Editing a comment
              That there, is a quite capable looking..... Click, Clack, Blooper. đź‘Ť

            • Impactfour

              Impactfour

              commented
              Editing a comment
              I sure hope so. The first time I brought it out the valve was gunked up with brasso (oversight on my end), so tomorrow will be the real test to see if it performs as well as it looks. If I fall in love I think I'll get a brass k frame.
              Last edited by Impactfour; 07-08-2022, 09:15 PM.

            #23
            So I brought it to the field a few times and haven't found a way to get it shooting above 240 fps or so. Screwing the RVA in beyond this point would cause a complete fps drop off.

            Is this normal and should be expected, or will replacing the main or valve spring result in a higher fps?

            Comment


            • Carp

              Carp

              commented
              Editing a comment
              Have you tried putting a ball bearing/shim behind the main spring yet? I have had success raising fps with just shimming, between the RVA and the spring.
              Edit.. shimming may not work with a stock rear plug converted RVA. How long is the adjustment screw?

            • Impactfour

              Impactfour

              commented
              Editing a comment
              There's already a ball bearing in the RVA, maybe some more shimming will do it. I'll have to measure the adjustment screw when I get home, but it's currently nearly all the way dialed in if I give it another half turn or so the marker barely makes a sound and paint come out quite slow.

            • Impactfour

              Impactfour

              commented
              Editing a comment
              So the adjustment screw is 1/2" the ball bearing looks like it's 1/4" or 6mm. Either way, when screwed in just short of flush with the cap it hits about 240 fps, any further and it barely functions.

            #24
            Sounds like your brass needs a bit more work to get up to speed. This is odd as typically these baddies shoot fine on co2. People usually report low 200s when switching to hpa. I think you just need a new hammer spring from the sounds of it. You are at the point of the hammer loading up against the RVA so you can't get enough tension to open the valve enough.

            You can find a combination of stiffer drive spring, or lighter valve spring to allow the valve to open more and or increase dwell time. The issue is you find a super stiff drive spring and your pump stroke is harder.

            Your valve spring being too soft causes you to run into potential leaking issues.

            8s start by finding an equivelantish spring to replace the hammer one, and start there.

            You may have to open the air transfer ports up slightly on your valve as well. But I'd start with the spring.

            Another thought is you arent piercing the co2 enough. The pierce pin lengths are all over the place. If you are just pin holing your 12ie you may be running on starved air.

            Comment


            • Impactfour

              Impactfour

              commented
              Editing a comment
              I'm gonna peek through my spring collection tomorrow and see if I have anything that matches the valve or hammer spring. While I'm at it I'll run a few 12 grams through it and see how well they are pierced.

            • Spider!

              Spider!

              commented
              Editing a comment
              There should be enough space in the valve chamber to render any pierce size adequate. Iirc, BretG had often said smaller is better, which I firmly believe on normal configurations.

            #25
            Yeah I definitely feel like it should hit at least 260. Might be a weak hammer spring. I've also heard somewhere some of those PPS valves were just barely too short to properly pierce the 12g, maybe someone can verify
            Egg Force Hopper
            Ion Long Rifle
            Spyder Pump the easy way
            BST Feedback
            Freak PGP

            Comment


              #26
              One thing that is hard to grasp is that some valve stems are about a tenth of an inch longer than they need to be. That robs the hammer and main spring of usable energy. You only need between .25 and .31 of and inch of valve opening, .375 or more is not useful on a short barreled co2 marker.

              I grind them down about .090". That sounds small, but remember what kind of adjustments you use on the rva.
              Feedback

              https://www.mcarterbrown.com/forum/b...der-s-feedback

              Comment


                #27
                Well I'll be sure to keep these things in mind when I can get in front of a Chrono.

                So far the suggestions are:
                Piercing 12g too little (could be this based off small holes in spent 12gs I pulled out of my dump pouch)
                Main spring too weak/valve spring too strong
                Valve stem is too long


                For now I've got two valve pins and two valve springs to experiment with. I figure I'll bring the springs, pins, calipers and sand paper to the field.

                First 'fix' will be messing around with the pins to see if one pierces better and makes a difference.

                Second 'fix' will be mixing the valve springs up, and potentially main spring if I can find a replacement.

                Last ditch effort will be shortening on of the valve pins as described by spider, as it's the most permanent.

                I'll let you all know how I fair. If none of these solutions work out I'll come back to the idea of opening up the valve for better airflow.

                Edit: I'm also looking into chronographs, so I can fine tune the pgp (and hopefully that spyder project) if anyone has any suggestions I'd love to hear them.
